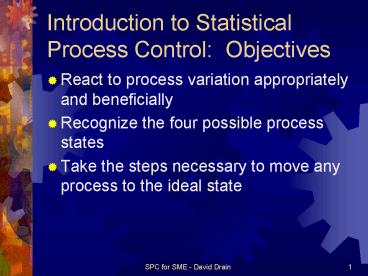

Introduction to Statistical Process Control

Objectives

- React to process variation appropriately and

beneficially - Recognize the four possible process states
- Take the steps necessary to move any process to

the ideal state

A Manufacturing Process

Process Parameter Targets

- There is some ideal value for any process

parameter - this is called the parameter target - A perfect process would always produce

measurements exactly on target

Specification Limits

- In addition to a target, process parameters often

have specification limits - Material with measurements outside of

specification limits has no value to the customer - Specification limits depend only on customer

requirements, and have nothing to do with actual

process performance - Determining realistic specification limits can be

a challenging task

Variation from Target

- Any variation from target is bad, and bigger

variations are worse than smaller variations - The purpose of a process control system is to

keep the process running on target - Prevent variation from target
- Minimize variation from target
- Do all of this economically

The Two Kinds of Variation

- Variation in industrial processes falls into one

of two categories - Common cause variation
- Random in nature
- Happens all the time
- Relatively small in magnitude
- Special Cause variation
- Has an assignable cause
- Usually rare
- Relatively large in magnitude

Common Cause Variation

- This type of variation occurs in all processes -

it cannot be eliminated without making

fundamental changes in the process - Attempting to adjust the process to reduce common

cause variation is tampering - this actually

increases variation from target

Tampering

- Drive from Phoenix to Tucson and keep your speed

between 74.5 and 75.5 mph - Step on the brake if your speed exceeds 75.5
- Step on the gas if your speed falls below 74.5

Stable Processes

- Only common cause variation is seen
- Outputs show the same pattern and range over time
- Most stable processes are normally distributed

Control Limits

- Control limits are computed from observation of a

stable process - A stable process will almost always (99.7 of the

time) run inside the control limits

Special Cause Variation

- Special cause variation is the result of some

assignable cause - Special cause variation might indicate a serious

qualitative change in the process - Special cause variation is often persistent, so

failing to react quickly will allow more material

to be produced far from target - Reaction Find the assignable cause, eliminate

it, and restore the process to stability

Unstable Processes

- Special causes regularly influence unstable

processes

Stable Processes Are More Profitable

- They produce better products, and less scrap
- They take less work to maintain
- Output schedules are more predictable
- They transfer less variation to following

processes

Components of a Process Control System (PCS)

- Take some measurements
- Summarize measurements
- Plot summarized measurements on a control chart

appropriate to the process - Use decision rules to decide if the process is

unstable - React uniformly and beneficially if special

causes are observed

An Example Process Control System

- A gate oxide process is targeted to grow 225

Angstroms of silicon dioxide on each of 150

wafers in

a load

Measurements

- Three wafers

from each load are measured on the Nanospec - Wafers are chosen from the same locations in the

load every time this facilitates

troubleshooting - Many wafers in the load are not measured

Calculations

- The average thickness is computed - this is

called X-bar - The range of the thicknesses is also computed

Control Chart

- Two control charts are actually used - one for

X-bar, and one for the range - Control limits for the X-bar chart are set at 207

and 243

Trend Rules

- Five rules are used for the X-bar chart
- One point outside of 207 or 243
- Two of three successive points outside 237
- Two of three successive points outside 213
- Four of five successive points outside 231
- Four of five successive points outside 219
- Someone can beneficially react to a violation of

any of these rules

Response Flow

- The response flow is a programmed set of actions

for the operator to take when the process appears

to be unstable - The order of the actions is chosen to lead to the

source of the problem quickly - The response flow should usually allow the

operator to fix the process without engineering

intervention - Everybody uses the same response flow, every time

Four Types of Process

- All processes can be categorized as one of four

types - Ideal
- Promising
- Treacherous
- Turbulent
- Different types require different actions
- Engineers should strive to move all processes to

the ideal state

Ideal Process

- A stable process
- Almost always produces material within

specification limits

Reaction to an Ideal Process

- Use a process control system to maintain this

process - Do not tamper with the process

Promising Process

- A stable process
- Produces a significant amount of material outside

specification limits

Reaction to a Promising Process

- Use dispositioning to keep bad material from

leaving the factory - Do not tamper with this stable process
- If the process is off-target
- move it to target - this is often an easy fix
- If the process mean is centered
- Then process variation is too large
- Reduce process variation - a more difficult fix,

often requiring equipment or process changes

Treacherous Process

- An unstable process
- By luck, it usually produces material within

specification limits

USL

UCL

Target

LCL

LSL

Reaction to a Treacherous Process

- Install a process control system to stabilize the

process - This will reduce variation from target, and

improve the quality of products received by the

customer - Failing to react to this type of process is

dangerous the process could stray outside of

specification limits

Turbulent Process

- An unstable process
- Often produces material outside of specification

limits

Reacting to a Turbulent Process

- Use product dispositioning
- Stabilize the process
- Make this a promising process
- Improve to an ideal process from there
- The process must be stabilized before it can be

improved - An unstable process is very difficult to keep on

target, so the route to the ideal process must

include a stop at the promising process

Benefits of Process Control Systems

- More money for the manufacturer
- Less scrap, more productive equipment
- Better quality for the customer
- Less stress for the engineer
- Less time spent troubleshooting
- More satisfying job for the operator
- Never asked to tamper with the process
- They can resolve most problems themselves

Costs of Process Control Systems

- Measurement equipment
- Trained people to make measurements
- Automation resources if desired
- Management review and reinforcement

SPC for Variables Data

- Control charts for variables
- X-bar
- S
- Chart for individuals
- Moving range chart

The X-Bar Chart Usage

- Averages of a set of measurements taken at the

same time are plotted - Average of six thickness measurements from a

diffusion process - Average of 32 CD measurements
- The same number of measurements is taken each

time - Averages are plotted in time order

X-Bar Chart Appearance

X-Bar Chart Centerline

- The centerline (CL) is the process average, often

called X-bar-bar - This might not be the process target
- The target is where you want the process to run,

the centerline is where it actually runs - If these happen to coincide, or if correction to

target is easy and routine, the centerline may be

the target

X-Bar Chart Control LimitsA Nontraditional Method

- Control limits are fixed at three standard

deviations of the means from the centerline

The data must be taken from a stable process

X-Bar Chart Control LimitsThe Traditional Method

- Take samples in a rational subgroup
- Measurements likely to exhibit only common cause

variation, and unlikely to exhibit special cause

variation - Base control limits on the average range of these

measurements

Comparison of Methods

- The non-traditional method seems to be necessary

in a batch-processing environment - Rational subgroups are within-batch, and do not

exhibit typical common cause variation - Control limits by the traditional method are much

too tight

Sampling Distribution of X-Bar

- If random variables are normally distributed with

the same mean and standard deviation - Then means of n such random variables are also

normally distributed, but with smaller s

The Central Limit Theorem

- Means taken from almost any distribution tend to

be normally distributed

n1

n5

n10

X-Bar Chart Effectiveness

- False alarm rate (a risk) is 0.30
- The probability of detecting a process shift of a

defined size is b risk - The average time to detection of a process shift

is the average run length - ARL and b risk can be decreased with the use of

trend rules, but at the cost of false alarms

X-Bar Chart Beta Risk

- b risk is given in Table 6-2 for sudden shifts

measured in terms of the standard deviation of

the process - A process has a s of 32
- You want a 90 chance of detecting a sudden shift

of 47 in the first sample after the shift - This is about 1.5 standard deviations
- The sample size must be at least 8

Average Run Length for the X-Bar Chart

- The ARL is the average number of samples after a

sudden shift until a point would be outside the

control limits.

ARL Application

- With process s of 32, the average run length of

detecting a sudden shift of 20 with samples of

size 8 is 10

Additional Lines on the X-Bar Chart

2s

1s

-1s

Trend Rules

- Trend rules reduce b risk, but they must be

chosen carefully - Every additional trend rule adds a risk
- The operator must be able to react beneficially

to a trend rule violation - Some trend rule violations are difficult to see,

so automation or intensive training may be needed

WECO Rules

- One point outside of 3s
- Two of three points outside the same 2s line
- Four of five points outside the same 1s line
- Eight points in a row on one side of the

centerline

(No Transcript)

(No Transcript)

Range Chart

- The range (R) chart is often used in conjunction

with an X-bar chart to monitor within-group

variation

S-Chart

- The S-chart will detect abnormal variation within

a subgroup - Sample standard deviations are plotted
- It should be used anywhere an X-bar chart is used
- The R-chart (range chart) is a more traditional

choice, but is less effective

(No Transcript)

Control Limits for the S Chart

- Table 6-5 gives limits and trend rule lines which

will give about 1 false alarms. - Limits are based on an estimate of within-group

standard deviation - Traditional limits will differ from these

(No Transcript)

SPC for Attributes Data

- Charts for number of defective units
- np (fixed number of units sampled)
- p (varying number of units sampled)
- Charts for number of defects
- c (fixed area inspected)
- u (varying area inspected)

p Chart for Proportion of Defective Units

- Exactly like an np chart, but the number of units

sampled varies - The number of units sampled should not depend on

the number of defective units observed - Control limits depend on the number of units

sampled - people really hate this

(No Transcript)

- A sample of die are inspected every day after

wafer sort to check for probe damage - each die

is classified as damaged or not damaged. The

number of die inspected varies from day to day.

Control Limits for the p Chart

p-bar is 0.0717, so the UCL for the first sample

is

Does the first sample indicate an OOC process?

SPC Implementation

- Process control evolution
- Deciding what to measure
- Choose an effective sampling scheme
- Choose the right control charts
- Collect initial data
- Compute control limits and assess stability

Key Product Characteristics

- Key product characteristics are those few

measurable things vitally important to your

customers - Voltage threshold, package dimensions
- These are often called output parameters
- Process control on only key product

characteristics is inefficient, but

dispositioning may be necessary

Key Process Parameters

- Key process parameters are those few important

influences on key product characteristics - These are the focus of process control
- Finding KPP for each KPC is an important part of

process characterization

Process Control Evolution

Decide What to Measure Select Key Process

Parameters

- How much does it influence a KPC?
- Does it routinely vary?
- Is there a propensity for excursions?
- Can you control it?
- Can you measure it, and before bad material is

made? - Does it transmit variance to other KPP?

Sample Design

- Sample often enough and intensely enough to

detect important events - An analysis of process history can help you

anticipate which types of events to expect - Sampling at fixed locations or times may enhance

troubleshooting - Simulation is often used to evaluate sampling

plans

Control Chart Selection

- Control charts appropriate for most situations

are given in Table 6-3 - Several control charts can be produced from the

same set of measurements - X-bar chart
- S-chart for within-lot standard deviation
- S-chart for within-wafer uniformity

SPC Implementation in the Factory

- SPC Elements
- Measurements
- Calculations
- Control Charts
- Trend Rules
- Troubleshooting
- SPC maintenance and improvement

Measurements

- Failure to take measurements is the most common

reason for SPC failure - People need to know how and when to take the

measurement - Measurement must be part of the written

specification for their job - There should be rewards for taking the

measurements, and punishment for failing to take

the measurements

Calculations

- Automate all calculations if possible
- Make calculations easy and intuitive
- Dont ever expect anyone to calculate a standard

deviation - even with a calculator - Have the operators design data entry spreadsheets

Control Charts

- Automate if possible, but even automated charts

must be readable and accessible - Make the rules clear
- Is on the line in or out?
- Do they have to circle the last point in a trend

rule violation? - Audit and reward good performance

Trend Rules

- Do more good than harm Use trend rules only

when you can react beneficially to them - Troubleshooting is determined for each rule

violation - Reaction and adjustment does not upset the

process - It is better to start with a few rules than with

many

Response Flows (OCAP)

- A response flow should allow the operator to fix

the process 75 of the time - Call Engineering is a last resort (at the end

of the response flow) - Involve the operators in writing the response

flow, and respond quickly to their requests for

improvements

SPC Maintenance and Improvement

- A process control system is itself a process, and

some process monitors have been developed

Specification Limits

- Hard limits determined by customer
- Material inside the limits is good
- Material outside the limits is bad
- Cpk is an index used to relate process

performance to ability to specification limits - Originally formulated for normally-distributed

processes with two-sided specification limits

(No Transcript)

Cpk and Percent OOS

- If the data is normally distributed and there are

two-sided specification limits, then there is a

simple correspondence between Cpk and the percent

of material out of specification

Cpk Is Often Misused

- Cpk is applied to non-normally distributed data -

probability interpretations no longer apply here - Cpk is applied to processes with one-sided

specification limits - A process can run far off target, but with small

variance, and still have good Cpk

Step Function Loss

- The use of specification limits for product

screening assumes a step function loss

Quadratic Loss

- Taguchi (and others) recognized that step

function loss was unrealistic, and proposed

quadratic loss

Upside-Down Normal Loss

- Bounds the loss between zero and one
- Recognizes that fact that all material too far

from target is equally bad, and is adjustable - Has very useful mathematical properties
- Bounded and infinitely differentiable
- Easy closed-form solution for expected value with

normally distributed processes - Extends to multivariate case with ease

(No Transcript)

(No Transcript)

- UDN is exactly the upside-down probability

density function for the normal distribution - t is process target, l is a scale parameter
- Larger l gives a less sensitive loss function
- Use actual loss data to choose l, or scale l to

give 50 loss at a specification limit

Expected Loss

- If the process is normally distributed with mean

m and standard deviation s, then the average loss

from that process will be

Comparison of Cpk and ELUDN

- The expected loss punishes deviation from

target, even if the process standard deviation is

small - Expected loss can also be computed for other

underlying distributions, so is not dependent on

the assumption of process normality

Specification limits are at /- 3

EL0.693, Cpk0.50

EL0.773, Cpk1.00

Extensions to Simple UDNLF

- Asymmetric UDNLFs have similar properties, and

formulae for expected values exist - Any form of distribution can be used for the

process, but numerical integration may be

required for expected value - All UDNLF properties extend easily to MUDNLF,

where correlations between process variables can

have interesting consequences - For more information, see David Drain and Andrew

M. Gough, Applications of the Upside-Down Normal

Loss Function, IEEE Transactions on

Semiconductor Manufacturing,Vol. 9, No. 1,

February 1996

Common Errors in the Application of SPC

- Tampering
- In control, but off-target
- Single set of limits
- Control limits never reset
- Confusing specifications with control limits
- Attributes used instead of variables
- Charting output parameters
- Ineffective response plans
- Misuse of capability indices
- Charts on special causes

Tampering

- Also called over-adjustment, or

over-controlling - A common error with ambitious young engineers
- Tight control limits or too many trend rules are

evidence of systematic tampering - Effects are well-documented
- Operator frustration and distrust in SPC
- Increased variation from target

In Control, but Off-Target

- Often seen in stable processes which are not

receiving sufficient attention - usually only the

3-sigma rule is being applied - Easily detected by loss function computation or

trend rule usage - Effects
- Short-term inferior products
- Long-term drift from target - an unintentional

process change. Readjusting to target later can

be risky

Single Set of Limits for a Fleet of Equipment

- Engineers often try to apply the same control

limits to a set of similar equipment - The equipment should all be the same
- More convenient to use a single set of limits
- This allows all pieces of equipment to perform at

the lowest performance level for the fleet - Some equipment runs off-target forever
- Large variation is tolerated where it is not

necessary

Control Limits Never Reset

- Simple lack of attention causes this
- Control limits should be periodically examined

and reset when - There is a process change
- The limits conflict with actual process

performance - If limits are too tight, excessive false alarms

undermine confidence in the system - If limits are too loose, an opportunity for

process improvement is lost

Confusing Specification and Control Limits

- Specification limits reflect customer desires,

but do not necessarily have any relation to where

the process actually runs - Using specification limits for control limits

defeats every purpose of SPC - Tampering occurs if the limits are too tight
- Ignoring occurs if the limits are too loose

Charting an Attribute when Variables Data is

Available

- Variables data is inherently superior to

attribute data - Smaller samples required for the same quality of

decision - Usually better measurement capability
- More likely to be associated with causes of

observed variation - Attribute data is often based on imprecise visual

assessments - High inter-evaluator variability
- Fatigue and pressure influence measurement quality

Control Charts for Output Parameters

- One of the first signs of an immature process

control system - Often a futile practice - once the material is

ruined, no reaction is effective to prevent the

event - To improve this situation
- Find the key process parameters which influence

important output paramters - Install true SPC on these parameters

Ineffective Response Plans

- A response plan (to out-of-control) should be

effective at least 75 of the time it is used - A response plan should lead to the most probable

cause as quickly as possible - Improve the response plan
- Include new special cause sources
- Reorder activities to lead to a quicker

resolution - Eliminate extraneous measurements and work
- Involve the operators in response plan definition

Control Charts Applied when Every Event is a

Special Cause

- A control chart for the number of construction

fatalities at your site is futile - Every event is treated as a special cause -

nobody would refuse to react if the number of

fatalities was in control - The response to a fatality will not depend on the

number of fatalities that month - This is another case of reacting to an output

parameter - Find the key process parameters that control

fatalities, and control them instead

Misuse of Capability Indices

- The interpretation of Cpk for non-normal

parameters is not obvious - Cpk must be adapted for parameters with one-sided

specification limits - Cpk does not adequately punish off-target

performance

Advanced Statistical Process Control

- Exponentially weighted moving average charts
- Cusum charts
- Multivariate SPC
- Run-to-Run control
- Process oriented basis representations
- Profile analysis

EWMA Charts

- Plots a smoothed estimate of current performance

(zt) - Degree of smoothing is determined by l (usually

0.2 to 0.3) - Tables can be used to balance alpha risk and ARL
- EWMA charts are usually not very good at

detecting one-time jumps from target

Jump up 2.3s

Shift up .9s

Reset EWMA

Cumulative Sum Charts

- Best suited to a process where small shifts from

the target must be detected - The positive and negative cumulative sums of

differences from target (or mean) are plotted on

the same chart - Parameters (h,k) can be chosen from tables to

meet ARL goals

(No Transcript)

Multivariate SPC

- Process parameters

are often

correlated, and control charts on individual

parameters will not detect departures from the

typical process

Hotellings T Control Chart

- Plots a distance measure from the center for

the data that comprehends correlation between

variables. - Once an out of control is signaled, considerable

examination of the data may be necessary to

determine why that point was unusual

(No Transcript)

(No Transcript)

Principal component charts

- Linear combinations of the original variables are

chosen in a way that makes them uncorrelated - A few of these new variables can summarize most

of the variation in all the variables - BUT the original variables are still not

readily apparent when a component goes out of

control

Run to Run Control

- Use information from recent runs (batches, often)

to adjust the process for the next run - Some people call this tampering, but if done

correctly, the process can be kept closer to

target

Process Oriented Basis Representations

- Some linear combinations of multivariate

measurements are excellent indicators of

particular process problems - Find an (independent) set of such linear

combinations - Control chart these excursions indicate

specific problems rather than overall process

misbehavior

Profile Analysis

- The process outcome can be monitored by observing

the relationship between some set of measured

variables (Xs) and a response (Y). - Control charts on the slope and intercept are

simple examples of profile analysis

About PowerShow.com

PowerShow.com is a leading presentation/slideshow sharing website. Whether your application is business, how-to, education, medicine, school, church, sales, marketing, online training or just for fun, PowerShow.com is a great resource. And, best of all, most of its cool features are free and easy to use.

You can use PowerShow.com to find and download example online PowerPoint ppt presentations on just about any topic you can imagine so you can learn how to improve your own slides and presentations for free. Or use it to find and download high-quality how-to PowerPoint ppt presentations with illustrated or animated slides that will teach you how to do something new, also for free. Or use it to upload your own PowerPoint slides so you can share them with your teachers, class, students, bosses, employees, customers, potential investors or the world. Or use it to create really cool photo slideshows - with 2D and 3D transitions, animation, and your choice of music - that you can share with your Facebook friends or Google+ circles. That's all free as well!

For a small fee you can get the industry's best online privacy or publicly promote your presentations and slide shows with top rankings. But aside from that it's free. We'll even convert your presentations and slide shows into the universal Flash format with all their original multimedia glory, including animation, 2D and 3D transition effects, embedded music or other audio, or even video embedded in slides. All for free. Most of the presentations and slideshows on PowerShow.com are free to view, many are even free to download. (You can choose whether to allow people to download your original PowerPoint presentations and photo slideshows for a fee or free or not at all.) Check out PowerShow.com today - for FREE. There is truly something for everyone!

You can use PowerShow.com to find and download example online PowerPoint ppt presentations on just about any topic you can imagine so you can learn how to improve your own slides and presentations for free. Or use it to find and download high-quality how-to PowerPoint ppt presentations with illustrated or animated slides that will teach you how to do something new, also for free. Or use it to upload your own PowerPoint slides so you can share them with your teachers, class, students, bosses, employees, customers, potential investors or the world. Or use it to create really cool photo slideshows - with 2D and 3D transitions, animation, and your choice of music - that you can share with your Facebook friends or Google+ circles. That's all free as well!

For a small fee you can get the industry's best online privacy or publicly promote your presentations and slide shows with top rankings. But aside from that it's free. We'll even convert your presentations and slide shows into the universal Flash format with all their original multimedia glory, including animation, 2D and 3D transition effects, embedded music or other audio, or even video embedded in slides. All for free. Most of the presentations and slideshows on PowerShow.com are free to view, many are even free to download. (You can choose whether to allow people to download your original PowerPoint presentations and photo slideshows for a fee or free or not at all.) Check out PowerShow.com today - for FREE. There is truly something for everyone!

presentations for free. Or use it to find and download high-quality how-to PowerPoint ppt presentations with illustrated or animated slides that will teach you how to do something new, also for free. Or use it to upload your own PowerPoint slides so you can share them with your teachers, class, students, bosses, employees, customers, potential investors or the world. Or use it to create really cool photo slideshows - with 2D and 3D transitions, animation, and your choice of music - that you can share with your Facebook friends or Google+ circles. That's all free as well!

For a small fee you can get the industry's best online privacy or publicly promote your presentations and slide shows with top rankings. But aside from that it's free. We'll even convert your presentations and slide shows into the universal Flash format with all their original multimedia glory, including animation, 2D and 3D transition effects, embedded music or other audio, or even video embedded in slides. All for free. Most of the presentations and slideshows on PowerShow.com are free to view, many are even free to download. (You can choose whether to allow people to download your original PowerPoint presentations and photo slideshows for a fee or free or not at all.) Check out PowerShow.com today - for FREE. There is truly something for everyone!

For a small fee you can get the industry's best online privacy or publicly promote your presentations and slide shows with top rankings. But aside from that it's free. We'll even convert your presentations and slide shows into the universal Flash format with all their original multimedia glory, including animation, 2D and 3D transition effects, embedded music or other audio, or even video embedded in slides. All for free. Most of the presentations and slideshows on PowerShow.com are free to view, many are even free to download. (You can choose whether to allow people to download your original PowerPoint presentations and photo slideshows for a fee or free or not at all.) Check out PowerShow.com today - for FREE. There is truly something for everyone!

Recommended

«

/ »

Page of

«

/ »

Promoted Presentations

Related Presentations

Page of

Page of

CrystalGraphics Sales Tel: (800) 394-0700 x 1 or Send an email

Home About Us Terms and Conditions Privacy Policy Contact Us Send Us Feedback

Copyright 2016 CrystalGraphics, Inc. — All rights Reserved. PowerShow.com is a trademark of CrystalGraphics, Inc.

Copyright 2016 CrystalGraphics, Inc. — All rights Reserved. PowerShow.com is a trademark of CrystalGraphics, Inc.

The PowerPoint PPT presentation: "Introduction to Statistical Process Control: Objectives" is the property of its rightful owner.

Do you have PowerPoint slides to share? If so, share your PPT presentation slides online with PowerShow.com. It's FREE!

Committed to assisting Mst University and other schools with their online training by sharing educational presentations for free
