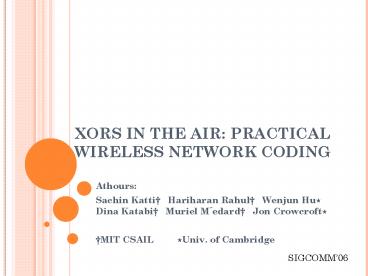

XORS IN THE AIR: PRACTICAL WIRELESS NETWORK CODING

1
XORS IN THE AIR PRACTICAL WIRELESS NETWORK CODING

• Athours
• Sachin Katti Hariharan Rahul Wenjun Hu?
  Dina Katabi Muriel Medard Jon Crowcroft?
• MIT CSAIL ?Univ. of Cambridge

SIGCOMM06
2
OUTLINE

• Motivation
• Methodology - COPE
• Opportunistic Coding
• Understanding COPSs gains
• Coding MAC gain
• Experimental Results
• Pros and Cons

3
MOTIVATION

• This paper proposes COPE, a new architecture for
  wireless mesh networks
• In addition to forwarding packets, routers code
  packets from different sources to increase the
  information content of each transmission
• COPE is run as a bundle layer between MAC layer
  and network layer
• This paper implements COPE on WiFi 802.11

4
MOTIVATION
5
MOTIVATION

• P1 01001 P2 10011
• gt P3 P1 xor P2 11010
• Alice P3 xor P1 10011 P2
• Bob P3 xor P2 01001 P1

6
METHODOLOGY - OPPORTUNISTIC CODING
7
METHODOLOGY - UNDERSTANDING COPSS GAINS

• (a) transmissions 4
• (b) transmissions 3
• gt Coding gain 4/3 1.33

8
METHODOLOGY - CODING MAC GAIN

• Assuming all nodes continuously have traffic to
  send
• Because it tries to be fair, the MAC divides the
  bandwidth equally between the 3 contending nodes
  Alice, Bob, and the router.

1.5K
3K
3K
1.5K
9
METHODOLOGY - CODING MAC GAIN

• Assuming all nodes continuously have traffic to
  send
• Because it tries to be fair, the MAC divides the
  bandwidth equally between the 3 contending nodes
  Alice, Bob, and the router.

1.5K
Received by Alice and Bob 3K
1.5K
1.5K
1.5K
10
METHODOLOGY - CODING MAC GAIN
Received by Alice and Bob 6K

• Coding MAC gain 6K/3K 2

3K
3K
3K
11
METHODOLOGY - GAIN

• Theoretical gains for a few basic topologies

Chain topology
X topology
Cross topology
Wheel topology
12
EXPERIMENTAL RESULTS TEST BED
20 nodes locations for two floor of the testbed
13
EXPERIMENTAL RESULTS - COPE IN GADGET TOPOLOGIES
TCP gain in the Alice-and-Bob topology
UDP gain in the Alice-and-Bob topology
14
EXPERIMENTAL RESULTS - COPE IN GADGET TOPOLOGIES
TCP gain in the X-topology
UDP gain in the X-topology
15
EXPERIMENTAL RESULTS - COPE IN GADGET TOPOLOGIES
TCP gain in the cross topology
UDP gain in the cross topology
16
EXPERIMENTAL RESULTS TESTBED

• COPE provides 38 increase in TCP goodput when
  the testbed topology does not contain hidden
  terminals

17
EXPERIMENTAL RESULTS TESTBED

• COPE can provide a several-fold (3-4x) increase
  in the throughput of wireless Ad hoc networks.
  Results are for UDP flows with randomly picked
  source-destination pairs, Poisson arrivals, and
  heavytail size distribution.

18
PROS

• COPE provides enhancement of throughput without
  too much extra coding overhead
• COPE can not only apply on WiFi, but also other
  MAC protocols, such as WiMax, sensor networks.
• COPE doesnt optimize power usage

CONS
