Personal Surgery: functional brain mapping and image guided neurosurgery

1

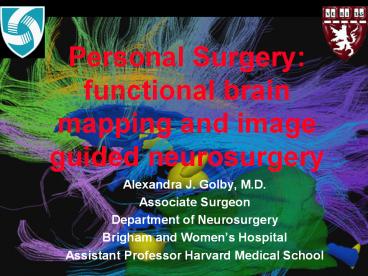

Personal Surgeryfunctional brain mapping and
image guided neurosurgery

• Alexandra J. Golby, M.D.
• Associate Surgeon
• Department of Neurosurgery
• Brigham and Womens Hospital
• Assistant Professor Harvard Medical School

2
Scultetus (1653)
3
Case Presentation

• Recurrent meningioma in posterior parietal
  region
• Adjacent to motor and visual areas
• Functional Brain mapping
• Define patients individual anatomy
• Inform surgical decision making

4
Functional divisions of the brain
5
Patients fMRI motor mapping
Hand clenching
Toe wiggling
6
fMRI Setup
7
Intra-operative visualization and functional
mapping
8
Cortical Mapping Annotation

• Track location of stimulation and recording
  points
• Represent gyral anatomy

a Brain Tag/Event Tree b Time Stamp RAS c
Stimulation settings d Sensory/ motor/language
Events
9
Diffusion tensor imaging

• Water proton diffusion is facilitated parallel to
  fibers and restricted perpendicular
• Trajectory and location of white matter tracts
  can be detected by means of anisotropic diffusion
  tensor imaging

10
Intraoperative visualization of white matter
anatomy
11
Automatic Segmentation of Meningioma
12
Use 3D Slicer to Magnify Tumor Region
Image shows 2nd MR scan of patient while the
tumor of first scan is shown in red
13
Follow Tumor Growth in 3D
Tumor in 1st Scan and 2nd Scan
14
Surgical Planning and Intra-operative Decision
Making
15
MRI-Guided thermal tissue ablation
16
Functional brain mapping Conclusions and future
directions

• fMRI and DTI can provide neurosurgeons with
  valuable pre-operative information
• Combining multi-modality approach to maximize
  information
• Pre-operative planning and intra-operative
  decision making
• Predict post-operative outcomes and avoid
  neurologic injury
