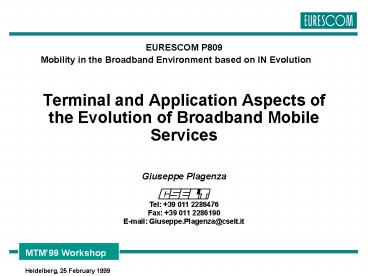

Terminal and Application Aspects of the Evolution of Broadband Mobile Services

1
Terminal and Application Aspects of the Evolution
of Broadband Mobile Services

• EURESCOM P809
• Mobility in the Broadband Environment based on IN
  Evolution

Giuseppe Plagenza Tel [phone] Fax 39
011 2286190 E-mail Giuseppe.Plagenza_at_cselt.it
2
Goals

• To investigate terminal development in relation
  to the introduction of broadband mobile
  multimedia services
• To review the communications and application
  technologies associated with these new
  terminals

3
Terminal Requirements
1. The set of general-purpose requirements for
UMTS terminals needs extending 2. The resulting
set of requirements can be splitted into three
classes of features - Features related to the
use of IC cards - Features related to
applications - Features related to mobility
4
Use of IC cards

• Physical and functional interface between
  the terminal and the IC card
• Mechanisms to download information into
  the terminal
• Security for downloadable data and
  applications
• Standardized execution environment for
  downloadable services (e.g. MExE, SIM
  Application Toolkit)

5
Applications

• Identification of the terminal
  capabilities
• Support of the VHE while roaming
• External standardized functional
  interface (e.g. API)
• Availability of specific applications
• Capability to interface with specific
  devices
• Mechanisms to encode/decode video/audio
  streams
• Synchronization of media streams
• Standardized API to interact with the terminal
  (e.g. SIM Application Toolkit)

6
Mobility Requirements

• Registration/deregistration to SP and NO
• Location update
• Connection oriented or connectionless services
• Unalterable equipment identification
• Emergency calls even without a USIM
• Authentication and encryption mechanisms
• Handover
• Different access modes (e.g. DECT, GSM-900,
  GSM- 1800, GPRS-900, GPRS-1800, UMTS FDD CDMA,
  UMTS TDD CDMA)

7
Security Aspects

• Goals
• Confidentiality
• Integrity
• Availability
• Legitimacy
• Accountabilities

• Solutions
• Authentication
• Access priorities
• Ciphering
• Different policies
• Recovery from viruses

8
Client-Server Framework
9
WAP Services
WMLBrowser
INTERNET INTRANET
10
SIM Application Toolkit

• It permits to exploit the computational power
  and the memory of SIM cards
• SIM cards can start actions that will be
  executed by the terminal (sending of SMs, call
  control, menu management, access to local
  information, etc.)
• Download over the air of data and applications
  (e.g. via SMS)
• Example of client-server application based on
  the SIM Application Toolkit

TCP/IP
TCP/IP
SMS
11
Add-on VideoConference
12
Evolution Scenario
