Diameter Maintenance and Extensions (DIME)

1

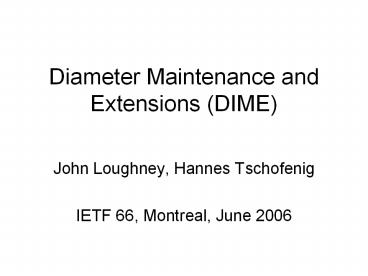

Diameter Maintenance and Extensions (DIME)

• John Loughney, Hannes Tschofenig
• IETF 66, Montreal, June 2006

2
Note Well

• Any submission to the IETF intended by the
  Contributor for publication as all or part of an
  IETF Internet-Draft or RFC and any statement made
  within the context of an IETF activity is
  considered an "IETF Contribution". Such
  statements include oral statements in IETF
  sessions, as well as written and electronic
  communications made at any time or place, which
  are addressed to-the IETF plenary session,-any
  IETF working group or portion thereof,-the IESG
  or any member thereof on behalf of the IESG,-the
  IAB or any member thereof on behalf of the
  IAB,-any IETF mailing list, including the IETF
  list itself, any working group or design team
  list, or any other list functioning under IETF
  auspices,-the RFC Editor or the Internet-Drafts
  functionAll IETF Contributions are subject to
  the rules of RFC 3978 and RFC 3979. Statements
  made outside of an IETF session, mailing list or
  other function, that are clearly not intended to
  be input to an IETF activity, group or function,
  are not IETF Contributions in the context of this
  notice.
• Please consult RFC 3978 for details.

3
Administrative Stuff

• Blue Sheets!
• Minute Taker?
• Jabber Scribe?

4
Agenda (1/2)

• 1) Agenda Bashing/Status Report
• Presented by the chairs
• 5 min.
• 2) Diameter Base Issues
• Open Issues
• Presented by ext Victor Fajardo
• 20 minutes
• URI schemes for AAA Protocols
• http//www.ietf.org/internet-drafts/draft-garci
  a-dime-aaa-uri-00.txt
• Presented by Miguel Garcia
• 10 min.
• 3) Diameter Mobile IPv6 Application
• http//www.ietf.org/internet-drafts/draft-ietf-
  dime-mip6-integrated-00.txt
• http//www.ietf.org/internet-drafts/draft-ietf-
  dime-mip6-split-00.txt
• Presented by TBD

5
Agenda (2/2)

• 4) Diameter Quality of Service
• http//www.ietf.org/internet-drafts/draft-tscho
  fenig-dime-diameter-qos-00.txt
• Presented by TBD
• 15 min.
• 5) New Work
• DCCA BASE MIBs
• http//www.ietf.org/internet-drafts/dime/draft-
  zorn-dime-diameter-cc-app-mib-00.txt
• http//www.ietf.org/internet-drafts/draft-zorn-
  dime-diameter-base-protocol-mib-00.txt
• Presented by Glen Zorn
• 10 min.
• Requirement for the addition of Auditing
  Functionality to Diameter
• http//www.ietf.org/internet-drafts/draft-bodin
  -dime-auditing-reqs-00.txt
• Presented by Avri Doria
• 10 min.
• Diameter Routing Extensions

6
Diameter Interop Report (1/3)

• Host Ulticom
• Date April 24-28, 2006
• Meeting Minutes
• http//www.tschofenig.com/dime-interop-2006/meetin
  g-minutes.txt
• Participants
• BEA Systems
• Cisco Systems
• IBM
• Digital Route AB
• Ericsson AB
• IntelliNet Technologies India Private Limited
• Lucent Technologies
• Motorola India Electronics Pvt Ltd
• Nokia Networks
• Openet Telecom
• Siemens AG
• Toshiba America Research
• Ulticom

7
Diameter Interop Report (2/3)

• Tests covered
• Diameter Base Protocol
• Diameter Credit Control
• Diameter NASREQ
• Diameter Accounting
• 3GPP specs
• TLS
• 5 companies provided TLS support
• Complicated due to certificate format problems
• SCTP
• 2 companies supported SCTP
• No problems
• We couldnt get Diameter EAP tests working
  properly.
• We used the scenarios from draft-fajardo-dime-inte
  rop-test-suite-00.txt to perform most of the
  tests.

8
Diameter Interop Report (3/3)

• YImplemented/Tested
• IImplemented/Not Tested
• NNot Implemented
• NANot Available
• 3.1.1.1 Capabilities Negotiation13 Y
• 3.1.1.2 Election 9 Y, 3 I, 1 N
• 3.1.1.3 Disconnection 13 Y
• 3.1.1.4 Re-Connection Algorithms12 Y, 1 I
• 3.1.1.5 Failover and Failback 3 Y, 6 I, 4 N
• 3.1.2.1 Peer Based Request Routing 7 Y, 2 I, 3
  N, 1 NA
• 3.1.2.2 Realm Based Routing 7 Y, 3 I, 2 N, 1 NA
• 3.1.2.3 Answer Message Routing 9 Y, 1 I, 2 N, 1
  NA
• 3.1.2.4 Loop Detection 5 Y, 4 I, 4 N
• 3.1.3 (Relay Support) 6 Y, 6 N, 1 NA
• 3.1.3 (Proxy Support) 1 Y, 2 I, 9 N, 1 NA
• 3.1.3.1 Redirection 1 Y, 2 I, 10 N
• 3.2.1.1 Connectivity and Peering - General
  Statemachine 6 Y, 5 I, 2 N
• 3.2.1.2 Connectivity and Peering - Dynamic Peer
  Discovery 1 I, 12 N

9
Next Interop?

• There was substantial interest at the Interop
  Event to schedule another event.
• Is there interest from other working group
  members as well?
• IntelliNet Technologies has volunteered to host
  towards the end of the year.
