Cross-layer Analysis for detecting Wireless Misbehavior

1

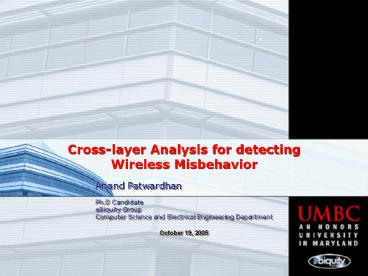

Cross-layer Analysis for detecting Wireless
Misbehavior
Anand Patwardhan Ph.D Candidate eBiquity
Group Computer Science and Electrical Engineering
Department
October 19, 2005
2
Securing MANETs

• Security for resources
• Malicious behavior (Activity monitoring)
• Misuse (Resource protection)
• Response/recourse (Accountability)
• Trust in other resources
• Dependence on recommendations (Identities and
  Reputations)
• Reliability of information

3
Security Issues

• Wireless communication
• Short range (802.11, Bluetooth etc.)
• Open medium
• Identification and Authentication
• PKI based solutions infeasible
• No prior trust relationships
• Routing
• Based on dynamic cooperative peer relations
• Key to survival of MANET
• Device constraints
• Power Conservation
• Finite Storage
• Computation power

4
Intrusion Detection Challenges

• Identity
• Use SUCVs
• Mobility, congestion, radio interference
• False positives
• Scalability
• Large radio-ranges or dense networks
• Aggregation of data
• Communicate intrusions data to warn others

5
Packet Forwarding
6
Stateful Packet Monitoring
7
Threats

• MAC/PHY level attacks
• RTS, CTS attacks gain unfair share of
  bandwidth, disruption
• Routing attacks
• gray holes, black holes, worm holes
• Attacks on data traffic
• Dropping, mangling or injecting data packets
• Trustworthiness of resources, reliability of
  information
• Identities, reputations, trust evolution

8
MAC vulnerabilities

• Wireless Misbehavior
• MAC protocols have no inbuilt mechanism to
  prevent unfair contention resolution
• Adversaries can
• gain unfair share of bandwidth
• temporarily stall parts of the network, affect
  the routing process
• Prevention
• Misbehavior-resilient backoff for contention
  resolution
• Challenges and shortcomings
• Require core MAC protocol to be changed
• Colluding adversaries can still subvert the
  scheme

9
Related Work

• Proposed approaches
• Game theoretic models
• Incentives for fair-sharing
• Misbehavior resistant MAC contention
• Drawbacks
• Colluding adversaries can subvert these schemes
• Require changing core MAC protocol
• Inefficient
• Cannot prevent jamming

10
Sophisticated attacks

• Classical attacks are easy to detect using
  thresholds
• Packet dropping, mangling,misrouting etc.
• To evade detection attacker must stay under the
  detection threshold (insignificant disruption)
• However more sophisticated attacks are possible
• Launching attacks at multiple levels, e.g.
  Combining RTS attacks and packet drops
• Any single attack signature might not suffice for
  detection
• Observations on a single layer in isolation will
  be inconclusive

11
Intrusion Detection challenges

• Classifying intrusions
• Threshold based
• False positives mobility, environmental
  conditions, limited radio range, short period of
  observations
• Increase accuracy and efficiency by
• Incorporate factors like mobility, congestion and
  distance in classifying intrusions
• Use signal strengths, response times to judge
  distance
• Monitor media contention and incoming traffic to
  judge congestion

12
Cross-layer Analysis
Trust evolution, reputation management, recourse
Intrusion Detection
Application
Commendations Accusations (to other devices)
Packet dropping, Mangling, injection
Transport
Routing attacks, disruptions
Link
Unfair contention, Jamming
MAC/PHY
Response
13
Neighbor table size
14
True positives (no RTS attack)
15
True positives (RTS attack)
16
Goodput with RTS attacks
17
References

• Jim Parker et al., Cross Layer Analysis for
  Detecting Wireless Misbehavior, Proceedings of
  CCNC 2006
• Anand Patwardhan et al., "Active Collaborations
  for Trustworthy Data Management in Ad Hoc
  Networks", Proceedings of the 2nd IEEE
  International Conference on Mobile Ad-Hoc and
  Sensor Systems, November 2005
• Anand Patwardhan et al., "Secure Routing and
  Intrusion Detection in Ad Hoc Networks",
  Proceedings of the 3rd International Conference
  on Pervasive Computing and Communications, March
  2005
• Jim Parker et al., "On Intrusion Detection in
  Mobile Ad Hoc Networks", 23rd IEEE International
  Performance Computing and Communications
  Conference -- Workshop on Information Assurance ,
  April 2004
