Cluster Computing with Java Threads

1

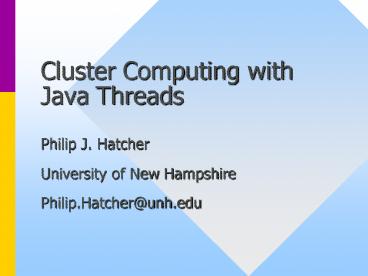

Cluster Computing with Java Threads

• Philip J. Hatcher
• University of New Hampshire
• Philip.Hatcher_at_unh.edu

2
Collaborators

• UNH/Hyperion
• Mark MacBeth and Keith McGuigan
• ENS-Lyon/DSM-PM2
• Gabriel Antoniu, Luc Bougé and Raymond Namyst

3
Focus

• Use Java as is for high-performance computing
• support computationally intensive applications
• utilize parallel computing hardware

4
Outline

• Our Vision
• Java Threads
• The PM2 Run-time Environment
• Hyperion Java Threads on Clusters
• Evaluation
• Related Work
• Conclusions

5
Why Java?

• Soon to be ubiquitous!
• use of Java is growing very rapidly
• Designed for portability
• develop programs on your desktop
• run programs on a distant cluster

6
Why Java?

• Explicitly parallel!
• includes a threaded programming model
• Relaxed memory model
• consistency model aids an implementation on
  distributed-memory parallel computers

7
Unique Opportunity

• Use Java to bring parallelism to the masses
• Lets not miss it!
• But, programmers will not accept syntax or model
  changes

8
Open Question

• Parallelism via Java access to distributed-computi
  ng techniques?
• e.g. RMI (remote method invocation)
• Or, parallelism via Java threads?

9
That is, ...

• Does a user prefer to view a cluster as a
  collection of distinct machines?
• Or, does a user prefer to view a cluster as a
  black box that will simply run Java code faster?

10
Are you in a box?
11
Or, are you thinking outside of the box?
12
Climb out of the box!

• Use Java threads as is to program clusters of
  computers.
• Program for the threaded Java virtual machine.
• Allow the implementation to handle the details of
  executing in a cluster.

13
Java Threads

• Threads are objects.
• The class java/lang/Thread contains all of the
  methods for initializing, running, suspending,
  querying and destroying threads.

14
java/lang/Thread methods

• Thread() - constructor for thread object.
• start() - start the thread executing.
• run() - method invoked by start.
• stop(), suspend(), resume(), join(), yield().
• setPriority().

15
Java Synchronization

• Java uses monitors, which protect a region of
  code by allowing only one thread at a time to
  execute it.
• Monitors utilize locks.
• There is a lock associated with each object.

16
synchronized keyword

• synchronized ( Exp ) Block
• public class Q synchronized void put()


17
java/lang/Object methods

• wait() - the calling thread, which must hold the
  lock for the object, is placed in a wait set
  associated with the object. The lock is then
  released.
• notify() - an arbitrary thread in the wait set of
  this object is awakened and then competes again
  to get lock for object.
• notifyall() - all waiting threads awakened.

18
Shared-Memory Model

• Java threads execute in a virtual shared memory.
• All threads are able to access all objects.
• But threads may not access each others stacks.

19
Java Memory Consistency

• A variant of release consistency.
• Threads can keep locally cached copies of
  objects.
• Consistency is provided by requiring that
• a thread's object cache be flushed upon entry to
  a monitor.
• local modifications made to cached objects be
  transmitted to the central memory when a thread
  exits a monitor.

20
PM2 A Distributed, Multithreaded Runtime
Environment

• Thread library Marcel
• User-level
• Supports SMP
• POSIX-like
• Preemptive thread migration

• Communication library Madeleine
• Portable BIP, SISCI/SCI, MPI, TCP, PVM
• Efficient

21
DSM-PM2 Architecture

• DSM comm
• send page request
• send page
• send invalidate request
• DSM page manager
• set/get page owner
• set/get page access
• add/remove to/from copyset
• ...

DSM-PM2
PM2
22
DSM-PM2 Performance

• SCI cluster has 450 MHz Pentium II nodes
• Myrinet cluster has 200 MHz Pentium Pro nodes

23
Hyperion

• Executes threaded Java programs on clusters.
• Built on top of PM2 and DSM-PM2.
• Provides both portability and efficiency

24
Reversing the Bytecode Stream

• Conventionally, users pull bytecode to their
  machines for local execution.
• Our vision
• users develop their high-performance Java
  programs using the Java toolset on their desktop.
• they then push the resulting bytecode to a
  Hyperion server for high-performance cycles.

25
Supporting High Performance

• Utilizes a bytecode-to-C translator.
• Parallel execution via spreading of Java threads
  across nodes of the cluster.
• Java threads implemented as lightweight threads
  using PM2 library.

26
Compiling Java

• Hyperion designed for computationally intensive
  applications, so small overhead of translating
  bytecode is not important.
• Translating to C allows us to leverage the native
  C compiler and optimizer.

27
General Hyperion Overview
Runtime libraries
28
The Hyperion Run-Time System

• Collection of modules to allow plug-and-play
  implementations
• inter-node communication
• threads
• memory and synchronization
• etc

29
Hyperion Internal Structure
30
Thread and Object Allocation

• Currently, threads are allocated to processors in
  round-robin fashion.
• Currently, an object is allocated to the
  processor that holds the thread that is creating
  the object.
• Currently, DSM-PM2 is used to implement the Java
  memory model.

31
Hyperions DSM API

• loadIntoCache
• invalidateCache
• updateMainMemory
• get
• put

32
DSM Implementation

• Node-level caches.
• Page-based and home-based protocol.
• Log mods made to remote objects.
• Use explicit in-line checks in get/put.
• Each node allocates objects from a different
  range of the virtual address space.

33
Details

• Objects are aligned on 64-byte boundaries.
• An object reference is the address of the base of
  the object.
• The bottom 6 bits of the ref can be used to store
  the node number of the objects home.

34
More details

• loadIntoCache checks the 6 bits to see if an
  object is remote.
• If so, and if not already locally cached, DSM-PM2
  is used to load the page(s) containing the
  object.
• When a remote object is cached, a bit is turned
  on in its header.

35
Yet more details

• The put primitive checks the header bit to see if
  a modification should be logged.
• updateMainMemory sends the logged changes to the
  home node.

36
Evaluation

• Minimal-cost map-coloring application.
• Branch-and-bound algorithm.
• 64 threads, each with its own priority queue.
• Current best solution is shared.
• Problem size 29 eastern-most states of USA with
  4 colors of differing costs.

37
Experimental Setting

• Two Linux 2.2 clusters
• eight 200 MHz Pentium Pro processors connected by
  Myrinet switch and using MPI over BIP.
• four 450 MHz Pentium II processors connected by a
  SCI network and using SISCI.
• gcc 2.7.2.3 with -O6

38
Performance Results
39
Parallelizability
40
Baseline Performance

• Compared serial Java to serial C for map-coloring
  application.
• Each program has single queue, single thread.

41
Serial Java versus Serial C

• Java v2 DSM checks disabled
• Java v3 DSM and array-bound checks disabled
• Executing on a single 450 MHz Pentium II

42
Inline checks are expensive!

• Genericity of DSM-PM2 allows an alternative
  implementation.
• Use page-fault detection rather than inline check
  to detect non-local object.

43
Using Page Faults details

• An object reference is the address of the base of
  the object.
• loadIntoCache does nothing.
• DSM-PM2 is used to handle page faults generated
  by the get/put primitives.

44
More details

• When an object is allocated, its address is
  appended to a list attached to the page that
  contains its header.
• When a page is loaded on a remote node, the list
  is used to turn on the header bit for all object
  headers on the page.
• The put primitive uses the header bit in the same
  manner as inline-check version.

45
Inline Check versus Page Fault

• IC has higher overhead for accessing objects
  (either local or locally cached).
• PF has higher overhead (signal handling and
  memory protection) for loading a page into the
  cache.

46
IC versus PF serial map-coloring

• Java XX v2 DSM checks disabled
• Java XX v3 DSM and array-bound checks disabled
• Executing on a single 450 MHz Pentium II

47
IC versus PF parallel map-coloring

• Executing on 450MHz/SCI cluster.

48
Related Work

• Java/MPI cluster nodes are explicit
• Java/RMI ditto
• Remote objects via RMI nearly transparent
• e.g. JavaParty, Do!
• Distributed interpreters
• e.g. Java/DSM, MultiJav, cJVM

49
Conclusions

• Approach is clean Java as is
• Approach is promising
• good parallelizability for map-coloring
• need better scalar compilation
• e.g. array bound-check removal
• need further parallel application studies
• are thread/object placement heuristics sufficient
  for programmers to write efficient programs?
