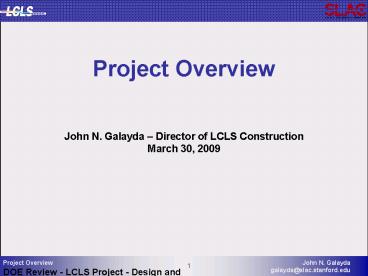

Project Overview

1
Project Overview

• John N. Galayda Director of LCLS Construction
• March 30, 2009

2
90 complete on TEC 1.5 XTOD 87 complete 1.6
XES 46 complete 1.9 CF 90 complete ANL 99
complete LLNL 90 complete
3
(No Transcript)
4
Observation of 3rd Harmonic, 1st Undulator
5
21 Undulators Installed
Enough to saturate at 1.5 A
6
X-Ray Transport/Optics/Diagnostics

• WBS 1.5 is gt87 complete
• LLNL scope gt90 complete
• Mask, Slits, Attenuator, Imager at SLAC
• K-mono tested at SSRL, in assy at LLNL
• Mirrors coated
• X-ray diagnostics online in May
• X-rays into Near Hall in July

5 mm collimator
Soft X-Ray Offset mirror system
Hard x-ray Monochromator (K Spectrometer)
Gas Detector
Solid Attenuator
Direct Imager
Pulse Energy Thermal Detector
Slit
Hard X-Ray Offset mirror system
Gas Attenuator
e-
Gas Detector
Start of Experimental Hutches
Muon Shield
7
LLNL Hardware Prepared for Delivery to SLAC
Gas Attenuator
8
Gas Attenuator Installation
9
XR Beam Path to Far Hall

• Hardware procurements underway at LLNL
• Stands for vacuum system
• Scope transfer from LLNL to SLAC
• Same design as Beam Transport Hall
• Bids received, 15 lower price
• Cabling bid package in preparation

10
Issues for the Summer

• Must get ready for experiment program
• John Arthur leading this effort
• Must get XR diagnostics and AMO installed
• Geoff Pile (ANL) spending the summer with us
• Must Commission XR systems in near hall
• Lining up reinforcements for this too.

11
Summer Look-Ahead

• Re-start linac 1 April
• Additional testing time for Personnel Protection
• Re-commission undulator e-beam systems
• Look for gain at 13.6 GeV
• Commission Front End XR Diagnostics 1 May
• Continue installation of Front End (mirrors, etc)
• Get AMO on the floor in July
• Commission AMO in August
• Users in September

12
PROJECT SAFETY EXPERIENCEThrough February 2009
DART Rate

• Total Project Hours
• 2.14 M Hours worked
• DART Rate 1.03
• SubContractors
• 594 K Hours worked
• DART Rate 3.03 (9 Incidents)
• TRC Rate 4.04 (3 Incidents)
• LCLS Collaboration
• 1,546 K Hours worked
• DART Rate 0.26 (2 Incidents)

Injury rates based on 200 K hours (100 man years)
of effort. DOE/SC Goal is a Reportable Case (TRC)
rate of lt 0.25 and a Days Away, Restricted, or
Transferred (DART) rate lt 0.65 per 100 FTEs.
13
From AMO to End of Project

• Build Far Hall Hutches
• Get ready for accelerated LUSI activities
• Execute Space Renovation
• Detect X-Rays in Far Hall
• Endgame

14
End of Presentation
