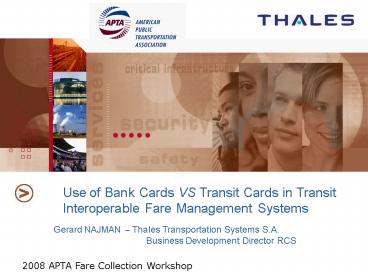

Use of Bank Cards VS Transit Cards in Transit
Interoperable Fare Management Systems
Gerard NAJMAN Thales Transportation Systems
S.A. Business Development Director RCS
2
Core objectives for the Transit Agencies

• Tangible improvements in customer service
• Allow any customer, occasional or unbanked, to
  travel
• Ease minimize purchase actions for customers
• Ease fare media validation improve speed and
  information displayed
• Manage customers claims in case of
  malfunctioning, lost or stolen card
• Fare Policy flexibility in a regional scheme
• Manage distance related fare systems as well as
  flat fare
• Provide the best fare to the customer, maybe
  through a combination of products
• Take into consideration the customers profile,
  and thus automatic concessions
• Operating and business efficiencies
• Reduce the cost of cash handling
• Reduce the cost of the sale channels
• Reduce the cost of fare evasion
• Reduce the cost of maintenance
• Transaction speed under the commonly requested
  250 ms
• Maximize passenger throughput to minimize dwell
  times (buses) gates (metro)
• Avoid risks of faulty transactions due to tearing
• Data security and customer privacy
• ? All these issues have been on discussion in the
  transit industry

3
Key milestones for the Contactless Fare Media
Systems in Transit and related standards

• 1992 First Smart Card system in Finland (Oulu)
  using Idesco card
• 1996 First large scale Smart Card system in
  Seoul (using Mifare 1 card)
• 1997 Octopus Card system in Hong Kong (using
  Sony FeliCa technology)
• These 2 large projects convinced the ISO to
  choose the 13,56 MHz frequency for the ISO 14443
  standard for Proximity Cards (PICC)
• 1998 Publication of the ISO 14443 Standard for
  PICC
• 2000 Launch by the CEN of the Standard
  Architecture for Interoperability
• 2002 Launch by APTA of the UTFS (Universal
  Transit Fare System) Standard
• 2004 Final approval of the CEN/TC278/WG3
  Standard Architecture
• 2004 Introduction of this Standard Architecture
  into UTFS and ISO
• 2007 Publication of the US CFMS (Contactless
  Fare Media Systems) Standard
• 2007 Publication of the ISO 24014-1 Standard
  Architecture
• All provisions are made to allow interoperability
  between heterogeneous systems

4
Trip Concepts Fare Policies in the Netherlands
5
Implementation of check-in / check-out in buses
as in the other transit means
Check-out
Main objective ensure payments and reduce
overrides
6
Daily Clearing Settlement Process
Clearing Operator (Clearing Settlement)
Transit Agencies (Settlement Reports Exception
Reports)
Transit Agencies (Transaction Data)
Central Clearing House System
7
Revenue Apportionment and Clearing
Revenue apportionment 2 modes
Repartition fee (y)
Clearing House

• Sales
• Sales usage

Agency 1
Bank account debit for product renew

Agency 2
Bank account debit for product renew
Agency 3
Sale fee (x)
Bank
Point of Sale


Money flow
Credit/debit card payment
Customer
Payment for service
8
Standard Interoperable Fare Management Framework
? ISO 24014-1
addresses the Transit Application not the Fare
Media
9
Transit Application Management
ISO 24014-1 IFM model
Application Owner
Product Owner
Application retailer
Application management
Product retailer
C Forwarding
Customer
Service Operator
10
Fare Media Management

• The Fare Media may be
• a Transit Card
• a Bank Card
• a Loyalty Card
• a NFC Mobile Phone
• etc

Card producer
Card retailer
Fare Media management
C Forwarding
Card
Service Operator
11
Contactless e-Payment main features in US

• These are best known through their brand names
• PayPass from MasterCard, PayWave from Visa,
  ExpressPay from AmEx.
• Worldwide, 2 different products related to
  national bank regulations
• Mag stripe alike in US ? on-line read only
  (bank data)
• EMV compliant in all other countries ? off-line
  data read only (bank other data)
• In US
• The bank card is identified and authenticated on
  site by its number and registered
• The applicable unit fare will be debited from the
  bank account and post-paid to the Transit Agency
• The payment of a period pass by the customer has
  been done from his(her) bank account.
• All processing based on Fare Business Rules
  are performed at the Back-Office
• On-line transactions on site, unless the
  merchant (e.g. the Transit Agency) takes the risk
  for non-payment by the customer to get faster
  off-line transactions.

12
Differences between Transit Application Bank
e-Payment Application in US

• Transit Application
• Fare rules processing on site
• Read and write data in the card
• Authentication in the front-end device
• Possibility to deduct and add value
• Management of transition stages
• Display a message accordingly
• Customer always aware
• Real time card inspection capability
• Customers claim card reconstruction

• Bank e-Payment Application
• Fare rules processing in the back end
• Card read only
• Authentication on-line with back end
• Values to be debited in the back end
• The transaction needs a known value
• Message on card acceptance only
• Customer will know with his bill
• No enforcement of inspection on site
• Customers claim post-billing

13
Contactless Card/Fare Media and Application
14
Impact of security choices (on-line VS off-line)

• On-line transaction need to scan a huge hotlist
  stored in the Back Office
• rail regular communication network
• buses, need for a real time communication over
  the air between the on-board devices and the
  Back-Office
• ? issue the validation time (probably over one
  second) related to the size of the list and
  communication and response time.
• Off-line transactions the hotlist needs to be
  stored in each front end device and updated
  nightly as in a regular Transit Fare Management
  System
• ? issue a memory size to be estimated, depending
  on the risk policy of the Transit Agency full
  hotlist or list limited to the identified
  fraudulent cards in the Transit system.

15
Card Issuance by banks business issues

• Simpler for Transit Agencies as executed under
  banks responsibility,
• PayPass/PayWave/ExpressPay are linked to a bank
  account
• ? need to issue transit-only prepaid cards for
  unbanked customers,
• ? business model to assess between Banks and
  Transit Agencies to issue such prepaid cards.

• The e-Payment System alone does not seem able to
  address all riders
• If so, there is a need for a dual card
  issuance system
• a Bank Card for the banked regular commuters or
  occasional riders willing to use the e-Payment
  product,
• a Transit Card for example for unbanked
  customers and for transit benefits.

16
Device approval by the Banking Sector

• All devices including a bank card reader need to
  be approved by the Banking Sector (at least 12
  months)
• Today separate PayPass, PayWave and ExpressPay
  type approvals
• The device will need an approval anytime there
  is a software change, even if only related to the
  Transit application.
• The Transit Industry needs from the Bank Industry
  a simplification of the certification process.

17
Transit Agencies choices

• Financial e-payment gives strong benefits but
  cannot yet address all kinds of transit
  customers,
• The Transit Application in a dedicated media,
• The Transit Application in a co-branded Card (as
  in London, Singapore and Taipei),
• NFC phones, in which the payment is an
  additional application alongside the SIM and
  phone applications.

18
