Zachary G' Ives

1

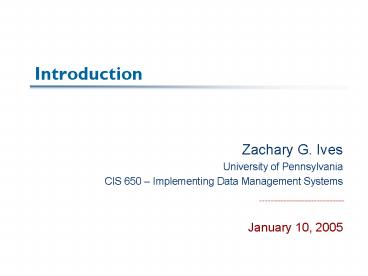

Introduction

• Zachary G. Ives
• University of Pennsylvania
• CIS 650 Implementing Data Management Systems
• January 10, 2005

2
Welcome to CIS 650, Database and Information
Systems!

• Instructor Zachary Ives, zives_at_cis
• 576 Levine Hall North
• Office hours Tuesday, 230-330PM (before
  colloquium)
• Home page www.seas.upenn.edu/zives/cis650/
• Texts and readings
• Hellerstein and Stonebraker Readings in Database
  Systems, 4th ed.
• (Should be available soon)
• Supplementary papers (will be linked via schedule)

3
Course Format and Grading

• Very discussion-oriented about one topic area
  per week or two
• Readings in the text other research papers
  summaries/commentary on papers (20)
• Midterm report (25)
• Youll take one of the topics weve discussed and
  write a summary and synthesis paper
• Graded for organization, clarity, grammar, etc.
  as well as content
• Project (50) -- may choose to work in teams
• Implementation
• Experimentation / validation
• Project report (should be in the style of a
  research paper)
• Brief (15-minute) presentation
• Participation, discussion, intangibles (5)
• At the end, you should be equipped to do research
  in this field, or to take ideas from databases
  and apply them to your field

4
So What Is This Course About?

• Not how to build an Oracle-driven Web site
• nor even how to build Oracle

5
What Is Unique about Data Management?

• Its been said that databases and data management
  focus on scalability to huge volumes of data
• What is it that makes this possible and what
  makes the work interesting if NOT at huge scale?
• Why are data management techniques useful in
  situations where scale isnt the bottleneck?

6
The Key Principle Data Independence

• Most methods of programming dont separate the
  logical and physical representations of data
• The data structures, access methods, etc. are all
  given via interfaces!
• The relational data model was the first model for
  data that is independent of its data structures
  and implementation

7
What Is Data Independence?

• Codd points out that previous methods had
• Order dependence
• Index dependence
• Access path dependence
• Still true in todays Java/C what is the
  drawback?
• What might you be able to do in removing those?

8
The Relational Data Model

• More than just tables!
• True relations sets of tuples
• The only data representation a user/programmer
  sees
• Explicit encoding of everything in values
• Additional integrity constraints
• Key constraints, functional dependencies,
• General and universal means of encoding
  everything!
• (Semantics are pushed to queries)
• A secondary concept views
• Define virtual, derived relations that are always
  live
• A way of encapsulating, abstracting data

9
Constraints and Normalization

• Fundamental idea we dont want to build
  semantics into the data model, but we want to be
  able to encode certain constraints
• Functional dependencies, key constraints,
  foreign-key constraints, multivalued
  dependencies, join dependencies, etc.
• Allows limited data validation, plus
  opportunities for optimization
• The theory of normalization (see CSE 330, CIS
  550) makes use of known constraints
• Idea eliminate redundancy, in order to maintain
  consistency in the presence of updates
• (Note that theres no reason for normalization of
  data in views!)
• Ergo, XML???

10
Relational Completeness(Plus Extensions)
Declarativity

• What is special about relational query languages
  that makes them amenable to scalability?
• Limited expressiveness particularly when we
  consider conjunctive queries (even with
  recursion)
• Guaranteed polytime execution in size of data
• Can reason about containment, invert them, etc.
• Magic sets
• (What about XQuerys Turing-completeness???)
• Equivalence between relational calculus and
  algebra
• Calculus ? fully declarative, basis of query
  languages
• Algebra ? imperative but polytime, basis of
  runtime systems
• Predictability of operations ? cost models
• Ability to supplement data with auxiliary
  structures for performance

11
Concurrency and Reliability(Generally requires
full control)

• Another key element of databases ACID
  properties
• Atomicity, Consistency, Isolation, Durability
• Transaction an atomic sequence of database
  actions (read/write) on data items (e.g. calendar
  entry)
• Recoverability via a log keeping track of all
  actions carried out by the database
• How do distributed systems, Web services,
  service-oriented architectures, and the like
  affect these properties?

12
Other Data Models

• Concepts from the relational data model have been
  adapted to form object-oriented data models (with
  classes and subclasses), XML models, etc.
• But doesnt this result in some loss of
  logical-physical independence?
• GMAP and answering queries using views?

13
What Is a Data Management System?

• Of course, there are traditional databases
• The focus of most work in the past 25 years
• Tight loops due to locally controlled data
• Indexing, transactions, concurrency, recovery,
  optimization
• But

14
80 of the Worlds Data is Not in Databases!

• Examples
• Scientific data (large images, complex programs
  that analyze the data)
• Personal data
• WWW and email (some of it is stored in something
  resembling a DBMS)
• Network traffic logs
• Sensor data
• Are there benefits to declarative techniques and
  data independence in tackling these issues?
• XML is a great way to make this data available
• Also need to deal with data we dont control and
  cant guarantee consistency over

15
An Example of Data Management with Heterogeneity
Data Integration
Mediated Schema
XML

• A layer above heterogeneous sources, to combine
  them under a unified logical abstraction
• Some of these are databases over which we have no
  control
• Some must be accessed in special ways
• Data integration system translates queries over
  mediated schema to the languages of the sources
  converts answers to mediated schema

16
Other Interesting Points

• Data streams and sensor data
• How do we process infinite amounts of data?
• Peer-to-peer architectures
• Whats the best way of finding data here?
• Personal information management
• Can we use integration-style concepts and a bit
  of AI to manage associations between our data?
• Web search
• Whats the back-end behind Google?
• Semantic Web
• How do we semantically interrelate data to build
  a better Web?

17
Layers of a Typical Data Management System
API/GUI
(Simplification!)
Query
Optimizer
Stats
Physical plan
Exec. Engine
Logging, recovery
Schemas
Catalog
Requests
Data/etc
Access Methods
Data/etc
Requests
Buffer Mgr
Red logical Blue physical
Pages
Pages
Physical retrieval
Requests
Data
Source
18
Query Answering in a Data Management System

• Based on declarative query languages
• Based on restricted first-order logic expressions
  over relations
• Not procedural defines constraints on the
  output
• Converted into a query plan that exploits
  properties run over the data by the query
  optimizer and query execution engine
• Data may be local or remote
• Data may be heterogeneous or homogeneous
• Data sources may have different interfaces,
  access methods, etc.
• Most common query languages
• SQL (based on tuple relational calculus)
• Datalog (based on domain relational calculus,
  plus fixpoint)
• XQuery (functional language has an XML calculus
  core)

19
Processing the Query
Web Server / UI / etc
Execution Engine
Optimizer
Storage Subsystem
SELECT FROM STUDENT, Takes, COURSE
WHERE STUDENT.sid Takes.sID AND
Takes.cID cid
20
DBMSs in the Real World

• Big, mature relational databases
• IBM, Oracle, Microsoft
• Middleware above these
• SAP, PeopleSoft, dozens of special-purpose apps
• Application servers
• Integration and warehousing systems
• Current trends
• Web services XML everywhere
• Smarter, self-tuning systems
• Stream systems

21
Our Agenda this Semester

• Reading the canonical papers in the data
  management literature
• Some are very systems-y
• Some are very experimental
• Some are highly algorithmic, complexity-oriented
• Gaining an understanding of the principles of
  building systems to handle declarative queries
  over large volumes of data

22
For Next Time

• Skim Codd if you havent already
• Read the overview papers of the two first
  database systems
• Astrahan et al., pp. 117-
• Wong et al. (skip Section 2 focus on pp. 200-)
• Write a summary of your assigned paper and email
  it to me at zives_at_cis
• Key question how well did this system mesh with
  Codds relational model? (You may need to skim
  through other aspects of your assigned paper to
  help answer that question)
