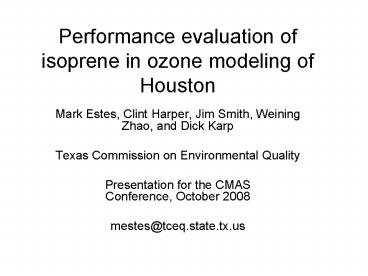

Performance evaluation of isoprene in ozone modeling of Houston

1
Performance evaluation of isoprene in ozone
modeling of Houston

• Mark Estes, Clint Harper, Jim Smith, Weining
  Zhao, and Dick Karp
• Texas Commission on Environmental Quality
• Presentation for the CMAS Conference, October
  2008
• mestes_at_tceq.state.tx.us

2
Acknowledgements

• TCEQ Air Modeling Team Doug Boyer, Pete
  Breitenbach, Bright Dornblaser, Barry Exum,
  Marvin Jones, Chris Kite, Jim MacKay, Jocelyn
  Mellberg, Ron Thomas, Zarena Post, Steve Davis.
• TCEQ Monitoring Operations

3
Questions of interest

• At the isoprene monitors used to evaluate
  performance, what is the long-term behavior? How
  does the model behave during similar time
  periods?
• How much geographic variation is observed in
  these patterns, and does the modeled variation
  match observed variation?

4
(No Transcript)
5
Methods Biogenics modeling

• Emissions model GloBEIS v3.1 biogenic emissions
  model (Yarwood et al., Guenther et al.) at 2km
  maximum resolution.
• Land cover data University of Texas Center for
  Space Research (UT-CSR) land cover data (Feldman
  et al., 2007), 30 meter native resolution.
• Vegetation data Houston Green Urban Forest
  Survey (Smith et al., 2005)
• Met data interpolated temperature data for
  local networks, and GOES-derived
  photosynthetically active solar radiation data
  (Byun et al., 2005)

6
Methods Photochemical grid modeling

• CAMx v4.51, run at 4km and flexi-nested to 2km.
• MM5 v3.7.3, with ETA PBL scheme, UH GOES-derived
  sea surface temperatures, UT-CSR land cover data,
  NOAH LSM, 4km maximum resolution, analysis
  nudging on outer grids, obs nudging with profiler
  data in 4km grid, TKE Kv scheme.
• Carbon Bond 05 chemical mechanism (Luecken et
  al., 2008).
• TCEQ emissions inventory, version
  bcYYMMM.reg8_pscfv2

7
Episodes of interest

• May 19 June 3, 2005
• June 17 June 30, 2005
• July 26 August 8, 2005
• May 31 June 15, 2006
• August 15 September 15, 2006 (TexAQS II field
  study intensive)
• September 16 October 11, 2006 (TexAQS II field
  study intensive)
• Total number of days of interest 96

8
Example for Aug 16, 2006 Total isoprene
emissions, 1924 tons/day for whole domain 610
tons/day in Houston nonattainment area.
9
Auto GC locations
10
(No Transcript)
11
Suburban/ex-urban monitoring site
12
Rural monitoring site
13
Industrial monitoring site
14
(No Transcript)
15
(No Transcript)
16
(No Transcript)
17
(No Transcript)
18
(No Transcript)
19
(No Transcript)
20
(No Transcript)
21
(No Transcript)
22
Finding

• Temporal patterns Modeled isoprene matches the
  diurnal and seasonal patterns of the
  measurements, but doesnt always match the
  magnitude.
• Spatial patterns Modeled isoprene appears to be
  correlated with the measured spatial patterns,
  but doesnt always match the magnitude.

23
Geographic analyses

• Isoprene performance varies by site. Is the
  geographic distribution of trees correct?

24
Are the trees in the right places?

• Calculate the difference between the elevations
  estimated by the Shuttle Radar Tomography Mission
  (Feb 11-22, 2000) and the elevation of the ground
  surface using the National Elevation Database
  (USGS). The difference can represent the height
  of the tree canopy.
• Calculate the Normalized Difference Vegetation
  Index (a vegetative greeness index) for a Landsat
  image of approximately the same age (1999). This
  tells where the vegetation is located.
• Identify all areas with both high NDVI and height
  of 4 to 80 meters.
• Calculate the number of tree pixels within each
  4km grid cell.
• Contrast the locations of these areas to the
  areas identified by the UT-CSR landcover data as
  forested.
• Plot isoprene emissions per grid cell vs. number
  of tree pixels per grid cell.

25
UT-CSR Land Coverall categories displayed
26
UT-CSR Land Coveronly forested categories
displayed
27
Areas with tree canopy NDVI between x and y,
and canopy height between 4m and 80m
28
(No Transcript)
29
Current state of these analyses
Photos by Bohne, U. Vermont
30
Future work

• Further comparisons between modeled isoprene and
  TexAQS II observations (aircraft data, RHB ship
  data, Moody Tower data)
• C. Warneke analysis comparing PTRMS data aboard
  NOAA P3 aircraft to the biogenic emissions models
  GloBEIS, MEGAN, and the latest version of BEIS.
• Hyperspectral satellite data analysis to
  distinguish tree species? Aerial photography to
  assist in species identification?
