A Dynamic Data Driven Grid System for Intraoperative Image Guided Neurosurgery

1

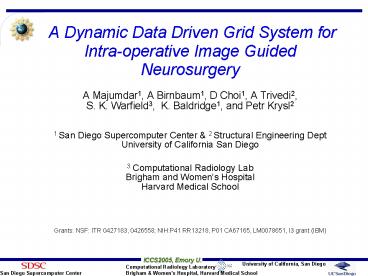

A Dynamic Data Driven Grid System for
Intra-operative Image Guided Neurosurgery

• A Majumdar1, A Birnbaum1, D Choi1, A Trivedi2,
  S. K. Warfield3, K. Baldridge1, and Petr Krysl2
• 1 San Diego Supercomputer Center 2 Structural
  Engineering Dept University of California San
  Diego
• 3 Computational Radiology Lab Brigham and
  Womens HospitalHarvard Medical School
• Grants NSF ITR 0427183, 0426558 NIHP41
  RR13218, P01 CA67165, LM0078651, I3 grant (IBM)

2
Neurosurgery Challenge

• Challenges
• Remove as much tumor tissue as possible
• Minimize the removal of healthy tissue
• Avoid the disruption of critical anatomical
  structures
• Know when to stop the resection process
• Compounded by the intra-operative brain
  deformation as a result of the surgical process
• Important to quantify and correct for these
  deformations while surgery is in progress
• Real-time constraints provide images
  once/hour within few mins during surgery lasting
  6 to 8 hours

3
Intraoperative MRI Scanner at BWH(0.5 T)
4
Brain Deformation

Before surgery
After surgery
5
Overall Process

• Before image guided neurosurgery
• During image guided neurosurgery

6
Timing During Surgery

Time (min)
0
20
10
30
40
Before surgery
During surgery
Preop segmentation
Intraop MRI
Segmentation
Registration
Surface displacement
Biomechanical simulation
Visualization
Surgical progress
7
Current Prototype DDDAS Inside Hospital
8
Two Research Aspects

• Grid Architecture grid scheduling, on demand
  remote access to multi-teraflop machines, data
  transfer/sharing
• Development of detailed advanced non-linear
  scalable viscoelastic biomechanical model

9
Intra-op MRI with pre-op fMRI
10
Queue Delay Experiment on TeraGrid Clusters

• TeraGrid is a NSF funded grid infrastructure
  across multiple research and academic sites
• Queue delays at SDSC and NCSA TG were measured
  over 3 days for 5 mins wall clock time on 2 to 64
  CPUs
• Single job submitted at a time
• If job didnt start within 10 mins, job
  terminated, next one processed
• What is the likelihood of job running
• 313 jobs to NCSA TG cluster and 332 to SDSC TG
  cluster 50 to 56 jobs of each size on each
  cluster

11
of submitted tasks that run as a function of
CPUs requested
TeraGrid Experiment Results

Average queue delay for tasksthat began running
within10 mins
12
Data Transfer

• We are investigating grid based data transfer
  mechanisms such as globus-url-copy, SRB
• All hospitals have firewalls for security and
  patient data privacy single port of entry to
  internal machines

Transfer time in seconds for 20 MB file
13
Mesh Model with Brain Segmentation
14
Current and New Biomechanical Models

• Current linear elastic material model RTBM
• Advanced biomechanical model FAMULS (AMR)
• Advanced model is based on conforming adaptive
  refinement method
• Inspired by the theory of wavelets this
  refinement produces globally compatible meshes by
  construction
• Replicate the linear elastic result produced by
  RTBM using FAMULS

15
FEM Mesh FAMULS RTBM

RTBM (Uniform)
FAMULS (AMR)
16
Deformation Simulation After Cut

No AMR FAMULS
RTBM
3 level AMR FAMULS
17
Advanced Biomechanical Model

• The current solver is based on small strain
  isotropic elastic principle
• New biomechanical model
• Inhomogeneous scalable non-linear viscoelastic
  model with AMR
• Increase resolution close to the level of MRI
  voxels i.e. millions of FEM meshes
• New high resolution complex model still has to
  meet the real time constraint of neurosurgery
• Requires fast access to remote multi-tflop systems

18
Parallel Registration Performance
19
Parallel Rendering Performance
20
Parallel RTBM Performance
(43584 meshes, 214035 tetrahedral elements)

60.00
50.00
IBM Power3
40.00
Elapsed Time (sec)
30.00
IA64 TeraGrid
20.00
IBM Power4
10.00
-
1
2
4
8
16
32
of CPUs
21
End to End (BWH ? SDSC?BWH) Timing

• RTBM not during surgery
• Rendering - during Surgery

22

End-to-end Timing of RTBM

• Timing of transferring 20 MB files from BWH to
  SDSC, running simulations on 16 nodes (32 procs),
  transferring files back to BWH 9 (60 7)
  50 124 sec.
• Capable of providing biomechanical brain
  deformation simulation results (using the linear
  elastic model) to the surgery room at BWH within
  2 mins using TG machines at SDSC

23
End-to-end Timing of Rendering

• Intra-op MRI data sent from BWH to SDSC during a
  surgery, parallel rendering performed at SDSC,
  rendered viz sent back to BWH (but not shown to
  surgeons)
• Total time (for two sets of data) 253 2
  7.4 0.2 13.7 148.4 sec

24
Current and Future DDDAS Research

• Continuing research and development in grid
  architecture, on demand computing, data transfer
• Continuing development of advanced biomechanical
  model and parallel algorithm
• Future DDDAS - near-continuous instead of once an
  hour 3-D MRI based
• Scanner at BWH can provide one 2-D slice every 3
  sec or three orthogonal 2-D slices every 6 sec
• Near-continuous DDDAS architecture
• Requires major research, development and
  implementation work in the biomechanical
  application domain
• Requires research in the closed loop system of
  dynamic image driven continuous biomechanical
  simulation and 3-D volumetric FEM results based
  surgical navigation and steering
