Title: Advanced Computer Graphics: Procedural Modelling


1

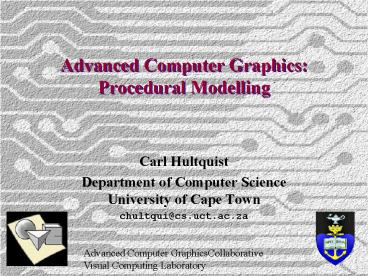

Advanced Computer GraphicsProcedural Modelling
  • Carl Hultquist
  • Department of Computer ScienceUniversity of Cape
    Town
  • chultqui_at_cs.uct.ac.za

2
Objectives
  • To introduce the field of procedural modelling
    and what it means for a model to be procedurally
    generated
  • To examine what techniques have been researched
    thus far, including the following
  • Fractals
  • Perlin noise
  • Procedural texturing
  • Cellular texturing
  • Solid texturing
  • L-Systems
  • Subdivision surfaces
  • Urban modelling
  • Special effects

3
Motivation
  • Modelling every single object by hand is tedious!
  • An easier alternative is to use a few parameters
    to describe the object and allow the computer
    to generate the object for the artist (computers
    are built for doing tedious things)
  • If necessary, the artist can make small
    modifications afterwards to get the perfect
    object
  • Additionally, procedural methods are extremely
    compact (no need to store explicit geometry or
    texture information, only parameters to create
    these) and can in some cases better represent
    objects than explicit representations

4
Fractals the Koch Curve
Images by Jim Loy (http//www.jimloy.com/fractals/
koch.htm)
5
Fractals why theyre important
  • Biggest reason is self-similarity. As seen with
    the Koch Curve, fractals can contain entire
    copies of themselves. More generally, fractals
    are defined to have infinite resolution so no
    matter how closely you zoom in to the fractal,
    there will always be an immense amount of detail.
    In this sense, you could also think of fractals
    as having various levels of detail.
  • This has implications for modelling by simply
    storing the parameters that characterise a
    fractal, we can iterate and zoom in as much as we
    need to get a suitable level-of-detail for
    rendering.

6
3D Fractals Mountains
  • Probably the most common use of fractals for
    procedural modelling of 3D objects
  • Consider the 2D case of a slice through a
    mountain
  • As can be seen, we progressively split up the
    interval over which the mountain is defined, and
    add random detail.

7
3D Fractals Mountains (2)
  • So with 3D, we instead start with a sub-section
    of the plane (usually a triangle, square or
    hexagon), and progressively split up that
    sub-section into smaller parts

8
An alternative for creating fractalmountains
  • Notice that at any stage, the mountain is simply
    described by a regular grid of values, each of
    which is the height at the given point.
  • Also notice that the mountains are smooth in the
    sense that there are no irregular discontinuities
    in their surface.
  • These properties allow us to describe fractal
    mountains using a different procedural technique
    Perlin Noise

9
Perlin Noise
  • Invented by Ken Perlin.
  • Key idea is to take a set of noisy functions at
    different scales, and blend them together.

10
Perlin Noise Creating a NoiseFunction
  • So how do we create a noisy function?
  • The trick is to take a set of random values and
    interpolate between them. Consider the 2D case
    below
  • By interpolating these random values, we obtain a
    smooth noise function

11
Perlin Noise Scaling
  • Suppose then we have a 2D noise function
    noise(x,y), which returns the noise value at the
    point (x,y).
  • We can scale the noise by defining a new noise
    function like this
  • scaled_noise(x,y,freq) noise(x / freq, y /
    freq)
  • Higher values of freq will then give much closer
    views of the noise, thus scaling it.

12
Perlin Noise Applications
  • Fractal mountains
  • Water displacement map (giving the appearance of
    waves)
  • Simple clouds
  • Procedural texturing
  • Marble textures
  • Wood textures
  • Cellular texturing extend noise function to 2D.
    Useful for most texturing applications.
  • Volumetric or solid texturing extend noise
    function to 3D. Allows you to slice a geometric
    object arbitrarily and still texture it
    realistically.

13
Lindenmayer-Systems
  • Invented by Aristid Lindenmayer
  • More commonly referred to as L-Systems
  • In essence, L-Systems are a parallel string
    rewriting mechanism, defined by an initial string
    and a set of productions (or rules) to
    iteratively rewrite the string.
  • A simple example
  • ? A
  • ?0 A ? xB
  • ?1 B ? yA

14
L-Systems basic form
  • As has been shown, an L-System consists of an
    initial string (typically called ?) and a set of
    productions (usually called ?x for increasing
    integers x)
  • Formally, the initial string in a simple L-System
    is simply a sequence of symbols, and each
    production has the following format
  • ?x pattern ? replacement
  • where pattern is a single symbol, and replacement
    is a sequence of symbols. For each iteration of
    the L-System, every occurrence of pattern in the
    string is replaced by replacement, and this is
    done in parallel over the whole string.

15
L-Systems Parallel Rewriting(1)
  • Consider this L-System
  • ? AB
  • ?0 A ? xB
  • ?1 B ? yA
  • Parallel rewriting means that during the first
    iteration, we simultaneously change the A to xB
    and the B to yA, resulting in the string xByA. A
    second iteration would then yield xyAyxB.

16
L-Systems Parallel Rewriting(2)
  • Theres one more catch though What happens if
    more than one production could be applied to a
    single symbol in the string?
  • ? A
  • ?0 A ? xB
  • ?1 B ? yA
  • ?2 A ? zB
  • It may seem silly for now (why would someone
    write a system like this?) but its important to
    deal with for simple cases like this L-System.
    The answer is that the first matching production
    is used, so in this case the first iteration
    would result in the string xB, and not zB.

17
L-Systems and Context (1)
  • In the previous example, we had an L-System which
    has two rules for rewriting a symbol. This may be
    very necessary sometimes we might want to use
    one production, but at other times we would want
    to use the other production. How can we
    distinguish between these?
  • The answer is to add a notion of context to the
    L-System. This lets us examine the symbols before
    and after the one were currently rewriting, and
    base our rewriting decision on these symbols.
  • Each production in a context-sensitive L-System
    has the following form
  • ?x left-context lt pattern gt right-context ?
    replacement
  • and either or both of the left-context lt and
    gt right-context parts may be omitted.

18
L-Systems and Context (2)
  • ? xA
  • ?0 A gt y ? Bx
  • ?1 B ? A
  • ?2 x lt A ? By
  • Here are the strings that emerge from iterations
    of this L-System
  • xA
  • xBy
  • xAy
  • xBxy
  • xAxy
  • xByxy

19
L-Systems how is the resultingstring used?
  • So you end up with some string of symbols then
    what?
  • The usual course of action is to interpret the
    string as a set of drawing commands, in a similar
    fashion to Logo. For this reason, this is often
    referred to as turtle interpretation.
  • Some common symbols used for 2D drawing are
  • F - Move forward length d while drawing
  • f - Move forward length d without drawing
  • - Turn left by angle d
  • - - Turn right by angle d

20
L-Systems Turtle Interpretation(1)
  • ? F-F-F-F
  • ?0 F ? FF-F-F-F-F-FF
  • d 90, 4 iterations

21
L-Systems Turtle Interpretation(2)
  • ? RF
  • ?0 L ? RFLFR
  • ?1 R ? LF-RF-L
  • d 60, 6 iterations

22
L-Systems more extensions!
  • In previous examples, all turning and movement
    commands used the same angle and the same
    distance (respectively).
  • Would be nice to be able to adjust these values
    the result is a parametric L-System. Each symbol
    can have an associated bracketed list of values,
    like this
  • ? A(2)
  • ?0 A ? B(2.4, 3) x
  • ?1 B ? y A(1.2, 2.2, 4)

23
Parametric L-Systems
  • You can then formulate more complex productions,
    like this example
  • ? x F
  • ?0 x lt F ? y F (30) x F
  • ?1 (x) ? (x - 2)
  • ?2 y lt F ? F F

24
L-Systems Conditions andBranching
  • In addition to allowing symbols to bear
    parameters, parametric L-Systems also allow for
    conditions to be placed on productions.
  • ?1 (x) x gt 20 ? (x - 2)
  • For example, the above production will only occur
    if the parameter x has value greater than 20.
  • Branching is another useful technique used by
    most turtle interpretation systems the symbol
    is used to push the turtles state onto a stack,
    and the symbol is used to pop the turtles
    state off the stack.

25
L-Systems what about 3D?
  • 2D turtle examples are all well and good, but
    lots of computer graphics applications require
    3D! How do L-Systems help here?
  • Extend the turtle interpretations to include
    rotation about three axes (the up, left and
    heading axes). This allows us to rotate in 3D
    space.

26
L-Systems Applications
  • Parametric, context-sensitive L-Systems with
    branching are most typically used for modelling
    plants and flowers. Some more recent applications
    have been to model road networks.

27
Subdivision Surfaces (1)
  • Some objects are incredibly geometrically
    complex, and may require extraordinary amounts of
    storage space. Such a problem is exacerbated when
    the geometry needs to be transferred to another
    user, since the transfer of all this data may not
    be practical.
  • Subdivision surfaces allow for some geometrically
    complex objects to be represented using a much
    simpler control mesh. The actual object can then
    be reconstructed through the process of
    subdivision, whereby the vertices in the control
    mesh are used to generate new vertices.
  • (See, for example, Subdivision Surfaces in
    Character Animation, by Tony DeRose, Michael Kass
    and Tien Truong).

28
Subdivision surfaces (2)
  • Positives
  • Only a simple mesh is stored
  • Can subdivide to any arbitrary level of detail
    quick and easy way of allow support for multiple
    LODs without the need of a decimation algorithm
    (see Hugues Hoppes paper on Progressive Meshes
    for an example of such a decimation scheme)
  • Negatives
  • Not all complex objects can be represented like
    this
  • Can be difficult to work out what control mesh
    will result in the final object were trying to
    model

29
Procedural Modelling of Cities (1)
  • Paper by Yoav Parish and Pascal Müller for
    SIGGRAPH 2001.
  • Describes a composite procedural modelling system
    for generating an entire city. Makes use of the
    following techniques
  • L-Systems a variant of L-Systems is used that
    allows for what are called query modules, which
    are used to query the environment and receive
    feedback from the environment before a production
    is executed. These create the road network for
    the city.
  • Subdivision regions of land bounded by roads are
    subdivided into allotments, each of which will
    potentially contain a building.

30
Procedural Modelling of Cities (2)
  • L-Systems a variant known as parametric,
    stochastic L-Systems are used to generate
    buildings. The basic idea is that symbols in the
    L-System are interpreted as a type of sculpting
    command, eroding away from a solid block and
    resulting in a shape resembling a building.
  • Procedural texturing a technique which the
    authors call layered grids is used to generate a
    2D texture for use on the buildings. The idea is
    to use multiple semi-random layers and have these
    layers interact in a number of semi-random ways
    to generate the final building façade.

31
Procedural Modelling of Cities (3)
32
Special effects
  • Many SFX can be considered procedural in the
    sense that there is some computational procedure
    which creates the effect, as opposed to the
    effect either being captured from raw footage or
    painstakingly created by an artist.
  • Examples of such effects include
  • Morphing and warping
  • Physics engines
  • Animation of characters
  • Smooth camera movement
  • A good example of software that is widely used to
    accomplish such effects is Houdini by Side
    Effects Software (http//www.sidefx.com).

33
Uses of Procedural Modelling
  • Games most recent and most notable is kkrieger,
    which is an FPS in 96 Kb! (complete with sound
    effects, music, and good graphics)
  • Movies Primarily used for SFX, but can also be
    used for generating large virtual environments
    (VEs). Good examples include The Matrix trilogy,
    Final Fantasy, anything by Pixar, The Day After
    Tomorrow, The Lord of the Rings the list goes
    on!
  • General VE design for designing large and
    complex VEs, procedural modelling can save time
    by doing lots of the work for you. The trick is
    in developing a good interface to harness its
    full power (see http//people.cs.uct.ac.za/chult
    qui/masters!)

34
Example kkrieger
  • Any questions?
Write a Comment
User Comments (0)
About PowerShow.com
