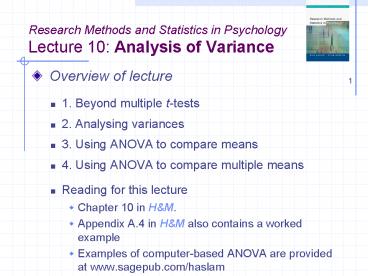

Research Methods and Statistics in Psychology Lecture 10: Analysis of Variance

1
Research Methods and Statistics in
PsychologyLecture 10 Analysis of Variance

• Overview of lecture
• 1. Beyond multiple t-tests
• 2. Analysing variances
• 3. Using ANOVA to compare means
• 4. Using ANOVA to compare multiple means
• Reading for this lecture
• Chapter 10 in HM.
• Appendix A.4 in HM also contains a worked
  example
• Examples of computer-based ANOVA are provided at
  www.sagepub.com/haslam

2
Research Methods and Statistics in
PsychologyLecture 10 Analysis of Variance

• 1. Beyond multiple t-tests
• As we have seen, the t-test is a useful procedure
  for comparing two means. But what do we do when
  we need to compare more than two means?
• One answer might be to do lots and lots of
  t-tests, comparing every pair of means. This is
  messy, but there is another problem too
• As we noted at the very end of Lecture 8,
  performing lots of tests increases the chance of
  one or more of them will yield a statistically
  significant result by chance alone (i.e., not
  because there is a real difference).
• And the more tests you perform the more likely
  this is to happen.

3
Research Methods and Statistics in
PsychologyLecture 10 Analysis of Variance

• 2. Analysing variances
• Accordingly, it would be convenient if a single
  test could tell us whether there were differences
  between means on average.
• The good news is, there is and it involves
  performing analysis of variance (ANOVA).
• You might well ask yourselves here If we are
  comparing means why is it called analysis of
  variance? Shouldnt it be called analysis of
  differences or analysis of means?
• The answer is that its called ANOVA because
  (rather cunningly) the procedure uses variances
  to compare means.
• However, we can use the idea behind ANOVA to
  compare variances and conduct a statistical test
  to see if they are different.
• So lets start by doing that

4
Research Methods and Statistics in
PsychologyLecture 10 Analysis of Variance

• 2. Analysing variances
• In Lecture 8 we saw that one of the assumptions
  of the between-subjects ttest is that the
  variances of the two groups should not be
  different (the assumption of equal variance).
• Well now we can explicitly compare variances and
  conduct a statistical test to see whether or not
  they are different.
• We do this by forming a ratio of the variance of
  the two groups. If the ratio of the larger
  variance to the smaller one is about 11 then we
  cannot conclude that they are different (i.e.,
  we cannot reject the null hypothesis that they
  are different).
• However, if the ratio is much bigger than 11
  then we can reject the null hypothesis, providing
  we know how such a ratio of variances behaves.

5
Research Methods and Statistics in
PsychologyLecture 10 Analysis of Variance

• 2. Analysing variances
• Fortunately, we do have a pretty good idea. The
  ratio of two variances drawn from the same
  population tends to follow the F- distribution.
  This is a theoretical (sampling) distribution of
  ratios of variances.
• The F-distribution looks like this

• Note that the distribution
• (a) is non-symmetrical,
• (b) only has positive values,
• (c) has a positive skew, and
• (d) has a long tail

6
Research Methods and Statistics in
PsychologyLecture 10 Analysis of Variance

• 2. Analysing variances
• The tricky thing about the F-distribution is that
  it varies with the degrees of freedom (like the
  t-distribution) but this depends on the df in the
  numerator and denominator.
• To see this in operation, lets compare the
  variances of the two groups of 10 people that we
  looked at in Lecture 8 (where we conducted a
  between-subjects t-test)

Participant number
7
Research Methods and Statistics in
PsychologyLecture 10 Analysis of Variance

• 2. Analysing variances
• Here the degrees of freedom for the numerator and
  denominator are both equal to the number of
  people in the group minus 1
  (i.e., df n 1). The particular F-distribution
  we need in this case has 9 degrees of freedom in
  the numerator and 9 in the denominator.
• A large number of F-distributions for many
  combinations of degrees of freedom are given in
  Table C.4 in HM (pp. 485-491).
• Once we have calculated a value for F we can
  compare this to the distribution and find what
  proportion of the F-distribution this cuts off.

8
Research Methods and Statistics in
PsychologyLecture 10 Analysis of Variance

• 2. Analysing variances
• In this example the variance of the experimental
  group was 2.71 and the variance of the control
  group was 2.04. We can turn these two variances
  into a ratio and obtain the F-value 1.33.
• We can interpret this by referring to F-values
  that are tabulated (and reported) in the form
  F(df1,df2),
• So here F(9,9) 1.33.
• If we assume that these two variances are drawn
  from a normal population, what we now need to do
  is check what proportion of the F-distribution is
  cut off by this value.
• We can see from Table C.4 that this value is
  quite a bit smaller than the critical value given
  for F(9, 9) with ? .05 of 3.18.
• This suggests that this ratio would not be a
  particularly unusual one to obtain if the samples
  really were drawn from a population with the same
  variance.

9
Research Methods and Statistics in
PsychologyLecture 10 Analysis of Variance

• 3. Using ANOVA to compare means
• Comparing variances might be useful if we want to
  know whether the assumptions of a statistical
  test hold, but how (you may well ask) can we use
  ANOVA to compare means?
• What we do is use a ratio (of the form used in
  all test statistics i.e, a ratio of
  information error) to compare two estimates of
  variance.
• One estimate is based on variation between groups
  (information).
• The other estimate is based on the variation
  within groups (error). It is simply the pooled
  variance for our groups.

10
Research Methods and Statistics in
PsychologyLecture 10 Analysis of Variance

• 3. Using ANOVA to compare means
• If both of these estimates turn out to be fairly
  similar then we cannot reject the null hypothesis
  of no difference between groups and we cannot
  conclude that the means are drawn from different
  populations
• If there is a big difference between the
  estimates such that the variation between groups
  (information) is much greater than the variation
  within them (error) then one will be much bigger
  than the other and we will get a large F-ratio.
• If it is large enough then we reject the null
  hypothesis that they are drawn from the same
  population (i.e., that there are no differences
  between means).

11
Research Methods and Statistics in
PsychologyLecture 10 Analysis of Variance

• 3. Using ANOVA to compare means
• We wont go through all the details of
  calculation (see HM for details) but we can use
  the above example to see how this works in
  principle.
• In order to work out the information term for the
  above test statistic, the first thing we need to
  estimate is the variance estimated from the
  means. We can construct such an estimate by
  taking the average deviations between the overall
  grand mean and the cell means.
• The unbiased estimate of the variance of the
  means (when we have equal cell sizes) is
• ? (Xi X )2 / (k 1)
• where k is the number of cells, Xi is the mean
  for each group and X is the grand mean.

12
Research Methods and Statistics in
PsychologyLecture 10 Analysis of Variance

• 3. Using ANOVA to compare means
• To correct for bias (associated with the law of
  large numbers see HM) we need to multiply this
  variance by the cell size.
• These variance estimates are called mean squares
  or MS because the sums of squares are averaged.
• The mean square we calculate here is called the
  between cells mean square (the shorthand notation
  is MSB)
• MSb ?n(Xi X)2 / (k1)
• In this case, the mean for the control group is
  4.40 and the mean for the experimental group is
  6.40. Here we can work out that the grand mean
  pooled across the two groups is 5.40 (because the
  cell sizes are the same, the grand mean is just
  the average of the cell means).

13
Research Methods and Statistics in
PsychologyLecture 10 Analysis of Variance

• 3. Using ANOVA to compare means
• So here
• MSB (10 (4.40-5.40)2 (10 6.40-5.40)2))/1
• (1012 1012) / 1
• 20
• This value is associated with dfb degrees of
  freedom
• where dfb k 1 and k is the number of cells.
• As we noted above, the bottom line of our test
  statistic is an error term, involving the average
  difference within groups. We can find this by
  just pooling the variances we obtained
  previously. In Lecture 8 we saw that this value
  was 2.38.
• This value is associated with dfw degrees of
  freedom
• where dfw N k (the total number of
  participants minus the number of cells).

14
Research Methods and Statistics in
PsychologyLecture 10 Analysis of Variance

• 3. Using ANOVA to compare means
• Here
• dfw 20 2 18
• Now the F-ratio can be calculated by dividing MSb
  by MSw
• F 20 / 2.38 8.41
• In order to evaluate this F-ratio we can compare
  it to the F-distribution with 1 and 18 degrees of
  freedom.
• From Table C.4 in HM we can see that this value
  is larger than the tabled value for F(1, 18) with
  ? .05 of 4.41.
• Indeed it is larger than the value with ? .01.
  In other words, if there were no difference
  between the groups then we would expect to find a
  difference that big on less than 1 in 100 random
  selections of two samples of that size.

15
Research Methods and Statistics in
PsychologyLecture 10 Analysis of Variance

• 3. Using ANOVA to compare means
• Referring back to Chapter 8, we see this gives us
  a similar answer to the between-subjects t-test.

• Indeed, providing that there are only two groups
  to be compared (i.e., the numerator has two
  degrees of freedom) there is an exact
  relationship between t and F in that F t2
• So we can see here that our F-ratio of 8.41 is
  the same as the square of the t-value (2.90) that
  we obtained previously
• (i.e., 2.902 8.41).

16
Research Methods and Statistics in
PsychologyLecture 10 Analysis of Variance

• 4. Using ANOVA to compare multiple means
• Although the above example contains most of the
  key ingredients of ANOVA, in fact it represents
  by far the most simple form of this procedure
  that it is possible to conduct.
• Indeed, a researcher wouldnt normally use ANOVA
  to analyse this data  they would simply use a
  t-test.
• However, ANOVA and the F-ratio really come into
  their own when we have to compare results from
  more than two groups and this is precisely why
  they are so useful.
• Moreover, ANOVA can be used to analyse data from
  a study that has more than one factor  i.e.,
  where a study has more than one independent
  variable.

17
Research Methods and Statistics in
PsychologyLecture 10 Analysis of Variance

• 4. Using ANOVA to compare multiple means
• The procedure for conducting and interpreting the
  results from studies with more than two groups
  are very complex and for this reason many people
  only ever perform the procedure using a relevant
  statistical package (see HM support materials on
  the Web).
• We wont go into these here, but you should read
  Chapter 10 in HM pp. 281-331) to get an
  understanding of these issues.
• What we will discuss, however, is the very
  important concept of statistical interaction (see
  HM pp. 301-303).
• Interactions occur when the effect of one
  variable depends on the presence of another
  variable.

18
Research Methods and Statistics in
PsychologyLecture 10 Analysis of Variance

• 4. Using ANOVA to compare multiple means
• As an example, people might eat a lot of biscuits
  when they are both hungry and when the biscuits
  are chocolate-coated (which is very different to
  eating a lot of biscuits when they are hungry or
  chocolate-coated).
• The easiest way to understand such a statement is
  to represent it graphically, as follows

high
Likelihood of eating biscuit

• The key thing to note here is that the presence
  of an interaction is indicated by the fact that
  the lines are not parallel.

low
not hungry
hungry
State of Hunger
19
Research Methods and Statistics in
PsychologyLecture 10 Analysis of Variance

• 4. Using ANOVA to compare multiple means
• Interactions can take a number of different
  forms, but, when plotted all will involve
  non-parallel lines.
• It is a very useful analytical skill to be able
  to make sense of the different forms that
  interactions take. For example, what is going on
  in the graph below?

high
Likelihood of eating biscuit

• This interaction suggests that people are likely
  to eat chocolate biscuits whether theyre hungry
  or not, but only eat plain biscuits if theyre
  hungry.

low
not hungry
hungry
State of Hunger
20
Research Methods and Statistics in
PsychologyLecture 10 Analysis of Variance

• 4. Using ANOVA to compare multiple means
• The interaction below is called a cross-over
  interaction. This type of interaction is
  particularly important because if you looked for
  effects of biscuit coating and hunger separately
  (what are know as the main effects for these
  variables) you wouldnt find any.
• In other words, you would wrongly conclude that
  coating and hunger dont affect biscuit eating
  when in fact they do  but only in interaction
  with each other.

high
Likelihood of eating biscuit

• This interaction suggests that people eat plain
  biscuits more when hungry than not hungry, but
  chocolate biscuits more when not hungry than when
  hungry.
• It also suggests than when they are not hungry
  people are more likely to eat a chocolate biscuit
  than a plain one, but that when they are hungry
  the opposite is true,

low
not hungry
hungry
State of Hunger
21
Research Methods and Statistics in
PsychologyLecture 10 Analysis of Variance

• 4. Using ANOVA to compare multiple means
• And what is going on in the graph below?
• This is a trick question because there is no
  interaction here just two main effects that
  have an additive effect.
• One main effect is associated with coating
  (people are more likely to eat chocolate biscuits
  than plain ones) the other is associated with
  hunger (people are more likely to eat biscuits
  when hungry than not hungry).

high
Likelihood of eating biscuit

• The absence of an interaction is indicated b the
  fact that the two lines are parallel

low
not hungry
hungry
State of Hunger
22
Research Methods and Statistics in
PsychologyLecture 10 Analysis of Variance

• 4. Using ANOVA to compare multiple means
• The statistical operations involved in analysing
  and interpreting interactions are complicated but
  important (again, see HM).
• Indeed, ANOVA can become mind-numbingly complex,
  so it is worth alerting you to the main forms of
  this complexity
• 1. Designs can involve many more than two cells
  and there can be more than two factors in a given
  design.
• 2. ANOVA can include within-subjects factors as
  well as between-subjects factors.
• 3. ANOVA can involve more than one dependent
  variable (this is called Multivariate-ANOVA or
  MANOVA).
• 4. The procedures for making comparing specific
  conditions within ANOVA (which one almost always
  needs to do) are enormously diverse.

23
Research Methods and Statistics in
PsychologyLecture 10 Analysis of Variance

• 4. Using ANOVA to compare multiple means
• 5. There are many ways to analyse variance
  depending on the features of the design and the
  cell sizes (especially where these are unequal).

• 6. There are different procedures that need to be
  applied when the levels of the factors are not
  determined experimentally (i.e., where there is
  not random assignment to conditions).
• Even without these complexities there are some
  other points to be wary about.
• In particular, note that ANOVA is subject to the
  same assumptions as is the t-test (homogeneity of
  variance, normality and independence).
• So, while it is a very powerful tool, it is one
  that it is important to use carefully and
  prudently.
