WG3 Presentation to SC4 Closing Plenary

1

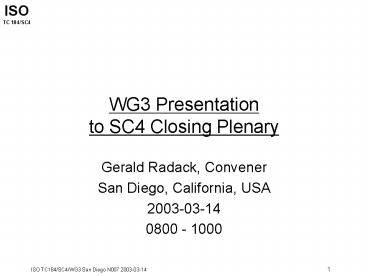

WG3 Presentationto SC4 Closing Plenary

• Gerald Radack, Convener
• San Diego, California, USA
• 2003-03-14
• 0800 - 1000

2
WG3 Schedule for Stuttgart (1/2)

• WG3 plenaries
• Monday 1030 - 1130
• Thursday 1530 - 1700
• WG 3/9/12 Modules Coordination
• Tuesday 0800 - 1200

3
WG3 Schedule for Stuttgart (2/2)
4
Plenary SessionMonday 1030 1130

• Introductions / Note taker / Agenda / Attendance
  list
• Project briefings
• Module review and coordination
• Advance SC4 resolutions
• Items from PPC Conveners meeting
• Items from QC Conveners meeting
• WG3 procedures
• Updates on team plans for the week
• Other business

5
Team Leaders MeetingMonday 1130 1200

• Introductions / Note taker / Agenda / Attendance
  list
• Administrative items
• Updates to project schedules
• Team missions and project assignments
• Team scheduling and coordination issues
• Joint meeting requirements
• Round table
• Other business

6
HTML and XMLTuesday 1300 1500

• Resolve ballot comments on HTML guidelines
• XML DTDs
• EXPRESS
• mapping tables
• general document structure

7
Plenary SessionThursday 1530 1700

• Introductions / Note taker / Agenda / Attendance
  list
• Results of session Publishing Standards Using
  HTML and XML
• Review last-day SC4 resolutions
• Schedule for future meetings
• Project status updates and announcements
• Open Technical Forum topics
• Team reports
• Action items
• Other business

8
WG3 Teams

• T01 Shape Representation Ray Goult (no
  meeting)
• T04 Materials Anna Moreno
• T08 Product Life Cycle John Dunford
• T09 Engineering Analysis Keith Hunten (no
  meeting)
• T19 Mechanical Products OPEN
• T20 Process Plant Mark Palmer (Paul van Exel)
• T21 Oil and Gas Nils Sandsmark (Magne
  Valens-Sendstad)
• T22 Building and Construction W. Haas
• T23 Ships Jim Mays, Tony Fry (John Kendall)
• T24 Manufacturing Martin Hardwick (Dave
  Loffredo)

9
T01 Shape Representation

• Accomplishments in San Diego
• Joint work with Parametrics
• Starting work on geometry and topology in ISO
  15926 (with T21)
• Will meet in Stuttgart

10
T04 Materials

• Accomplishments in San Diego
• 10303-235 Materials information
• Expanded planning model to include link to
  analysis and design
• Edited ARM and agreed procedure for finalisation
• Identified outstanding modelling issues
• Environmental data
• Developed proposal and SC4 resolution to
  strengthen liaison with VAMAS

11
T04 Materials

• Plans between now and Stuttgart
• ISO 10303-235 Materials information
• Complete ARM and AIM
• Produce CD as HTML document
• Present AP 235 to MMFSC European project
• Complete reference dictionary for MIL-HDBK5H
• Environmental data
• Meeting of CASCADE project
• Meeting with the European Commission
• Identify scenario data for model validation and
  VAMAS round robin test
• VAMAS
• Meeting of VAMAS Steering Committee

12
T04 Materials

• Plans for Stuttgart
• ISO 10303-235 Materials information
• Editorial review of CD document
• Present and review reference dictionaries
• Present and review CD with T9 and other
  interested groups
• Environmental data
• Develop guidelines and test plans for VAMAS round
  robin

13
T08 Product Life Cycle

• Accomplishments in San Diego (AP 233)
• Reviewed status of MoD funding of AP 233 tasks by
  Eurostep
• Liased with AP 239 regarding
• Ballot status
• Repackaging of modules
• Demoed AP 233 Requirements Interface to DOORS,
  SAS, Vitech CORE and UML
• Discussed scope of AP 233 Interface to Analysis
• Worked open issues from AP 233 Issue Log
• Reviewed STEP NRF as a potential data structure
  to support design and analysis interface to AP
  233
• Assisted OMG SE DSIG release requirements for
  systems engineering extensions to UML

14
T08 Product Life Cycle

• Plans between now and Stuttgart
• AP 233
• Test interfaces to AP 233 Requirements Module Set
• Complete study of AP 233 interface to analysis
  domains
• Develop AP 233 analysis interface modules
• Release PAS 20542 for review and ballot

15
T08 Product Life Cycle

• Plans between now and Stuttgart
• AP 239
• New IRs out for ballot for
• logical expressions, condition, state (part
  53??),
• Maybe also justification, risk and probability
• All AP 239 modules complete
• Draft AP ready for T8 discussion, including
  intended conformance classes
• Briefing on AP 239 contents at AFNOR in Paris,
  2003-01-21/22

16
T20 Process Plant

• Accomplishments in San Diego
• Updates on relevant SC4 projects
• AP 221 Functional Data and Schematics
• All technical work on modules complete
• Target DIS ballot for mid-2003
• AP227 edition 2 - Plant Spatial and Systems
  Design
• DIS ballot ends in 2003-06
• Started work on preliminary DIS ballot comments
  and updating test cases and Usage Guide
• Reports on industry programs
• Japan ECOM, concerns about STEP reputation in
  Japan
• Japan JEOM, new program on operations and
  maintenance
• USPI-NL, work on Data Readiness Assessment
• FIATECH, Capital Projects Technology Roadmap and
  Automating Equipment Information Exchange (AEX)
• Joint meeting with T21 Oil Gas

17
T20 Process Plant

• Plan for Stuttgart
• Overview of AP 221 DIS
• Review of AP 227 ed.2 DIS ballot results
• Review results of PIEBASE work on Data Handover
  Guide
• Provide input to updating of SC4 Test Suite
  Guidelines
• Select new leader for T20

18
T21 Oil and Gas

• Accomplishments in San Diego
• Issues has been resolved and further work planned
  on the use of ISO 15926 Reference Data in AP 227
• Walk-trough of the FDIS 15926-2 Data model has
  been performed
• A proposal on Geometry and topology in ISO 15926
  was presented and discussed in T21 and the Change
  Management committee
• The status of ISO 15926 Part 4, 5, 6 and 7 was
  also presented and discussed in T21 and the
  Change Management committee
• A resolution on liaison with ISO TC 67 Materials,
  equipment and offshore structures for petroleum,
  petrochemical and natural gas industries has been
  drafted

19
T21 Oil and Gas

• Plans between now and Stuttgart
• Support further work on the use of ISO 15926
  reference data in AP 227
• Prepare and submit FDIS documents for ISO 15926,
  parts 1 2
• Prepare and submit the documents for an ISO
  Register for reference data
• NWI proposal
• TS proposal for ISO 15926-4 Initial reference
  data
• TS proposal for ISO 15926-5 Procedures for
  registration and maintenance of reference data
• TS proposal for ISO 15926-6 Scope and methodology
  for developing additional reference data
• Prepare and submit the documents for a combined
  NWI and TS for ISO 15926-7 Templates

20
T22 Building and Construction

• Accomplishments in San Diego (AP236)
• Discussed and fixed the major pending issues
  related with the modules to send out for
  balloting
• 2 packages on the way (Building Components and AP
  236 Core)
• CC1 and CC2 are now ready to move towards its
  final phase of development
• Advances in the development of the AP module and
  document
• Starting of the works towards potential
  extensions of AP 236 (supported by the recently
  approved SMART-fm IMS project)
• Preparation of the tutorials and users guide
  implementation
• Structure and contents of the doc (in HTML)
  defined

21
T22 Building and Construction

• Plans between now and Stuttgart
• Implementation modules and AP doc (AP 236)
• Discuss and fix the pending issues
• To send out for balloting
• Revise and fix comments
• Continue the work towards potential extensions of
  AP 236

22
T22 Building and Construction

• Plans for Stuttgart
• Participate in Modular AP meetings
• AP 236 related topics

23
T23 Ships

• Accomplishments in San Diego
• AP 227 review completed
• Waiting for publication of APs 215, 215, and 218
• Focused on implementation of T23 APs and liaison
  with other APs
• Liaison with T24 Manufacturing
• Liaison with T08 Systems Engineering

24
T23 Ships

• Plans for Stuttgart
• Discuss T23 project plan
• Conduct a module development review
• Liaison with manufacturing and PLCS

25
T24 Manufacturing

• Accomplishments in San Diego
• Reviewed ARM and AIM of AP 240
• Reviewed ARM of AP 219
• Reviewed AIM of AP 238
• Reviewed STEP-NC milling model tools
• Reviewed STEP-NC turning model tools
• Reviewed STEP-NC EDM Models
• Meet with T23 on contour cutting and pipe bending

26
T24 Manufacturing

• Plans between now and Stuttgart
• Resolution of implementation issue
• SC4 team to investigate dividing AP 238 into
  conformance classes
• CC1 SC1 business case
• CC2 SC4 business case
• SC1 team to investigate use of STIX library for
  converting ARM implementation to AIM.
• Report back in Stuttgart

27
T24 Manufacturing

• Plans for Stuttgart
• Review all models
• Resolve AP 240 CD ballot comments
• Meet with SC1/WG7
• Meet with T23 Shipbuilding
• Review resolution of STEP-NC implementation issue

28
Vacancies

• Leader of T19
• Deputy leaders of T1, T9, T19, T20, T21, T22
