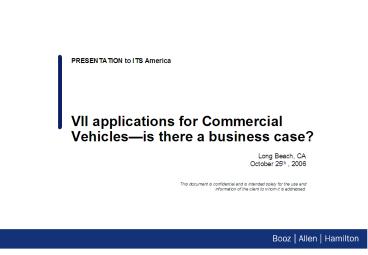

PRESENTATION to ITS America
VII applications for Commercial Vehiclesis there
a business case?
Long Beach, CA October 25th , 2006
This document is confidential and is intended
solely for the use and information of the client
to whom it is addressed.
2
Table Of Contents

• VII Program definition and status
• Commercial Vehicle Applications
• Brief review of one potential application-wireless
  safety inspections

• Next Steps

3
Three key components of VII

• On-board Equipment (OBE)
• human machine interface,
• vehicle interfaces, (to on-board networks)
• Applications, memory and processing,
• positioning, (GPS and dead-reckoning system)
• communications functions (radio, antenna, etc)

• Roadside Equipment (RSE) access nodes
  positioned along highways, at traffic
  intersections and other locations. Each RSE
  includes a DSRC radio, GPS, processor, and router
  to send messages back through the VII Network.
  Approximately 250,000 to be deployed in Phase 1.
• Network The VII Network interconnects the
  road-side RSEs, network services, and the network
  end-users.

4
The VII architecture will support a variety of
services and applications

• Applications designed into VII
• Public-sector traveler information,
• Public-sector safety (intersection collision
  warning, roadway conditions, etc.)

• Public-sector commerce (toll collection, parking,
  HOT, etc.),

• Public-sector vehicle administrative
  (inspections, registration, decals,
  etc.including commercial vehicle operations)

• Private sector safety (including
  vehicle-to-vehicle safety applications)

• Private sector commercial and convenience
• OEM provided (customer relationship management,
  navigation, infotainment, etc.)

• Third-arty provided? (similar to above)
• Applications Designed OUT of VII
• Law enforcement and related investigation

5
VII Program Organization
6
Current work efforts focus on developing an
integrated test of the VII system

• Combined with additional analysis, POC will drive
  a major decision milestone expected late 2008

7
VII and Commercial Vehicles
8
To date, the Vehicle Infrastructure Integration
(VII) initiative has been focused on the light
duty automotive marketand this probably makes
sense
9
but commercial motor vehicles (and fleet
customers) present a potentially attractive
application for VII technology
10
A market for short range wireless
communications is already in-place in the
commercial trucking industry

• Major heavy duty engine suppliers already offer
  wireless diagnostics. (DDC, Volvo, Mack,
  Caterpillar)

• Products and applications that wirelessly link
  the heavy-duty vehicle databus with a remote
  terminal are also available in the marketplace,
  (Eaton, Delphi, Dearborn, Vetronics, Clever
  Devices, others).
• Advanced electronic screening programs are
  available to fleets to allow them to by-pass
  inspection stations (e.g. Prepass, Norpass),
  and,
• Electronic toll collection (which to date relies
  on 900MHz short range communications) remains an
  important service for motor freight carriers.

11
Wifi services are also being offered at numerous
truck stops.
12
DSCR/WAVE technology can provide some of the
functionality and services of multiple wireless
communications media..

• Cellular and Satellite while not designed for
  voice transmissions, email, or continuous vehicle
  tracking, when coupled with an appropriately
  designed backhaul network, DSRC could potentially
  be a cost effective means for transmitting data
  (including short messages, diagnostic data, etc.)
  between fleet vehicles and their dispatch
  centers.
• 900 Mhz short range communications The 5.9GHz
  DSRC/WAVE media could readily enable
  interoperable toll collection, electronic
  clearance and other existing short range wireless
  applications.
• Wifi A 5.9GHz DSRC/WAVE-based on board unit
  could also readily handle transmission of
  maintenance related diagnostic data and vehicle
  software updates that are currently being
  implemented using Wifi or Bluetooth technology

13
DSRC technology infrastructure can support a
variety of safety and security applications for
the commercial vehicle sector
14
And, VII/DSRC can support a variety of
convenience applications that are of particular
importance for commercial vehicle operators.
15
Finally, the commercial vehicle and light duty
sectors must eventually embrace a common
communications solution to support cross cutting
safety applications

• Intersection Collision Avoidance Concepts
• Enhanced Collision Warning Applications
• Notification of Approaching Emergency Vehicle
• Automatic Collision Notification
• Many other safety and non-safety applications

16
Key challenges for deploying VII/DSRC technology
in the Commercial Vehicle sector

• How can DSRC be combined and leveraged with
• existing satellite and cellular telematics
  services?

• Wifi and Bluetooth?
• Is electronically identifying the driver to the
  vehicle institutionally and economically feasible
  in order to support various safety and security
  applications (e.g., Transportation Workers
  Identification Card?)
• If and how should various government
  administrative and/or regulatory requirements be
  incorporated? (safety inspections emissions
  inspections state issued permits proof of
  insurance, etc.)

17
Key questions for FMCSA, States and the
Commercial Vehicle Industry regarding VII.

• Should industry get more involved at this point
  in time?.....or should CV industry adopt a wait
  and see stance to see what happens in the light
  duty sector?
• Is there a middle ground position?
• Do cost/benefit research on specific applications
  for CVOand compare with alternative technology
  and/or process solutions for achieving the same
  ends?
• Complete an overall (but still high level)
  assessment of total long term costs and benefits
  to the industry.considering mobility, safety,
  and security applications?
• Paper Studies to determine technical, cost and
  institutional challenges that may be unique to
  CVO industry

• Develop a high-level deployment plan..both as a
  means of surfacing deployment issues, and to help
  evaluate how long it would take CV industry to
  catch up with the light duty sector should VII
  become a viable program.
• How should the Smart Roadside program be linked
  to VII.if at all?

18
Robert KreebBooz Allen Hamilton

• Phone [phone]
• Email kreeb_bob_at_bah.com
