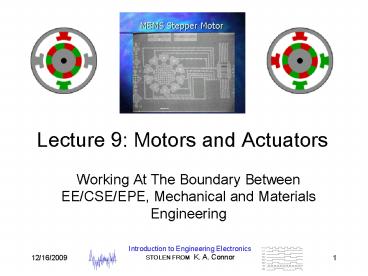

Lecture 9 Motors and Actuators
  • Working At The Boundary Between EE/CSE/EPE,
    Mechanical and Materials Engineering

2
Magnetism
  • One of the first compasses, a fish shaped iron
    leaf was mentioned in the Wu Ching Tsung Yao
    written in 1040
  • Trinity College, Dublin

3
Animal Magnetism
  • A frog suspended in an intense magnetic field
    all of us are paramagnetic
  • Much money is wasted on magnetic therapy

4
Electromagnetic Revolution
  • These four equations epitomize the
    electromagnetic revolution. Richard Feynman
    claimed that "ten thousand years from now, there
    can be little doubt that the most significant
    event of the 19th century will be judged as
    Maxwell's discovery of the laws of
    electrodynamics"

5
Magnetic Attraction
  • It is possible to produce motion using magnetic
    attraction and/or repulsion
  • Either permanent magnets or electromagnets or
    both can be used

6
Magnetic Attraction and Repulsion
  • One of the many facts we all recall from our
    earliest science education

7
2 Minute QuizName______Sec_____Date______
  • True or false, unlike magnetic poles attract and
    like magnetic poles repel one another.

8
DC Motors
  • The stator is the stationary outside part of a
    motor. The rotor is the inner part which rotates.
    In the motor animations, red represents a magnet
    or winding with a north polarization, while green
    represents a magnet or winding with a south
    polarization. Opposite, red and green, polarities
    attract.

9
DC Motors
  • Just as the rotor reaches alignment, the brushes
    move across the commutator contacts and energize
    the next winding. In the animation the commutator
    contacts are brown and the brushes are dark grey.
    A yellow spark shows when the brushes switch to
    the next winding.

10
DC Motor Applications
  • Automobiles
  • Windshield Wipers
  • Door locks
  • Window lifts
  • Antenna retractor
  • Seat adjust
  • Mirror adjust
  • Anti-lock Braking System
  • Cordless hand drill
  • Electric lawnmower
  • Fans
  • Toys
  • Electric toothbrush
  • Servo Motor

11
Beakmans Motor
  • A simple DC motor made with a battery, two
    paperclips, a rubber band and about 1 meter of
    enameled wire.

12
Brushless DC Motors
  • A brushless dc motor has a rotor with permanent
    magnets and a stator with windings. It is
    essentially a dc motor turned inside out. The
    control electronics replace the function of the
    commutator and energize the proper winding.

13
Brushless DC Motor Applications
  • Medical centrifuges, orthoscopic surgical tools,
    respirators, dental surgical tools, and organ
    transport pump systems
  • Model airplanes, cars, boats, helicopters
  • Microscopes
  • Tape drives and winders
  • Artificial heart

14
Full Stepper Motor
  • This animation demonstrates the principle for a
    stepper motor using full step commutation. The
    rotor of a permanent magnet stepper motor
    consists of permanent magnets and the stator has
    two pairs of windings. Just as the rotor aligns
    with one of the stator poles, the second phase is
    energized. The two phases alternate on and off
    and also reverse polarity. There are four steps.
    One phase lags the other phase by one step. This
    is equivalent to one forth of an electrical cycle
    or 90.

15
Half Stepper Motor
  • This animation shows the stepping pattern for a
    half-step stepper motor. The commutation sequence
    for a half-step stepper motor has eight steps
    instead of four. The main difference is that the
    second phase is turned on before the first phase
    is turned off. Thus, sometimes both phases are
    energized at the same time. During the half-steps
    the rotor is held in between the two full-step
    positions. A half-step motor has twice the
    resolution of a full step motor. It is very
    popular for this reason.

16
Stepper Motors
  • This stepper motor is very simplified. The rotor
    of a real stepper motor usually has many poles.
    The animation has only ten poles, however a real
    stepper motor might have a hundred. These are
    formed using a single magnet mounted inline with
    the rotor axis and two pole pieces with many
    teeth. The teeth are staggered to produce many
    poles. The stator poles of a real stepper motor
    also has many teeth. The teeth are arranged so
    that the two phases are still 90 out of phase.
    This stepper motor uses permanent magnets. Some
    stepper motors do not have magnets and instead
    use the basic principles of a switched reluctance
    motor. The stator is similar but the rotor is
    composed of a iron laminates.

17
More on Stepper Motors
  • Note how the phases are driven so that the rotor
    takes half steps

18
More on Stepper Motors
  • Animation shows how coils are energized for full
    steps

19
More on Stepper Motors
  • Half step sequence of binary control numbers
  • Full step sequence showing how binary numbers can
    control the motor

20
Stepper Motor Applications
  • Film Drive
  • Optical Scanner
  • Printers
  • ATM Machines
  • I. V. Pump
  • Blood Analyzer
  • FAX Machines
  • Thermostats

21
2 Minute QuizName______Sec_____Date______
  • Name one mechatronic device that you own or use
    on a regular basis

22
Switched Reluctance Motor
  • A switched reluctance or variable reluctance
    motor does not contain any permanent magnets. The
    stator is similar to a brushless dc motor.
    However, the rotor consists only of iron
    laminates. The iron rotor is attracted to the
    energized stator pole. The polarity of the stator
    pole does not matter. Torque is produced as a
    result of the attraction between the
    electromagnet and the iron rotor in the same way
    a magnet is attracted to a refrigerator door. An
    electrically quiet motor since it has no brushes.

23
Switched Reluctance Motor Applications
  • Motor scooters and other electric and hybrid
    vehicles
  • Industrial fans, blowers, pumps, mixers,
    centrifuges, machine tools
  • Domestic appliances

24
Brushless AC Motor
  • A brushless ac motor is driven with ac sine wave
    voltages. The permanent magnet rotor rotates
    synchronous to the rotating magnetic field. The
    rotating magnetic field is illustrated using a
    red and green gradient. An actual simulation of
    the magnetic field would show a far more complex
    magnetic field.

25
AC Induction Motor
  • The stator windings of an ac induction motor are
    distributed around the stator to produce a
    roughly sinusoidal distribution. When three phase
    ac voltages are applied to the stator windings, a
    rotating magnetic field is produced. The rotor of
    an induction motor also consists of windings or
    more often a copper squirrel cage imbedded within
    iron laminates. Only the iron laminates are
    shown. An electric current is induced in the
    rotor bars which also produce a magnetic field.

26
AC Induction Motor
  • The rotating magnetic field of the stator drags
    the rotor around. The rotor does not quite keep
    up with the the rotating magnetic field of the
    stator. It falls behind or slips as the field
    rotates. In this animation, for every time the
    magnetic field rotates, the rotor only makes
    three fourths of a turn. If you follow one of the
    bright green or red rotor teeth with the mouse,
    you will notice it change color as it falls
    behind the rotating field. The slip has been
    greatly exaggerated to enable visualization of
    this concept. A real induction motor only slips a
    few percent.

27
Huge List of Applications from Hurst
  • Aircraft Window Polarizing Drives
  • Antenna Positioning and Tuning Devices
  • Audio/Video Recording Instruments
  • Automated Inspection Equipment
  • Automated Photo Developing Equipment
  • Automated Photo Slide Trimming Mounting
    Equipment
  • Automatic Carton Marking Dating Machines
  • Automatic Dying and Textile Coloring Equipment
  • Automatic Food Processing Equipment
  • Automatic I.V. Dispensing Equipment
  • Automatic Radio Station Identification Equipment
  • Automotive
  • Automotive Engine Pollution Analyzers
  • Baseball Pitching Machine
  • Blood Agitators
  • Blood Cell Analyzer
  • Warning Light Flashers
  • Railroad Signal Equipment
  • Remote Focusing Microscopes
  • Resonator Drives for Vibraphones
  • ..
  • Silicone Wafer Production Equipment
  • Solar Collector Devices
  • Sonar Range Recorders and Simulators
  • Steel Mill Process Scanners
  • Tape Cleaning Equipment
  • Tape Input for Automatic Typewriters
  • Telescope Drives
  • Ultrasonic Commercial Fish Detectors
  • Ultrasonic Medical Diagnostic Equipment
  • Voltage Regulators
  • Water and Sewage Treatment Controls
  • Weather Data Collection Machines
  • Welding Machines
  • X-Ray Equipment

28
Stepper Motor from Mechatronics
29
Mechatronics Stepper Motor Continued
30
Mechatronics
  • Mechatronics is at the intersection between
    several disciplinary areas, as represented by
    these Venn diagrams

31
What Is Mechatronics?
  • Mechatronics is the synergistic integration of
    mechanical engineering, electronics, controls,
    and computers all integrated through the design
    process.
  • EXAMPLES
  • robots
  • anti-lock brakes
  • photocopiers
  • consumer products (e.g., clothes dryers)
  • disk drives

32
MEMS
  • Micro-Electro-Mechanical Systems (MEMS) is the
    integration of mechanical elements, sensors,
    actuators, and electronics on a common silicon
    substrate through the utilization of
    microfabrication technology. While the
    electronics are fabricated using integrated
    circuit (IC) process sequences (e.g., CMOS,
    Bipolar, or BICMOS processes), the
    micromechanical components are fabricated using
    compatible "micromachining" processes that
    selectively etch away parts of the silicon wafer
    or add new structural layers to form the
    mechanical and electromechanical devices.

33
MEMS Stepper Motor
  • This motor is very much like the other stepper
    motors mentioned above, except that it is 2D and
    very small

34
MEMS
  • The potential complexity of the MEMS device
    increases exponentially with the number of unique
    process features and individual structural layers.

35
MEMS Steam Engine
  • Water inside of three compression cylinders is
    heated by electric current and vaporizes, pushing
    the piston out. Capillary forces then retract the
    piston once current is removed.

36
MEMS
  • Rotary motor
  • Steam Engine (single piston)

37
MEMS Gear Trains
  • Six gear planar train at various speeds
  • Close up of six gear train

38
Power MEMS
  • 80 Watt gas microturbine designed and built at
    MIT for MEMS power applications

39
Integrated MEMS
  • This six-degrees-of-freedom micro-inertial
    measurement system combines microelectronic
    circuitry top right with a couple of
  • micromechanical elements an accelerometer
    center right and gyroscope bottom right.

40
Integrated MEMS
  • Types of micromechanical devices that might be
    used in integrated microsystems of the future
    shown clockwise from right include this gear,
    pop-up mirror, mirror assembly, and hinge. The
    gear is part of an assembly that has demonstrated
    torque ratios of up to 3 million to 1. The
    silicon mirror is fabricated flat on the silicon
    wafer, then "popped up" to its raised position
    using the gear assembly.

41
Integrated MEMS
  • Sample collection regions for concentration,
    microseparation channels, sensor arrays for
    detection, and an exit region are illustrated in
    schematic of the chemical analysis section of a
    micro-chemlab. Chemicals are detected measuring
    the response of surface acoustic-wave devices to
    a chemical's presence. The photograph is of an
    array of micromachined 3-µm silicon posts in a
    microchannel being studied as a tool for
    enhancing electrokinetically driven liquid
    separations.

42
MEMS Displays
  • Iridigm Display -- The iMoD element uses
    interference to create color in the same way that
    structural color works in nature. Microscopic
    structures on butterfly wings and peacock
    feathers cause light to interfere with itself,
    creating the shimmering iridescent colors that we
    see in these creatures. (Used in PDAs)

43
MEMS Displays
  • The iMoD element is a simple MEMS device that is
    composed of two conductive plates. One is a thin
    film stack on a glass substrate, the other is a
    metallic membrane suspended over it. There is a
    gap between the two that is filled with air. The
    iMoD element has two stable states. When no
    voltage is applied, the plates are separated, and
    light hitting the substrate is reflected as shown
    above. When a small voltage is applied, the
    plates are pulled together by electrostatic
    attraction and the light is absorbed, turning the
    element black.

44
MEMS Displays
  • iMoD elements are minuscule, typically 25-60
    microns on a side (400-1,000 dots per inch).
    Therefore, many iMoD elements are ganged and
    driven together as a pixel, or sub-pixel in a
    color display. The color of the iMoD element is
    determined by the size of the gap between the
    plates. As shown, the blue iMoD has the smallest
    gap and the red has the largest. To create a flat
    panel display, a large array of iMoD elements are
    fabricated in the desired format (i.e. 5" full
    color VGA) and packaged. Finally, driver chips
    are attached at the edge to complete the display.

45
References
  • Motor Operation Principles from Motorola
  • Basic Stepper Motor Concepts
  • MEMS Clearinghouse
  • Mechatronics at Rensselaer
  • Mechatronics.org
  • Beakmans Motor Electronic Instrumentation and
    Fields and Waves I

46
2 Minute QuizName______Sec_____Date______
  • Which engineering majors are some interest to
    you? Electrical, Computer Systems, Electric
    Power, Nuclear, Mechanical, Aeronautical,
    Biomedical, Civil, Industrial Management,
    Materials, Chemical, Environmental, Engineering
    Physics

47
Primary Course Goal for IEE
  • Assure that each EE and CSE student has a minimum
    of 20 hours of practical electronics and
    instrumentation experience before they begin
    taking disciplinary courses.
  • For students with no experience 20 hours
    successfully completing labs
  • For students with some experience 20 hours
    completing labs, expanding their knowledge base
    and helping those with less experience
  • For students outside of EE and CSE provide a
    working knowledge of electronics

48
2 Minute QuizANSWERS
  • True or false, unlike magnetic poles attract and
    like magnetic poles repel one another. TRUE
  • Name one mechatronic device that you own or use
    on a regular basis- CD PLAYER, DISHWASHER
  • Which engineering majors are some interest to
    you? Electrical, Computer Systems, Electric
    Power, Nuclear, Mechanical, Aeronautical,
    Biomedical, Civil, Industrial Management,
    Materials, Chemical, Environmental, Engineering
    Physics
  • ELECTRICAL-THE ONLY ONE

49
Where Will You See This Material Again?
  • Mechatronics MANE-4490 Mechatronics, MANE-4250
    Mechatronic Systems Design, MANE 6960 Sensors
    Actuators in Mechatronics
  • Motor Drives ECSE/EPOW-4080 Semiconductor Power
    Electronics and EPOW-4090 Power Electronics Lab
  • Motor Control ENGR-2350 Introduction to Embedded
    Control
  • Concentration in Power Electronics EPOW-4080 and
    MANE-4490
Write a Comment
User Comments (0)
About PowerShow.com
