Statistical Procedures for Comparing RealWorld System and Simulation Output Data

1

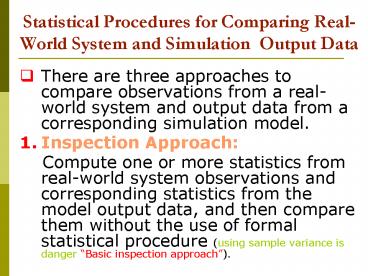

Statistical Procedures for Comparing Real-World
System and Simulation Output Data

• There are three approaches to compare
  observations from a real-world system and output
  data from a corresponding simulation model.
• Inspection Approach
• Compute one or more statistics from
  real-world system observations and corresponding
  statistics from the model output data, and then
  compare them without the use of formal
  statistical procedure (using sample variance is
  danger Basic inspection approach).

2
Statistical Procedures (cont.)

• To avoid the danger due the using of basic
  inspection approach, using the correlated
  inspection approach.

3
Statistical Procedures (cont.)

• Confidence-Interval (?) Approach Based on
  Independent Data
• More reliable approach
• Is used to answer two questions
• How large is the mean difference, and how
  precise is the estimator of mean difference?
• Is there a significant difference between the
  actual system and the model? This will lead to
  one of
• If the ? ?0. for Ers? Esm then there is strong
  evidence.
• If the ? 0. for Ers Esm then, based on the data
  at hand, there is no strong evidence.

4
Statistical Procedures (cont.)

• A two-sided 100(1-a)? will always be of the
  form
• Where is the sample mean, is the
  degree of freedom, is the 100(1-a) of a
  paired-t, and se(.) is the standard error of the
  specified estimator

5
Statistical Procedures (cont.)

• Time series Approaches
• Spectral-analysis approach
• Computing the sample spectrum i.e. the Fourier
  cosine transformation of the estimated
  autocovariance function, of each output applied,
  then using existing theory to construct a
  confidence interval for the difference of the
  logarithms of the two spectra.

6
Statistical Procedures (cont.)

• Alternative approach
• Fitting a parametric time-series model to each
  set of output data, then apply a hypothesis test
  to see whether the two models appear to the same.
• Chen and Sargents method
• Construct a confidence interval for the
  difference between the system steady-state mean
  and the corresponding steady-state mean of the
  model.

7
Selecting Input Probability Distributions

• How analyst might go about specifying the input
  probability distributions?
• All real systems contain one or more sources of
  randomness.
• Sources of randomness for common simulation
  application are given in the following table.

8
(No Transcript)
9
Selecting Input (cont.)

• Useful probability distributions
• Parameterization of continuous distributions
• The parameters can be classified as location
  , scale (ß), or shape parameters (a).
• Continuous distributions
• Continuous random variables can be used to
  describe random phenomena in which the variable
  of interest can take on any value in some
  interval.

10
Continuous distributions (cont.)

• Uniform distribution U(a,b) Models complete
  uncertainty, since all outcomes are equally
  likely.
• Exponential distribution expo(ß) models the time
  between independent events, or a process time
  which is memoryless.
• Gamma distribution gamma (a,ß) An extremely
  flexible distribution used to model nonnegative
  random variables.

11
Continuous distributions (cont.)

• Beta distribution Beta(a1, a2) An extremely
  flexible distribution used to model bounded
  random variables.
• Weibull distribution weibull (a,ß) Models the
  time to failure for components.
• Normal distribution N(µ,s2) Models the
  distribution of process that can be thought of as
  the sum of a number of component process.

12
Continuous distributions (cont.)

• Lognormal distribution LN (µ,s2) Models the
  distribution of process that can be thought of as
  the product of (meaning to multiply together) a
  number of component process.
• Pearson type V distribution PT5(a,ß) time to
  perform some task (similar to Lognormal)

13
Continuous distributions (cont.)

• Pearson type VI distribution PT6 (a,ß) time to
  perform some task
• Triangular distribution triang (a,b,c) Models a
  process when only the minimum, most likely, and
  maximum values of the distribution are known.

14
Discrete distributions

• Bernoulli distribution Bernoulli (p) used to
  generate other discrete random varieties
• Discrete uniform distribution DU (i, j) Models
  complete uncertainty, since all outcomes are
  equally likely.
• Binomial distribution bin (t,p) Models the
  number of successes in trials, when the trials
  are independent with common success probability,
  p.

15
Discrete distributions (cont.)

• Geometric distribution geom (p) Number of
  failures before the first success in a sequence
  of independent Bernoulli trials with probability
  p of success on each trial.
• Negative Binomial distribution negbin(s,p)
  Models the number of trial required to achieve k
  success.
• Poisson distribution Poisson(?) Models the
  number of independent events that occur in a
  fixed amount of time or space.

16
Empirical distributions

• If the modeler has been unable to find a
  theoretical distribution that provides a good
  model for the input data, it may be necessary to
  use the empirical distribution of the data.

17
Identify the distribution with data

• Methods for selecting families of input
  distributions when data are available will be
  discussed
• Activity I
• Hypothesizing Families of Distributions Decide
  what general families appear to be appropriate on
  the basis of their shapes, without worrying about
  the specific parameter value for these families.

18
Identify the distribution (cont.)

• Histograms and line graphs A
  frequency distribution or histogram is useful in
  identifying the shape of a distribution.
  A histogram is
  constructed as follows
• Divide the range of the data (X1, X2, , Xn)
  into k disjoint intervals ?b(bj-1-bj), j1, 2,
  , k.
• Label the horizontal axis to conform to the
  intervals selected.

19
Identify the distribution (cont.)

• Determine the frequency of occurrences within
  each interval. Define the function
• Label the vertical axis so that the total
  occurrences can be plotted for each intervals.
• Plot the frequencies on the vertical axis.

20
Identify the distribution (cont.)

• Then Compared with plots of densities of various
  distributions in the basis of shape alone because
  for any some number y
• For Choosing the number of interval K using

21
Identify the distribution (cont.)

• Quantile (q) summaries and box plots
• Useful for determining whether the underlying
  probability is symmetrical or skewed to the right
  or to the left.
• If 0 lt F(x) lt 1
• Then for 0lt q lt1, the q-quantile of F(x) is that
  number such that
• Inverse F(x),
• The median ,

22
Identify the distribution (cont.)

• The lower and upper quartiles and
• The lower and upper octiles and

23
Identify the distribution (cont.)

• Activity II
• Estimation of parameters
• After a family of distributions has been
  selected, the next step is to estimate the
  parameters of the distribution.
• MLEs (maximum-likelihood estimators)
• The likelihood function for unknown ?

24
MLE Properties

• MLE is unique( )
• MLEs need not be unbiased
• MLEs are invariant
• MLEs are asymptotically normally distributed
• MLEs are strongly constant
