Turning off hypervisor and resuming OS in 100 instructions

1

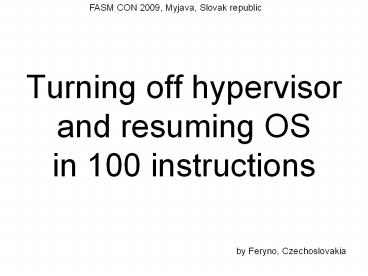

Turning off hypervisorand resuming OSin 100
instructions
FASM CON 2009, Myjava, Slovak republic
by Feryno, Czechoslovakia
2
FASM CON 2009, Myjava, Slovak republic
hypervisor (ring-1) and OS (ring0 ring3) are
running correctly (Intel IA32-e mode) hypervisor
uses its own private virtual memory translation
tables (private CR3, not shared with OS) how to
turn off hypervisor and resume OS ?
3
FASM CON 2009, Myjava, Slovak republic
ring0 may initiate the shutdown using the VMCALL
instruction (3-bytes instruction) (ring0
privileged instruction) ring3 may initiate the
shutdown using the CPUID instruction (2-bytes
instruction) both instructions
cause unconditional VM EXIT transfer from ring0
or ring3 into ring -1
4
FASM CON 2009, Myjava, Slovak republic
ring0_initialization mov rax,shutdown_magic_num
ber vmcall jbe failure call cleanup
5
FASM CON 2009, Myjava, Slovak republic
ring -1 part vm_exit_handler push rax mov e
ax,4402h vm_exit_reason encodings vmread rax,rax
read VMCS field cmp ax,18 vmcall
instruction caused VM exit pop rax jz vm_exit_ha
ndler_18
6
FASM CON 2009, Myjava, Slovak republic
vm_exit_handler_18 cmp rax,shutdown_magic_number
jz hypervisor_shutdown ... vm_exit_handler_18_ba
d_request push rax rcx rdx mov ecx,6820h guest
RFLAGS encodings vmread rax,rcx read guest
RFLAGS into RAX VMFailValid CF0, PF0, AF0,
ZF1, SF0, OF0. and eax,not ( (1 shl 0) (1
shl 2) (1 shl 4) (1 shl 7) (1 shl 11)
) or al,1 shl 6 rflags.ZF1 (bit 6. of
rflags) vmwrite rcx,rax write guest RFLAGS
into VMCS field mov eax,440Ch VM-exit
instruction length encoding vmread rcx,rax
instruction length, rcx3 for the VMCALL
instruction mov eax,681Eh guest RIP
encoding vmread rdx,rax read guest
RIP add rcx,rdx point guest RIP to the
instruction after VMCALL vmwrite rax,rcx write
guest RIP into VMCS field pop rdx rcx rax vmresume
7
FASM CON 2009, Myjava, Slovak republic
hypervisor_shutdown prologue read necessary
informations using VMREAD instructions execute
the VMXOFF instruction restore necessary
registers epilogue and allow OS to run
8
FASM CON 2009, Myjava, Slovak republic
data and structure used by shutdown
the count of words in data and qwords in
structure is the same, the n-th word in data is
VMCS field encodings of the n-th qword in
structure
data VMCS_fields_encodings dw 0800h dw 0802h
dw 0804h dw 0806h dw 0808h dw 080Ah dw 080Ch dw 08
0Eh ... dw 6826h NUMBER_OF_VMCS_FIELDS \ ( -
VMCS_fields_encodings) / 2 there are about
20-30 words of data
structure struc VMCS_FIELDS .guest_ES_selecto
r dq ? .guest_CS_selector dq ? .guest_SS_selecto
r dq ? .guest_DS_selector dq ? .guest_FS_selecto
r dq ? .guest_GS_selector dq ? .guest_LDTR_selec
tor dq ? .guest_TR_selector dq ? ... .guest_IA32
_SYSENTER_EIP dq ? there are about 20-30
qwords in structure
9
FASM CON 2009, Myjava, Slovak republic
prologue
push rax rcx rdx rbx rbp we need some stack
frame c NUMBER_OF_VMCS_FIELDS 8 stack
frame for reading necessary VMCS
fields b 16 stack frame for IDT a 16
stack frame for GDT sub rsp,abc
10
FASM CON 2009, Myjava, Slovak republic
read VMCS fields into the stack frame
virtual at rsp a b sfsh VMCS_FIELDS end
virtual lea rdx,VMCS_fields_encodings mov e
cx,number_of_VMCS_fields - 1 sd_read_all_fields
movzx eax,word rdx rcx2 vmread qword sfsh
rcx8,rax dec ecx jns sd_read_all_fields
11
FASM CON 2009, Myjava, Slovak republic
execute the VMXOFF instruction
vmxoff Now we can't use VMxxx instructions
anymore. This is the reason why we have already
read everything necessary using vmread
instructions.
12
FASM CON 2009, Myjava, Slovak republic
loading OS virtual memory translation tables

• disabling long mode and paging also (requires
  identity mapped memory page which has the same
  physical and virtual addresses, necessary at the
  moment of disabling paging when virtual memory
  disappeares), then restore CR3 of OS, then enable
  paging and long mode (hard to do if CR3 is
  0000000100000000h or even higher)
• do it on the fly using Global pages feature
• (the same principle used during task switching in
  multitasking OS, processes have different CR3)

13
FASM CON 2009, Myjava, Slovak republic
loading OS paging tables using Global pages
We are going to change CR3. We use the TLB
(translation lookaside buffer) to have valid
translation of virtual into physical memory.
Make all pages (translation tables, code, data,
stack) of the just now shutdowned hypervisor
global. We are going to execute MOV CR3,new_cr3
and then global pages stay in TLB so we will be
able to continue. Hypervisor had also physical
pages holding translation tables mapped into
its virtual memory to make them easily accessible
from its virtual memory. mov rax,cr4 or al,1 shl
7 Page Global Enable, bit 7. mov cr4,rax
14
FASM CON 2009, Myjava, Slovak republic
host_virtual_address 0FFFF800000000000h number_o
f_PT_entries 512 (all PT entries with the
above settings fit into 1 aligned physical memory
page of 4 kB) lea rdx,host_PT_tables mov ec
x,number_of_PT_entries - 1 make_global_pages mov
eax,rdxrcx8 or ah,1 shl (8-8) PTE.G
(global) movnti rdxrcx8,eax dec ecx jns m
ake_global_pages
15
FASM CON 2009, Myjava, Slovak republic
16
FASM CON 2009, Myjava, Slovak republic
17
FASM CON 2009, Myjava, Slovak republic
18
FASM CON 2009, Myjava, Slovak republic
Invalidate the TLB by copying CR3 into itself
mov rcx,cr3 mov cr3,rcx the TLB is now
empty. the first instruction accessing the code
in global page will put its virtual memory
translation into TLB. the first instruction
accessing stack page which is global also will
fill TLB with the 1 stack page virtual memory
translation. if the code of hypervisor shutdown
procedure fits into 1 global page and stack
into 1 global page, we may continue, if they
are in more pages, we must access all these
pages (read from stack page, execute instruction
in code page) to load them into TLB before
continuing
19
FASM CON 2009, Myjava, Slovak republic
control registers note the first instruction
forces the 1 global page holding code and the 1
global page of stack (sfsh is structure in
stack) to be loaded into TLB mov rax,sfsh.guest_C
R4 mov rcx,sfsh.guest_CR3 mov rdx,sfsh.guest_
CR0 or al,(1 shl 7) (1 shl 5) CR4.PGE,
PAE or edx,(1 shl 31) (1 shl 0) CR0.PG,
PE mov cr4,rax mov cr3,rcx mov cr0,rdx
20
FASM CON 2009, Myjava, Slovak republic
descriptor tables
mov ax,word sfsh.guest_GDTR_limit mov cx,word
sfsh.guest_IDTR_limit mov word rsp
8-2,ax mov word rsp a 8-2,cx mov rdx,sfs
h.guest_GDTR_base mov rax,sfsh.guest_IDTR_base
mov rsp 8,rdx mov rsp a
8,rax lgdt rsp 8-2 lidt rsp a 8-2
21
FASM CON 2009, Myjava, Slovak republic
selectors
mov es,word sfsh.guest_ES_selector mov ds,word
sfsh.guest_DS_selector mov fs,word
sfsh.guest_FS_selector mov gs,word
sfsh.guest_GS_selector lldt word
sfsh.guest_LDTR_selector fs base, gs base
will be updated later, updating fs base, gs
base before fs, gs selectors is useless
(loading fs, gs always destroys the old fs, gs
base)
22
FASM CON 2009, Myjava, Slovak republic
task register (at first make busy TSS available)
rdx guest_GDT_base movzx eax,word
sfsh.guest_TR_selector mov ecx,eax and al,not
111b test cl,100b TI (Table Indicator)
jz vm_exit_handler_18_L0 mov rdx,sfsh.guest_LD
TR_base TSS cant be in LDT because of GP
vm_exit_handler_18_L0 and byte
rdxrax15,not 0010b ltr cx
23
FASM CON 2009, Myjava, Slovak republic
fs.base, gs.base (never before updating fs, gs)
mov ecx,MSR_IA32_FS_BASE mov eax,dword
sfsh.guest_FS_base mov edx,dword
sfsh.guest_FS_base4 wrmsr mov ecx,MSR_IA32_GS
_BASE mov eax,dword sfsh.guest_GS_base mov edx
,dword sfsh.guest_GS_base4 wrmsr
24
FASM CON 2009, Myjava, Slovak republic
SYSENTER MSRs
mov ecx,MSR_IA32_SYSENTER_CS movzx eax,sfsh.gues
t_IA32_SYSENTER_CS xor edx,edx wrmsr mov ecx,MSR
_IA32_SYSENTER_ESP mov eax,sfsh.guest_IA32_SYSENT
ER_ESP mov edx,sfsh.guest_IA32_SYSENTER_ESP4 w
rmsr mov ecx,MSR_IA32_SYSENTER_EIP mov eax,sfsh.g
uest_IA32_SYSENTER_EIP mov edx,sfsh.guest_IA32_S
YSENTER_EIP4 wrmsr
25
FASM CON 2009, Myjava, Slovak republic
debug registers
test sfsh.VM_exit_controls,1 shl
2 jz after_restoring_guest_debug_state CPU
saved guest debug state during VM exit into
guest VMCS fields, we will restore
them mov ecx,MSR_IA32_DEBUGCTL mov eax,sfsh.guest
_IA32_DEBUGCTL mov edx,sfsh.guest_IA32_DEBUGCTL
4 wrmsr mov rax,sfsh.guest_DR7 mov dr7,rax af
ter_restoring_guest_debug_state
26
FASM CON 2009, Myjava, Slovak republic
preparing RIP, CS, RFLAGS, RSP, SS
mov rbp,sfsh.guest_RIP add rbp,sfsh.vm_exit_i
nstruction_length movzx ebx,word
sfsh.guest_CS_selector mov edx,dword
sfsh.guest_RFLAGS mov rcx,sfsh.guest_RSP movz
x eax,word sfsh.guest_SS_selector signalizing
VMsucceed CF0, PF0, AF0, ZF0, SF0,
OF0. and edx,not ( (1 shl 0) (1 shl 2) (1
shl 4) \ (1 shl 6) (1 shl 7) (1 shl 11) )
27
FASM CON 2009, Myjava, Slovak republic
procedure epilogue resuming OS
add rsp,abc discard stack frame xchg rsp80
,rbp restore RBP and store RIP xchg rsp81,r
bx restore RBX and store CS xchg rsp82,rdx
restore RDX and store rflags xchg rsp83,rcx
restore RCX and store RSP xchg rsp84,rax
restore RAX and store SS iretq db 48h,0CFh
restore RIP, CS, RFLAGS, RSP, SS
(run the OS)
28
FASM CON 2009, Myjava, Slovak republic
cleanup
mov rax,shutdown_magic_number vmcall jbe
failure call cleanup cleanup mov rax,host_virt
ual_address mov ecx,(number_of_PT_entries-1)1000
h remove_TLB_entries invlpg raxrcx1 sub ecx,
1000h jnc remove_TLB_entries ret
29
FASM CON 2009, Myjava, Slovak republic
That was a way how to turn off hypervisor and
resume OS in about 100 instructions.
Good? No. It is VERY POOR !!!
Now a guy who is able to turn off hypervisor in
1 instruction !!!
30
FASM CON 2009, Myjava, Slovak republic
31
FASM CON 2009, Myjava, Slovak republic
The guy is now hardly thinking how to resume the
OS in 1 instruction !!!
