DataDriven Network Analysis: Do You Really Know Your Data

1

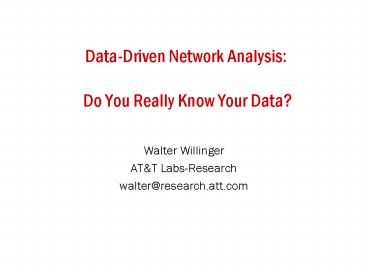

Data-Driven Network Analysis  Do You Really
Know Your Data?

• Walter Willinger
• ATT Labs-Research
• walter_at_research.att.com

2
Heard about Network Science?

• Recent hot topic area in science
• Thousands of papers, many in high-impact journals
  such as Science or Nature
• Interdisciplinary flavor (Stat.) Physics, Math,
  CS
• Main apps Internet, social science, biology,
• Offers an alluring new recipe for doing network
  analysis
• Largely measurement-driven
• Main focus is on universal properties
• Exploiting the predictive power of simple models
• small world networks clustering and path lengths

• scale free networks power law degree
  distributions
• Emphasis on self-organization and emergence

3
NETWORK SCIENCE
January, 2006

• First, networks lie at the core of the economic,
  political, and social fabric of the 21st
  century.
• Second, the current state of knowledge about the
  structure, dynamics, and behaviors of both large
  infrastructure networks and vital social networks
  at all scales is primitive.
• Third, the United States is not on track to
  consolidate the information that already exists
  about the science of large, complex networks,
  much less to develop the knowledge that will be
  needed to design the networks envisaged

http//www.nap.edu/catalog/11516.html
4
Network Science

• What?
• The study of network representations of
  physical, biological, and social phenomena
  leading to predictive models of these phenomena.
  (National Research Council Report, 2006)
• Why?
• To develop a body of rigorous results that
  will improve the predictability of the
  engineering design of complex networks and also
  speed up basic research in a variety of
  applications areas. (National Research Council
  Report, 2006)
• Who?
• Physicists (statistical physics), mathematicians
  (graph theory), computer scientists (algorithm
  design), etc.

5
As Internet researchers, why should we care?

• The teaching of Network Science

6
The New Science of Networks
7
Why should we care?

• The teaching of Network Science
• The claims Network Science makes about the
  Internet
• High-degree nodes form a hub-like core
• Fragile/vulnerable to targeted node removal
• Achilles heel
• Zero epidemic threshold
• Network Science and the Internet
• Lies, damned lies, statistics
• Rich source for wrong/bad models/theories
• The published claims about the Internet are not
  controversial they are simply wrong!

8
What is wrong with Network Science?

• No critical assessment of available data
• Ignores all networking-related details
• Overarching desire to reproduce observed
  properties of the data even though the quality of
  the data is insufficient to say anything about
  those properties with sufficient confidence
• Reduces model validation to the ability to
  reproduce an observed statistics of the data
  (e.g., node degree distribution)

9
How to fix Network Science?

• Know your data!
• Importance of data hygiene
• Take model validation more serious!
• Model validation ? data fitting
• Apply an engineering perspective to engineered
  systems!
• Design principles vs. random coin tosses

10
Some illustrative Examples

• Example 1
• Data Traceroute measurements
• Objective Inferring Internet topology at the
  router-level
• Example 2
• Data Traceroute measurements
• Objective Inferring Internet topology at the
  level of Autonomous Systems (ASes)
• Example 3
• Data BGP measurements
• Objective Inferring Internet topology at the
  level of Autonomous Systems (ASes)

11
Measurement tool traceroute

• traceroute www.duke.edu
• traceroute to www.duke.edu (152.3.189.3), 30
  hops max, 60 byte packets
• 1 fp-core.research.att.com (135.207.16.1) 2 ms
  1 ms 1 ms
• 2 ngx19.research.att.com (135.207.1.19) 1 ms
  0 ms 0 ms
• 3 12.106.32.1 1 ms 1 ms 1 ms
• 4 12.119.12.73 2 ms 2 ms 2 ms
• 5 tbr1.n54ny.ip.att.net (12.123.219.129) 4 ms
  5 ms 3 ms
• 6 ggr7.n54ny.ip.att.net (12.122.88.21) 3 ms 3
  ms 3 ms
• 7 192.205.35.98 4 ms 4 ms 8 ms
• 8 jfk-core-02.inet.qwest.net (205.171.30.5) 3
  ms 3 ms 4 ms
• 9 dca-core-01.inet.qwest.net (67.14.6.201) 11
  ms 11 ms 11 ms
• 10 dca-edge-04.inet.qwest.net (205.171.9.98) 11
  ms 15 ms 11 ms
• 11 gw-dc-mcnc.ncren.net (63.148.128.122) 18 ms
  18 ms 18 ms
• 12 rlgh7600-gw-to-rlgh1-gw.ncren.net
  (128.109.70.38) 18 ms 18 ms 18 ms
• 13 roti-gw-to-rlgh7600-gw.ncren.net
  (128.109.70.18) 20 ms 20 ms 20 ms
• 14 art1sp-tel1sp.netcom.duke.edu (152.3.219.118)
  23 ms 20 ms 20 ms
• 15 webhost-lb-01.oit.duke.edu (152.3.189.3) 21
  ms 38 ms 20 ms
• 1 traceroute measurement about 1KB

12
Large-scale traceroute experiments
1 million x 1 million traceroutes 1PB
13
Two Examples of inferred ISP topology
http//www.isi.edu/scan/mercator/mercator.html
14
About the Traceroute tool (1)

• traceroute is strictly about IP-level
  connectivity
• Originally developed by Van Jacobson (1988)
• Designed to trace out the route to a host
• Using traceroute to map the router-level topology
• Engineering hack
• Example of what we can measure, not what we want
  to measure!
• Basic problem 1 IP alias resolution problem
• How to map interface IP addresses to IP routers
• Largely ignored or badly dealt with in the past
• New efforts in 2008 for better heuristics

15
Interfaces 1 and 2 belong to the same router
16
IP Alias Resolution Problem for Abilene (thanks
to Adam Bender)
17
About the Traceroute tool (2)

• traceroute is strictly about IP-level
  connectivity
• Basic problem 2 Layer-2 technologies (e.g.,
  MPLS, ATM)
• MPLS is an example of a circuit technology that
  hides the networks physical infrastructure from
  IP
• Sending traceroutes through an opaque Layer-2
  cloud results in the discovery of high-degree
  nodes, which are simply an artifact of an
  imperfect measurement technique.
• This problem has been largely ignored in all
  large-scale traceroute experiments to date.

18
(a)
(b)
19
(No Transcript)
20
About the Traceroute tool (3)

• The irony of traceroute measurements
• The high-degree nodes in the middle of the
  network that traceroute reveals are not for real

• If there are high-degree nodes in the network,
  they can only exist at the edge of the network
  where they will never be revealed by generic
  traceroute-based experiments
• Additional irony
• Bias in (mathematical abstraction of) traceroute
• Has been a major focus within CS/Networking
  literature
• Non-issue in the presence of above-mentioned
  problems

21
Example 1 Lessons learned

• Know your measurement technique!
• Question Can you trust the data obtained by your
  tool?
• Know your data!
• Critical role of Data Hygiene in the Petabyte Age
• Corollary Petabytes of garbage garbage
• Data hygiene is often viewed as
  dirty/unglamorous work
• Question Can the data be used for the purpose at
  hand?
• Regarding Example 1
• (Current) traceroute measurements are of (very)
  limited use for inferring router-level
  connectivity
• It is unlikely that future traceroute
  measurements will be more useful for the purpose
  of router-level inference

22
A textbook example for what can go wrong

• J.-J. Pansiot and D. Grad, On routes and
  multicast trees in the Internet, ACM Computer
  Communication Review 28(1), 1998.
• Original traceroute data -- purpose for using
  the data is explicitly stated
• Most of the issues with traceroute are listed!
• M. Faloutsos, P. Faloutsos, and C. Faloutsos, On
  the power-law relationships of the Internet
  topology, Proc. ACM SIGCOMM99, 1999.
• Rely on the Pansiot-Grad data, but use it for a
  very different purpose
• Take the available data at face value, even
  though Pansiot/Grad list most of the problems
• There is no scientific basis for the reported
  power-law findings!
• R. Albert, H. Jeong, and A.-L. Barabasi, Error
  and attack tolerance of complex networks,
  Nature, 2000.
• Do not even cite original data source (i.e.,
  Pansiot/Grad)
• Take the results of FFF99 at face value
• The reported results are all wrong!

23
Applying lessons to Example 2

• Example 2 Use of traceroute measurements to
  infer Internet topology at the level of
  Autonomous Systems (ASes)
• Know your measurement technique!
• traceroute (see Example 1)
• Know your data!
• Main source of errors IP address sharing between
  BGP neighbors makes mapping traceroute paths to
  AS paths very difficult
• Up to 50 of traceroute-derived AS adjacencies
  appear to be bogus

24
Applying lessons to Example 2 (cont.)

• Regarding Example 2
• (Current) traceroute measurements are of (very)
  limited use for inferring AS-level connectivity
• Obtaining the ground truth is very challenging
• It is possible that in the future, more targeted
  traceroute measurements in conjunction with BGP
  data will be more useful for the purpose of
  inferring AS-level connectivity

25
Applying lessons to Example 3

• Example 3 Use of BGP data to infer Internet
  topology at the level of Autonomous Systems
  (ASes)
• Know your measurement technique!
• BGP -- de facto inter-domain routing protocol
• BGP -- designed to propagate reachability
  information among ASes, not connectivity
  information
• Engineering hack not designed to obtain
  connectivity information
• Example of what we can measure, not what we want
  to measure!
• Collect BGP routing information base (RIB)
  information from as many routers as possible

26
Applying lessons to Example 3 (cont.)

• Know your data!
• Examining the hygiene of BGP measurements
  requires significant commitment and domain
  knowledge
• Parts of the available data seem accurate and
  solid (i.e., customer-provider links, nodes)
• Parts of the available data are highly
  problematic and incomplete (i.e., peer-to-peer
  links)
• Ground truth is hard to come by
• Regarding Example 3
• (Current) BGP-based measurements are of
  questionable quality for inferring AS-level
  connectivity
• Obtaining the ground truth is very challenging
• It is possible that in the future, more targeted
  traceroute measurements in conjunction with BGP
  data will be more useful for the purpose of
  inferring AS-level connectivity

27
A Reminder

• Data-driven network analysis in the presence of
  high-quality data that can be taken at face value
• All models are wrong but some are useful
  (G.E.P. Box)
• Data-driven network analysis in the presence of
  highly ambiguous data that should not be taken at
  face value
• When exactitude is elusive, it is better to be
  approximately right than certifiably wrong.
  (B.B. Mandelbrot)

28
SOME RELATED REFERENCES

• L. Li, D. Alderson, W. Willinger, and J. Doyle, A
  first-principles approach to understanding the
  Internets router-level topology, Proc. ACM
  SIGCOMM 2004.
• J.C. Doyle, D. Alderson, L. Li, S. Low, M.
  Roughan, S. Shalunov, R. Tanaka, and W.
  Willinger. The "robust yet fragile" nature of
  the Internet. PNAS 102(41), 2005.
• D. Alderson, L. Li, W. Willinger, J.C. Doyle.
  Understanding Internet Topology Principles,
  Models, and Validation. ACM/IEEE Trans. on
  Networking 13(6), 2005.
• L. Li, D. Alderson, J.C. Doyle, W. Willinger.
  Toward a Theory of Scale-Free Networks
  Definition, Properties, and Implications.
  Internet Mathematics 2(4), 2006.
• R. Oliveira, D. Pei, W. Willinger, B. Zhang, L.
  Zhang. In Search of the elusive Ground Truth
  The Internet's AS-level Connectivity
  Structure.Proc. ACM SIGMETRICS 2008.
• B. Krishnamurthy and W. Willinger. What are our
  standards for validation of measurement-based
  networking research? Proc. ACM HotMetrics
  Workshop 2008.
• W. Willinger, D. Alderson, and J.C. Doyle.
  Mathematics and the Internet A Source of
  Enormous Confusion and Great Potential. Notices
  of the AMS, Vol. 56, No. 2, 2009.
