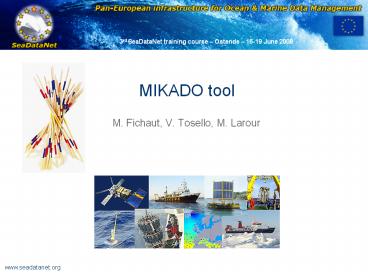

MIKADO tool

1
MIKADO tool

• M. Fichaut, V. Tosello, M. Larour

2
Overview

• Objectives, background and technical
  characteristics
• Mikado main features
• Differences between MIKADO V0 and V1
• Manual input of metadata
• Use of the common SDN vocabularies
• Automatic XML generation
• Connection to the local database
• Query writing
• Mapping to the local database
• Practical work session

3
Objective

• MIKADO is used to generate XML catalogue
  descriptions, it creates XML ISO-19115 files
  using SDN common vocabularies for metadata
  exchange of
• CSR - Cruise Summary Reports
• EDMED - Marine Environmental Data sets
• CDI - Common Data Index
• EDMERP - Marine Environmental Research Projects
• EDIOS Permanent Ocean-observing System
• To use MIKADO you must be familiar with the XML
  documentation of SDN which can be downloaded from
  BSCW
• SDN Technical Task Team
• ISO
• Application of ISO 19115 within SeaDataNet V1
• XML METADATA for CSR V1 .

4
Some background

• Mikado version 0
• created for the SEA-SEARCH project
• used for SeaDataNet V0
• Mikado version 1
• New version of Mikado to be compliant with the
  SeaDataNet V1 XML schemas, and the SeaDataNet
  common vocabularies
• Completely rewritten, more user friendly

5
Technical characteristics

• Written in Java Language (Version gt 1.6)
• Available under multiple environments
• Microsoft Windows 2000, XP, VISTA
• APPLE
• Unix - Solaris
• Linux
• Use of the SeaDataNet common vocabularies web
  services
• to update lists of values of the SeaDataNet
  common vocabularies
• need network connections in order to have up to
  date lists of values.
• But Mikado works offline once the list are
  up-to-date

6
MIKADO main features (1)

• MIKADO can be used in 2 different ways
• One manual way, to input manually information for
  the catalogues and CDI in order to generate XML
  files.
• One automatic way, to generate XML descriptions
  automatically, from information catalogued in a
  relational database. Automatic way is needed for
  those who have many entries referenced in a
  relational database
• Only one interface for all catalogues
• Same look
• Same principles

7
MIKADO main features (2)
8
Differences between V0 and V1

• No need to modify configuration files with JDBC
  connections and SQL queries
• database connection and the user the queries are
  save as XML files
• EDMERP catalogue available in MIKADO
• Manual Input of data
• Input screens updated to be compliant with the
  new XML schemas
• List of values common vocabularies
• Automatic generation of XML files more
  interactive and user-friendly
• Help for JDBC connection connection checking
• Help for the SQL query writing query checking
  and query saving
• Incremental mapping with the local database

9
MIKADO Manual input
10
MIKADO Manual input

• Available for 4 catalogues EDMED, CSR, CDI,
  EDMERP
• EDIOS will be also available in the near future
• Each input generates an XML file that can be sent
  to the central catalogues
• For EDMERP and CSR EDMERP CMS and CSR online
  can also be used, but MIKADO is useful
• if you have problems with the NETWORK connection
• if you want to keep locally an XML description of
  your catalogues
• For EDMED and CDI, there is no online input
  tools.

11
MIKADO and vocabulary lists
List code List Name List code List Name
C16 SeaDataNet Sea Areas L061 SeaDataNet Platform Classes
C77 ICES ROSCOP data types L081 SeaDataNet Data Access Restriction Policies
C174 SeaDataNet CSR ship metadata L101 SeaDataNet geographic co-ordinate reference frames
C320 ISO countries L111 Height and Depth Vertical Co-ordinate Reference Datum
C371 Ten-degree Marsden Squares L181 ROSCOP sample quantification units
C381 Ports Gazetteer L231 SeaDataNet metadata entities
L05 SeaDataNet device categories L241 SeaDataNet data transport formats
L021 SeaDataNet Geospatial Feature Types P021 BODC Parameter Discovery Vocabulary
L031 SeaDataNet Measurement Periodicity Classes P081 SeaDataNet Parameter Disciplines
EDMERP European marine projects EDMO European marine organisation
12
MIKADO and vocabulary lists

• Automatic check of the version of the vocabulary
  lists once when MIKADO starts
• MIKADO downloads locally the latest version of
  each list
• Possible to enable-disable the automatic check
  and download of the lists and to work offline

13
MIKADO manual vocabulary lists (1)

• Common vocabulary BODC,
• list C320 (Country ISO codes)

14
MIKADO manual vocabulary lists (2)
15
MIKADO Automatic XML generation
16
MIKADO automatic - connexion

• Help for the connexion to the database
• Pre-filled information for some databases
• Check the connexion

17
MIKADO automatic connexion OK
18
MIKADO automatic connexion KO
19
MIKADO automatic queries

• Expendable tree
• Main query
• Return the ID
• Single queries
• Return 1 row
• Multiple queries
• Return 1 to n rows

20
MIKADO automatic queries

• Write the queries
• SQL syntax (for Oracle, Excel, MySQL, ) and SQL
  variables must be adapted to your own data base
• Check the Queries
• Green OK
• Red KO read the error message

21
MIKADO automatic single queries

• All the XML variables are listed in the
  expendable tree
• In bold mandatory fields
• 1 to n single subquery can be written

• In green fields already fulfilled
• Add or to detele variables in a query
• Check the query

22
MIKADO automatic multiple queries

• All the XML variables are listed in the
  expendable tree
• Number of queries is pre-defined
• The list of variables for each of these multiple
  queries is also pre-defined
• In bold mandatory field
• In green fields already fulfilled

23
MIKADO automatic multiple queries

• In a group of variables (same XML block, same
  pre-defined set of variable in a query), the non
  mandatory variables can be left to null

24
MIKADO automatic - Save the queries

• When all the queries are written
• They can be saved in an XML file to be re-used
  later on

25
MIKADO automatic - generate the XML files

• Select the catalogue you want to generate
• Open the corresponding queries
• Choose the output directory
• Export the XML files
• Progress bar
• Cancel allowed

26
MIKADO automatic - local mapping

• While generating the XML files for all the
  catalogues
• Each time that MIKADO does not recognized a value
  (entrykey or entryterm) which should come from
  the common vocabulary, it asks the user for
  mapping
• MIKADO manages a demand-driven continuous
  (incremental) extension of a local mapping
  mapping of the local database to the common
  vocabulary
• Mapping tables can be modified
• Delete rows
• Modify the LOCAL value

27
MIKADO automatic - local mapping

• Example
• CSR generation
• Mapping of the platform type

28
MIKADO automatic - local mapping
Modification of the local mapping If wrong
entries have been input, it is possible to

• Delete one entry
• Delete all the entries
• Change the local code

29
MIKADO User manual

• User manual is provided
• in SDN_tools\Mikado_usermanual
• File SDN_MIKADO_UserManual_v1.pdf
• Detailed explanations for MIKADO use, lots of
  snapshots

30
MIKADO helpdesk

• When using MIKADO
• Questions and errors must be reported to
• sdn-userdesk_at_ifremer.fr
• Subject of the mail should be
• MIKADO question or
• MIKADO error

31
Practical work to-morrow

• Manual input of one EDMED form
• Manual input of one Cruise Summary Report
• Automatic generation of CDI files
• One dataset of 81 XBT SIPPICAN files
• EXCEL or MySQL
• Use the XML validator to see if your files are
  valid
• Copy MIKADO material on your own computer
• Copy the directory SDN_TOOLS.zip file and unzip
  it

32
Practical work requirements

• Make sure that the java version is gt 1.6
• To know if Java is available on your computer, in
  the right version, follow these steps - Open
  'Start' menu, then 'Execute' - On the displayed
  window, enter 'cmd', then click on 'OK' button
  - Enter 'java -version'
• Check if command has been executed - If not,
  download the last java version at
  http//java.com/en/download/index.jsp. - Else,
  check the version displayed.
• The version should be greater than or equal to
  1.6.

33
Practical work requirements

• For the trainees who want to test Mikado with
  MySQL
• Those who have already MySQL on their labtops
  make sure that MySQL Query Browser is also
  available.
• If not, you must install it by double clicking
  on the following file from the common directory
• SDN_tools\databases\mysql\install\Query_browser\
• file mysql-gui-tools-5.0-r12-win32.msi
• Those who do not have MySQL let us know, we will
  install it on your notebook.

34

• ANY QUESTIONS?
