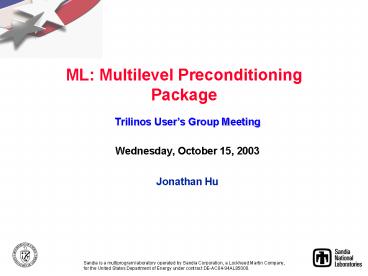

ML: Multilevel Preconditioning Package

1
ML Multilevel Preconditioning Package

• Trilinos Users Group Meeting
• Wednesday, October 15, 2003
• Jonathan Hu

Sandia is a multiprogram laboratory operated by
Sandia Corporation, a Lockheed Martin
Company,for the United States Department of
Energy under contract DE-AC04-94AL85000.
2
Outline

• What is ML?
• Basic multigrid concepts
• Configuring and building ML
• Interoperability with other packages
• User options available within ML
• Example Using ML as a preconditioner
• What to do if something goes wrong
• Sandia apps that use ML
• Future Plans
• Documentation, mailing lists, and getting help

3
ML Package

• C package that provides multigrid preconditioning
  for linear solver methods
• Developers Ray Tuminaro, Jonathan Hu, Charles
  Tong (LLNL)
• Main methods
• Geometric
• Grid refinement hierarchy
• 2-level FE basis function domain decomposition
• AMG (algebraic)
• Smoothed aggregation
• Edge-element AMG for Maxwells equations
• Classical AMG

4
Geometric Multigrid
Use coarse solves (klt4) to accelerate convergence
for A4
5
Algebraic Multigrid (AMG)

• Build MG operators (Ak, Ik, Rk, Sks)
  automatically to define a hierarchy
• Akukfk, k1,,L
• Main difference In AMG, interpolation operators
  Iks built automatically
• also main difficulty
• Once Iks are defined, the rest follows easily

Same Goal Solve ALuLfL.

• Rk IkT (usually)
• Ak-1 Rk-1 Ak Ik-1 (triple matrix product)
• Smoother (iterative method) Sk
• Gauss-Seidel, polynomial, conjugate gradient, etc.

6
Recursive MG Algorithm (V Cycle)

• MG(f, u, k)
• if (k 1) u1 (A1)-1f1
• else
• Sk(Ak, fk,uk) //pre-smooth
• rk fk Ak uk
• fk-1 Rk-1 rk uk-1 0 //restrict
• MG(fk-1, uk-1, k-1)
• uk uk Ik-1 uk-1 //interpolate
  correct
• Sk(Ak, fk,uk) //post-smooth
• Ak, Rk, Ik, Sk required on all levels
• Sk smoothers
• Rk restriction operators
• Ik interpolation operators

V Cycle to solve A4u4f4
k4
k1
7
Algebraic construction of Ik Aggregation

• Greedy algorithm
• parallel can be complicated

8
Algebraic Construction of Ik Coefficients
Finding Ik

• Build tentative tIk to interpolate null space
• where tIk(i,j)

• Smoothed aggregation
• Improves tIk with Jacobis method Ik (I - ?
  diag(Ak) -1 Ak) tIk
• Ik emphasizes what is not smoothed by Jacobi


9
ML Capabilities

• MG cycling V, W, full V, full W
• Grid Transfers
• Several automatic coarse grid generators
• Several automatic grid transfer operators
• Smoothers
• Jacobi, Gauss-Seidel, Hiptmair, LU, Aztec
  methods, sparse approximate inverses, polynomial
• Kernels matrix/matrix multiply, etc.

10
Configuring and Building ML

• ML builds by default when Trilinos is
  configured/built
• Configure help
• See ml/README file, or
• ml/configure --help
• Enabling direct solver support (default is off)
• configure --with-ml_superlu \
• --with-incdirs-I/usr/local/superlu/include \
• --with-ldflags/usr/local/superlu/libsuperlu.a
• Performance monitoring
• --enable-ml_timing
• --enable_ml_flops
• Example suite builds by default
• Your-build-location/packages/ml/examples

11
ML Interoperability with Trilinos Packages
12
Common Decisions for ML Users

• What smoother to use
• of smoothing steps
• Coarsening strategy
• Cycling strategy

13
ML Smoother Choices

• Jacobi
• Simplest, cheapest, usually least effective.
• Damping parameter (?) needed
• Point Gauss-Seidel
• Equation satisfied one unknown at a time
• Better than Jacobi
• May need damping
• Can be problematic in parallel
• processor-based (stale off-proc values)

14
ML Smoother Choices

• Block Gauss-Seidel
• Satisfy several equations simultaneously by
  modifying several DOFs (inverting subblock
  associated with DOFs).
• Blocks can correspond to aggregates
• Aztec smoothers
• Any Aztec preconditioner can be used as a
  smoother.
• Probably most interesting is ILU ILUT methods
  may be more robust than Gauss-Seidel.
• Sparse LU
• Hiptmair
• Specialized 2-stage smoother for Maxwells Eqns.
• MLS
• Approximation to inverse based on Chebyshev
  polynomials of smoothed operator.
• Competitive with true Gauss-Seidel in serial.
• Doesnt degrade with processors (unlike
  processor-based GS)

15
ML Cycling Choices

• V is default (usually works best).
• W more expensive, may be more robust.
• Full MG (V cycle) more expensive
• Less conventional within preconditioners
• These choices decide how frequently coarse grids
  are visited compared to fine grid.

16
ML Aggregation Choices

• MIS
• Expensive, usually best with many processors
• Uncoupled (UC)
• Cheap, usually works well.
• Hybrid UC MIS
• Uncoupled on fine grids, MIS on coarser grids

17
A Simple Example Trilinos/Packages/aztecoo/exampl
e/MLAztecOO
Solve Axb A linear elasticity problem Linear
solver Conjugate Gradient Precond. AMG
smoothed aggregation
Solution component
Example methods
Packages used
Linear Solver
AztecOO (Epetra)
CG
ML multi- grid pre- cond.
ML
AMG
18
Simple Example

• include ml_include.h
• include ml_epetra_operator.h
• include ml_epetra_utils.h
• Epetra_CrsMatrix A
• Epetra_Vector x,bb
• ... //matrix,
  vectors loaded here
• // Construct Epetra Linear Problem
• Epetra_LinearProblem problem(A, x, bb)
• // Construct a solver object
• AztecOO solver(problem)
• solver.SetAztecOption(AZ_solver, AZ_cg)
• // Create and set an ML multilevel
  preconditioner
• int N_levels 10 // max of
  multigrid levels possible
• ML_Set_PrintLevel(3) // how much ML info
  is output to screen
• ML ml_handle
• ML_Create(ml_handle,N_levels)

19
Simple Example (contd.)

• // Create multigrid hierarchy
• ML_Aggregate agg_object
• ML_Aggregate_Create(agg_object)
• ML_Aggregate_Set_CoarsenScheme_Uncoupled(agg_obj
  ect)
• N_levels ML_Gen_MGHierarchy_UsingAggregation(m
  l_handle, 0,
•
  ML_INCREASING, agg_object)
• // Set symmetric Gauss-Seidel smoother for MG
  method
• int nits 1
• double dampingfactor ML_DDEFAULT
• ML_Gen_Smoother_SymGaussSeidel(ml_handle,
  ML_ALL_LEVELS,
• ML_BOTH, nits,
  dampingfactor)
• ML_Gen_Solver(ml_handle, ML_MGV, 0,
  N_levels-1)
• // Set preconditioner within Epetra
• Epetra_ML_Operator MLop(ml_handle,comm,map,map)

• solver.SetPrecOperator(MLop)
• // Set some Aztec solver options and iterate
• solver.SetAztecParam(AZ_rthresh, 1.4)

20
Multigrid Issues to be aware of

• Severely stretched grids or anisotropies
• Loss of diagonal dominance
• Atypical stencils
• Jumps in material properties
• Non-symmetric matrices
• Boundary conditions
• Systems of PDEs
• Non-trivial null space (Maxwells equations,
  elasticity)

21
What can go wrong?

• Small aggregates ? high complexity
• Large aggregates ? poor convergence
• Different size aggregates ? both
• Try different aggregation methods, drop
  tolerances
• Stretched grids ? poor convergence
• Variable regions ? poor convergence
• Try different smoothers, drop tolerances
• Ineffective smoothing ? poor convergence
• (perhaps due to non-diagonal dominance or
  non-
• symmetry in operator)
• Try different smoothers

22
Things to Try if Multigrid Isnt Working

• Smoothers
• Vary number of smoothing steps.
• More robust smoothers block Gauss-Seidel, ILU,
  MLS polynomial (especially if degradation in
  parallel).
• Vary damping parameters (smaller is more
  conservative).
• Try different aggregation schemes
• Try fewer levels
• Try drop tolerances, if
• high complexity (printed out by ML).
• Severely stretched grids
• Anisotropic problems
• Variable regions
• Reduce prolongator damping parameter
• Concerned about operators properties (e.g. highly
  non-symmetric).

23
ALEGRA/NEVADA Zpinch Results

CG preconditioned with V(1,1) AMG
cycle r2/r02 lt 10-8 2-stage Hiptmair
smoother (4th order polys in each stage) Edge
element interpolation
24
Flow and Transport Solution Algorithms for
Chemical Attack in an Airport Terminal 3D
prototype
Algorithm Steady State Newton Krylov (GMRES)
25
Future Improvements

• Amesos interface
• More direct solvers
• Self-correcting capabilities
• Better analysis tools
• Improved coarse grids
• On-the-fly adjustments
• Re-partitioning

26
Getting Help

• See Trilinos/packages/ml/examples
• See guide
• ML Users Guide, ver. 2.0 (in ml/doc)
• ML Users Guide, ver. 3.0 (under construction)
• Mailing lists
• ml-users_at_software.sandia.gov
• ml-announce_at_software.sandia.gov
• Bug reporting, enhancement requests via bugzilla
• http//software.sandia.gov/bugzilla
• Email us directly
• jhu_at_sandia.gov
• tuminaro_at_ca.sandia.gov
