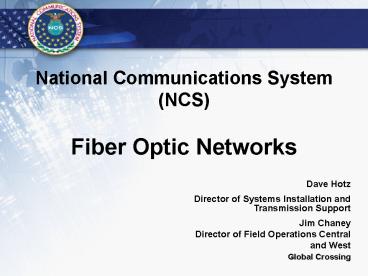

National Communications System NCS Fiber Optic Networks

1
National Communications System (NCS)Fiber Optic
Networks

• Dave Hotz
• Director of Systems Installation and Transmission
  Support
• Jim Chaney
• Director of Field Operations Central and West
• Global Crossing

2
Fiber Cable
3
Fiber Has More Capacity

• This single fiber can carry more communications
  than the giant copper cable!

4
Fiber Optic Cable

• Protects the fibers wherever they are installed
• May have 1 to over 1000 fibers

5
Fiber Optic Connectors

• Terminates the fibers
• Connects to other fibers or transmission
  equipment

6
Fiber Optic Communications

• Applications include
• Telephones
• Internet
• LANs - local area networks
• CATV - for video, voice and Internet connections
• Utilities - management of power grid
• Security - closed-circuit TV and intrusion
  sensors
• Military - everywhere!

7
What Is Fiber Optics ?

• Transmitting communications signals over hair
  thin strands of glass or plastic
• Not a "new" technology
• Concept a century old
• Used commercially for last 25 years

8
Why Use Fiber Optics?

• Economics
• Speed
• Distance
• Weight/size
• Freedom from interference
• Electrical isolation
• Security

9
Fiber Optic Applications

• Fiber is already used in
• gt 90 of all long distance telephony
• gt 50 of all local telephony
• Most CATV networks
• Most LAN (computer network) backbones
• Many video surveillance links

10
Fiber Optic Applications

• Fiber is the least expensive, most reliable
  method for high speed and/or long distance
  communications
• While we already transmit signals at Gigabits per
  second speeds, we have only started to utilize
  the potential bandwidth of fiber

11
Fiber Technology
12
Fiber Technology
13
Fiber Optic Data Links
14
Light Used In Fiber Optics

• Fiber optic systems transmit using infrared
  light, invisible to the human eye, because it
  goes further in the optical fiber at those
  wavelengths

15
Wavelength-Division Multiplexing
16
Fiber Optic Applications

• Outside Plant vs. Premises Installations

17
Fiber Optic Installation - Outside Plant
18
Fiber Optic Installation -Premises
19
SONET
20

21
What is SONET?

• Synchronous Optical Network standard
• Defines a digital hierarchy of synchronous
  signals
• Maps asynchronous signals (DS1, DS3) to
  synchronous format
• Defines electrical and optical connections
  between equipment
• Allows for interconnection of different vendors
  equipment
• Provides overhead channels for interoffice OAMP

22
Digital Signal HierarchiesMost Common Rates
23
SONET Rates
Optical Designation
Bit Rate (Mb/s)
Level
STS-1 OC-1 51.840 STS-3 OC-3 155.520 STS-12 OC-1
2 622.080 STS-48 OC-48 2,488.320 STS-192
OC-192 9,953.280
STS SYNCHRONOUS TRANSPORT SIGNAL OC OPTICAL
CARRIER (..result of a direct
optical conversions of the STS after
synchronous scrambling - ANSI)
24
SONET Network Layers
Services DS3, DS1, etc
Path
Line
Line
Section
Section
Section
Section
Physical (Photonic)

• E/O Conversion
• Line Code
• Physical Signal
• No additional overhead

DS3 etc
MUX
LTE
Regen
MUX
LTE
LTE
Regen
SONET ADM
25
Functional Description of SONET Layers
26
SONET Configurations
27
Generic SONET Network Elements
28
Key SONET Configurations
29
Key SONET ConfigurationsLinear Office Sequences
30
Key SONET Configurations
31
Explanation of Wavelength Division Multiplexing
(WDM)
WDM System Multiple Signal Wavelengths
Conventional System Only 1 signal Wavelength
Transmission capacity per fiber is multiplied by
the number of Signal Wavelengths Technological
Difficulties - Signal multiplex/demultiplex -
Optical amplifier bandwidth limitation -
Inter-channel interaction due to optical fiber
non-linearity (four wave mixing and cross-phase
modulation)
32
To get more information on a single fiber Use
more wavelengths (DWDM)
33
(No Transcript)
34
SONET Network Management
35
Definition of a Ring

• A Ring is a collection of nodes (NE1, NE2, .)
• forming a closed loop.
• Each node is connected to two adjacent nodes
• via
• a duplex communications facility.
• A SONET Ring will provide
• Redundant Bandwidth
• Redundant Network Equipment
• or both

36
SONET Ring APS(Automatic Protection Switching)

• Uni-directional Vs. Bi-directional Rings
• Two-Fiber Vs. Four Fiber Rings
• Ring Switching Vs. Span Switching

• Applications of
• Bi-directional Line Switched Ring (BLSR)
• Uni-directional Path Switched Ring (UPSR)

37
Ring Classification

• A Unidirectional Line Switched Ring (ULSR)
• A Bidirectional Line Switched Ring (BLSR)
• A Unidirectional Path Switched Ring (UPSR)
• A Bidirectional Path Switched Ring (BPSR)

Any of the above type can be a two-fiber or a
four fiber ring. Therefore, for all practical
applications, SONET/SDH standards provide eight
types of ring for network node interconnections
38
2 FiberUnidirectional Vs. Bidirectional Rings
39
Two-Fiber Vs. Four-Fiber Rings
40
Ring Switching 2-Fiber Ring
41
Ring Switching 4-Fiber Ring
B Ring Switching Four-fiber ring
42
Span Switching - 4-fiber Rings Only
Route before PS
Route before PS
A
B
A
B
Route after PS
C
D
B Ring Switching Four-fiber ring
43
Bi-directional Line Switched RingNo Failures
w
C
B
A
A
W
P
w
P
P
A
D
B
B
P
P
w
w
P
F
E
C
C
w
Bidirectional Traffic
Unidirectional Traffic
44
Bi-directional Line Switched RingSpan Switch
45
Bi-directional Line Switched RingRing Switch
X
46
Bi-directional Line Switched RingRing Switch -
Node Failure
47
Bi-directional Line Switched RingNo Failures
W
C
B
W
P
W
P
P
A
D
P
P
W
W
P
F
E
W
Original Circuits (Both Slot 2)
48
Bi-directional Line Switched RingNeed For
Squelching
49
Bi-directional Line Switched RingDouble Ring
Failure (No Recovery)
50
SONET Rings will fail -- The question is When?

• Initial estimates of DWDM hardware show that it
  is 8 times more reliable than WDM equipment
• POEs not included
• Ring reliability is dependent upon ring mileage
• Ring sizes vary from 200 miles to 2800 miles
• Ring Failures
• Given 100, 1000-mile perimeter rings
• Current optimistic estimation is 1 network ring
  failure every 5 yrs
• PCIs not included
• Most probable cause of a complete ring failure is
  an equipment failure and a fiber cut
• Physical diversity violations in some rings
  (single-pt-of-failure)

51
Ring InterworkingInterconnect Problem (No
Recovery)
52
Dual Ring Interworking(Unidirectional A gt Z
Circuit)No Failure
53
Dual Ring Interworking(Unidirectional A gt Z
Circuit)ADM Failure
54
Dual Ring Interworking(Unidirectional A gt Z
Circuit)Office Or Double ADM Failure
55
Other Types Of SONET Self-Healing Rings(2-Fiber
Unidirectional Line-Switched Ring)
56
Other Types Of SONET Self-Healing Rings(2-Fiber
Unidirectional Line-Switched Ring)
57
Other Types Of SONET Self-Healing Rings(2-Fiber
Bi-directional Line-Switched Ring)
58
BITS
59
(No Transcript)
60
Clock Accuracy Levels
61
Sync Status Message
62
SS Messages
63
(No Transcript)
