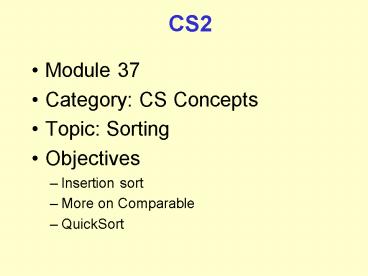

CS2

1
CS2

• Module 37
• Category CS Concepts
• Topic Sorting
• Objectives
• Insertion sort
• More on Comparable
• QuickSort

2
CS 2

• Introduction to
• Object Oriented Programming
• Module 37
• CS Concepts
• Sorting

3
Insertion Sort

• Insertion sort is a very basic technique
  typically used when sorting very few objects.
• Lets look at Insertion Sort
• Not efficient
• Good example of linked list Comparable
  interface
• Insertion sort is a technique similar to how you
  arrange playing cards in your hand

4
You might sort by suit...
5
You might sort by first name...
6
You might sort by age...
12/18/1980
6/9/1981
11/17/2791
12/21/1981
22
22
21
-789
7
Or you could sort them in the order their
birthdays occur during the year. That way you can
send them a birthday card in the desperate hope
that they might come back.
(Okay some of them.)
The point is that you decide how you want the
data sorted.
8
Let's write a date class

• Note Java actually has a date class

9

• class Date implements Comparable
• private int month
• private int day
• private int year
• public Date(int month, int day, int year)
• setMonth(month)
• setDay(day)
• setYear(year)
• public String toString()
• return "" month "/" day "/" year
• public int composDate()
• return year 10000
• month 100
• day

10

• // class Date (continued)
• public void setMonth(int month)
• this.month month
• public int getMonth()
• return month
• public void setDay(int day)
• this.day day
• public int getDay()
• return day
• public void setYear(int year)
• this.year year
• public int getYear()
• return year

11

• // class Date (continued)
• public int compareTo(Object o)
• Date d (Date)o
• return composDate() - d.composdate()

12
Questions?
13
Let's create a girlfriend card class
14

• class Girlfriend implements Comparable
• private String name
• private Date birthday
• public Girlfriend
• (String name, int month, int day, int year)
• this(name, new Date(month, day, year))
• public Girlfriend(String name, Date birthday)
• setName(name)
• setBirthday(birthday)
• public void setName(String name)
• this.name name
• public String getName()
• return name

15

• // class Girlfriend
• public void setBirthday(Date birthday)
• this.birthday birthday
• public Date getBirthday()
• return birthday
• public String toString()
• return "Girlfriend " name " Birthday "
• birthday
• public int composMonDay()
• return getMonth() 100 getDay()

16

• // class Girlfriend
• public int compareTo(Object o)
• Girlfriend gf (Girlfriend)o
• return composDate() - gf.composDate()

17
Questions?
18
Next a DataNode
19

• class DataNode implements Comparable
• private Comparable data
• public DataNode(Comparable data)
• setData(data)
• public void setData(Comparable data)
• this.data data
• public Comparable getData()
• return data
• public String toString()
• return "" data
• public int compareTo(Object o)
• DataNode dn (DataNode)o
• return this.getData().compareTo(dn.getData())

20

• // class DataNode (continued)
• public boolean equals(Object o)
• DataNode dn (DataNode)o
• return getData().equals(dn.getData())
• public static void main(String args)
• DataNode dn1 new DataNode("Node 1")
• DataNode dn2 new DataNode("Node 2")
• DataNode nul new DataNode(null)
• System.out.println(dn1)
• System.out.println(dn2)
• System.out.println(nul)
• System.out.println("dn1.compareTo(dn2)"
• dn1.compareTo(dn2))
• System.out.println("dn2.compareTo(dn1)"
• dn2.compareTo(dn1))
• DataNode dngf new DataNode
• (new Girlfriend("Chewie", 11, 17, 2791))

21
Questions?
22
ListNode
23

• class ListNode extends DataNode implements
  Comparable
• private ListNode next
• public ListNode(Comparable data)
• this(data, null)
• public ListNode(Comparable data, ListNode next)

• super(data)
• setNext(next)
• public void setNext(ListNode next)
• this.next next
• public ListNode getNext()
• return next
• public String toString()
• return "Data " getData() " Next\n"
  next

24

• // class ListNode (continued)
• public static void main(String args)
• ListNode ln1 new ListNode("abc")
• ListNode ln2 new ListNode("xyz")
• ListNode lnBS new ListNode(
• new Girlfriend("Brittany", 12, 21,
  1981))
• ListNode lnCA new ListNode(
• new Girlfriend("Christina", 12, 18,
  1980))
• System.out.println(ln1)
• System.out.println(ln2)
• System.out.println(lnBS)
• System.out.println(lnCA)

25

• // class ListNode (continued)
• System.out.println("ln1.compareTo(ln2) "
•
  ln1.compareTo(ln2))
• System.out.println("ln2.compareTo(ln1) "
•
  ln2.compareTo(ln1))
• System.out.println("lnBS.compareTo(lnCA) "
•
  lnBS.compareTo(lnCA))
• System.out.println("lnCA.compareTo(lnBS) "
•
  lnCA.compareTo(lnBS))
• System.out.println
• (("Brittany").compareTo("Christina"))
• //System.out.println(lnBS.compareTo(ln1))
• ListNode n3 new ListNode("Third")
• ListNode n2 new ListNode("Second", n3)
• ListNode n1 new ListNode("First", n2)
• ListNode head new ListNode("Head", n1)

26

• // class ListNode (continued)
• n1 null
• n2 null
• n3 null
• System.out.println(head)
• ListNode a new ListNode(
• new Girlfriend("Albertina",
  1,1,100))
• ListNode b new ListNode(
• new Girlfriend("Zoe", 12, 31,
  3000))
• System.out.println(a.compareTo(b))
• // main
• // class

27
Questions?
28
SortedList
29

• class SortedList
• private ListNode head
• public SortedList()
• head null
• public String toString()
• return "SortedList\n" head

30

• // class SortedList (continued)
• public void add(Comparable data)
• ListNode temp new ListNode(data)
• if(head null)
• head temp
• else if(head.compareTo(temp) 0)
• temp.setNext(head)
• head temp
• else
• add(head, temp)

31

• // class SortedList (continued)
• private void add(ListNode current, ListNode
  temp)
• if(current.getNext() null)
• current.setNext(temp)
• else if(current.getNext().compareTo(temp) 0)

• temp.setNext(current.getNext())
• current.setNext(temp)
• else
• add(current.getNext(), temp)

32

• // class SortedList (continued)
• public static void main(String args)
• SortedList sl1 new SortedList()
• s1.add("abc")
• s1.add("xyz")
• System.out.println(s1)
• s1.add("aaa")
• s1.add("zzz")
• s1.add("mmm")
• System.out.println(s1)

33

• // class SortedList (continued)
• // main (continued)
• SortedList s2 new SortedList()
• s2.add(new Girlfriend("Brittany", 12, 21,
  1981))
• Date d new Date(6, 9, 1981)
• Girlfriend gf2 new Girlfriend("Natalie", d)
• s2.add(gf2)
• s2.add(new Girlfriend("Christina", 12, 18,
  1980))
• s2.add(new Girlfriend("Chewie", 11, 17, 2791))
• s2.add(new Girlfriend("First", 1,1,3000))
• s2.add(new Girlfriend("Last", 12,31,1000))
• System.out.println(s2)
• // main

34
Questions?
35
QuickSort

• MergeSort provided a high performance sorting
  algorithm ( O(n log n) ) but requires twice as
  much space as there are keys
• HeapSort allowed sorting in place while still
  performing at a ( O(n log n) ) level
• But n log n only classifies algorithms at a
  certain "rough" level
• In 1961 Tony Hoare published his QuickSort
  algorithm which provided better performance than
  HeapSort

36
QuickSort

• Very similar to Merge Sort
• Divide and conquer
• Very slick design improvement to minimize effort
• use the data values to choose the best place to
  divide
• Pass which has O(N) is just comparing values, not
  moving elements
• Moving elements is done by swaps
• not necessary to merge results
• avoids the inefficiency of the extra copies
• But
• depends on data values being irregular
• performance is O(N2) or worse if the array is
  already sorted
• There are modifications to overcome these
  limitations
• We won't cover them

37
QuickSort

• Pick a pivot value
• Go left to right looking for a larger or equal
  element
• Go right to left looking for a smaller or equal
  element
• Swap the two elements found
• Keep doing that until they cross
• Swap the pivot element with the element from the
  right
• The array has now been divided so that everything
  smaller than the pivot element is to its left,
  and everything larger is to its right in O(N)
  with minimum swaps
• Now divide and conquer by doing the left and
  right parts separated by the new pivot element

38
QuickSort
45
23
37
14
98
67
33
42

• Pick a pivot value
• Go left to right looking for a larger or equal
  element
• Go right to left looking for a smaller or equal
  element
• Swap the two elements found
• Keep doing that until they cross
• Swap the pivot element with the element from the
  right
• The array has now been divided so that everything
  smaller than the pivot element is to its left,
  and everything larger is to its right in O(N)
  with minimum swaps
• Now divide and conquer by doing the left and
  right parts separated by the new pivot element

39
QuickSort
pivot
45
23
37
14
98
67
33
42

• Pick a pivot value
• Go left to right looking for a larger or equal
  element
• Go right to left looking for a smaller or equal
  element
• Swap the two elements found
• Keep doing that until they cross
• Swap the pivot element with the element from the
  right
• The array has now been divided so that everything
  smaller than the pivot element is to its left,
  and everything larger is to its right in O(N)
  with minimum swaps
• Now divide and conquer by doing the left and
  right parts separated by the new pivot element

40
QuickSort
pivot
45
23
37
14
98
67
33
42
L

• Pick a pivot value
• Go left to right looking for a larger or equal
  element
• Go right to left looking for a smaller or equal
  element
• Swap the two elements found
• Keep doing that until they cross
• Swap the pivot element with the element from the
  right
• The array has now been divided so that everything
  smaller than the pivot element is to its left,
  and everything larger is to its right in O(N)
  with minimum swaps
• Now divide and conquer by doing the left and
  right parts separated by the new pivot element

41
QuickSort
pivot
45
23
37
14
98
67
33
42
L

• Pick a pivot value
• Go left to right looking for a larger or equal
  element
• Go right to left looking for a smaller or equal
  element
• Swap the two elements found
• Keep doing that until they cross
• Swap the pivot element with the element from the
  right
• The array has now been divided so that everything
  smaller than the pivot element is to its left,
  and everything larger is to its right in O(N)
  with minimum swaps
• Now divide and conquer by doing the left and
  right parts separated by the new pivot element

42
QuickSort
pivot
45
23
37
14
98
67
33
42
L

• Pick a pivot value
• Go left to right looking for a larger or equal
  element
• Go right to left looking for a smaller or equal
  element
• Swap the two elements found
• Keep doing that until they cross
• Swap the pivot element with the element from the
  right
• The array has now been divided so that everything
  smaller than the pivot element is to its left,
  and everything larger is to its right in O(N)
  with minimum swaps
• Now divide and conquer by doing the left and
  right parts separated by the new pivot element

43
QuickSort
pivot
45
23
37
14
98
67
33
42
L

• Pick a pivot value
• Go left to right looking for a larger or equal
  element
• Go right to left looking for a smaller or equal
  element
• Swap the two elements found
• Keep doing that until they cross
• Swap the pivot element with the element from the
  right
• The array has now been divided so that everything
  smaller than the pivot element is to its left,
  and everything larger is to its right in O(N)
  with minimum swaps
• Now divide and conquer by doing the left and
  right parts separated by the new pivot element

44
QuickSort
pivot
45
23
37
14
98
67
33
42
L
R

• Pick a pivot value
• Go left to right looking for a larger or equal
  element
• Go right to left looking for a smaller or equal
  element
• Swap the two elements found
• Keep doing that until they cross
• Swap the pivot element with the element from the
  right
• The array has now been divided so that everything
  smaller than the pivot element is to its left,
  and everything larger is to its right in O(N)
  with minimum swaps
• Now divide and conquer by doing the left and
  right parts separated by the new pivot element

45
QuickSort
pivot
45
23
37
14
98
67
33
42
L
R

• Pick a pivot value
• Go left to right looking for a larger or equal
  element
• Go right to left looking for a smaller or equal
  element
• Swap the two elements found
• Keep doing that until they cross
• Swap the pivot element with the element from the
  right
• The array has now been divided so that everything
  smaller than the pivot element is to its left,
  and everything larger is to its right in O(N)
  with minimum swaps
• Now divide and conquer by doing the left and
  right parts separated by the new pivot element

46
QuickSort
pivot
45
23
37
14
42
67
33
98
L
R

• Pick a pivot value
• Go left to right looking for a larger or equal
  element
• Go right to left looking for a smaller or equal
  element
• Swap the two elements found
• Keep doing that until they cross
• Swap the pivot element with the element from the
  right
• The array has now been divided so that everything
  smaller than the pivot element is to its left,
  and everything larger is to its right in O(N)
  with minimum swaps
• Now divide and conquer by doing the left and
  right parts separated by the new pivot element

47
QuickSort
pivot
45
23
37
14
42
67
33
98
L
R

• Pick a pivot value
• Go left to right looking for a larger or equal
  element
• Go right to left looking for a smaller or equal
  element
• Swap the two elements found
• Keep doing that until they cross
• Swap the pivot element with the element from the
  right
• The array has now been divided so that everything
  smaller than the pivot element is to its left,
  and everything larger is to its right in O(N)
  with minimum swaps
• Now divide and conquer by doing the left and
  right parts separated by the new pivot element

48
QuickSort
pivot
45
23
37
14
42
67
33
98
L
R

• Pick a pivot value
• Go left to right looking for a larger or equal
  element
• Go right to left looking for a smaller or equal
  element
• Swap the two elements found
• Keep doing that until they cross
• Swap the pivot element with the element from the
  right
• The array has now been divided so that everything
  smaller than the pivot element is to its left,
  and everything larger is to its right in O(N)
  with minimum swaps
• Now divide and conquer by doing the left and
  right parts separated by the new pivot element

49
QuickSort
pivot
45
23
37
14
42
67
33
98
L
R

• Pick a pivot value
• Go left to right looking for a larger or equal
  element
• Go right to left looking for a smaller or equal
  element
• Swap the two elements found
• Keep doing that until they cross
• Swap the pivot element with the element from the
  right
• The array has now been divided so that everything
  smaller than the pivot element is to its left,
  and everything larger is to its right in O(N)
  with minimum swaps
• Now divide and conquer by doing the left and
  right parts separated by the new pivot element

50
QuickSort
pivot
45
23
37
14
42
67
33
98
L
R

• Pick a pivot value
• Go left to right looking for a larger or equal
  element
• Go right to left looking for a smaller or equal
  element
• Swap the two elements found
• Keep doing that until they cross
• Swap the pivot element with the element from the
  right
• The array has now been divided so that everything
  smaller than the pivot element is to its left,
  and everything larger is to its right in O(N)
  with minimum swaps
• Now divide and conquer by doing the left and
  right parts separated by the new pivot element

51
QuickSort
pivot
45
23
37
14
42
33
67
98
L
R

• Pick a pivot value
• Go left to right looking for a larger or equal
  element
• Go right to left looking for a smaller or equal
  element
• Swap the two elements found
• Keep doing that until they cross
• Swap the pivot element with the element from the
  right
• The array has now been divided so that everything
  smaller than the pivot element is to its left,
  and everything larger is to its right in O(N)
  with minimum swaps
• Now divide and conquer by doing the left and
  right parts separated by the new pivot element

52
QuickSort
pivot
45
23
37
14
42
33
67
98
L
R

• Pick a pivot value
• Go left to right looking for a larger or equal
  element
• Go right to left looking for a smaller or equal
  element
• Swap the two elements found
• Keep doing that until they cross
• Swap the pivot element with the element from the
  right
• The array has now been divided so that everything
  smaller than the pivot element is to its left,
  and everything larger is to its right in O(N)
  with minimum swaps
• Now divide and conquer by doing the left and
  right parts separated by the new pivot element

53
QuickSort
pivot
45
23
37
14
42
33
67
98
R
L

• Pick a pivot value
• Go left to right looking for a larger or equal
  element
• Go right to left looking for a smaller or equal
  element
• Swap the two elements found
• Keep doing that until they cross
• Swap the pivot element with the element from the
  right
• The array has now been divided so that everything
  smaller than the pivot element is to its left,
  and everything larger is to its right in O(N)
  with minimum swaps
• Now divide and conquer by doing the left and
  right parts separated by the new pivot element

54
QuickSort
pivot
45
23
37
14
42
33
67
98
R

• Pick a pivot value
• Go left to right looking for a larger or equal
  element
• Go right to left looking for a smaller or equal
  element
• Swap the two elements found
• Keep doing that until they cross
• Swap the pivot element with the element from the
  right
• The array has now been divided so that everything
  smaller than the pivot element is to its left,
  and everything larger is to its right in O(N)
  with minimum swaps
• Now divide and conquer by doing the left and
  right parts separated by the new pivot element

55
QuickSort
pivot
33
23
37
14
42
45
67
98
R

• Pick a pivot value
• Go left to right looking for a larger or equal
  element
• Go right to left looking for a smaller or equal
  element
• Swap the two elements found
• Keep doing that until they cross
• Swap the pivot element with the element from the
  right
• The array has now been divided so that everything
  smaller than the pivot element is to its left,
  and everything larger is to its right in O(N)
  with minimum swaps
• Now divide and conquer by doing the left and
  right parts separated by the new pivot element

56
QuickSort
pivot
33
23
37
14
42
67
98
45

• Pick a pivot value
• Go left to right looking for a larger or equal
  element
• Go right to left looking for a smaller or equal
  element
• Swap the two elements found
• Keep doing that until they cross
• Swap the pivot element with the element from the
  right
• The array has now been divided so that everything
  smaller than the pivot element is to its left,
  and everything larger is to its right in O(N)
  with minimum swaps
• Now divide and conquer by doing the left and
  right parts separated by the new pivot element

57
QuickSort
pivot
33
23
37
14
42
67
98
45

• Pick a pivot value
• Go left to right looking for a larger or equal
  element
• Go right to left looking for a smaller or equal
  element
• Swap the two elements found
• Keep doing that until they cross
• Swap the pivot element with the element from the
  right
• The array has now been divided so that everything
  smaller than the pivot element is to its left,
  and everything larger is to its right in O(N)
  with minimum swaps
• Now divide and conquer by doing the left and
  right parts separated by the new pivot element

58
Questions
59
Thoughts on Sorting

• Sorting techniques with O(n2) such as insertion
  sort are only used in applications where n is
  very small
• Mergesort which is a O(nlgn) sort requires 2n
  space
• Heapsort (covered with heaps) was a sorting
  technique which allowed "sorting in place"
• Quicksort is generally more efficient still
  O(nlgn) except in cases where data is already
  sorted or "almost" sorted.

60
Questions?
61
(No Transcript)
