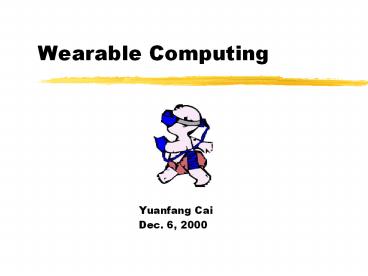

Wearable Computing

1
Wearable Computing

• Yuanfang Cai
• Dec. 6, 2000

2
Discussion Outline

• What is Wearable computing
• Wearable computing implementation
• Wearable computing Networking
• Wearable computing and Ubiquitous computing

3
What is wearable computing

• Wearable
• Portable while operational
• Hand-free or one-handed operation
• unobtrusive
• Augmented reality
• situation aware

4
gtgtWearable Computer Implementation

• Overall System Block Diagram

Com port
VGA out
Frame grabber
Network card
Wireless Network
Video Camera
Main Unit
Parallel port
Back plane
5
gtgtWearable Computer ImplementationgtgtInput Device

• speech recognizer
• keyboard alternative including chording keyboards
  and special purpose keyboards
• mouse alternatives including trackballs,
  joysticks
• tab alternatives including buttons, dial
• eye trackers
• head trackers
• pen
• gesturing
• bar code reader
• video capture devices, microphones, GPS locators
• other exotic devices such as skin sensors

6
gtgtWearable Computer ImplementationgtgtInput Device

• Wireless Finger Ring
• Detection of finger-tip typing
• Wireless Link
• Block Diagrams
• Chording METHOD

7
Wearable Computer ImplementationgtgtInput Device
Wireless finger RinggtgtDetection of finger-tip
typing
8
Wearable Computer ImplementationgtgtInput Device
Wireless finger RinggtgtWireless Link
9
Wearable Computer ImplementationgtgtInput Device
Wireless finger RinggtgtBlock Diagrams
10
Wearable Computer ImplementationgtgtInput Device
Wireless finger RinggtgtChording Method
11
gtgtWearable Computer ImplementationgtgtOutput Device

• head mounted displays (HMDs)
• flat panels, text to speech
• tactile output
• non speech auditory output
• paper and olfactory output (scent)

12
gtgtWearable Computer ImplementationgtgtOutput Device

• Augmented Reality
• Typical Augmented Reality System
• Display Technologies in Augmented Reality

13
gtgtWearable Computer ImplementationgtgtOutput Device
Augmented Realitygtgt Typical Augmented Reality
System
14
gtgtWearable Computer ImplementationgtgtOutput Device
Augmented Realitygtgt Display Technologies in
Augmented Reality
15
gtgtWearable Computer Networking

• General requirements
• Short-ranged
• Simple in design
• Low power consumption
• Self-configuration
• Restricted to the user
• Security

• Security requirements
• Privacy
• Data Confidentiality
• Data integrity
• Access Control
• Availability
• Source Authentication

16
gtgtWearable Computer Networking
BlueTooth SecuritygtgtSecurity Architecture
17
gtgtWearable Computer Networking
BlueTooth SecuritygtgtKey Management
PIN
PIN
E2
E2
Authentication
Link Key
Link Key
E3
E3
Encryption
Encryption Key
Encryption Key
Encryption and Key Control
18
gtgtWearable Computer Networking
BlueTooth SecuritygtgtAuthentication
Verifier (User A)
Verifier (User B)
SRES E(key, IDB, RAND)
RAND
SRES E(key, IDB, RAND)
SRES
ChecksSRES SRES
Challenge-response for symmetric key system
19
Wearable Computing Ubiquitous Computing

• Properties and Problems with Ubiquitous Computing
• Privacy issues
• Difficulty with personalized information
• Properties and Problem with Wearable Computing
• Localized information
• Localized control
• Resource management
• The Combination-Hive and Locust Swarm
• A General Scenario

20
Wearable Computing Ubiquitous Computing
Hi all, I am Mike, your new Boss

• Properties and Problems with Ubiquitous Computing
• Privacy issues
• Difficulty with personalized information

I am Tom !
21
Wearable Computing Ubiquitous Computing

• Properties and Problem with Wearable Computing

I am Tom !
OK, I will play this song
Tom Age 25 Favorite Song My heart will go
on Email Tt_at_yahoo.com
OK, let me check his email
22
Wearable Computing Ubiquitous Computing

• Properties and Problem with Wearable Computing
• 1. Localized information
• 2. Localized control

I am Tom !
A New device! It should be added to my DB.
Where is the printers driver? should I install
it?
Device Table -------------------- 1.Computer 2.Re
corder 3.Printer
Device Table -------------------- 1.Computer 2.Re
corder
23
Wearable Computing Ubiquitous Computing

• Properties and Problem with Wearable Computing
• Resource management

Oh my, What should I do?
24
Wearable Computing Ubiquitous Computing

• The Combination-Hive and Locust Swarm
• Why Hive?
• Agents are Autonomous
• Agents are proactive
• Agents can interact
• Agents can be mobile
• What is Locust Swarm?

25
Wearable Computing Ubiquitous Computing

• Reaping the best of both worlds
