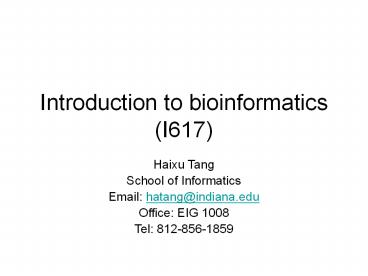

Introduction to bioinformatics (I617)

1
Introduction to bioinformatics(I617)

• Haixu Tang
• School of Informatics
• Email hatang_at_indiana.edu
• Office EIG 1008
• Tel [phone]

2
Textbook

• A Primer of Genome Science (2nd Edition) by Greg
  Gibson, Spencer V. Muse, Sinauer Associates, 2004
• Suggested reading materials will be posted on the
  class wiki page http//cheminfo.informatics.india
  na.edu/djwild/I617_2006_wiki/index.php/Main_Page
• Office Hour MW 1100-1200, EIG 1008 or
  appointment

3
Grading

• Class project selected from one of four covered
  areas (bioinformatics, Chemical informatics,
  Laboratory informatics and Health informatics)
  25
• Suggested Bioinformatics topics will be posted on
  the class wiki page
• Homework 25 in Bioinformatics
• 4, each 6.25

4
Bioinformatics BIOlogy informatics?

• Not really it is a term (somehow arbitrarily
  chosen) to define a multi-disciplinary area that
  combines life sciences, physical sciences and
  computer science / informatics
• It addresses biological problems using
  theoretical informatics approaches, not vice
  versa
• It is transforming classical Biology into a
  Information Science.

5
The birth of bioinformatics

• A revolution in biology research the emergence
  of Genome Science
• Technology advancement in both biology and
  information science

6
Genome science a revolution of biology

• Classical Biology

• Genome Science

Hypothesis
Data
Hypothesis driven approach
Data driven approach
7
Bioinformatics from data analysis to data mining

• Classical Biology

• Genome Science

Hypothesis
Data
High throughput data
Low throughput data
Hypothesis generation
Hypothesis confirmation / rejection
8
Bioinformatics in the drivers seat

• Classical Biology

• Genome Science

Hypothesis
Data
Data mining
Data analysis
9
Key technology advancements

• High throughput biotechnologies
• Genome sequencing techniques
• DNA microarray
• Mass spectrometry
• Large-scale experiments
• HGP, HapMap
• Omics / Systems Biology
• Massive data generation, storage, exchange and
  analysis
• CPU, storage, etc.
• High speed network (Internet)
• Bioinformatics

10
Bioinformatics mutually beneficial

• For biologists
• Fragment assembly in genome sequencing
• Genome comparison
• Gene clustering in DNA microarray analysis
• Protein identification in proteomics

• For computer scientists
• String algorithms / Tree algorithms
• Alternative Eulerian path (BEST theorem)
• Reversal distances
• Probabilistic graphic models (HMMs, BNs, etc.)

11
Two origins of bioinformatics

• Combinatorial pattern matching in theoretical
  computer science
• DNA and protein sequence analysis
• Physical and analytical chemistry of Biomolecules
• Protein structure analysis ? Structural
  bioinformatics
• Bio-analytical chemistry ? Proteomics

12
Bioinformatics addresses computational challenges
in life and medical sciences

• New computational problems for automatic data
  analysis
• Reformulation of old problems using new high
  throughput data
• Formulating new problems using high throughput
  data

13
Bioinformatics addresses computational challenges
in life and medical sciences

• New computational problems for automatic data
  analysis
• Genome sequencing
• Proteomics
• Transcriptomics
• Data representation and visualization
• Genome Browser
• Solving biological problems by in silico
  approaches
• Reformulation of old problems using new high
  throughput data
• Gene finding
• Protein structure and function
• Formulating new problems using high throughput
  data
• Comparative genomics
• Polymorphisms / Population genetics
• Systems Biology

14
Bioinformatics resources

• Databases
• Nucleic Acid Research (NAR) annual database issue
• Organization
• ISCB (International Society in Computational
  Biology)
• Conferences
• ISMB
• RECOMB
• Many other smaller or regional conferences, e.g.
  ECCB, CSB, PSB, etc, including local Indiana
  Bioinformatics conference

15
A case study

• How bioinformatics help and transform classical
  biological topics?
• Molecular evolutionary studies from anatomical
  features to molecular evidences
• Genome evolution comparison of gene orders

16
Early Evolutionary Studies

• Anatomical features were the dominant criteria
  used to derive evolutionary relationships between
  species since Darwin till early 1960s

17
Early Evolutionary Studies

• Anatomical features were the dominant criteria
  used to derive evolutionary relationships between
  species since Darwin till early 1960s
• The evolutionary relationships derived from these
  relatively subjective observations were often
  inconclusive. Some of them were later proved
  incorrect

18
Evolution and DNA Analysis the Giant Panda
Riddle

• For roughly 100 years scientists were unable to
  figure out which family the giant panda belongs
  to
• Giant pandas look like bears but have features
  that are unusual for bears and typical for
  raccoons, e.g., they do not hibernate

19
Evolution and DNA Analysis the Giant Panda
Riddle

• In 1985, Steven OBrien and colleagues solved the
  giant panda classification problem using DNA
  sequences and bioinformatics algorithms

20
Evolutionary Tree of Bears and Raccoons
21
Evolutionary Trees DNA-based Approach

• 40 years ago Emile Zuckerkandl and Linus Pauling
  brought reconstructing evolutionary relationships
  with DNA into the spotlight
• In the first few years after Zuckerkandl and
  Pauling proposed using DNA for evolutionary
  studies, the possibility of reconstructing
  evolutionary trees by DNA analysis was hotly
  debated
• Now it is a dominant approach to study evolution.


22
Evolutionary Trees

• How are these trees built from DNA sequences?

23
Evolutionary Trees

• How are these trees built from DNA sequences?
• leaves represent existing species
• internal vertices represent ancestors
• root represents the common evolutionary ancestor

24
Rooted and Unrooted Trees
In the unrooted tree the position of the root
(common ancestor) is unknown. Otherwise, they
are like rooted trees
25
Distances in Trees

• Edges may have weights reflecting
• Number of mutations on evolutionary path from one
  species to another
• Time estimate for evolution of one species into
  another
• In a tree T, we often compute
• dij(T) - the length of a path between leaves i
  and j
• dij(T) tree distance between i and j

26
Distance in Trees an Exampe
d1,4 12 13 14 17 12 68
27
Distance Matrix

• Given n species, we can compute the n x n
  distance matrix Dij
• Dij may be defined as the edit distance between a
  gene in species i and species j, where the gene
  of interest is sequenced for all n species.
• Dij edit distance between i and j

28
Fitting Distance Matrix

• Given n species, we can compute the n x n
  distance matrix Dij
• Evolution of these genes is described by a tree
  that we dont know.
• We need an algorithm to construct a tree that
  best fits the distance matrix Dij

29
Reconstructing a 3 Leaved Tree

• Tree reconstruction for any 3x3 matrix is
  straightforward
• We have 3 leaves i, j, k and a center vertex c

Observe dic djc Dij dic dkc Dik djc
dkc Djk
30
Turnip vs Cabbage Look and Taste Different

• Although cabbages and turnips share a recent
  common ancestor, they look and taste different

31
Turnip vs Cabbage Comparing Gene Sequences
Yields No Evolutionary Information
32
Turnip vs Cabbage Almost Identical mtDNA gene
sequences

• In 1980s Jeffrey Palmer studied evolution of
  plant organelles by comparing mitochondrial
  genomes of the cabbage and turnip
• 99 similarity between genes
• These surprisingly identical gene sequences
  differed in gene order
• This study helped pave the way to analyzing
  genome rearrangements in molecular evolution

33
Turnip vs Cabbage Different mtDNA Gene Order

• Gene order comparison

Before
After
Evolution is manifested as the divergence in gene
order
34
Turnip vs Cabbage Different mtDNA Gene Order

• Gene order comparison

35
Turnip vs Cabbage Different mtDNA Gene Order

• Gene order comparison

36
Turnip vs Cabbage Different mtDNA Gene Order

• Gene order comparison

37
Turnip vs Cabbage Different mtDNA Gene Order

• Gene order comparison

38
Transforming Cabbage into Turnip
Reversal distance
39
History of Chromosome X
Rat Consortium, Nature, 2004
