The Value of Value Stream Mapping

1

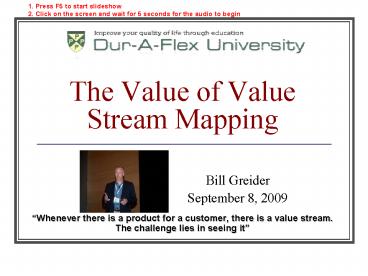

The Value of Value Stream Mapping
1. Press F5 to start slideshow 2. Click on the
screen and wait for 5 seconds for the audio to
begin
Bill Greider September 8, 2009

• Whenever there is a product for a customer,
  there is a value stream. The challenge lies in
  seeing it

2
What is a Value Stream

• The specific ACTIVITIES required to design,
  order, and provide a specific product from
  concept to launch, order to delivery, and raw
  materials into the hands of the customer

3
Why Value Stream Mapping?

• Helps us to see the 8 wastes in our value stream
• Helps us identify
• Value-added activities-what your customer will
  pay for
• Non value-added activities- things you do your
  customer wont pay for
• In our communication processes

4
P4-Process-LEAN tool box

• Value Stream mapping

5
Why Value Stream Mapping?

• Making the 8 wastes visible
• Defects (correction of mistakes, rework)
• Overproduction (faster than necessary pace)
• Waiting (customer isnt paying you for cure time)
• Non-value added processing-how long do I mix, how
  long do I roll?
• Transport-loading, unloading, driving pails
  sand around
• Inventory-tools, materials going for the ride
• Motion-walking but not working
• Employees underutilized/under-trained-I better do
  the topcoat, on-the-job training

6
A few assumptions

• If you are faster than your competitors, you can
  win
• Time is the only currency
• By eliminating the non-value added activities you
  improve productivity
• This exposes further waste problems become
  visible

7
Seeing the Current State

• Need to be done at GEMBA
• Bring your stopwatch
• Map the entire stream yourself in pencil on your
  template provided

8
Some LEAN measurements (all time)

• Process time the actual time it takes for the
  process to be completed, as timed by observation
• Value-Added time how long it takes to give the
  customer what they will pay for
• Lead time How long it takes to deliver 1 square
  foot of floor (one unit)
• Takt time available production time divided by
  the rate of customer demand

9
Value Stream mappingIf you dont consider time,
it is coming out of your PROFIT
Find quote Find/order Materials Deliver
materials Schedule job Schedule crew
Receive Unload load
Flex Ships to you
SHIP IT! 1500 sf DAQ
X sf/min
X sf/min
Takt1.2 sf/min
Flex Ships to job
X sf/min
Sort
Wait-Cure
X sf/min
X sf/min
Pack up
Prep/prime/cove
1st bcst or slurry
2nd bcast Or grout
Grout/ /topcoat
Topcoat
Clean up
X sf/min
X sf/min
X sf/min
X sf/min
X sf/min
PTx sf/min
VATx sf/min
Note 4 or 5 mix station set-ups
X sf/min
10
How did we do on that job?

• Not did we make money-dont focus on
• Did we meet takt time
• What was our SF per Minute?
• What are our Kaizan opportunities?
  (countermeasures)
• What problems can we see?
• Can we go to the film?

11
Game Plan

• Develop a vsm for a weekend installation
• Provide a template for capturing square feet per
  minute from the time
• Truck loaded in shop
• Customer uses his floor
• Collect and share actual job maps

12
This is the last slide in this presentation. If
you advance beyond the last slide, the audio
will stop and you will need to begin again.
