Do Food Nanomaterials Pose a Safety Concern

1

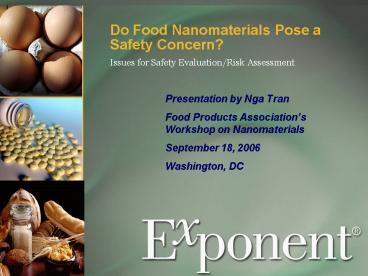

Do Food Nanomaterials Pose a Safety Concern?
Issues for Safety Evaluation/Risk
Assessment Presentation by Nga Tran Food
Products Associations Workshop on
Nanomaterials September 18, 2006 Washington, DC

2
Nanoscience and Nanotechnologies

• Nanoscience
• The study of phenomena and manipulation of
  materials at atomic, molecular and macromolecular
  scales, where properties differ significantly
  from those at a larger scale
• Nanotechnologies
• The design, characterization, production and
  application of structures, devices and systems by
  controlling shape and size at nanometer scale.

3
More definitions

• Nanoscale having one or more dimensions of the
  order of 100 nm or less
• Nanomaterial material with one or more external
  dimensions, or an internal structure, which could
  exhibit novel characteristics compared to the
  same material without nanoscale features.
• Nanoparticle particle with one or more
  dimensions at the nanoscale.
• Nanocomposite composite in which at least one of
  the phases has at least one dimension on the
  nanoscale.
• Nanostructured having a structure at the
  nanoscale
• (EU, SCENIHR/002/05)

4
Nanotechnology in our Lives

• Over 200 manufacturer-identified nano consumer
  products are commercially available worldwide

5

• NANOTECHNOLOGY AND FOODS
• What are we dealing with?
• Marketing and advertisement confusion and hype
• To understand the potential safety issues, we
  need to define what types of nano applications
  are of interest
• Whats REALLY likely to be commercialized
  earliest in the mainstream food industry???

6
Agricultural Application

• Nano-formulation of pesticides
• increase water solubility, enhance application,
  increase stability, optimize efficacy
• microemulsion concentrate (enhance solubility)
• encapsulation (release controls)

7
A Query of Nanotechnology Food Products --
Courtesy of the Woodrow Wilson Center
8
(No Transcript)
9
NanoClusters a nanosize powder that combines
with nutritional supplements. When consumed, it
reduces the surface tension of foods and
supplements to increase wetness and absorption of
nutrients. 1-5 nanometers in diameter, made
from a silica-mineral hydride complex -- on
exposure to moisture it releases H- ions, and
becomes an antioxidant dietary supplement
10
Familiar nanostructures in foods

• Many food proteins are globular structures
  between 10's of nm to 100s nm in size - true
  nanoparticles
• The majority of polysaccharides and lipids are
  linear polymers
• less than 2 nms in thickness
• one dimensional (1D) nanostructures
• Preparing and stabilizing foams and emulsions
• creating 2D layered nanostructures
• one molecule thick, at the air-water or oil-water
  interface
• Setting a gel, or adding polymers to delay the
  sedimentation of dispersions or the creaming of
  emulsions
• creating 3D nanostructures, by causing food
  biopolymers to assemble into fibrous networks
• Boiling starch to make custard -- melting small
  3D crystalline 10s nm in thickness

11
Potential future manipulation at the nanoscale

• Designing more complex multilayer structures
  using nanofabrication
• Adding an extra layer to consolidate the
  weaknesses in the protein network -- stabilize
  against surfactant or lipid attack
• Designing the properties of the interfacial
  layers by carefully choosing the molecular
  components
• Enhancing or inhibiting coalescence of droplets
• Regulating the porosity of the interface to
  optimize encapsulation and release
• Designing new surface coatings or barriers

12
Alteration of intrinsic properties of foods on
the nano-scale

• Nanoparticles may be used in foods to alter other
  properties. For example, margarine, ice cream,
  butter and mayonnaise all belong to a class of
  foods known as colloids, where small particles
  are dispersed in some other medium liquid, gas
  or solid
• Ongoing research and patent on new ways to make
  colloids using nanoparticles that will extend
  shelf-life, prolong flavor sensation in the
  mouth, alter texture and improve stability

13
Nano-delivery system for conventional nutrients

• Certainly nanoparticles may seem attractive as
  delivery vehicles designed to target release
  of nutrients
• One way to preserve an active component is by
  putting it in a protective envelope.
• The envelope can be engineered to dissolve or the
  active ingredient can be made to diffuse through
  the envelope triggered by the right stimulus

14
Nano-scale Food additives - 64M questions(1)
are these really novel?(2) is anybody using them?

• BASFs synthetic lycopene is formulated at the
  nanoscale
• more easily absorbed
• increases shelflife (on market)
• Edible products with inorganic coatings
• coatings as barriers to prevent oxygen or
  moisture from reaching the product
• increasing shelf life.
• SiO2 and TiO2 are specifically mentioned
• (microencapsulation, distribution of
  micro-particle sizes likely contained nano-size,
  approved use, Not novel?)
• An antibacterial nanometer powder
• nanometer zirconium phosphate particles as
  carrier of an active antibacterial component
• broad spectrum
• (Patent data collected by ETC Qingtian New
  Material Research Development Co. (China) Food
  Additive CN1409966A 2003-04-16)

15
Food contact materials

• Anti-microbial agents directly on the surface of
  the coated film
• Increase or decrease gas permeability as required
  for different products
• Improve the mechanical and heat-resistance
  properties and lower the oxygen transmission rate

16
POTENTIAL ISSUES GIVEN ASSUMED TYPES OF NANO-FOOD
PRODUCTS (THERE MAY BE OTHERS) RUDIMENTS OF A
RISK ANALYSIS/PRIORITIZATION FRAMEWORK
17

• Manipulation of conventional food process on the
  nanoscale
• Potential issue alteration of food composition
  or nutritional profile
• Available of detailed understanding of the
  nanostructures present in raw materials or
  processed food
• use rational approaches to select new materials,
  or to enhance quality through food processing

18

• Enhanced delivery systems
• Potential issue alterations in bioavailability -
  absorption, distribution, metabolism or excretion
  characteristics
• Enhanced delivery of nutrients
• Unintended consequence of getting too much of a
  good thing? The U-shape curve effect?
• Neutraceuticals -- blurring of the distinction
  between functional foods and pharmaceuticals?
• Additives (e.g. dyes/flavors)
• Enhanced absorption from GI?
• Unintended consequences?
• Contaminants -- Increase bioavailability of not
  very bioavailable contaminants in foods?

19

• Nanoscale ingredients that are natural at
  macroscale
• In the case of additives that also occur
  naturally in foods, it is not clear what the
  nano-specific safety issues are
• Ultimately, the digestive enzymes bring the
  natural macro particles back down to
  nano-scale.... conventional food is nano-scale by
  the time it reaches the bloodstream

20

• Nanoscale additives not naturally occurring in
  the food
• How relevant is the safety data at macro-level?
• How do nanoscaled additive particles behave in
  food matrix? Do they stay agglomerated and
  bounded until digested in the gut?
• What are the relevant chemical and physical
  characteristics of these particles in a food
  matrix?
• What are their characteristics once in the gut?
  Rate of translocation to other target tissue?

21

• Food contact materials (e.g.,packaging, surfaces)
• Is nanomaterial bound? Or designed to migrate
  into the food?
• Migration potential/measurement?
• Erosion of surfaces during use?
• Fate in the food matrix?

22
LESSONS LEARNED FROM NON-FOODS NANOTECHNOLOGY

• Much of the research focuses on
• Engineered nanomaterials important for
  electronics and pharmaceuticals
• e.g., Novel carbon structures single-walled
  carbon nanotubes (SWNT), buckeyballs
• e.g., Drug delivery systems with specific tissue
  affinities
• Inhalation or dermal exposures, some e-fate and
  ecotox
• Comparison to effects of naturally-occurring
  nanoparticulate air pollutants on lung tissue
• In vitro cytotoxicity assays

23
What safety considerations can be gleamed from
nanos in electronics, pharmaceuticals and
cosmetics?

• Some substances show increased/altered toxicity
  in the nanoscale as compared to their effects
  when larger sized
• Sometimes effects seen are different from those
  observed when dosing with the same material at
  micro- or macroscale
• Local inflammation, immune responses
• Different target organs
• Safety considerations in production worker
  risks
• Safety considerations in product use
  interaction with biological structures (human,
  animal and ecological targets)

24
How relevant is current safety assessment
framework that is born out of particles and
fibers to nanofoods?

• Particle properties
• Measurement and Exposure Assessment
• Toxicology

25
What is different about engineered
nanomaterials?The significance of structure
The many shapes of ZnO - Courtney of Prof. Z.L.
Wang, Georgia Tech
26
An experiment in the significance of structure on
health impact
Nano-Materials Devices
Macro-Materials
Liquids
Gases Vapors
27
Risk Characterization Context
28
(No Transcript)
29
Data on ingestion exposures

• Very scarce
• Jani at el 1990 34 (50nm) and 26 (100 nm)
  polystyrene particles were absorbed,
  respectively.
• 300 nm were absent from the blood
• No particles were detected in heart or lung
  tissue.
• Hillery et al, 1994 10 of 60nm polystyrene
  particles recovered from GI tissuesmost in
  lymphoid tissues (Peyers patches and lymphoid
  aggregates in the large intestines)
• Szenkuti (1997) the smaller latex particle
  diameter the faster they could permeate the mucus
  to reach the colonic enterocytes
• 14 nm diameter permeated within 2 min, 415 nm (30
  min)
• 1000 nm particles unable to cross barrier

30
Algorithm of toxicodynamics on nanoparticles
(based on inhaled particles) (SCENIHR/002/05)
31
Safety Decision Analysis framework
Overview of influence diagram for assessing the
safety of nanoparticles (Morgan, 2005)
32
Morgans (2005) Expert Elicitation

• Aerosol physicist
• Bioengineering and medicine
• Biomaterials engineering
• Chemistry/toxicology of ultrafines
• Chemistry of nanomaterials
• Exposure assessment and risk management
• Mechanical engineer
• Risk assessment
• Toxicology

33
Particle-related characteristics module (Morgan,
2005)
34
Hypothetical Uptake Capacity Module(Morgan 2005)
35
Hypothetical and Simplified Safety Influence
Diagram for Nanomaterials in Foods
Exposure
Presence of nano-materials
Types of nano-foods
Human Health Risks
GI Uptake capacity
Transport/Fate
Food relevant nano particle-related
characteristics
Toxic Effects
Toxicity
36
CONCLUSIONS

• Potential
• Generally revolutionary technology, with many
  societal and environmental benefits anticipated
• In foods, it will greatly depends on what
  technology we are talking about
• Risk
• There may be unanticipated roadblocks, including
  unexpected risk to human health and the
  environment, and
• Lack of public acceptance

37

• Need for interaction between multiple disciplines
• Food technologist/scientist
• Engineers
• Chemists
• Toxicologists
• Nutritionists
• Exposure assessor
• Risk assessor
• Strawmen/case studies to develop the risk
  framework

38
Getting it right first time!

• Societal Acceptance
• Minimizing risk
• Maximizing benefits
