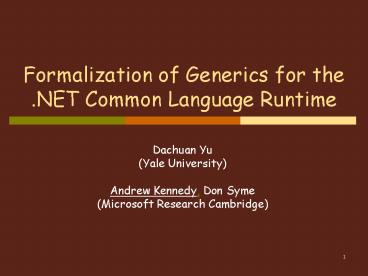

Formalization of Generics for the .NET Common
Language Runtime

• Dachuan Yu (Yale University) Andrew Kennedy,
  Don Syme (Microsoft Research Cambridge)

2
Introduction

• Upcoming revision of Microsoft .NET platform
  includes support for parametric polymorphism
  (generics) in
• Programming languages C, Visual Basic, Managed
  C
• Common Language Runtime (the virtual machine)
• Visual Studio (Integrated Development
  Environment)
• Libraries
• Previous work (PLDI01) described implementation
  techniques used in the CLR
• Now we formalize the polymorphic intermediate
  language and aspects of the implementation

3
CLR The big picture
C program
Visual Basicprogram
SML.NETprogram
C compiler
Visual Basic compiler
SML.NET compiler
IL
IL
IL
Native binary
Loader JIT front-end
Native interop
Common Language Runtime
JIT IL
Remoting
Garbage collector
Security
JIT code-gen
Threads
ExceptionHandling
Machine code
4
CLR The big picture
C program
Visual Basicprogram
SML.NETprogram
C compiler
Visual Basic compiler
SML.NET compiler
IL
IL
IL
Native binary
Loader JIT front-end
Native interop
Common Language Runtime
JIT IL
Remoting
Garbage collector
Security
JIT code-gen
Threads
ExceptionHandling
Machine code
5
High-level design of generics

• Type parameterization for all declarations
• classes e.g. class SetltTgt
• interfaces e.g. interface IComparableltTgt
• structse.g. struct HashBucketltK,Dgt
• methods e.g. static void ReverseltTgt(T arr)
• delegates (first-class methods) e.g. delegate
  void ActionltTgt(T arg)

6
Good design gt Tricky Implementation

• Unrestricted instantiationListltstringgt ls new
  Listltstringgt() // reference typesListltdoublegt
  ld // primitive typesListltPairltstring,doub
  legtgt lsd // struct types
• Full support for run-time typesif (x is
  Setltstringgt) ... // type-test y (ListltTgt)
  z // checked cast
• Recursion in instantiationsclass ListltTgt
  ICloneableltListltTgtgt // finiteclass CltTgt
  CltCltTgtgt fld // infinite

7
Why formalize?

• In previous work (POPL01, Gordon Syme) the aim
  was a type soundness proof for a subset of IL
  (Baby IL)
• Our aims are different
• Implementation techniques used in the CLR product
  are subtle and difficult to get right (gt bugs,
  perhaps security holes)
• Wed like to validate those techniques
• Current JIT- and pre-compilers are not
  type-preserving
• Our formalization provides a basis for typed
  compiler intermediate languages for more capable
  and robust compilers
• Its also difficult to express and apply
  optimizations
• Formalization makes this easier
• By-product is a generic variant on Baby IL

8
Formalization the big picture
BILG classes and methods
BILG Baby IL with GenericsA tiny subset of
MS-IL
Specialize generic classes and methodsShare
instantiations w.r.t. data representationIntroduc
e types-as-valuesOptimize use of types-as-values
BILC classes and methods
BILC Baby IL with Constrained genericsA
typed intermediate language more suitable for
code-generation
9
Illustrative example, in C
Want to share generated code for ArrayToList
over different instantiations of T

• class ArrayUtils
• static ListltTgt ArrayToListltTgt(T arr)
• new ListltTgt()
• class ListltTgt
• virtual ListltTgt Append(object obj)
  (ListltTgt) obj new ListCellltTgt

Pass type parameters at runtime?
Look up type representations at runtime?
Want to share generated code for List over
different instantiations of T
Look up type representations at runtime? How do
we know what T is?
10
Source Language BILG

• Baby IL with Generics
• Purely functional, à la Featherweight Java
  (Igarashi, Pierce, Wadler)
• Primitive types generic classes
• Inheritance-based subtyping
• Generic methods (static and virtual)
• Type-case operation (isinst) inspects run-time
  type of object
• No overloading, no interfaces, no abstract
  methods, no structs (value classes), no
  delegates, no boxing, no null values, no heap, no
  bounded polymorphism
• Just enough to demonstrate most of the
  implementation techniques!
• Typing rules big-step semantics in paper
• Easier to work with big-step
• 9 v. e ? v taken as definition of divergence

11
Source language BILG

• (type) T,U X int32 int64 I
• (inst type) I CltT1,,Tngt
• (class def) cd class CltX1,,Xn gt I T1
  f1 Tm fm md1 mdk
• (method def ) md static T
  mltX1,,Xngt(T1,,Tm) e virtual T
  mltX1,,Xngt(T1,,Tm) e
• (method ref) M ImltT1,,Tngt
• (expr) e ldc.i4 i4 ldc.i8 i8 ldarg
  x
• e1 en newobj I
• e ldfld If
• e1 en call M
• e e1 en callvirt M
• e isinst I or e

12
BILG typing and evaluation for isinst
E e I E e I
E e isinst I or e I
fr e ? I(f1v1,,fnvn) I lt I
fr e isinst I or e ? I(f1v1,,fnvn)
fr e ? I(f1v1,,fnvn) (I lt I)
fr e ? v
fr e isinst I or e ? v
13
BILG typing and evaluation for isinst
E e I E e I
Observe Types affect evaluation They cannot be
erased They serve static and dynamic purposes
E e isinst I or e I
fr e ? I(f1v1,,fnvn) I lt I
fr e isinst I or e ? I(f1v1,,fnvn)
fr e ? I(f1v1,,fnvn) (I lt I)
fr e ? v
fr e isinst I or e ? v
14
Target Language BILC

• Similar to BILG, but adds
• Representation constraints on type parameters
• ref must be a reference type
• i4 must be a 32-bit integer
• i8 must be a 64-bit integer
• Types-as-values
• RT is a value representing closed type T
• The value RT has singleton type Rep(T),
  interpreted as is a value representing the
  type T
• Construct reps for open types
  mkrepCltT1,,Tngt(e1,,en) creates a type-rep
  for CltT1,,Tngt given type-reps for T1,,Tn
• Semantics given by small-step reduction relation

15
Target language BILC (subset)

• (type) T,U X int32 int64 I
• (inst type) I CltT1,,Tngt
• (extended types) ? T Rep(T)
• (constraint) s ref i4 i8
• (class def) cd class CltX1 s1,,Xn sn gt I
  T1 f1 Tm fm md1 mdk
• (method def ) md static T mltX1 s1,,Xn sn
  gt(?1,, ?k) e virtual T mltX1 s1,,X
  sngt(?1,, ?k ) e
• (method ref) M ImltT1,,Tngt
• (expr) e i4 i8 x
• I(e,e1,,en)
• e ldfld If
• e1 en call M
• e e1 en callvirt M
• e isinstIe or e
• RT
• mkrepCltT1,,Tngt(e1,,en)

16
Some typing and reduction rules
E CltT1,,Tngt ok E e1 Rep(T1) E
en Rep(Tn)
E mkrepCltT1,,Tngt(e1,,en) Rep(CltT1,,Tngt)
E e I E e Rep(I) E e I
Reflected subtypingRI Á RI iff I lt I
E e isinstI e or e I
v I(w,v1,,vn) w Á w
? (v isinstT w or v) ! v
v I(w,v1,,vn) w w
? (v isinstT w or v) ! v
17
Some typing and reduction rules
E CltT1,,Tngt ok E e1 Rep(T1) E
en Rep(Tn)
E mkrepCltT1,,Tngt(e1,,en) Rep(CltT1,,Tngt)
E e I E e Rep(I) E e I
E e isinstI e or e I
v I(w,v1,,vn) w Á w
Observe Types do not affect evaluation They can
be erased They serve only static purposes
? (v isinstT w or v) ! v
v I(w,v1,,vn) w w
? (v isinstT w or v) ! v
18
Example

• Static generic method in BILG static ListltTgt
  ConvltTgt(object a) a isinst
  ListltTgt
• Translated to BILC static Listi Convi(object
  a) a isinstTreei RTreei) static
  Listl Convl(object a) a isinstTreel
  RTreel static ListrltTgt ConvrltTrefgt(Rep(T) r,
  object a) a isinstListrltTgt
  (mkrepListrltTgt(r))

Specialized code for T int32
Specialized code for T int64
Code shared for reference types
Extra parameter representing T
Lookup/Create type rep at runtime
19
We need more

• So far
• specialization, sharing, and separation of
  run-time types from static types
• but mkrep is a costly operation, requiring
  type-rep creation at runtime
• Idea instead of passing representations for type
  parameters, pass representations of types that we
  actually needstatic ListrltTgt
  ConvrltTrefgt(Rep(ListrltTgt) r, object a)
  a isinstListrltTgt(r)

Extra parameter representing ListltTgt
20
We need more

• In general, we need many type-reps in a single
  method body
• So we pass around dictionaries of type-reps
• What type does a dictionary of type-reps have?
• At its simplest, it is just a tuple e.g.
  Rep(ListltXgt) Rep(VecltVecltXgtgt) is type of a
  two-slot dictionary containing type-reps for
  ListltXgt and VecltVecltXgtgt
• In general, dictionaries may contain cycles (e.g.
  for mutually recursive methods), so we need
  recursive values and their types
• Worse still, polymorphic recursion requires
  infinite dictionaries
• Simpler use name-based types for dictionaries
• reps for methods Rep(M), RM, mkrepM(e1,,en)
• statically each Rep-type determines a particular
  tuple of other Rep-types
• dynamically each type-rep RT or method-rep RM
  determines a tuple of type-rep/method-rep values

21
Target language BILC (full)

• (type) T,U X int32 int64 I
• (inst type) I CltT1,,Tngt
• (ext type) ? T Rep(T) Rep(M)
• (constraint) s ref i4 i8
• (class def) cd class CltX1 s1,,Xn sn gt I
  T1 f1 Tm fm md1 mdk with ?1,,?p
• (method def ) md static T mltX1 s1,,Xn sn
  gt(?1,, ?k) e with
  ?1,,?p virtual T mltX1 s1,,X sngt(?1,,
  ?k) e
• (method ref) M ImltT1,,Tngt
• (expr) e i4 i8 x
• I(e,e1,,en)
• e ldfld If
• e1 en call M
• e e1 en callvirt M
• e isinstIe or e
• RT RM
• mkrepCltT1,,Tngt(e1,,en)
• mkrepCltT1,,TngtmltU1,,Ukgt(e1,,en,e1,,ek)

• objdicti e
• mdicti e

22
Translation scheme

• Static generic methods
• Extra dictionary parameter associated with method
• Accessed using mdicti(e)
• Virtual methods in generic classes
• Obtain dictionary through type of object
• Accessed using objdict_i(e)
• Generic virtual methods
• Dictionary type not known statically (body could
  be overridden)
• So pass reps for type parameters and construct
  type-reps at runtime using mkdrep

23
In the paper

• Complete formalization of BILG, BILC, and a
  translation
• Theorems
• Translation preserves types
• Translation preserves behaviour
• And in forthcoming technical report
• Full proofs
• Type erasure theorem types in BILC do not affect
  evaluation

24
Future work

• Extend BILG and the translation to cover more
  features
• Value classes (structs)
• Would satisfy representation constraint of form
  s1,,sn where s1,,sn are constraints on the
  fields representations
• Now have unbounded number of specializations
• All methods on generic structs whose code is
  shared take a dictionary parameter
• Need treatment of boxing
• Flexible specialization policies
• Less sharing e.g. full specialization of
  selected types
• More sharing e.g. share all instantiations of
  CltTgt by boxing and unboxing appropriately (cf ML)

25
Future work structural typing

• Flexible specialization interacts badly with
  run-time types based on name-equivalence
• Instead, describe dictionaries using structural
  typing
• ProductsRep(ListltXgt) Rep(X) is two-slot
  dictionary with type-reps for ListltXgt and X
• Circular dictionaries gt Recursive types e.g.?
  D. Rep(VecltXgt) (Rep(SetltXgt) D)
• Polymorphic recursion in code gt Higher-kinded
  recursive types e.g. (?D. ?X. Rep(VecltXgt)
  D(SetltXgt)) string

26
Related work

• Rep(T)
• Crary, Weirich, Morrisett Intensional
  polymorphism in type-erasure semantics
• Dictionary-passing for polymorphism
  implementation
• Saha and Shao (ML)
• Viroli and Natali (Java)

27

• Questions?
