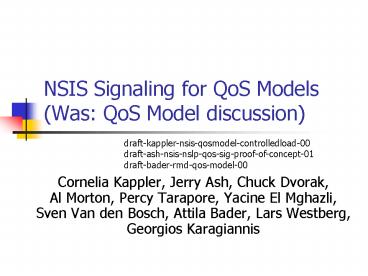

Title: NSIS Signaling for QoS Models Was: QoS Model discussion


1
NSIS Signaling for QoS Models (Was QoS Model
discussion)
draft-kappler-nsis-qosmodel-controlledload-00 draf
t-ash-nsis-nslp-qos-sig-proof-of-concept-01 draft-
bader-rmd-qos-model-00
  • Cornelia Kappler, Jerry Ash, Chuck Dvorak,
    Al Morton, Percy Tarapore, Yacine El
    Mghazli, Sven Van den Bosch, Attila Bader,
    Lars Westberg, Georgios Karagiannis

2
Goal
  • Validate QoS NSLP by combining it with three
    different QoS Models
  • A QoS Model is a mechanism for achieving QoS
  • E.g. IntServ, DiffServ
  • QoS-NSLP can signal for different QoS Model
  • Actual resource description is carried in the
    QSpec Object of RESERVE

3
How can we validate the operation of QoS-NSLP?
  • analyze and specify how QoS-NSLP signaling is
    used for different QoS models
  • clarification of what is a QoS model, and its
    relation to NSIS signaling
  • three examples
  • IntServ Controlled-Load Service
  • Standardization work in the ITU-T for QoS
    signaling requirements
  • NSIS signaling for DiffServ aware routers(old
    Resource Management in DiffServ (RMD))

4
First validation resultsQoS Model specific
Control Information where is it processed?

  • ---------------
  • Local

  • Applications or
  • Management
    (e.g
  • for
    aggregates)

  • ---------------
  • V
  • V
  • ----------
    ---------- ---------
  • QoS-NSLP
    Resource Policy
  • ProcessingltltltltltltgtgtgtgtgtgtgtManagemen
    tltltltgtgtgt Control
  • ----------
    ---------- ---------
  • .
  • V .
  • ----------

QoS Model specific QoS-NSLP Processing?
5
First validation results
  • State held in QNEs
  • processing box
  • Common QoS-NSLP Processing box
  • QoS Model specific QoS Model specific QoS NLSP
    Processing box
  • Resource Management box
  • Resource allocation dependant
  • Do we need a standardized feedback mechanism for
    failed sender-initiated reservations?
  • E.g. local QNE returns error RESPONSE containing
    why reservation failed
  • Next RESERVE may also fail because of a problem
    further down the path
  • Next stateful node returns error RESPONSE
  • E.g. RESERVE continues up to QNR, collecting more
    information
  • Terminate error RESPONSE at QNE who added the
    failed QSpec?

6
First validation resultsWhat is a QoS Model (I)
  • Need to refine definition of QoS Model
  • A mechanism for achieving QoS
  • E.g. IntServ Controlled-Load, RMD, ITU-T
  • And a description of how to use QoS-NSLP to
    signal for it
  • E.g. current QoS Model IDs
  • After yesterdays discussion, we think that
  • saying we define QoS Models for NSIS is
    misleading
  • NSIS is about QoS Signaling Models

7
First validation resultsWhat is a QoS Model (II)
  • A description of how to signal for a QoS Model
    should include
  • Objects to be carried in RESERVE (i.e. QSpec),
    QUERY RESPONSE and NOTIFY
  • how that information should be treated or
    interpreted by the Resource Management and QoS
    Model specific NSLP Processing
  • E.g. admission control, scheduling, policy
    control, QoS parameter accumulation (e.g. delay)
  • Role of QNEs
  • E.g. location, frequency,
  • Usage of QoS-NSLP messages to signal the QoS
    model

8
What next?
  • Details of signaling for three QoS-model examples
    (next three presentations)
  • Question Further NSIS QoS Signaling Model work
  • Working Group IDs? proceeding to Informational
    RFCs for
  • Examples of how NSIS can signal for QoS models
  • Guidelines for signaling for QoS models
  • Including templates for Objects carried in
    RESERVE (i.e. QSpec), RESPONSE, QUERY, NOTIFY?
  • Current QoS Model Signaling IDs differ
    considerably in what they describe

9
NSIS signaling model for DiffServ aware
routers(Old RMD QoS-NSLP model)
  • Attila Báder, Georgios Karagiannis,
  • Lars Westberg

10
Main goal
  • Validate how NSIS can be used for signaling
    within DiffServ domains

11
Concept
QNF Interior nodes NTLP stateless, NSLP reduced
state (or stateless)
QNF Edge Stateful
QNF Edge Stateful
PHR
PHR
QNE
PHR
QNE
Diffserv domain
PDR
E2E QoS-NSLP
12
Basic features
  • Provides dynamic signaling for Diffserv routers
  • Scalability
  • separating per-hop and per-domain reservation
  • per-Diffserv traffic class reservation states in
    interior nodes

13
NTLP features
  • Reduced NTLP functions in QNF interior nodes
  • Simple datagram mode transport (UDP/IP)
  • Routing states in QNF edge nodes and no routing
    states in QNF interior nodes
  • E2E-ignore function for some NSLP messages

14
NSLP features
  • Sender initiated reservation
  • Per-Diffserv traffic class reservation states in
    all nodes, and if needed additional per-flow
    reservation states in QNF edges
  • QSpec PHR, PDR objects
  • Uses simple bandwidth as QoS parameter
  • PHR control fields can be modified by QNF
    interior nodes

15
Unsuccessful reservation marking of signaling
packets
unsuccessful
16
NSIS NSLP QoS Signaling Proof of
Concept(draft-ash-nsis-nslp-qos-sig-proof-of-conc
ept-01.txt)
Jerry Ash ATT gash_at_att.com
Al Morton ATT acmorton_at_att.com
Chuck Dvorak ATT cdvorak_at_att.com
Percy Tarapore ATT tarapore_at_att.com
Yacine El Mghazli Alcatel yacine.el_mghazli_at_alcate
l.fr
Sven Van den Bosch Alcatel sven.van_den_bosch_at_alca
tel.be
17
Outline (draft-ash-nsis-nslp-qos-sig-proof-of-con
cept-01.txt)
  • proposed QoS signaling model based on 3 ITU-T
    Recommendations
  • later versions to specify objects control
    details
  • Qspec template proposed
  • consider standardizing some signaling functions
    within NSLP
  • common to all QoS models rather than proprietary
    within Qspec
  • e.g., performance requirements such as delay,
    delay variation, packet loss, etc.
  • next steps
  • as in intro discussion

18
Background Motivation
  • proposed QoS signaling model based on 3 ITU-T
    Recommendations on QoS signaling (summarized in
    the draft)
  • TRQ-QoS-SIG "Signaling Requirements for
    IP-QoS," January 2004
  • specifies QoS parameter control information
  • based on Y.1541 QoS classes
  • quantitative guarantees for delay, delay
    variation, packet loss
  • include CAC restoration priority
  • specifies requirements for signaling IP-QoS
    information
  • at user-network interface (UNI)
  • across network interfaces(NNI)
  • enable request, negotiation delivery of Y.1541
    QoS classes from UNI to UNI, spanning NNIs as
    required
  • objects for accumulation along path
  • how info should be interpreted in network
  • Y.1541 "Network Performance Objectives for
    IP-Based Services," May 2002
  • specifies 6 QoS service classes
  • specific objectives for delay, delay variation,
    loss for each class

19
Background Motivation
  • proposed QoS signaling model based on 3 ITU-T
    Recommendations on QoS signaling (summarized in
    the draft)
  • E.361 "QoS Routing Support for Interworking of
    QoS Service Classes Across Routing Technologies,"
    May 2003
  • identifies QoS routing functions associated
    parameters to be signaled across networks

20
Qspec Template (draft-ash-nsis-nslp-qos-sig-proof
-of-concept-01.txt)
  • QSpec ID (allows IANA reservation of QSpec
    parameter combinations)
  • IANA specified
  • Traffic Envelope/Conformance
  • algorithm is token-bucket
  • conformance parameters
  • token bucket rate (Br)
  • peak rate (Rp)
  • peak bucket size (Bp)
  • sustainable rate (Rs)
  • sustainable bucket size (Bs)
  • maximum allowed packet size (M)
  • Excess Treatment
  • excess traffic may be dropped, shaped and/or
    remarked.
  • excess treatment (EXTR)

21
Qspec Template (draft-ash-nsis-nslp-qos-sig-proof
-of-concept-01.txt)
  • Offered Guarantees
  • QoS-REQUEST-PAR are qualitative guarantees
  • Y.1541 QoS class
  • DiffServ behavior
  • service identity (SI)
  • class type (CT)
  • link capability (LC)
  • QoS-ACCUM-PAR are quantitative guarantees
  • transfer delay, delay variation, packet loss
  • used in RESERVE/QUERY or RESPONSE message to
    collect information along the path
  • Service Schedule
  • indicates start time end time of service
  • specified in Appendix B/TRQ-QoS-SIG

22
Qspec Template (draft-ash-nsis-nslp-qos-sig-proof
-of-concept-01.txt)
  • Priority and Reliability
  • CAC Priority (CAC-PRTY)
  • Restoration Priority (RES-PRTY)
  • Monitoring requirements
  • As specified in Appendix B/TRQ-QoS-SIG

23
Next Steps
  • progress draft as an individual Informational RFC
  • with feedback review by NSIS WG
  • seek IANA registration for QoS model
  • consider standardizing some signaling functions
    within NSLP
  • common to all QoS models rather than proprietary
    within Qspec
  • e.g., performance requirements such as delay,
    delay variation, packet loss, etc.

24
Backup Slides
25
Background Motivation (draft-ash-nsis-nslp-qos-
sig-proof-of-concept-01.txt)
  • NSLP for Quality-of-Service Signaling provides
  • an NSIS signaling layer protocol (NSLP) to signal
    QoS reservations
  • support for different reservation models
  • a generic Qspec template to specify individual
    QoS signaling models
  • there are already a number of QoS models
    specified outside of the IETF, for example the
    ITU, 3GPP, etc we should allow consenting
    peers to use the QoS NSLP with particular QoS
    models one way to achieve this is to use IANA
    registries to register QoS models, and the QoS
    NSLP to signal these.
  • John Loughney, 27 October 2003
  • take 1 or 2 existing QoS models detail them in
    a separate draft, as a sort of proof-of-concept
    for the QoS NSLP
  • John Loughney, 19 November 2003

26
Y.1541 Network Performance Objectivesfor
IP-Based Services
  • Y.1221-based Traffic Contracts
  • IP transfer capabilities include the service
    model, traffic descriptor, conformance definition
    and any QOS commitments.
  • Transfer Capabilities include Dedicated
    Bandwidth, Statistical Bandwidth, and Best
    Effort.

27
Example of QoS Signaling Requirements Based on
Y.1541 QoS ClassesExample of QoS Class
Acceptance withSpecified Parameter Indications
28
Example of QoS Signaling Requirements Based on
Y.1541 QoS ClassesExample of QoS Class Rejection
with Alternative Offer Indications
29
Example of QoS Signaling Requirements Based on
Y.1541 QoS ClassesExample of Accumulating
Signaling Current Performance
30
Example of QoS Signaling Requirements Based on
Y.1541 QoS ClassesExample of Accumulating
Signaling Current Performance
31
A QoS Signaling Model for IntServ Controlled-Load
  • Draft-kappler-nsis-qosmodel-controlledload-00
  • Cornelia Kappler, Siemens AG

32
What is IntServ Controlled-Load Service?
  • IntServ Controlled Load Service is (in NSIS
    terms) a QoS Model
  • This ID is the corresponding NSIS QoS Signaling
    Model
  • How to signal for IntServ Controlled Load using
    NSIS
  • RFC 2210 specifies how to signal for
    Controlled-Load Service using RSVP
  • Controlled-Load Service (RFC 2211)
  • Provides approximately e2e service of an unloaded
    best-effort network
  • QoS parameters signaled are Token Bucket and MTU
  • Implemented per network element, i.e.
    per-router or per-subnet
  • Can be used for
  • Reserving resources per-flow per-router
  • Admission control at edge of DiffServ domains
  • Admission control into MPLS clouds

33
How to signal for Controlled-Load Service with
NSIS
  • Role of QNEs
  • One or more QNE per network element
  • QoS-model specific Control Information
  • None
  • Content of QSpec
  • Token bucket and MTU
  • Objects to be carried in RESPONSE and QUERY
  • Tbd. Query for MTU?
  • Processing Rules in QNEs
  • Admission Control based on token bucket and MTU
    conformance
  • How find out about MTU?
  • Cf discussion of feedback on failed
    reservations
  • Usage of QoS-NSLP messages
  • Sender-initiated RESERVE
  • QUERY for finding out about MTU of path before
    reserving?

34
BackupFirst validation results
  • Format of QSpec?
  • Separate immutable from mutable fields?
  • In RSVP mutable fields are in AdSpec
  • Separate QoS Model Specific Control Information
    from QoS parameters?
Write a Comment
User Comments (0)
About PowerShow.com
