Service Oriented Architecture and Globus Toolkit

1

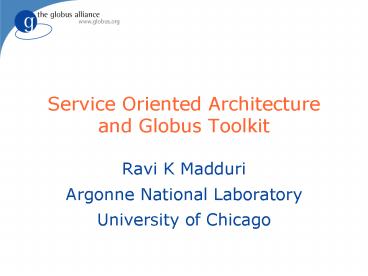

Service Oriented Architecture and Globus Toolkit

• Ravi K Madduri
• Argonne National Laboratory
• University of Chicago

2
Agenda

• Principles of Service Oriented Architecture
• The Globus Toolkit
• Web Services Basics
• Grid Services
• What people punt on ?
• Intro to Globus Security, Service Registries
• Workflows we created
• Lessons learned

3
Principles of Service Oriented Architecture

• Guiding principles define the ground rules for
  development, maintenance, and usage of the SOA
• Reuse, granularity, modularity, composability,
  componentization and interoperability
• Standards compliance (both common and
  industry-specific)
• Services identification and categorization,
  provisioning and delivery, and monitoring and
  tracking

4
Architectural Principles

• Service encapsulation Many web services are
  consolidated to be used under the SOA.
• Service loose coupling Services maintain a
  relationship that minimizes dependencies and only
  requires that they maintain an awareness of each
  other
• Service contract Services adhere to a
  communications agreement, as defined collectively
  by one or more service description documents
• Service abstraction Beyond what is described in
  the service contract, services hide logic from
  the outside world

5
Architectural Principles

• Service reusability Logic is divided into
  services with the intention of promoting reuse
• Service composability Collections of services
  can be coordinated and assembled to form
  composite services
• Service autonomy Services have control over the
  logic they encapsulate

6
Architectural Principles

• Service optimization All else equal,
  high-quality services are generally considered
  preferable to low-quality ones
• Service Discoverability - Services are designed
  to be outwardly descriptive so that they can be
  found and assessed via available discovery
  mechanisms
• Service Relevance Functionality is presented at
  a granularity recognized by the user as a
  meaningful service

7
Globus Software dev.globus.org
Globus Projects
OGSA-DAI
GT4
MPICH- G2
Data Rep
Replica Location
Java Runtime
MyProxy
Delegation
GridWay
GridFTP
MDS4
CAS
C Runtime
GSI- OpenSSH
Incubator Mgmt
Reliable File Transfer
GRAM
Python Runtime
C Sec
GT4 Docs
Security
Execution Mgmt
Info Services
Common Runtime
Other
Data Mgmt
8
Web Service Basics

• Web Services are basic distributed computing
  technology that let us construct client-server
  interactions

Borja Sotomayor , http//gdp.globus.org/gt4-tutor
ial/multiplehtml/ch01s02.html
9
Web Service Basics 2

• Web services are platform independent and
  language independent
• Client and server program can be written in diff
  langs, run in diff envts and still interact
• Web services describe themselves
• Once located you can ask it how to use it
• Web services are ideal for loosely coupled
  systems
• Unlike CORBA, EJB, etc.

10
WSDL Web Services Description Language
Define expected messages for a service, and their
(input or output parameters) An interface groups
together a number of messages (operations)
11
Real Web Service Invocation
Borja Sotomayor , http//gdp.globus.org/gt4-tutor
ial/multiplehtml/ch01s02.html
12
Web Services Server Applications

• Web service software that exposes a set of
  operations
• SOAP Engine handle SOAP requests and responses
  (Apache Axis)
• Application Server provides living space for
  applications that must be accessed by different
  clients (Tomcat)
• HTTP server- also called a Web server, handles
  http messages

Borja Sotomayor , http//gdp.globus.org/gt4-tutor
ial/multiplehtml/ch01s02.html
13
Lets talk about state

• Plain Web services are stateless

Borja Sotomayor , http//gdp.globus.org/gt4-tutor
ial/multiplehtml/ch01s03.html
14
However, Many GridApplications Require State
Borja Sotomayor , http//gdp.globus.org/gt4-tutor
ial/multiplehtml/ch01s03.html
15
Keep the Web Serviceand the State Separate

• Instead of putting state in a Web service, we
  keep it in a resource
• Each resource has a unique key

Borja Sotomayor , http//gdp.globus.org/gt4-tutor
ial/multiplehtml/ch01s03.html
16
Resources Can Be Anything Stored
Address of a WS-resource is called an end-point
reference
17
Web Services So Far

• Basic client-server interactions
• Stateless, but with associated resources
• Self describing using WSDL
• But wed really like is a common way to
• Name and do bindings
• Start and end services
• Query, subscription, and notification
• Share error messages

18
Standard Interfaces

• Service information
• State representation
• Resource
• Resource Property
• State identification
• Endpoint Reference
• State Interfaces
• GetRP, QueryRPs, GetMultipleRPs, SetRP
• Lifetime Interfaces
• SetTerminationTime
• ImmediateDestruction
• Notification Interfaces
• Subscribe
• Notify
• ServiceGroups

Web Service
Client
19
WSRF WS-Notification

• Naming and bindings (basis for virtualization)
• Every resource can be uniquely referenced, and
  has one or more associated services for
  interacting with it
• Lifecycle (basis for fault resilient state
  management)
• Resources created by services following factory
  pattern
• Resources destroyed immediately or scheduled
• Information model (basis for monitoring
  discovery)
• Resource properties associated with resources
• Operations for querying and setting this info
• Asynchronous notification of changes to
  properties
• Service Groups (basis for registries collective
  svcs)
• Group membership rules membership management
• Base Fault type

20
WSRF vs XML/SOAP

• The definition of WSRF means that the Grid and
  Web services communities can move forward on a
  common base
• Why Not Just Use XML/SOAP?
• WSRF and WS-N are just XML and SOAP
• WSRF and WS-N are just Web services
• Benefits of following the specs
• These patterns represent best practices that have
  been learned in many Grid applications
• There is a community behind them
• Why reinvent the wheel?
• Standards facilitate interoperability

21
WS Core Enables FrameworksE.g., Resource
Management
Applications of the framework(Compute, network,
storage provisioning,job reservation
submission, data management,application service
QoS, )
WS-Agreement(Agreement negotiation)
WS Distributed Management(Lifecycle, monitoring,
)
WS-Resource Framework WS-Notification
() (Resource identity, lifetime, inspection,
subscription, )
Web services(WSDL, SOAP, WS-Security,
WS-ReliableMessaging, )
An evolution of Open Grid Services
Infrastructure (OGSI)
22
Globus and Web Services
User Applications
GlobusWSRF Web Services
Registry and Admin
Globus Container(e.g., Apache Axis)
WS-A, WSRF, WS-Notification
WSDL, SOAP, WS-Security
Globus Core Java , C (fast, small footprint),
Python
23
Globus and Web Services
Globus Core Java , C (fast, small footprint),
Python
24
Globus Security

• Extensible authorization framework based on Web
  services standards
• SAML-based authorization callout
• Security Assertion Markup Language, OASIS
  standard
• Used for Web Browers authentication often
• Very short-lived bearer credentials
• Integrated policy decision engine
• XACML (eXtensible Access Control Markup Language)
  policy language, per-operation policies, pluggable

25
Delegation Service

• Higher level service
• Authentication protocol independent
• Refresh interface
• Delegate once, share across services and
  invocation

Hosting Environment
Service1
Resources
Service2
EPR
Delegation Service
Service3
Delegate
Refresh
Refresh
EPR
Delegate
Client
Rachana Ananthakrishnan
26
Delegation

• Secure Conversation
• Can delegate as part of protocol
• Extra round trip with delegation
• Types Full or Limited delegation
• Delegation Service is preferred way of delegating
• Secure Message and Secure Transport
• Cannot delegate as part of protocol

Rachana Ananthakrishnan
27
Globuss Use ofSecurity Standards
Supported, Supported, Fastest,
but slow but insecure so default
28
Monitoring and Discovery System(MDS4)

• Grid-level monitoring system
• Aid user/agent to identify host(s) on which to
  run an application
• Warn on errors
• Uses standard interfaces to provide publishing of
  data, discovery, and data access, including
  subscription/notification
• WS-ResourceProperties, WS-BaseNotification,
  WS-ServiceGroup
• Functions as an hourglass to provide a common
  interface to lower-level monitoring tools

29
Taverna
A sample caGrid workflow
caGrid Scavenger with semantic/metadata based
caGrid service query
30
Sample Workflow with caDSR

• Scientific value
• To find all the UML packages related to a given
  context (caCore).
• Not a real scientific experiment.
• Simple.
• Important in caGrid.
• Steps
• Querying Project object.
• Do data transformation.
• Querying Packages object and get the result.

Workflow input
caGrid services
Shim services
Workflow output
31
Protein sequence information query

• Scientific value
• To query protein sequence information out of 3
  caGrid data services caBIO, CPAS and GridPIR.
• To analyze a protein sequence from different data
  sources.
• Steps
• Querying CPAS and get the id, name, value of the
  sequence.
• Querying caBIO and GridPIR using the id or name
  obtained from CPAS.

32
Microarray clustering

• Scientific value
• A common routine to group genes or experiments
  into clusters with similar profiles.
• To identify functional groups of genes.
• Steps
• Querying and retrieving the microarray data of
  interest from a caArrayScrub data service at
  Columbia University
• Preprocessing, or normalize the microarray data
  using the GenePattern analytical service at the
  Broad Institute at MIT
• Running hierarchical clustering using the
  geWorkbench analytical service at Columbia
  University

Workflow in/output
caGrid services
Shim services
others
Wei Tan, Ravi Madduri, Kiran Keshav, Baris E.
Suzek, Scott Oster, Ian Foster. Orchestrating
caGrid Services in Taverna. ICWS 08.
33
Execution trace
Execution result as xml
1936 gene expressions

34
Lymphoma prediction type prediction

• Scientific value
• Using gene-expression patterns associated with
  DLBCL and FL to predict the lymphoma type of an
  unknown sample.
• Using SVM (Support Vector Machine) to classify
  data, and predicting the tumor types of unknown
  examples.
• (Major) steps
• Querying training data from experiments stored in
  caArray.
• Preprocessing, or normalize the microarray data.
• Adding training and testing data into SVM service
  to get classification result.

Fig. from MA Shipp. Diffuse large B-cell
lymphoma outcome prediction by gene-expression
profiling and supervised machine learning. Nature
medicine, 2002
35
Querying Preprocessing Classifying
predicting
36
Lymphoma type prediction

• Result snippet

Classification errors are highlighted.
Acknowledgement Juli Klemm, Xiaopeng Bian,
Rashmi Srinivasa (NCI) Jared Nedzel (MIT)
37
Lessons Learned

• Service abstraction not applicable to everything
• Virtual Organization concepts still good
• Web services is one way to create service
  oriented architectures but not always the best
  way
• Make implementation agnostic of tools underneath
• True value in ability to create workflows

38
Service-Oriented Science

• People create services (data or functions)
• which I discover ( decide whether to use)
• compose to create a new function ...
• then publish as a new service.
• ? I find someone else to host services, so I
  dont have to become an expert in operating
  services computers!
• ? I hope that this someone else can manage
  security, reliability, scalability,

!
!
Service-Oriented Science, Science, 2005
39
Questions ?
