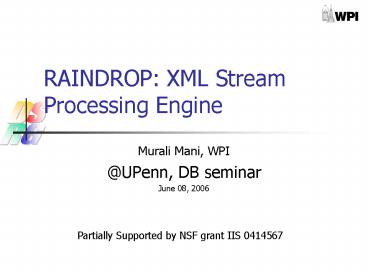

RAINDROP XML Stream Processing Engine

• Murali Mani, WPI
• _at_UPenn, DB seminar
• June 08, 2006

Partially Supported by NSF grant IIS 0414567
2
Acknowledgements

• NSF for the financial support
• Joint work with several others
• Prof. Elke A. Rundensteiner
• Graduate students Hong Su, Ming Li, Mingzhu
  Wei, Shoushen Wang, Jinhui Jian
• Undergraduate students Drew Ditto, Bogomil
  Tselkov

3
Applications

• Need for efficient stream data processing
• Monitor patient data in real time
• Sensor networks fire detection battle field
  deployment traffic congestion
• Others news delivery, monitor network traffic,

4
XML Stream Processing
ltopen_auctionsgt ltauctiongt
ltprivacygtNolt/privacygt ltdescriptiongt
Calendar of ltemphgtFrench
Impressionismlt/emphgtbyltemphgtMonet lt/emphgt
lt/descriptiongt ltinitialgt 20
lt/initialgt lt/auctiongt
5
Option 1 Automata-Based Pattern Retrieval

• Additional Data Structures for
• Buffering
• Filtering
• Restructuring

When patterns are retrieved depends on the data
6
Option 2 DOM Based Pattern Retrieval
When patterns are retrieved depends on other
patterns
7
Which paradigm is better?
Minimal pushdown plans win over maximal pushdown
when selectivity lt 50
8
Problem

• How to provide the framework to choose between
  these paradigms?
• Model both paradigms uniformly as algebraic
  operators.
• Use a cost model to choose optimal plan given
  data statistics.

9
Automaton as TokenNav
StructuralJoin a
Select eFrench
Select non-empty(b)
Extract a
Extract b
Extract e
TokenNav a, /privacy-gtb
TokenNav a,/desc/emph-gte
TokenNav s, /auctions/auction-gta
10
DOM Navigation as NodeNav
Select eFrench
Select non-empty(b)
NodeNav a, /privacy-gtb
NodeNav a,/desc/emph-gte
Extract a
TokenNav s, /auctions/auction-gta
11
Exploring the Search Space

• A pattern can be retrieved inside the automaton
  or outside the automaton
• However there are dependencies
• for a in /a,
• b in a/,
• c in b/
• NodeNav for b gt NodeNav for c
• TokenNav for b gt TokenNav/NodeNav for c

12
Run-time Optimization

• Statistics unknown before data arrives
• Statistics could change over time
• We need techniques for efficient statistics
  monitoring, search space exploration and plan
  migration (safe points for migration)

13
Run-time Optimization
statistics
Query plan executor
Stream

• Create an initial plan
• Run initial plan and collect statistics at same
  time
• Generate new plan using statistics collected
• Pause receiving stream
• Migrate to new plan
• Resume receiving stream

Query Optimizer
New Query plan
Plan Migrator
14
Executing a Raindrop Plan
15
Key Ideas

• Minimum Memory requirements
• Discard data early
• Output data early

16
In-Time Structural Join
StructuralJoin a
Select eFrench
Select non-empty(b)
Extract a
Extract b
Extract e
TokenNav a, /privacy-gtb
TokenNav a,/desc/emph-gte
TokenNav s, /auctions/auction-gta
17
Better than In-Time Structural Join
StructuralJoin r
Extract b
Extract a
a
TokenNav r, /a-gta
b
TokenNav r, /b-gtb
a tokens need not be stored
TokenNav s, /root-gtr
18
Evaluating Predicates
StructuralJoin r
Extract b
Select avalue
a
Extract a
b
TokenNav r, /b-gtb
TokenNav r, /a-gta
Once avalue is satisfied, b tokens need not
be stored
TokenNav s, /root-gtr
19
Using schema knowledge
root -gt (a, b)
StructuralJoin a
Extract b
Extract a
a
TokenNav r, /a-gta
b
TokenNav r, /b-gtb
a, b tokens need not be stored
TokenNav s, /root-gtr
20
Using Schema Knowledge for Predicates
root -gt (b, a, c)
StructuralJoin r
Extract b
Select avalue
a
Extract a
b
TokenNav r, /b-gtb
TokenNav r, /a-gta
Once c is seen and avalue is not yet
satisfied, b tokens can be discarded
TokenNav s, /root-gtr
21
Conclusions

• Raindrop integrates automaton and DOM
  navigation into one algebraic framework.
• Cost-based optimization possible.
• Execution minimizes memory requirements.

22
Ongoing Work

• Load shedding in XML stream processing.
• Utilizing Dynamic schema changes for optimization.

23
Fragment of XQuery supported

• FLWR expressions (no conditionals/user defined
  functions)
• Path expressions use only forward axes (child,
  descendant, descendant or self, attribute)
• Predicates supported are of the form pathExpr
  relOp constant

24
Issues with correlated queries

• for r in /root
• return
• ltrootgt
• for a in r/a
• return
• ltagtr/blt/agt
• lt/rootgt

25

• Visit our XQuery engine over XML stream
  project (RAINDROP) website
• http//davis.wpi.edu/dsrg/raindrop/
