Title: Optical testbed

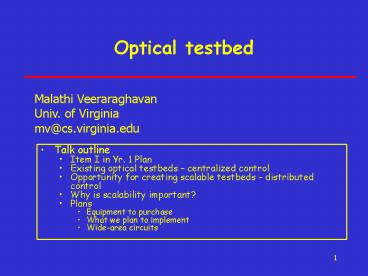

1
Optical testbed
Malathi Veeraraghavan Univ. of
Virginia mv_at_cs.virginia.edu
  • Talk outline
  • Item I in Yr. 1 Plan
  • Existing optical testbeds centralized control
  • Opportunity for creating scalable testbeds
    distributed control
  • Why is scalability important?
  • Plans
  • Equipment to purchase
  • What we plan to implement
  • Wide-area circuits

2
Item I in Year 1 Plan
  • Set up a Gigabit Ethernet/Ethernet over SONET
    CHEETAH testbed, develop software to demonstrate
    dynamic circuit setup and release.
  • What equipment should we purchase to first create
    this testbed?
  • What software should we develop?

CHEETAH Circuit-switched High-speed End-to-End
ArcHitecture
3
Any existing optical testbeds?
  • Research optical testbeds
  • Canarie - Canada
  • Starlight Illinois
  • SURFnet Netherlands
  • UKLight UK

4
Canarie optical testbed
5
Canaries optical testbed
Bill St. Arnaud
  • What are the network switches?
  • Answer Cisco 15454 MSPPs
  • Goal popularize user-controlled lightpaths
    (UCLP)
  • Lightpath GbE signal - Ethernet-over-SONET (EoS)
    - GbE signal
  • Experiments supported
  • CRC/U. of Ottawa
  • U. of Quebec and Montreal (UQAM)
  • Carleton Univ.
  • U. of Waterloo

6
Multi-Service Provisioning Platform (MSPP), e.g.
Ciscos 15454
  • Functionality
  • Cross-connect Ethernet signal to equivalent SONET
    signal
  • Deployed in enterprises today multi-service -
    telephony and data

7
Canaries optical testbed
  • What are the network switches?
  • Answer Cisco 15454 MSPPs
  • Goal popularize user-controlled lightpaths
    (UCLP)
  • Lightpath GbE signal - Ethernet-over-SONET (EoS)
    - GbE signal
  • Experiments supported
  • CRC/U. of Ottawa
  • U. of Quebec and Montreal (UQAM)
  • Carleton Univ.
  • U. of Waterloo

8
Research efforts provisioning
  • Most of the Canarie-supported research efforts
    are focussed on provisioning
  • Difficult task many steps
  • Create external databases to manage routing
    information to reach a destination host, what is
    the set of switches to traverse?
  • Create external databases to manage inventory
    information
  • Inter-domain issues (multiple carriers) policy
    manager
  • Then set up circuit with TL1 commands
  • Lately, efforts at integrating provisioning
    efforts with GridFTP

9
UQAM Architecture
Figure 1 UPLA layer model Figure
2UPLA installation in multiple domains
environment
  • Inter-domain layer
  • End-to-end lightpath manipulation orchestrate
    the end-to-end lightpath searching and
    concatenating them.
  • Intra-domain layer
  • Single-domain lightpath creation and setting up.
  • Respecting the domains management in allocating
    lightpath.
  • Device layer
  • Network equipments
  • Equipment control module

Omar Cherkaoui
10
UPLA Signaling process
WSDL
WSDL
Telnet, SNMP
WSDL
WSDL
Omar Cherkaoui
11
UPLA Signaling time
  • Signaling time Number of domain x 2.400
    (second)
  • The causes of moderate signaling time
  • Webservices signaling
  • Communication is over Http
  • XML processing when parse message
  • Admission control processing and domain
    management verification
  • Resource seeking processing

Omar Cherkaoui
12
CRC/U. of Ottawa UCLP E2E Example
Vancouver
Ottawa
SCS
SCS
SCS
JavaSpace
JavaSpace
JavaSpace
LPOS
Jini SAP
Grid SAP
Michel Savoie
13
CRC/U. of Ottawa Sequence to create e2e
lighpath using webservices and Jini
  • User A accesses the Grid Service Access Point
    (GSAP) and is authenticated by a user name and
    password. The GSAP creates an instance of a User
    Functions (UF) module that uses the functions
    provided by an instance of the Jini SAP (JSAP)
    which was obtained earlier from the Jini Lookup
    Service in Federation A.
  • User A sends a request to set up an E2E
    connection between User A in Federation A and
    User C in Federation C. The User Functions (UF)
    module will call the ConnectionRequest method of
    the JSAP(A) and pass the connection information
    that was entered by the user.
  • The ConnectionRequest method of the JSAP(A) will
    then find the route and the LPOs required to get
    from Federation A to Federation C
  • Once finished, the JSAP(A) will have all the LPOs
    required to make the connection
  • The JSAP(A) will then download the Lightpath
    Object Service (LPOS) from the JLS(A) in
    Federation A and pass the information about LPOs
    and the proxies to the JavaSpaces they came from
    to the makeE2EConnection method

Michel Savoie
14
Sequence (contd)
  • The LPOS(A) will then lookup the proxy to the
    class implementing the Connection Services (CS)
    interface from the JLS(A)
  • The results of this lookup will be the proxy to
    the Switch Communication Service (SCS) in
    Federation A
  • The LPOS(A) will then lookup the proxy to the
    Jini Lookup Service (JLS) in Federation B from
    the JLS in Federation A
  • The result will be the proxy to JLS(B)
  • Using the JLS in Federation B, the LPOS(A) will
    use step 5 to get the SCS for Federation B
  • The LPOS(A) will then use the SCS(B) which will
    then talk TL1 to the physical switch to make the
    cross connect between LPO1 and LPO2 at the Switch
    in Federation B

Michel Savoie
15
Sequence (contd)
  • Once all the cross connects are established, a
    new LPO is created (LPO3 (A-C)) to reflect the
    concatenation between LPO1 and LPO2 which is then
    put into the JavaSpace at Federation A
  • The LPOS(A) will then call the SCS(A) to make the
    cross connect between User A and LPO3 at the
    Switch in Federation A
  • The LPOS(A) will then use step 6 to find the
    proxy to the JLS in Federation C and steps 5 and
    10 to make the cross connect between LPO3 and
    User C in Federation C

Michel Savoie
16
Starlight
  • Starlight and OMNInet optical vs. photonic
  • Photonic Interdomain Negotiator (PIN) signaling
    their own design
  • Domain routing database stored outside switches
  • Use TL1 commands to program switches Nortel,
    Glimmerglass, Calient and IMMI
  • Centralized approach

17
Problems recognizedby these efforts
  • Scalability
  • Using network management systems outside the
    network elements to manage
  • routing data
  • inventory data
  • takes significant effort Operations costs
  • Other problems
  • Interoperability of different vendors equipment
  • Hence a startup such as Elematics
  • Inter-carrier issues
  • My pet peeve
  • Call setup delays of in the order of seconds too
    high

18
Scalability charges
  • Levied against Optical/TDM networks
  • Widely recognized that the current GLIF
    optical/TDM networking model does not scale
    beyond a limited number of sites Internet 2 talk
    dated 10/15/2003
  • While such circuit-switched networks may not
    necessarily be suitable for deployment of the
    scale of the Internet, they are still viable
    candidates for specialized deployments for
    connecting a small number of DOE large-scale
    science nodes Report of DOE Workshop on Ultra
    High-Speed Transport Protocols and Dynamic
    Provisioning for Large-Scale Science
    Applications, April 10-11, 2003, Argonne, IL,
    dated Oct. 27, 2003.

GLIF Global Lambda Integration Facility
19
Problems recognizedby these efforts
  • Scalability
  • Using network management systems outside the
    network elements to manage
  • routing data
  • inventory data
  • takes significant effort Operations costs
  • Other problems
  • Interoperability of different vendors equipment
  • Hence a startup such as Elematics
  • Inter-carrier issues
  • My pet peeve
  • Call setup delays of in the order of seconds too
    high

20
Inventory problem
  • TL1 command to set up a crossconnect through a
    15454
  • Command
  • ENT-CRS ltSTS_PATHgtltTIDgtltFROMgt,ltTOgtltCTAGgtltC
    CTgt
  • Example
  • ENT-CRS-STS1BODEGASTS-5-1,STS-12-51162WAY
  • TID unique name for the system
  • From and To Access Identifiers to identify
    timeslots on interfaces
  • STS-1 on the card in Slot 5
  • STS-5 on the card in Slot 12
  • CTAG unique identifier used to match response
    with request
  • CCT Crossconnection type e.g., 1WAY or 2WAY

21
Signaling approach to connection setup
distributed
  • Call setup request carries destination IP address
    D bandwidth B incoming timeslot/l
  • Lookup routing data table (same function as in an
    IP router)
  • find outgoing interface O to reach destination D
  • Resource allocation
  • Allocate bandwidth B on interface O
  • Select outgoing timeslot/l
  • Program switch fabric
  • Map incoming timeslot/l to outgoing timeslot/l
  • Send call setup request to neighbor connected by
    interface O

22
Industry answer tosupport distributed signaling
approach
  • IETF GMPLS
  • Routing OSPF-TE
  • Routing built into network switches
  • Signaling RSVP-TE
  • Link Management Protocol (LMP)
  • Inventory data stored in network switches
  • Auto-discovery of neighbors
  • OIFs UNI-C, UNI-N, NNI
  • Addresses carriers inter-domain issues

23
Actually implemented!
  • Not just idle specifications
  • Implemented by many switch vendors
  • And interoperability-tested by an OIF-sponsored
    effort led by Univ. of New Hampshire
  • Demoed at OFC2003

24
Interoperability Participating Companies
  • Alcatel (UNI-C, UNI-N, E-NNI, NMS/EMS)
  • Avici (UNI-C)
  • Ciena (UNI-N, E-NNI)
  • Data Connection (UNI-C, UNI-N, E-NNI, NMS/EMS)
  • Elematics (UNI-N, E-NNI)
  • Mahi Networks (UNI-N, E-NNI, NMS/EMS)
  • NEC (UNI-C, UNI-N, E-NNI)
  • Motorola/Netplane (UNI-C, UNI-N, E-NNI, NMS/EMS)
  • Nortel (UNI-N, E-NNI)
  • Sycamore (UNI-N, E-NNI, NMS/EMS)
  • Tellabs (UNI-N, E-NNI, NMS/EMS)
  • Tellium (UNI-N, E-NNI, NMS/EMS)

25
UNI/NNI Signaling Display
26
From keynote at Opticomm, Dallas, Oct. 03
  • Rajiv Ramaswami, CTO , Optical Systems Group,
    Cisco, Keynote
  • UCP (Unified Control Plane) Benefits
  • Superfast Provisioning
  • Enables E2E circuit setup without SP intervention
    while reducing provisioning times
  • Enables future bandwidth on demand applications
    as policy billing standards mature
  • Enhanced Scalability
  • Network level Support for thousands of nodes,
    links and circuits per inter-connected network
  • Lightweight EMS Move from EMS based
    (centralized) provisioning to node level
    (distributed) provisioning using signaling

27
UCP Benefits contd.
  • Interoperable vendor implementations
  • Reduces EMS/NMS integration / interoperability
    issues
  • UCP/GMPLS A Driver for Evolution
  • Build Network as a Database
  • Simplify provisioning by driving intelligence
    (topology, circuit inventory and link
    characteristics) into the NEs with updates to EMS
    (CTC/CTM)
  • Enable migration from an NMS based network
    database to NEs based network database,
    retrievable on demand by NMS
  • Deliver Advanced Benefits
  • New services features (Ethernet,OVPN Storage)
    not possible today
  • Reduce costs, increase revenues, address scale of
    growing networks
  • Enable multi network/vendor/SP interoperability

28
Revisit problems identifiedby Canarie and other
groups with centralized solution
  • Scalability
  • Using network management systems outside the
    network elements to manage
  • routing data
  • inventory data
  • takes significant effort Operations costs
  • Other problems
  • Interoperability of different vendors equipment
  • Inter-carrier issues
  • My pet peeve
  • Call setup delays in the order of seconds too high

Seems like GMPLS/UCP solves ALL these problems!
Maybe we have found the Silver Bullet!
29
Open questions with distributed approach
  • SONET XCs typically sold in large-size
    configurations to carriers
  • Hard to get the attention of vendors for
    purchases of ones and twos
  • Expensive
  • What is the call setup delay?
  • in the order of ms?

30
Outline
  • Item I in Yr. 1 Plan
  • Existing optical testbeds centralized control
  • Opportunity for creating scalable testbeds
    distributed control
  • Why is scalability important?
  • Plans
  • Equipment to purchase
  • What we plan to implement
  • Wide-area circuits

31
Why is scalability so important?
  • Research testbeds such as ESnet, CAnet 4 may not
    see scalability as an important goal
  • Reason if main application is to transfer very
    large files and support other eScience apps such
    as visualization, deployments will be small-scale

32
Why is scalability important?
  • Beyond the obvious reason of growth
  • Interaction between traffic load, utilization,
    costs and file sizes
  • The higher the traffic load, the higher the
    utilization
  • Higher the utilization, lower the costs
  • The smaller the sizes of files transferred on
    circuits, the higher the load

33
Aggregate utilization in a circuit-switched
network
rho/m lt1 rho/m ua Pb 0 ua rho/m (M/M/m/inf
case) Pb0
24.8 58.2 84.6
34
should we give high-BW circuits or low-BW
circuits from util point of view?
  • Per-circuit BW is high, m is small
  • Rimax 10Gbps m 1
  • to get high util. in this setting,
  • because rimax is high, service time is low, mu is
    high
  • to get rho lamba/mmu to approach 1, lambda has
    to be high. Crossover file size should be low

35
  • Per-circuit BW is low, m is high
  • Rimax 100Mbps m 100
  • to get high util. in this setting,
  • because rimax is lower, service time is higher,
    mu is smaller
  • to get rho lambda/mmu to approach 1, lambda
    has to be same. Crossover file size has to be same

36
effect of m
  • this means if m is small, one can run at high
    util. by increasing rho so that rho/m is close to
    1. But then Pb will be high. My guess is Pb
    increases with rho faster at low m than at high
    m.
  • Compare with M/M/1/k where a packet loss is
    comparable to call blocking

37
effect of crossover file size
  • the smaller this is the more it allows to build
    switches with fewer interfaces. This is the
    advantage of h/w sig. it is not being able to
    increase load. whatever the reqd. load to achieve
    high util. based on the crossover file size we
    can adjust the no. of interfaces aggregating to a
    link

38
File sizes
  • Use of e2e circuits for file transfers typically
    limited to large files
  • What is the drawback of using e2e circuits for
    small files?
  • e.g., in a path with a 50ms r.t. propagation
    delay, if we transfer a 100KB file over a 100Mbps
    path, transfer time is only 8ms. Circuit
    utilization is 8/(508) 13.7
  • Two opposing factors
  • If the crossover file size (beyond which circuit
    setup is attempted) is increased
  • per-circuit utilization increases
  • traffic load decreases (Pareto distribution of
    file sizes), which means aggregate utilization
    decreases

39
Pareto density function
40
Impact of data rate increase
  • As data rates increase, the crossover file size
    will increase
  • propagation delays stay unchanged
  • Therefore to achieve high utilization on the CS
    network
  • decrease signaling message processing delays
  • engineer large-scale networks

41
Plot of utilization u withrc 100Mbps, k20
For 50ms paths, set a crossover file size
When load is low, operate at a high blocking rate
Pb0.3
Pb0.01
42
Summary
  • Background on optical testbed creation
  • Circuit-switched networks
  • Networking a.k.a. resource sharing ? dynamic
    circuit setup/release
  • Centralized management approach or distributed
    signaling approach
  • Deployment of testbed in wide-area will be
    addressed in afternoon talk

43
Why routing decision module
  • Next few slides explain the need for this module

44
CHEETAH concept Leverage presence of Internet
path
  • Use Internet path for initial short message
    exchanges prior to actual data transfer
  • e.g., URL from client to server or get file
    request
  • Run circuit-switched network in call blocking
    mode
  • If call is blocked, fall back to Internet path
  • Engineer network for high utilization at the cost
    of blocking
  • Use Internet path for reverse direction error
    control and flow control messages and some
    retransmissions

45
Should the app. attempt a circuit setup or not?
  • Mean delay if a circuit setup is attempted

Pb call blocking probability in the
circuit-switched network
If circuit setup fails, fall back to Internet path
46
Routing decision
47
Numerical resultslink rate 1Gbps
Tprop 0.1ms
Tprop 50ms
48
Crossover file sizes
When Tprop 50ms, always attempt a circuit
49
Additional background
  • What is a circuit switch
  • SONET hierarchy
  • GFP and VC

50
Circuit switching
Unfolded view of switch
TDM or WDM multiplexers
TDM or WDM demultiplexers
  • Circuit switch Position based switching

Packet switch Header based switching
51
SONET hierarchy
  • OC1 51Mbps
  • OC3 155Mbps
  • OC12 622Mbps
  • OC48 2.5Gbps
  • OC192 10Gbps

52
Multi-Service Provisioning Platform (MSPP)
PC
  • MSPP as a circuit switch
  • Space on one side (Ethernet)
  • Space and Time on the WAN side
  • PLUS Physical layer modification from Ethernet
    PHY to SONET PHY
  • Virtual concatenation 100Mbps Ethernet mapped to
    2OC1 instead of to an OC3
Write a Comment
User Comments (0)
About PowerShow.com
