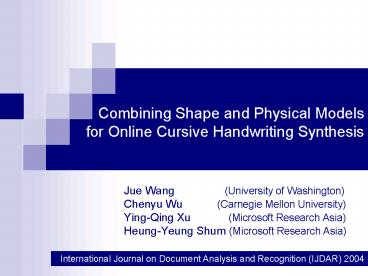

Combining Shape and Physical Models for Online Cursive Handwriting Synthesis

1
Combining Shape and Physical Models for Online
Cursive Handwriting Synthesis

• Jue Wang (University of
  Washington)Chenyu Wu (Carnegie Mellon
  University)Ying-Qing Xu (Microsoft
  Research Asia)Heung-Yeung Shum (Microsoft
  Research Asia)

International Journal on Document Analysis and
Recognition (IJDAR) 2004
2
Introduction

• Handwriting computing techniques (pen-based
  devices)
• Handwriting recognition
• make it possible for computers to understand the
  information involved in handwriting
• Handwriting modulation
• handwriting editing, error correction, script
  searching

3
Introduction

• Handwriting Modeling Synthesis
• Movement-simulation techniques
• base on motor models and try to model the process
  of handwriting production
• focus on the representation and analysis of real
  handwriting signals rather than handwriting
  synthesis

4
Introduction

• Shape-simulation methods
• consider the static shape of handwriting
  trajectory
• more practical than movement-simulation tech
  when dynamic information is not available
• straight forward approach synthesize form
  collected handwritten glyphs
• learning-based cursive handwriting synthesis
  approach

5
Introduction

• Successful handwriting synthesis algorithm
• shapes of letters vs. training samples
• connection between synthesized letters
• A novel cursive handwriting synthesis tech
• Combine the advantages of the shape-simulation
  and the movement-simulation methods

6
Outline

• Sample collection and segmentation
• Learning strategies
• Synthesis Strategies
• Experimental results
• Discussion and Conclusion

7
Sample Collection

• About 200 words
• Each letter has appeared more than 5 times
• These handwriting samples firstly pass through a
  low pass filter and then be re-sampled to
  produce equidistant points

8
Sample Segmentation

• Overview
• Segmentation-based recognition method
• Recognition-based segmentation
• (rely heavily on the performance of the
  recognition engine)
• Level-building
• simultaneously outputs the recognition and
  segmentation results
• segmentation and recognition are merged to give
  an optimal result

9
A Two-level Framework

• Framework of traditional handwriting segmentation
  approaches
• Temporal handwriting sequence
• is a low level feature that denotes the
  coordinate and velocity of the sequence at time t

10
Segmentation

• The segmentation problem is to find the identity
  string I1,,In, with the corresponding segments
  of the sequence S1,,Sn, S1 z1,,zt1,,
  Snztn-1,, zT,that best explain the sequence

11
Segmentation

• For the training of the writer-independent
  segmentation system
• low-level feature-based segmentation algorithm
  works well for a small number of writers
• A script code is calculated from handwriting data
  as the middle-level feature

12
Middle Level Feature

• Five kinds of key points are extracted
• points of maximum/minimum x-coordinate (X,X-)
• points of maximum/minimum y-coordinate (Y,Y-)
• crossing points ( )
• Average direction of the interval sequence
  between two adjacent key points

13
Script Codes Examples
14
Middle Level Feature

• Samples of each character are divided into
  several clusters
• those in the same cluster have a similar
  structural topology
• Since the length of script code might not be the
  same in all cases ? cant directly compute the
  similarity
• The script code is modeled as a homogeneous
  Markov chain

15
Middle Level Feature

• Given two script codes T1, T2
• We may compute the stationary distributions ,
  and transition matrix A1, A2
• The similarity between two script codes is
  measured as

16
Middle Level Feature

• The position of , , A1, A2 are enforced
  symmetrically
• balance the variance of the KL
  divergence and the difference in code length
• If both the stationary distribution and the
  transition matrix of two script codes are matched
  well, and their code lengths are almost the same
  ? d(T1, T2) is close to 1

17
Segmentation

• After introducing the script code as middle-level
  features, the optimization problem becomes
• improve the accuracy of segmentation
• dramatically reduce the computational complexity
  of level-building

18
Graph Model
19
Result
20
Outline

• Sample collection and segmentation
• Learning strategies
• Synthesis Strategies
• Experimental results
• Discussion and Conclusion

21
Learning Strategies

• Data alignment
• Trajectory matching
• Training set alignment
• Shape models

22
Trajectory Matching

• Segmentation and reconstruction of on-line
  handwritten scripts (1998, Pattern Recognition)

Each piece is simple arc, points can be
equidistantly sampled from it to represent the
stroke
23
Trajectory Matching

• Landmark-point-extraction method
• pen-down, pen-up points
• local extrema of curvature
• inflection points of curvature
• A handwriting sample can be divided into as many
  as six pieces
• The same character are mostly composed of the
  same number of pieces and they match each other
  naturally

24
Trajectory Matching

• A handwriting sample can be represented by a
  point vector
• s number of static pieces segmented from the
  sample
• ni number of points extracted from the i th piece

25
Trajectory Matching

• The following is to align different vector into a
  common coordinate frame
• estimate an affine transform for each samplethat
  transforms the sample into the coordinate frame
• Affine transformations translation, rotation,
  scaling

26
Training Set Alignment

• Iterative algorithm(Learning from one example
  through shared densities on transforms (IEEE CVPR
  2000) )
• Deformable energy based criterion is defined as

27
Training Set Alignment - Algorithm

• Maintain an affine transform matrix Ui for each
  sample, which is set to identity initially
• Compute the deformable energy-based criterion E
• Repeat until convergence
• For each one of the six unit affine matrixes14,
  Aj, j 1,,6
• Let
• Apply to the sample and recalculate the
  criterion E
• If E has been reduced, accept ,
  otherwise
• Let and apply
  again,If E has been reduce, accept ,
  otherwise revert to Ui
• End

28
Shape Models

• By modeling the distribution of aligned vectors,
  new examples can be generated that are similar to
  those in the training set
• Like the Active Shape Model, principal component
  analysis is applied to the data
  (PCA)(Statistical models of appearance for
  computer vision, Draft report, 2000)

29
Shape Model

• Formally, the covariance of the data is
  calculated as
• Then the eigenvectors and corresponding
  eigenvalues of S are computed and sorted so
  that
• The training set is approximated by
• represent the
  t eigenvectors corresponding to the largest
  eigenvalues
• b is a vt-dimensional vector given by
• By varying the elements in b, new handwriting
  trajectory can be generated from this model
• apply limits of to the elements bi

30
Outline

• Sample collection and segmentation
• Learning strategies
• Synthesis Strategies
• Experimental results
• Discussion and Conclusion

31
Synthesis Strategies

• Generate each individual letter in the word
• Then the baselines of these letters are aligned
  and juxtaposed in a sequence
• Concatenate letters with their neighbors to form
  a cursive handwriting
• ?cant be easily achieved
• To solve this problem, a delta log-normal model
  based conditional sampling algorithm is proposed

32
Individual Letter Synthesis
33
Delta Log-normal Model

• A powerful tool in analyzing rapid human
  movements
• With respect to handwriting generation, the
  movement of a simple stroke is controlled by
  velocity
• The magnitude of the velocity is described
  as(Why handwriting segmentation can be
  misleading?, 13th international conference on PR,
  1996)

log-normal function (on a logarithmic scale axis)
34
Delta Log-normal Model

• The angular velocity can be expressed as
• The angular velocity is calculated as the
  derivative of
• Give , the curvature along a stroke piece
  is calculated as
• The static shape of the piece is an arc,
  characterized by

initial directionc0 constant
(arc length)
35
Delta Log-normal Model-Example
Why Handwriting Segmentation Can Be Misleading,
1996 IEEE ICPR
36
Conditional Sampling

• First, the trajectories of synthesized
  handwriting letters are decomposed into static
  pieces
• The first piece of a trajectory is called head
  piece, and the last piece is called the tail
  piece
• In the concatenation process, the trajectories of
  letters will be deformed to produce a natural
  cursive handwriting,by changing the parameters
  of the head and the tail pieces from

37
Conditional Sampling

• A deformation energy of a stroke is defined as
• A concatenation energy between the i th letter
  and the (i1) th letter is defined as
• By minimizing the second and the third items, the
  two letters are forced to connect with each other
  smoothly and naturally

38
Conditional Sampling

• The concatenation energy of a whole word is
  calculated as
• We must ensure that the deformed letters are
  consistent with models
• The sampling energy is calculated as
• The whole energy formulation is finally given as

39
Synthesis-Iterative Approach

• Randomly generate a vector b(i) for each letter
  initially
• Generate trajectories Si of letters and calculate
  an affine transform Ti for each letter (transform
  it to its desired position)
• For each pair of adjacent letters Si, Si1,
  deform the pieces in these letters to minimize
  the concatenation energy Ec(i, i1)
• Project the deformed shape into the model
  coordinate frame
• Update the model parameters
• If not converged return to step 2

40
Experimental Results
41
Discussion Conclusion

• Performance is limited by samples used for
  training since the shape models can only generate
  novel shapes within the variation of training
  samples
• Although some experimental results are shown, it
  is still not known how to make an objective
  evaluation on the synthesized scripts and compare
  different synthesis approaches

42
Markov chains

• Markov chain on a space X with transitions T is a
  random process (infinite sequence of random
  variables) (x(0), x(1),x(t),) that satisfy
• That is, the probability of being in a particular
  state at time t given the state history depends
  only on the state at time t-1
• If the transition probabilities are fixed for all
  t, the chain is considered homogeneous

43
Stationary distribution

• Consider the Markov chain given above
• The stationary distribution is
