Title: RULES FOR NEWBUILDINGS Are they good enough


1

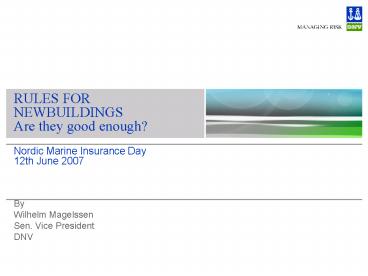

RULES FOR NEWBUILDINGSAre they good enough?
  • Nordic Marine Insurance Day
  • 12th June 2007

By Wilhelm Magelssen Sen. Vice President DNV
2
Sea transportation - mid 19th century.
  • Insurance premiums were high, even up to 20
  • And losses were accordingly high
  • The phrase safety had a totally different
    meaning

3
Development of Classification Rules
Knowledge
?
Risk Based
Computational
Analytical
Empirical
Tabular
1864
1900
1953
1965
1990
Time
2005
4
Bad Weather?
Or only fast driving?
5
Bad weather?
6
Heavy Sea from Port Side
7
Now it starts to be heavy Weather
8
What about this situation?
9
Or this situation?
10
Or this?
11
Class Rules vs. International Legislation
International Legislation covers aspects related
to Safety, Health and Environment
Accommodation Life saving Navigation Fire Load
Line, Stability Radio Communication Dangerous
goods Security Pollution Prevention Technical
safety (Class certificate) Manning ...
Traditional Classification coverage
12
History - Disasters trigger new Rules
Titanic (1912) Torrey Canyon (1967) Amoco Cadiz
(1978) Herald of Free Enterprise (1987) Exxon
Valdez (1989) Scandinavian Star (1990) Bulk
Carriers lost early 1990 Estonia (1994) Erika
(1999) Prestige (2002)
SOLAS (1929) MARPOL (1973) / STCW (1978) SOLAS /
MARPOL 1978 Protocols ISM / SOLAS Ch. II-1 /
FSA OPA 90 / MARPOL SOLAS Ch. II-2 SOLAS Ch. XII
(1997) SOLAS Ch. II-1/Reg. 3-2 Coating of
ballast tanks (1998) SOLAS Ch. II-1 (1995) Erika
Pack I/II -gt EMSA SOLAS Ch. II-1 (2006) SOLAS Ch.
II-1/Reg. 3-2 Stricter requirements to
coating of ballast tanks (2008, 2006 for CSR)
13
Focus is mainly on Tank and Bulk
  • Tank - for reasons of environmental protection
    Keeping the oil inside
  • the hull (Mainly EU driven)
  • Bulk -for reasons of Safety Keeping the sea
    water outside the hull (Mainly IMO driven)

14
RULE ASSUMPTION
  • It is assumed that the ship,machinery
    installations and equipment are to be maintained
    at a standard complying with the requirements of
    the Rules
  • It is assumed that the ship,machinery
    installations and equipment are to be adeqately
    manned and competently handled

15
DNV Classification of Ships
Fail safe Redundancy
Validate Certificates
DESIGN PHILOSOPHY
Construction Survey Class Certificate
Design Approval
IN-SERVICE SURVEY
Concept safety evaluation
BUILDING INSPECTION
TECHNICAL ANALYSIS
Rules, Regulations and Instructions
RISK ANALYSIS
THREATS FROM ENVIRONMENT ACCIDENTAL LOADS ETC.
16
Structural Damage and Deterioration
  • In General caused by
  • Excessive corrosion
  • Design faults
  • Bad workmanship
  • Fatigue
  • Contact, wear and tear
  • Navigation in extreme weather conditions

17
Hull inspection - where and what to look for
100 SURVEY OF A VLCC WOULD REQUIRE
  • Height to climb 11 km
  • Area to survey 300 000 m2
  • Length of weld 1 200 km
  • Length of longitudinals 58 km
  • Bottom area 10 700 m2
  • 1,0 pitting 85 000 pits

18
Summary of CSRs
Publish 15 Jan 2006
30 Sep 2005
Jun 2004
1 Jan 2005
Apr 2005
1 Apr 2006
1 Jan 2006
1st Draft available to Public
2nd Draft available to Public
Industry comments 6 months
Industry comments 5 months
CSR Effective
CSR Adopted
19
(No Transcript)
20
(No Transcript)
21

Feature Net Scantling Approach
22
Feature Hull girder ultimate strength
  • Harmonised design criteria
  • JBP ultimate capacity method is included in the
    JTP Rules

23
Harmonization and Maintenance
24
Short-term harmonization
  • Short-term harmonization issues identified as
    barriers to adoption have been concluded.
  • Corrosion additions
  • Rounding
  • Wave loads (quartering sea, H.G. shear)
  • Hull Girder Ultimate Strength
  • Buckling (prescriptive buckling)
  • Finite element analysis (two methods in JBP)

25
Long-term harmonization
  • Full harmonization required for
  • Wave loads
  • Fatigue
  • Finite element analysis
  • Buckling
  • Prescriptive requirements

26
CSR Tankers Table of Contents
27
CSR Tankers
28
CSR Tankers
  • Major builder comments which have been
    accommodated
  • a) General scantling increase - Feedback received
    that the general scantling increase needs
    justification and is not supported by damage
    records
  • Rule change Criteria reviewed and some of the
    allowable stresses for plate and stiffener
    requirements have been increased by 5-7.
  • b) Large localised increases from FE buckling -
    2nd draft JTP Rules require some areas where net
    scantlings are significantly above the as-built
    scantlings of present fleet. Typically buckling
    assessment for FE is the cause for the increase.
  • Rule change FE procedure revised to take into
    account combined probability of cargo density,
    loading pattern and dynamic load level by
    introducing a correction factor applied on the
    cargo pressure for the extreme dynamic load
    combination.

29
CSR Tankers
  • Major owner comments which have been
    accommodated
  • c) Corrosion margins- corrosion margins are too
    small for a design life of 25 years and will lead
    to a significant amount of steel replacement.
  • Rule change upward adjustments made to the
    average and local (pitting, edge and groove)
    corrosion. IACS members agreed to review closely
    whether it is a need and possibility to update
    the margins taking into account all industry
    feedback and service records.
  • d) Coating performance standard - lack of a
    minimum performance standard for coating leads to
    large variation in application and actual coating
    life. The coating of some ships is so poor that
    compete renewal by sandblasting and re-coating is
    needed after few years.
  • Rule change IACS agreed to include a
    requirement for a minimum performance standard in
    the common structural Rules.
  • e) Grinding - allowance for grinding as a measure
    for increasing the fatigue life was questioned.
  • Rule change Rules modified to be more specific
    on where credit may be given for grinding.
    Details on what is required in terms of the
    actual grinding.

30
CSR Tankers
  • Major builder comments which have NOT been
    accommodated
  • a) Fatigue - fatigue design standard of 25 year
    operation in North Atlantic wave environment is
    too severe taking into account the typical
    operation of the majority of tankers. The
    criteria in principle disallows designs with
    material of HT36 in deck.
  • Reply As the 25 NA design standard is given in
    the draft IMO Goal Based Standard the project has
    decided not to make any amendments to the fatigue
    target.
  • b) Hull girder ultimate strength - hull girder
    ULS requirement in the second draft is too severe
    and some existing vessels will not pass even in
    the as-built condition. Use of material of HT36
    is needed for compliance but contradicts the
    fatigue criteria.
  • Reply Studies performed during the Rule
    development do not show the same problem.
    Further investigations are being done on the hull
    girder ULS criteria to see if further adjustment
    of the load combination factors are needed.
  • c) IACS recommendation 47 Shipbuilding and Repair
    Quality Standard - IACS recommendation is not up
    to date and may cause conflicts with commonly
    used national standards.
  • Reply The comment has been forwarded to IACS
    Survey Panel. The Rules have been updated to make
    it clear that acceptable national standards are
    allowed. Rec. 47 is used as common reference
    document for strength assessment (imperfections).

31
CSR Tankers
  • Major builder comments which have NOT been
    accommodated
  • d) Delete primary support member prescriptive
    rules prescriptive requirements for PSM are not
    needed since the members are checked with FEM.
  • Reply PMS requirements have been retained to
    have a consistent application of requirements, a
    solid baseline minimum strength level, and to
    catch limitations in the FE analysis such as
    limited quantity of loading cases/conditions and
    assumptions for boundary conditions. To account
    for differences between the two methods, the
    Rules to permit scantlings that are reduced to
    85 of the prescriptive requirements.

32
CSR Tankers
  • Major owner comments which have NOT been
    accommodated
  • e) Rolling tolerances - The under tolerances are
    eating into the wastage allowance and should not
    be accepted. UGS also commented on lack of
    specified procedures/locations for performing
    thickness measurements.
  • Reply Question/issue is being forwarded to IACS
    council for review and action.
  • f) Approval of national fabrication standards -
    UGS raised concern about approval of national
    fabrication standards on a class by class basis
    without common procedures for the approval of
    such
  • Reply The IACS members agreed to forward the
    request to IACS GPG for review and action.
  • g) Corrosion Margins some owners wanted
    extremely large corrosion margins built in to the
    CSRs which are even larger than in todays rules.
  • Reply The statistical analysis performed by
    IACS did not support such large increases. While
    some increases to the corrosion margins were
    accommodated in the rules, the very large values
    were not.

33
Corrosion Margins Oil tankers
34
Connection longitudinals and transverse web frames
  • More robust web frames
  • More robust longitudinals
  • Improved end connection areas

35
Inner and outer bottom longs
  • Improved bottom longitudinals
  • Improved inner bottom longitudinals
  • Brackets at transverse bhds.

36
(No Transcript)
37
Hopper web plates
  • Possible
  • Increase web thickness
  • Re-arranged stiffening

38
Bracket toes and heels of stringers and webframes
  • Flange terminations
  • Nice tapering and not too steep angle
  • Stringer toe most critical
  • Stringer heel
  • Normally require back brackets

39
Hopper Knuckles
  • Change in local design
  • Welding details and size
  • Increase of plating thickness

40
Transverse bulkhead inner bottom connections
Buttress toe connection to inner bottom
Transverse bulkhead stiffener toe connections to
inner bottom
41
Transverse bulkhead stiffener toe connection to
main deck longitudinals
  • Soft toe type
  • Limit in allowable hull girder stress - i.e. AH36
    not fully utilized due to fatigue life.

42
Tripping brackets
Tripping bracket connections to trv. bhd.
vertical stiffeners and curved large flanges
43
Bilge Keels
Continuous ground bar
44
Side longitudinals in the fore peak
Assessment for fatigue aft of the collision
bulkhead, but forward of bulkhead is not covered.
45
Webs of primary support members in the fore peak
area
  • Higher loads give stricter requirements
  • Web frames -thickness
  • Breast hooks

46
(No Transcript)
47
CSR Bulk Carriers
48
Main types of bulkcarriers
49
Statistics
50
Statistics
  • Cracks and fractures may be caused by corrosion

51
Typical structural damages in cargo area
Cross deck
Topside tank
Side
Transverse bulkhead
Double bottom and hopper tank
52
CSR Bulk Carriers Table of Contents
53
CSR Bulk Carriers
  • 1st hearing (Jun Dec 2004)
  • About 3000 comments received during hearing
    period
  • 160 from DNV 75 lead to text modifications
  • 17 major modifications in the Rules and
    re-writing of Chapters 7(Direct Strength
    Analysis), 8 (Fatigue), 11 (Construction) and 12
    (Ships in Service)
  • Modifications issued in 2nd Draft
  • 2nd hearing (Apr Sep 2005)
  • About 1000 comments received during hearing
    period
  • 155 from DNV 75 lead to text modifications
  • 16 major modifications in the Rules
  • Modifications issued in Final Draft
  • Steel weight impact was about 3 to 4 addition
    for 1st Draft, and is 4 to 6 for final draft
    (compared to present designs compliant with UR
    S25)

54
Major modifications of bulk carriers rules after
the first draft
  • Larger uniform corrosion wastage allowances for
    transverse bulkheads, side shell in line with
    95 probability of non-exceedance (instead of
    90)
  • Thickness rounding procedure is modified, due to
    harmonisation between JTP and JBP
  • Harmonisation of ships in service requirements
    between JTP and JBP
  • Rewritten FEM procedure Finite element models
    are now only three holds models, with modified
    boundary conditions to provide same results
    between direct and superposition methods
  • Reduction of the number of loading cases to be
    considered in Direct strength analysis
  • Compliance with new SOLAS requirements for
    flooding of DSS bulk carriers
  • Quartering sea loading for cross-deck structure,
    further to harmonisation between JTP and JBP
  • Mandatory GRAB notation for grab loading and
    steel coil requirements

55
CSR Bulk Carriers
Major Industry comments which have been accepted
(page 1)
  • Mandatory grab notation In order to protect the
    inner bottom against cargo damages, grab notation
    has been made mandatory (Ship owners comment)
  • Increase in values of corrosion additions
    Wastage allowances have been increased by 1 mm to
    2 mm compared to first draft. Higher increases
    concern heated HFO tanks, transverse bulkheads
    and Side shell wind water strake (Ship owners
    comment)
  • Modifications of prescriptive requirements in Ch
    3 Sec 6 Ch 9 Sec 1 2 Continuity of strength
    within primary members (from cargo area to engine
    room and fore/aft parts) has been put to the top
    level and the text modified to avoid vague
    expressions (UGS comment). Prescriptive
    requirements concerning spacing of primary
    members have been modified to suit successful
    recent designs (Shipyards comments)
  • Prescriptive requirements for bulkheads -
    Prescriptive requirements for transverse
    bulkheads in way of ballast holds of ships
    smaller than 150 m in length have been added
    (Ship owners comments)
  • Number of loading conditions for Direct Strength
    Analyses the number of cases to be computed has
    been divided by a factor 2 to consider only the
    cases having practical influence on the design
    (Shipyards comments)
  • Buckling procedure the buckling requirements
    have been rewritten to be more explicit and easy
    to apply ( Shipyards comments)

56
CSR Bulk Carriers
Major Industry comments which have been accepted
(page 2)
  • g) Relative deflection criteria Relative
    deflection criteria between the double bottom and
    the transverse bulkheads has been added to cope
    with UGS concerns about flexible D/B structure
    (Ship owners comment)
  • h) Permissible misalignments Values of IACS
    Rec. 47 for permissible misalignments of some
    important structural details have been included
    in the rules as minimum requirements (Ship
    owners comment)
  • i) Minimum thickness Minimum thickness of
    weather deck has been found too conservative and
    aligned on Oil Tankers CSR and inner side of DSS
    bulk carriers has been reduced to be not greater
    than side shell (Shipyards comments)
  • j) Requirements for pillars - Prescriptive
    requirements for pillars have been added and
    fillet weld accepted in compression only
    (Shipyards comments)
  • k) Deep penetration welding The number of
    details where deep penetration welding is
    requested has been increased (Class comments)
  • Scantling pressure for hatch covers in ballast
    holds the pressure has been reduced to take
    into account ullage effect ( Manufacturers
    comments)
  • Prescriptive coating performance standard Lack
    of requirements in this case may lead to poor
    standards applied in practice (Shipowners
    comment)

57
CSR Bulk Carriers
Major Industry comments which have NOT been
accepted
  • Provide mandatory prescriptive requirements for
    the spacing/scantlings of all primary members
    Direct strength analysis ( stresses buckling
    deflections) is fundamentally trusted for
    scantlings of primary members in line with modern
    practices (Ship owners comment)
  • Request complete ship extent FEM model - results
    of 3 holds models in the cargo area may be
    extrapolated to fore/aft regions (Ship owners
    comments)
  • Increases of corrosion allowances not connected
    to IACS statistics partially accepted for areas
    where some damages could be omitted from the
    statistics (voluntary grounding, contact damages
    on side shell) but not in general, as corrosion
    allowances are based on IACS statistics ( Ship
    owners comments)
  • Reduce mini thickness of longitudinals
    reducing mini thickness of longitudinals to fit
    present practices was refused due to increase of
    corrosion allowances (Shipyards comments)
  • FEM analyses and fatigue procedure lead to
    unreasonable increases of scantlings These
    increases are justified by excessive spacing of
    primary members. FEM analysis is effective to
    detect this problem. Fatigue results are backed
    by real damage cases (Shipyards comments)

58
Modifications between the third and final drafts
  • Corrosion allowance change limit length is
    returned back to 150 m
  • IACS statistics show a difference of corrosion
    between Handymax and Handysize on one side,
    Panamax and Capesize of the other side. The limit
    is 50, 000 dwt, corresponding approximately to
    190 m in length
  • While the limit of 190 m is technically
    justified, an additional wastage margin was
    provided in 1st and 2nd drafts, that is better to
    keep
  • CSR notation is introduced for vessels complying
    with new Rules
  • This will allow easy identification of ships
    built according to the new Common Structural
    Rules for Oil Tankers and Bulk Carriers

59
Corrosion Margins Bulk Carriers
60
Side frames and longitudinals
Critical areas covered by CSR
Increased safety factor for single side shell
according to Solas XII
Longitudinals in way of the hopper tank at shell,
are most exposed to fatigue cracks. CSR require
25 years operational life in North Atlantic.
61
Side frames tohopper tanks
Fatigue check of main frame connection to hopper
sloping plating
Improved steel grade for bracket
62
Inner bottom, stool and hopper plate.
Fatigue check of inner bottom plating connection
with lower stool and hopper sloping plating
63
Transverse bulkhead and lower stool
Fatigue check of lower stool and corrugated
bulkhead connection
Mandatory strengthening for grab loading
64
IACS UR S21 (Rev. 4) for Hatch Covers and Hatch
Coamings
65
SOLAS Reg.II-1/3-2 - Protective Coatings
  • Motivation
  • Coating considered to be a safety issue!
  • Valid for protective coatings in
  • dedicated seawater ballast tanks - all types of
    ships 500 GRT
  • double-side skin spaces of bulk carriers 150 m
    in length

66
SOLAS Reg.II-1/3-2 Protective Coatings
Implementation Enter into force dates
Draft PSPC (DE 49)
Adoption of PSPC and revisedSOLAS II-1/3-2
(MSC 82)
Approval of PSPC and SOLAS II-1/3-2 (MSC 81)
SOLAS XII/6.3 enters into force recommending PSPC
for Bulk Carriers
2 12
2 3 4 5 6 7 8 9 10
11 12
2
7 8
2 7 8
2
2007(Jan)
2006(Jan)
2008(Jan)
2009(Jan)
2012(Jan)
67
SOLAS reg.II-1/3-2 Now both Newbuilding (PSPC)
Maintenance
  • Newbuilding Coating according to PSPC
    (Performance Standard for Protective Coatings)
  • Maintenance of coating to be verified by
    Administration based on IMO Guidelines - to be
    developed.
  • IACS Rec. No. 87 may be used as basis for
    developing these Guidelines

68
IMO PSPC in brief
Target useful life of 15 years
  • Sa 2½, sharp edges removed, St 3 on erection
    joint
  • 2 x Main coat
  • epoxy based, DFT 320 ?m, light color
  • On top of shop primer
  • zinc based, compatible, intact and clean
  • 2 x Stripe coats
  • Basic surface preparation
  • Basic coating requirements
  • Coating system pre-qualified
  • Laboratory test or
  • Field exposure for min. 5 years GOOD
  • IMO minor spot rusting ref.A.744(18)
  • IACS PR 34
  • spot rusting lt 3 of area under consideration
    no visible failure of coating
  • rusting at edges or welds lt 20 of edges or
    welds in area under consideration
  • During blasting prior to applying coating
  • relative humidity 85
  • surface temperature 3C above dew point
  • Rust, grease, dust, salt, oil etc. removed
  • 50 mg/m2 of Sodium Chloride (NaCl)

69
IACS interpretation of PSPC for CSR
  • Items of importance in PSPC
  • Coating system approval (5)
  • Pre-qualification of coating systems
  • Inspection Agreement (3.2)
  • to be established, also required before PSPC
  • Coating Technical File (CTF) (3)
  • to be compiled
  • Coating inspection (6)
  • during coating preparation and application
  • Verification (7)

Whom is responsible?
? Coating Manufacturer
? Yard together with Owner/ Coating Manufacturer
? Yard
? Yard
? Class Society
DNV provides a new Class notation to document
compliance with the PSPC
  • Refers to the relevant section in the PSPC

70
Class involvement for CSR Vessels
  • By Whom in Class?
  • AE Approval Engineers
  • PM Project Managers
  • CE Coating Experts
  • Where?
  • RAC Responsible Approval Centre
  • SO Site Office
  • CHO Class Head Office
  • LO Local Office
  • Coating Specification only

71
Some consequences of the PSPC
  • Administrations/Class
  • Implement manage amended regulations
  • Prepare instructions guidelines? consistent
    and objective approach needed
  • Prepare new Class notations, as needed
  • Training of
  • Approval engineers Project Managers -
    understand the PSPC
  • dedicated staff to NACE/FROSIO, or equivalent
  • Shipyards
  • Only use pre-qualified coating systems
  • Inspection agreement - clarified
  • CTF prepared
  • Possible upgrading of production system
  • Documentation of coating inspectors
    qualifications
  • Train/hire qualified coating inspectors
  • Increased involvement from Administrations(i.e.
    Class Society for CSR)
  • Construction time may increase
  • Shipowner
  • Maintenance
  • recorded in CTF kept onboard
  • efficiency of coating - verified by
    Administration
  • Better prepared for evaluation by oil companies,
    e.g. Vetting and Rate (A)
  • Cost increase - however at same time
  • reduced life-cycle costs and better second-hand
    value of vessel!
  • ? Increased safety!

72
(No Transcript)
73
(No Transcript)
74
Ships built to the new rules should be at least
as safe and durable as today
CAP 1
THICKNESS
CAP 2
CAP 3
75
  • In the future we will get
  • More and more detailed international regulations
    covering more areas than today
  • Environmental regulations will be in focus in the
    immediate future, and we will see a shift from
    local to global regulations (from NOx/SOx to CO2)
  • Increased focus on liability for all partners
    within the maritime industry
  • Corporate Social Responsibility will play an
    increasing role in shaping the maritime industry

76
Thank you for your attendance!
Write a Comment
User Comments (0)
About PowerShow.com
