Title: Brush, Initial Attack, Wildland and Skid Unit Designs

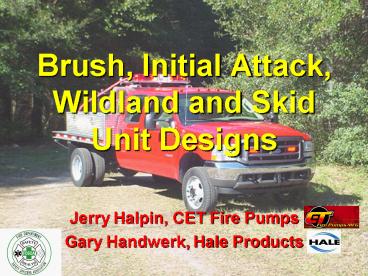

1
Brush, Initial Attack, Wildland and Skid Unit
Designs
  • Jerry Halpin, CET Fire Pumps
  • Gary Handwerk, Hale Products

2
Traditional Slip On
Good for Grass Fires Drops in a Pick Up Gasoline
9 to 18HP Hose Reel 150 to 300gal Tank
3
What We Didnt Cover
  • ATVs, Motorcycle, Trailers, Track Vehicles, Golf
    Carts, Hovercraft
  • Park Service Patrol Trucks

4
European Approach
What We Didnt Cover
TSF, TSFW and KTLF Style Trucks are Common in
Germany and Austria for Initial Attack and Car
Fires
5
Loaded Slip On
You Still Need the Rest of the Apparatus
6
New Class of Apparatus
  • Slip-on, Skid Unit, Micro Pumper or Flatbed

Wildland Brush/Grass Car Accidents Trash Initial
Attack Light Aircraft
This is a Fire Truck!
7
Performance
  • Engine Driven Pump
  • 11HP to 60HP
  • Booster Tank
  • 300 to 1000Gal
  • Compartments
  • Hose Bins Reel
  • Chassis
  • 17500 to 26000 GVWR

South Africa and Australia Along with the US
Build This Style of Apparatus
F550 Ford Changed Everything
8
ISO Regulations
This is an Apparatus Standard
  • ISO8
  • 1000Gal Tank
  • 250GPM at 150PSI Pump
  • ISO9
  • 300Gal tank
  • 50GPM at 150PSI Pump

ISO 9 is Popular in AR, KS, NE, OK and TX
9
NWCG Classes
This is an Apparatus Standard
10
NFPA 1906 Regulations
This is an Apparatus Standard
  • Most Missed Items
  • Vehicle Stability 4.9
  • Documentation 4.17.1/6.14
  • Weight Allowance 5.1.2
  • 300
  • 500
  • 1000
  • 1500
  • Fluid ID Plate 5.2.3.3

11
NFPA 1906 Regulations
  • More Missed Items
  • - Engine Intake Ember Screen 5.2.4.1.1.3
  • Alternator Capacity 6.3.3
  • Body Electrical Disconnect 6.4.5.5
  • Full Warning Light Package 6.8

12
NFPA 1906 Regulations
  • More Missed Items
  • Back Up Alarm 6.11
  • Red or Orange Seat Belts 7.1.3.1
  • Step Height 8.6
  • Step/Standing Slip Resistance 8.6.3
  • Handrails 8.7

13
NFPA 1906 Regulations
  • More Missed Items
  • - Power Rewind on Reels 8.9.8.2
  • Auto Pump Cooling Line 9.6.6
  • Intake Master Gauge 9.8.3
  • 30 minute Pump Test 9.11

14
NFPA 1906 Regulations
  • More Missed Items
  • Droop on 2 ½ Valves 9.5.4/9.6.5
  • Intake Connection Strainer 9.5.7
  • Pump Suction Capacity 9.2
  • Tank Baffling/Venting

15

Does This Meet NFPA 1906?
16
What About NFPA 1901?
17
Normal Performer
Meets NFPA 1906 NWCG 4 ISO9
  • Pressure Pumps
  • 1 ¼ AGE, HP75, G2015, HP, BB4
  • Medium Capacity/Pressure Pumps
  • 1 ½ AGE, HP200, 2515, M
  • Capacity Pumps
  • 2BE, HP300, 3030, 1D

11 to 23HP Gas Engines
18
Big Performer
  • 26/35HP Engine w/ 30FS/200, DSL, CPT2 or 2 1/2AGE
  • NFPA 1906
  • ISO 9
  • 250 GPM Tank or Hydrant
  • 150 PSI Plus Capable

19
Bigger Performer
  • 50/60HP Engine w/ 30FS, DSL, CPT2 or 2 1/2AGE
  • NFPA 1901- 250GPM Rating
  • NWCG 3
  • ISO 8
  • NFPA 1906
  • 300 to 400GPM Tank or Hydrant
  • 300PSI Plus Capable

20
Performance
  • Determine Required Nozzle Flow Pressure
  • Determine Hose Size and Length
  • At the Nozzle Flow Determine the Lose in the Hose
    in PSI
  • Add in Anticipated Elevation Changes at 1PSI / 2
    Ft
  • Add Nozzle PSI Hose Lose PSI Elevation Change
    PSI Required Pump Pressure at the Required
    Nozzle Flow

21
Maximize Pump Performance
Nozzles with Low Tip Pressure Settings will
Maximize Pump Performance
22
Inline Eductor Foam System
23
By Pass Eductor Foam System
24
Around the Pump Foam System
The Scotty is the Popular Wildland Foam System
25
Balanced Pressure Foam System
26
Direct Injection Foam System
Class A
Class B
Booster Tank
Flow Sensor
Discharges
Fire Pump
Foam Pro 1600 or Foamlogix 2.1A are Popular
27
CAFS Option
Common Sizes 120 to 160GPM w/ 60to80CFM using 26
to 60HP 800 to 1400 250GPM w/ 125CFP using 80 to
90HP 1800 to 2000
28
(No Transcript)
29
(No Transcript)
30
Pick Up Slip On Configuration
31
Flat Bed Configuration
32
Full Body Configuration
33
Common Features/Options
  • Sight window for water tank level
  • Valve Type
  • Additional Discharges
  • Gating Main Intake

34
Common Features/Options
  • Work Lighting
  • Plumbing Material
  • Hard Suction Mounting
  • Hose Lays/Bins

35
Exhaust Routing
Direct the Exhaust Away From the Body, Tank,
Hose, Equipment and Personnel
Commonly Missed Requirement
36
Tank Size Chassis Size
  • 10,000GVWR
  • 150 to 200gal
  • 13,000GVWR
  • 250 to 300gal
  • 15,000GVWR
  • 300 to 400gal
  • 17,999GVWR
  • 400 to 500gal
  • 25,999GWVR
  • 800 to 1000gal

No CDL Needed NY
No CDL Needed
Two door cab, Diesel Engine, 4X4, NFPA Loading
37
Hose Reel Location
38
Hose Reel Location
39
Hose Reel Location
40
Hose Reel Options
  • Aluminum Hose Reel
  • Reel Rollers/Guides
  • Reel Rewind System
  • Hose Size Length

41
Compartments
  • No Compartments

42
Compartments
  • Side Compartments for Pick-Up Bed

43
Compartments
  • Side Compartments on Flat Bed

44
Compartments
  • Full Body

45
Walkway Option
Jump Lines
Jump Lines
Pump and Roll Operations But Not According to NFPA
46
Top Consul Option
47
Brush Breaker Bars
48
Hose Lays
Roll Out Tray
49
Hose Lays
Top of Tank
Top of Body
50
Hose lays
Cross Lays
51
In Cab Controls
Pump and Roll w/ Bumper Turret
52
Bumper Turret
Akron, Elkhart and TFT have Bumper Turrets,
100GPM is common
53
Options
Rear Step Trailer Hitch Tow Eyes
Cab Spot Light
Back Cab Safety Guard
Grill Guard
Post Lights
Fog Lights
Alloy Wheels
Ground Sweeps
Wheel Chocks
Single Rear Tires
Winch
Running Boards
54
