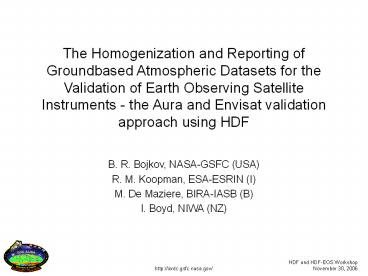

The Homogenization and Reporting of Groundbased
Atmospheric Datasets for the Validation of Earth
Observing Satellite Instruments - the Aura and
Envisat validation approach using HDF

• B. R. Bojkov, NASA-GSFC (USA)
• R. M. Koopman, ESA-ESRIN (I)
• M. De Maziere, BIRA-IASB (B)
• I. Boyd, NIWA (NZ)

2
Outline

• Context (and some history)
• Implementation for Envisat and Aura
• Future activities

3

• Why did we do this for atmospheric sciences?
• (from the perspective of validation)

4
Near-real-time ozonesondes

• Ensuing from European Arctic campaigns in the
  1990s
• 35 stations reporting
• operational NRT and scientific
• All stations uses NASA-Ames
• simple ASCII
• More than 18 file variations
• nomenclature and formulations
• Clear need of homogenization

5
The problem is accentuated

• Different measurement networks
• LIDAR, MWR, FTIRs, UV-Vis instruments, etc.
• Different platforms
• Groundbased, aircraft, balloon, ship, in-situ,
  etc.
• Different agencies
• Dialog across timezones, reporting facilities,
  etc.

6
So, in 1996/1997

• Near impossible to use effectively for research
  or tools/RDB/web implementations
• Need to resolve this file reporting problem by
  investigating/understanding the state of affairs
  in the field
• First objective satellite validation of
  atmospheric chemistry instruments
• up and coming ESA and NASA missions

7
COSE

• COSE - Compilation of atmospheric Observations in
  support. of Satellite measurements over Europe
• European Commission (EC) funded project
• Consortium of 25 groundbased and satellite teams
• Timeline 1998-2000

8
COSE (2)

• Approach
• Investigated existing file formats, usage,
  community needs in consultation with the
  different stake-holders
• Recommendations
• Defined fixed file formulation HDF4 (SDS)
• Rigid metadata, including strict guidelines for
  attributes requirements, variable naming, etc.
• Make files truly homogeneous and self explanatory
• Final document by Bojkov et al., 2002 (available
  through AVDC)

9
Basic HDF4 SDS file layout

• Global attributes 31 attributes
• Data source / contact information
• Dataset contents / location /
• File generation date / version / caveats /
• Attributes for each SDS 19 attributes
• Variable description / notes / caveats
• Dependencies / dimensions
• Units / SI conversion factor / Valid min. max.
  / Fill values
• Display attributes (label, axis, )

10
Global attributes
Variable attributes
11
Variable naming convention

• Variable name construction 3 part construction
• VARIABLE_NAME VARIABLE_MODE (
  VARIABLE_DESCRIPTOR)
• Example
• The variable name for O3 measured by an O3sonde
  and a Brewer spectrometer are
• O3_CONCENTRATION for the ozonesonde
• O3_VERTICAL.SOLAR for the Brewer in direct sun
  mode
• O3_VERTICAL.ZENITH for the Brewer in Umkehr mode
• The RMS for a FTIR ozone measurement can be
  expressed as
• O3_VERTICAL.ZENITH_UNCERTAINTY.RMS

12
Similar conventions for

• Attribute entries
• Instrument naming
• File names

13
First Implementation ESA

• Spring 2000 ESA Envisat mission was is its
  final validation planning
• 10 instruments, focus on land, atmosphere and
  oceans.
• ESA required
• Fully relational database for calibration and
  validation
• File QA/QC on all incoming files
• Specifically COSE concept, including HDF 4, to be
  implemented for atmosphere and ocean instrument
  validation

14
Envisat Cal/Val

• Implemented in October 2000
• Meets all ESA requirements, including QA and the
  RDB
• 200 users, intercontinental participation
• Backbone of the coordinated validation efforts of
  3 atmospheric and 2 ocean instruments
• Data sources collected from ship-based to
  satellites
• Extended to other Envisat/ESA validation
  activities (2004)
• One issue heterogeneous reporting
• the ozonesonde problem was back!

15
2004-present

• EOS-Aura validation activities
• The Network for Detection of Atmospheric
  Composition Change (NDACC - former NDSC)

16
Aura Validation Data Center

• Support the NASA EOS-Aura mission
• 4 atmospheric instruments
• troposphere to mesosphere measurements
• Share validation communities with Envisat
• AVDC uses the same concept/approach as Envisat
• Maintain Envisat files compatibility
• Operational since October 2004
• 300 users - many new participants
• 2TB validation data

17
AVDC modifications

• Refined file and metadata requirements through
  thorough analysis of Envisat Cal/Val in early
  2004
• Eliminate common user errors and misconceptions
• Added HDF5 implementation (user request due to
  HDF5 satellite data)
• Implemented rigid measurement reporting templates
• Collaborative effort with NDACC
• Measurement specific and defined by expert
  community
• Results in truly homogeneous files
• Document describing changes by Bojkov et al.,
  2006 available through AVDC web site

18
Future of the AVDC/Envisat implementation

• AVDC refinements are being implemented into
  Envisat Cal/Val
• AVDC/Envisat format being phased into NDACC
  network
• LIDAR, MWR, FTIR completed
• AVDC concept to be extended to NASA A-train (and
  most probably NPP wrt validation data)
• Format is ESA requirement for ESA/EC GMES program
• To be extended to land and radar altimetry
• NASA and ESA to remain synchronized

19
Closing remarks

• This type of work takes time
• Began in 1998, and will be ongoing
• Requires proactive involvement by all parties
• Validation teams, instrument PIs, satellite
  teams,
• Requires rigid guidelines - down to the
  measurement level
• Once implemented, it is extremely useful for all
  involved as experienced for the Envisat and Aura
  missions when validation relies on very different
  data sources

20
