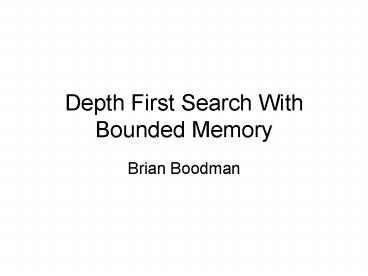

Depth First Search With Bounded Memory

1
Depth First Search With Bounded Memory

• Brian Boodman

2
Depth First Search

• Start at the root of a virtual tree.
• Vertices represent puzzle states.
• Root of tree is initial state.
• Edges represent steps in a puzzle.
• Vertices have n children, with n being the number
  of different possible steps.

3
Search

• Solution

4
Pruning and Efficiency

• Choose decision points where branches are
  invalid. If all branches are invalid, then
  backtrack. If only one branch is valid, ) branch
  is invalid (i.e. is clearly wrong) . If such
  decisions are always possible, searching reduces
  to non-searching.

4
3
4
2
3
4
1
4
2
5
Example Mini Sudoku
Memory usage for search O(HeightNode)
6
Alternative Difference Edges
1
2
4
3
Memory usage for search O(HeightDiff)
7
Binary tree

• Rather than splitting a tree into a child for
  each of the M possible values, an alternative is
  to use a binary tree, splitting a tree along,
  the value is N and the value is not N for any
  given split. This will reduce the branching
  factor of the tree but will increase the height.
• Binary trees generated with this method use more
  nodes. Most can be trivially pruned, however.
• Advantage but most such nodes can be trivially
  pruned if the value is N, the value is not
  1,2,3,N-1,N1,N2,)
• Backtracking is easy. If one direction is wrong,
  there is only one other choice.

8
Binary Example
9
Binary Example with pruning
10
An alternative method to store the tree.

• It is possible to store the edges themselves
  within state.
• Use a binary tree for easy backtracking.
• Store the current height of the tree in the node.
  Note that pruning does not increase the height
  of the tree, so multiple elements in the state
  may have the same height.
• If backtracking, the flip the state of the node
  that is of the current height (remove any pruning
  information), and drop the height by 1.

11
Demo

• Nurikabe Demo (samplet, sample).
• Nurikabe source, documentation, and presentation
  available upon request.

12
Bounded Memory

• Since the tree is stored in the with the binary
  states and such storage uses constant memory for
  this storage (only tree height is explicitely
  stored), memory is bounded.
• This is awesome!
• All depth first searches have this feature.
• Recall A depth first search only needs
  O(HeightDiff). Height is bounded by the number
  of binary elements (9x9x9 in regular Sudoku).

13
So whats the point?

• This storage method is theoretically exactly the
  same as using a traditional storage mechanism
  (using difference edges). It has the same
  space/time complexities.
• It may be less work to code.
• All memory allocation occurs in advance.
• Visualizing the complete graph all at once is
  easier since the heights are embedded in the
  state.
