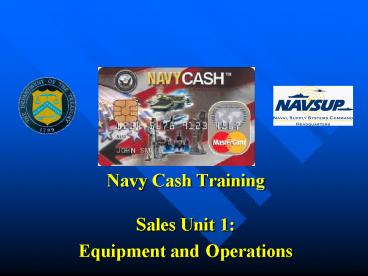

Navy Cash Training Sales Unit 1: Equipment and Operations

1
Navy Cash Training Sales Unit 1 Equipment
and Operations
2
Objectives

• Describe the procedures of how to obtain a new
  Operator ID from the Disbursing Officer.
• Describe the different modes of operation for the
  K22 Point of Sale (POS) device
• Demonstrate the Power On/Off procedures for the
  K22.
• Discuss Disbursing Application and procedures
  associated with NC office equipment

3
Objectives (cont)

• Explain how to add Merchant Accounts
• Demonstrate End of Day procedures
• Performing a refund

4
ROM II Procedures

• Although this training section discusses ROM II
  procedures and screens, it is presented only in
  context with its interface with Navy Cash.
• For further, up-to-date information on ROM II,
  refer to the
• NAVSUP P487
• ROM II User's Guide
• Both documents can be downloaded from
  www.navy-nex.com.

5
ROM II POS Set Up

• The ROM II should be set up for use with Navy
  Cash already. However, if you put in a new ROM
  II terminal or if the ROM II is NOT set up with
  Navy Cash, contact the NEXCOM or Fleet Assist Team

• Verify with NEXCOM that the ROM II POS has the
  correct card/port configuration

6
Obtaining a New Operator ID
7
Obtaining a New Operator ID

• All K22 users are required to be enrolled in Navy
  Cash and have a unique 4-digit number within NC
  Disbursing Application.
• Disbo will assign your operator ID number.
• Operator ID numbers are not reusable.

8
K22 Physical Interface
9
K22 Modes of Operation

• K22s will operate in one of two modes
• Proxy K22 is connected to a computer on the LAN
  (i.e. Disbursing, Sales Office) or integrated
  with ROM II.
• Normal K22 is not connected to a computer
• online (i.e. Ships Store, Post Office)
• K22 plugged into the LAN drop
• offline (i.e. MWR, Foreign Vendor)
• Battery powered

10
K22 Sources of Power
11
K22 Sources of Power

• Power Supply The K22 is normally powered by a
  6VDC/500ma power supply.
• To connect the power to the K22
• - Remove cover tab on bottom of K22
• - Connect the cable to the receptacle
• at bottom of the K22.
• - Slide the strain relief cover over
• connector until it clicks in place
• -

12
K22 Sources of Power (cont)

• Batteries The K22 is also powered by 3 AA
  batteries and 1 lithium battery
• AA batteries are good for a day
• Lithium battery runs the Real Time Clock and
  also to backup RAM and has an approx life of 2
  years.
• Used with mobile K22s that are not connected to
  LAN.

13
Power On/Off K22
14
K22 Power On - Online

• Select the green OK key to turn on. The K22 will
  also turn on when NC card is inserted.
• K22 will boot up and prompt for Operator ID.
• Enter your Operator ID using keypad and press the
  green OK key.

15
K22 Power On Online (cont)

• K22 is ready for use when your name is displayed
  on the bottom of the screen.
• You will remain logged on the system until logged
  off.
• If your log-on is denied, report to DISBO to
  resolve the matter.

16
K22 Power On - Offline

• Follow online procedure to log on
• Make sure K22 has fresh batteries before
  disconnecting from LAN drop (going offline).

17
K22 Power Off Online (cont)

• Step 1 Press the Off/Cancel key
• Step 2 The K22 will prompt you to confirm log
  off is desired.
• Step 3 Select OK. K22 enters Log On screen and
  Log Off is complete.
• Step 4 Hold OFF/Cancel key for 6-10 seconds to
  turn K22 off.

18
K22 Power Off - Offline (cont)

• You can log off at any network connection point
  (Same as log-on).
• Connect K22 cable to connection point and wait
  for the and ! to disappear.
• Perform the same steps as for online log off.

19
Application
20
Office Equipment (Sales Office)

• K22 hooked up to the computer, which is running
  the required applications (Proxy mode)
• Desktop (Disbursing
  Application loaded)
• Refunds
• Reports
• Vending EOM
• CAD Maintenance

Disbursing Application
21
Disbursing Application

• DA has different levels of access
• Menu items are grayed out if user does not
  have access

22
Disbursing App Sign On/Off

• Verify that K22 has power and is turned on
• Welcome to Navy Cash Proxy Mode Offline
• Once computer is booted, enter NT password to
  launch Windows
• When desktop displays, verify icon for DDE
  Proxy (Dynamic Data Exchange) in lower
  right-hand corner of screen
• If not, double-click desktop icon to start
• Click icon for Disbursing Application, log in
  using your username and password
• To sign off, perform procedures in reverse

23
Operations
24
Disbursing Application Operations

• Adding a merchant account
• Daily business
• End of Day
• Cancelled NC transactions
• Refunds
• Individual refunds
• Bulk refunds

25
Adding a Sales Merchant Account

• When NC is implemented, pre-set merchants are
  established.
• Contact DISBO to make any changes to merchant
  accounts.
• To add merchant, provide DISBO with
• Merchant name
• Accounting line to be credited
• POC name and phone number.

26
Logging on to the POS Terminal

• Till assignment disk data uploaded to the cash
  register
• Verify that the Navy Cash DDE proxy is running by
  looking for the Proxy icon in the lower
  right-hand corner of the screen
• If not, double-click desktop icon to start
• Verify that the K22 is connected to the ROM II
  and online.
• Log onto the ROM II POS terminal using the proper
  login (same as your Operator ID)

27
Daily Ship Store Sales

• Perform sales as usual
• Scan items using ROM II scanner
• Subtotal to final menu
• Have cardholder put their card into the K22

• Press the Navy Cash button (leave the AMOUNT
  PAID field blank)
• Sale will go through and cardholder will enter
  PIN

28
Daily Sales (cont)

• If the cardholder does not have enough funds on
  the chip, an error box will pop up to indicate
  that the sale has been cancelled

• The cancelled NC transaction must be processed on
  the ROM II back office computer at End of Day.
  Entry on your daily log name of customer, amt,
  date, and product.

29
Ships Store End of Day

• Operator
• Closes business IAW ROM II procedures
• Takes Till diskette back to Sales Office
• Sales Officer
• Upload Till diskette
• Process cancelled NC transactions (CloseOut menu)
• Run Navy Cash Merchant Sales Summary report
• (Disbursing Application)
• Compare with figures from ROM II Till

30
Cancelled NC Transactions

• Navy Cash transactions may be cancelled due to
• insufficient funds on the chip
• untimely removal of the card
• Card timeout (inactive in K22 too long)
• A message is displayed on ROM II POS device
  indicating transaction has been cancelled

31
Cancelled NC Transactions (cont)

• The cancelled transaction indicates
• ROM II inventory has been reduced
• NC chip NOT charged
• The ROM II CloseOut Menu includes a new section
  for dealing with these transactions

32
Cancelled NC Transactions (cont)

• Fleet Assist Team will walk you through
  the process for cancelled NC transactions at the
  back office

33
EOD Reconciliation

• When there is a disparity between ROM II Till and
  Navy Cash, a ROM II special disk must be
  created for investigations between transactions.

34
ROM II Disk Creation Overview

• Login to the ROM II backend computer as
  manager/null
• Select POS Reconcile Till
• Select Navy Cash Sales Export
• A pop-up screen will display
• Enter the dates for the closed till
• Till date in start and end
• Place a blank floppy disk in the A drive
• Sales data is exported to a file sales.txt and
  a message is returned

35
ROM II Disk Creation (cont)

• Use Till date in start and end

36
ROM II Disk Creation (cont)

• After inserting the blank disk, press OK to
  generate data

• A message will display to indicate that the disk
  has been created

37
NC ROM II Comparison
38
Loading ROM II Disk to Navy Cash

• Select ROM II Reporting from Navy Cash menu to
  display screen
• Insert the special disk into floppy drive of the
  Navy Cash workstation
• Click Load ROM II File button

39
Loading ROM II Disk (cont)

• A popup window will appear
• Browse to the correct directory on the disk
• Select the sales.txt file and click Open

40
Loading ROM II Disk (cont)

• A confirmation box will appear
• Check the file name to verify name and click
  Yes
• A message will display to indicate file has
  successfully loaded

41
Generating Comparison Reports

• ROM II start and end fields will auto-fill
• From the menu drop-down box, select the correct
  merchant
• Click Generate

42
ROM II Comparison Report

• The ROM II comparison report has four sections
• ROM II trans not in NC
• NC trans not in ROM II
• NC and ROM II trans with different amounts
• Trans that failed in ROM II but succeeded in NC
• If there are no irregularities, the section will
  read No data has been found for this section

43
ROM II Reporting

• To save the report, click the Save button
• The report will be saved on the C drive of the
  Navy Cash workstation and the filename displayed

44
Refunds
45
Refunds

• There are two types of refunds
• Individual refunds
• Bulk refunds
• An individual refund is when a cardholder
  requires a transaction to be refunded
• A bulk refund is when a specific event
  (i.e. Valentines Roses) is cancelled and many
  cardholders must be refunded

46
Individual Refunds

• Customer obtains authorization for refund from
  Sales Officer
• Record refund in Refund Chit Log
• Sales Officer performs refund IAW ROM II
  procedures

• Sales Officer opens Disbo App and performs
  Individual Refund from the Funds Transfer menu

47
Individual Refunds (cont)

• Select Misc refund
• Enter amount
• Select merchant from drop down menu
• Click Submit

48
Individual Refunds (cont)

• This returns amount of refund to card and deducts
  amount from originating merchants (i.e. vending)
  collections for that day
• NC server keeps a record and adds it to log for
  that day
• Sales Officer and responsible individuals
  (i.e. SHC), should verify daily amounts reported
  by NC server against the refund log

49
Individual Refunds (cont)

• NAVSUP 972s are stapled to NC daily refund report
  and filed in accountability file
• At end of month, refund log should be verified
  against NC shore reports

50
Bulk Refunds

• Merchant must initiate the Bulk refund
• Disbursing or Sales Officer process refund
• Sales Officer opens Disbo App and clicks on
  Funds Transfer
• Select Bulk Refunds

51
Fund Transfer Bulk Refunds

• Select event from drop down menu
• Click the Refund button
• Refund goes to strip accounts (approx 20 min)
• Visitor cards must be refunded individually

52
