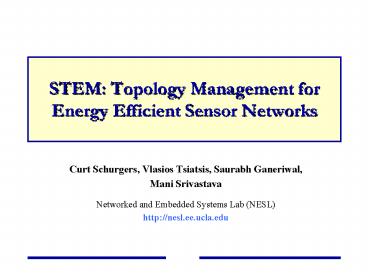

1STEM Topology Management for Energy Efficient
Sensor Networks
- Curt Schurgers, Vlasios Tsiatsis, Saurabh
Ganeriwal, - Mani Srivastava
- Networked and Embedded Systems Lab (NESL)
- http//nesl.ee.ucla.edu
2Wireless Sensor Network
- Sensor network consists of autonomous sensor
nodes - Functionality
- Detect events
- Relay information to the user
- Applications monitoring of wildlife, intruders,
machine conditions, earthquakes, fire,
contaminants, office environment, participants on
reality shows, babys diaper conditions, etc.
event
sensor network
3Sensor Node
In-node processing
Wireless communication with neighboring nodes
Event detection
Acoustic, seismic, magnetic, etc. interface
Electro-magnetic interface
sensors
radio
CPU
Limited battery supply
battery
Energy efficiency is the crucial design criterion
4Network Operations
2.4 Kbps RFM radio with R 20 m
Savvides
- Energy consumption of the radio dominates that of
the sensors and CPU - ? perform event detection continuously
- The only energy efficient mode of the radio is
the sleep mode - ? put radio to sleep as often as possible
- (we refer to this as the node being put to
sleep)
5Energy Conservation Strategy
- Existing approaches keep enough nodes awake to
handle the data forwarding (forwarding state),
but for substantial energy savings we need large
densities - Eureka moment most of the time, the network is
only monitoring its environment, waiting for an
event to happen (monitoring state) - New strategy put nodes to sleep and only wake
them up when they need to participate in data
forwarding
Nodes have their radio in sleep mode to conserve
energy
Yogi for president
Nodes turn on their radio, when they need to
communicate
6 Wakeup Paradox
- Nodes need to wake up when
- they detect an event or want to initiate
communication - they need to receive packets from other nodes ???
- Paradox how can a sleeping node be reached ?
- Solutions
- low-power paging channel
- low duty cycle paging channel
zzzzzzz
7Principle of STEM
STEM Sparse Topology and Energy Management
- Low duty cycle paging channel to wake up a
neighboring node - Use separate radio for the paging channel to
avoid interference with regular data forwarding - Trades off energy savings for setup latency
8High Level Operation of STEM
Wakeup plane
Power
f1
Tx
Time
Power
Data plane
f2
Tx /Rx
Sleep
Initiator node
Target node
Rx
Wakeup plane
Power
f1
Sleep
Time
Power
Data plane
f2
Tx /Rx
Sleep
9Detailed Operation of STEM
Initiator node
f1
B1
B2
1. beacon received
Train of beacon packets
TRx
2. beacon acknowledge
T
f1
Target node
10Collision Resolution
1 initiator node
- beacon received correctly
- only intended receiver turns on the data radio
and sends a beacon acknowledge in the wakeup plane
more initiator nodes
- upon detection of collision, a node turns on its
data radio - after T, the initiator node assumes the target
node is up and contacts it on the data plane - when an expected target node doesnt receive
data, it times out and goes back to sleep
11Analysis of STEM
Wakeup plane
f1
Data plane
f2
Forwarding state
Monitoring state
Fraction of time in the forwarding state ?
- Setup latency
- Energy savings
Appropriate choice of interval sizes
Mostly monitoring state ? ltlt 1 or ? gtgt 1
12Performance Simulation of STEM
(W)
13Energy Latency Tradeoff of STEM
? 101
? 102
TRx 0.225 s
? 103
? 104
- The tradeoff between energy and delay is
manipulated by varying T - T ? ? E ? TS ?
- The energy savings increase as the monitoring
state becomes more dominant, ? ?
14Conclusions
- Most of the time, sensor networks are only
sensing the environment, without forwarding
traffic - STEM trades off energy savings versus wakeup
latency - STEM integrates well with other topology
management schemes and provides substantial
additional savings
