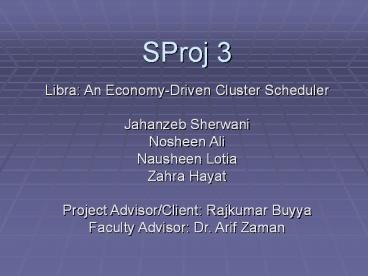

• Libra An Economy-Driven Cluster Scheduler
• Jahanzeb Sherwani
• Nosheen Ali
• Nausheen Lotia
• Zahra Hayat
• Project Advisor/Client Rajkumar Buyya
• Faculty Advisor Dr. Arif Zaman

2
Problem Statement

• Implementing a computational-economy based
  user-centric scheduler for clusters

3
What is a cluster?

• A collection of workstations interconnected via a
  network technology, in order to take advantage of
  combined computational power and resources
• An integrated collection of resources that can
  provide a single system image spanning all its
  nodes a virtual supercomputer
• Used for computation-intensive applications such
  as AI expert systems, nuclear simulations, and
  scientific calculations

4
Why clusters?

• Cost-effectiveness low cost-performance ratio
  compared to a specialized supercomputer
• Increase in workstation performance
• Increase in network bandwidth
• Decrease in network latency
• Scalability higher than that of a specialized
  supercomputer
• Easier to integrate into an existing network than
  specialized supercomputers

5
Computational Economy

• Traditional system-centric performance metrics
• CPU Throughput
• Mean Response Time
• Shortest Job First
• Computational economy is the inclusion of
  user-specified quality of service parameters with
  jobs so that resource management is user-centric
  rather than system-centric

6
Computational Economy (contd)

• Project focus to implement a scheduler that aims
  to maximize user utility
• Job parameters most relevant to user-centric
  scheduling
• Budget allocated to job by user
• Deadline specified by user

7
Computational Economy for Grids

• What is a grid?
• An infrastructure that couples resources such as
  computers (workstations or clusters ), software
  (for special purpose applications) and devices
  (printers, scanners) across the Internet and
  presents them as a unified integrated single
  resource that can be widely used
• How a grid differs from a cluster
• Wide geographical area
• Non-dedicated resources
• No centralized resource management

8
Computational Economy for Grids

• Management of resources and scheduling
  computations in a grid environment is complex as
  the resources are
• geographically distributed
• heterogeneous in nature
• owned by different individuals or organizations
• have different access and cost models
• resource discovery required
• security issues
• Computational economy has been implemented for
  grids the Nimrod/G resource broker is a global
  resource management and scheduling system that
  supports deadline and economy-based computations
  in grid-computing environments

9
Computational Economy for Clusters

• Market-based Proportional Resource Sharing for
  Clusters Brent Chun and David E. Culler,
  University of California at Berkeley, Computer
  Science Division
• a market-based approach based on the notion of a
  computational economy which optimizes for user
  value. It describes an architecture for
  market-based cluster resource management based on
  the idea of proportional resource sharing of
  basic computing resources. Cluster nodes act as
  independent sellers of computing resources while
  user applications act as buyers who purchase
  resources . Users are allocated
  credits/tickets-the more tickets they have, the
  greater their CPU share. Ticket allocation is on
  the basis of the amount the user is willing to
  pay his valuation of the job
• Deadline not incorporated

10
Cluster Architecture
11
Cluster Management Software

• Cluster Management Software is designed to
  administer and manage application jobs submitted
  to workstation clusters.
• Creates a Single System Image
• When a collection of interconnected computers
  appear to be a unified resource, we say it
  possesses a Single System Image
• The benefit of a Single System Image is that the
  exact location of the execution of a process is
  entirely concealed from the user. The user is
  offered the illusion of a single powerful
  computer
• Maintains centralized information about cluster
  status and resources

12
Cluster Management Software

• Commercial and Open-source Cluster Management
  Software
• Open-source Cluster Management Software
• DQS (Distributed Queuing System )
• CONDOR
• GNQS (Generalized Network Queuing System)
• MOSIX
• REXEC (Remote Execution)
• SGE (Sun Grid Engine)
• PBS (Portable Batch System)

13
Cluster Management Software

• Why SGE was rejected
• lack of online support
• lack of stability
• Final choice of CMS PBS(Portable Batch System )

14
Pricing the Cluster Resources

• Cost a (Job Execution Time) b (Job Execution
  Time / Deadline)
• Cost of using the cluster depends on job length
  and job deadline the longer the user is prepared
  to wait for the results, the lower his cost
• Cost formula forces user to reveal his true
  deadline

15
Scheduling Algorithm

• How to meet budget and deadline constraints?
• Ensuring low run-time for the algorithm
• Greedy Algorithm
• Complex solutions unfeasible
• Test run of algorithm
• 5 jobs, arriving at time t0, 5, 7, 9, 9, on a 3
  node cluster

16
LIBRA with PBS

• Portable Batch System (PBS) as the Cluster
  Management Software (CMS)
• Robust, portable, effective, extensible batch job
  queuing and resource management system
• Supports different schedulers
• Job accounting
• Technical Support

17
Setting up the PBS Cluster

• Installation of Linux with Windows
• Installation of SGE as well as PBS
• Setting up a Network File System
• Configuring GridSim in Java
• Configuring PBSWeb
• Setting up the Apache WebServer
• PHP scripting for Apache
• Setting up PostgreSQL
• Setting up SSH

18
PBS Overview

• Main components of PBS
• Job Server pbs_server
• Job Scheduler pbs_sched
• Job Executor Resource Monitor pbs_mom
• The server accepts commands and communicates with
  the daemons
• qsub - submit a job
• qstat - view queue and job status
• qalter - change jobs attributes
• qdel - delete a job

19
Xpbs GUI for PBS
20
Xpbs --- GUI for PBS
21
Job Scheduling in PBS
22
The Libra Scheduler

• Default FIFO Scheduler in PBS
• FIFO - sort jobs by job queuing time running the
  earliest job first
• Fair share sort schedule jobs based on past
  usage of the machine by the job owners
• Round-robin - pick a job from each queue
• By key - sort jobs by a set of keys
  shortest_job_first, smallest_memory_first

23
The Libra Scheduler

• Job Input Controller
• Adding parameters at job submission time
• deadline
• budget
• executionTime
• Defining new attributes of job
• Job Acceptance and Assignment Controller
• Budget checked through cost function
• Admission control through deadline scheduling
• Execution host with the minimum load and ability
  to finish job on time selected
• Equal Share instead of Minimum Share

24
The Libra Scheduler

• Job Execution Controller
• Job run on the best node according to algorithm
• Cluster and node status updated
• runTime
• cpuLoad
• Job Querying Controller
• Server, Scheduler, Exec Host, and Accounting Logs

25
PBS-Libra Web --- Front-end for the Libra Engine
26
PBS-Libra Web
27
PBS-Libra Web
28
PBS-Libra Web
29
PBS-Libra Web
30
PBS-Libra Web
31
PBS-Libra Web
32
PBS-Libra Web
33
PBS-Libra Web
34
(No Transcript)
35
Simulations

• Goal
• Measure the performance of Libra Scheduler
• Performance ?
• Maximize user satisfaction

36
Simulations

• Simulation Software
• Alter GridSim (grid resource management
  simulation)

37
GridSim Class Diagram
38
Simulations

• Methodology
• Workload
• 120 jobs with deadlines and budgets
• Job lengths 1000 to 10000
• Resources
• 10 node, single processor (MIPS rating 100)
  homogenous cluster

39
Simulations

• Assumptions
• Strict deadlines
• Ignores processing overhead due to scheduler and
  clock interrupt
• Scheduler simulated as a function
• Input job size, deadline, budget
• Output accept/reject, node , share allocated

40
Simulations

• Compared
• Proportional Share
• FIFO
• Experiments
• 120 jobs, 10 nodes
• Increasing workload to 150 and 200
• Increasing cluster size to 20

41
Simulation Results

• 120 jobs, 20 did not meet budget

42
100 Jobs, 10 NodesFIFO 23 rejected -
Proportional Share 14 rejected
43
Simulation Results

• Increase workload to 200 jobs on the same 10 node
  cluster

44
200 Jobs, 10 NodesFIFO 105 rejected -
Proportional Share 93 rejected
45
Simulation Results

• Scale the cluster up to 20 nodes

46
200 Jobs, 20 NodesFIFO 35 rejected -
Proportional Share 23 rejected
47
Simulation Results
48
Simulation Results
49
Simulation Results
50
Simulation Results
51
Conclusion Future Work

• Succesfully implemented a Linux-based cluster
  that schedules jobs using PBS with our
  economy-driven Libra scheduler, and PBS-Libra Web
  as the front end.
• Successfully tested our scheduling policy
• Proportional Share delivers more value to users
• Exploring other pricing mechanisms
• Expanding the cluster with more nodes and with
  support for parallel jobs
