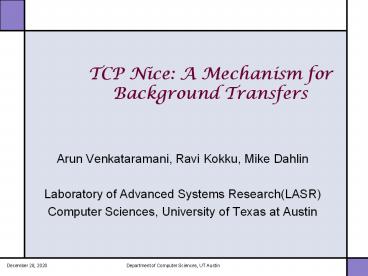

TCP Nice: A Mechanism for Background Transfers

1
TCP Nice A Mechanism for
Background Transfers

• Arun Venkataramani, Ravi Kokku, Mike Dahlin
• Laboratory of Advanced Systems Research(LASR)
• Computer Sciences, University of Texas at Austin

2
What are background transfers?

• Data that humans are not waiting for
• Non-deadline-critical
• Unlimited demand
• Examples
• Prefetched traffic on the Web
• File system backup
• Large-scale data distribution services
• Background software updates
• Media file sharing

3
Desired Properties

• Utilization of spare network capacity
• No interference with regular transfers
• Self-interference
• applications hurt their own performance
• Cross-interference
• applications hurt other applications performance


4
Goal Self-tuning protocol

• Many systems use magic numbers
• Prefetch threshold DuChamp99, Mogul96,
• Rate limiting Tivoli01, Crovella98,
• Off-peak hours Dykes01, many backup
  systems,
• Limitations of manual tuning
• Difficult to balance concerns
• Proper balance varies over time
• Burdens application developers
• Complicates application design
• Increases risk of deployment
• Reduces benefits of deployment

5
TCP Nice

• Goal abstraction of free infinite bandwidth
• Applications say what they want
• OS manages resources and scheduling
• Self tuning transport layer
• Reduces risk of interference with FG traffic
• Significant utilization of spare capacity by BG
• Simplifies application design

6
Outline

• Motivation
• How Nice works
• Evaluation
• Case studies
• Conclusions

7
Why change TCP?

• TCP does network resource management
• Need flow prioritization
• Alternative router prioritization
• More responsive, simple one bit priority
• Hard to deploy
• Question
• Can end-to-end congestion control achieve
  non-interference and utilization?

8
Traditional TCP Reno

• Adjusts congestion window (cwnd)
• Competes for fair share of BW (cwnd/RTT)
• Packet losses signal congestion
• Additive Increase
• no losses ? Increase cwnd by one packet per RTT
• Multiplicative Decrease
• one packet loss (triple duplicate ack) ?halve
  cwnd
• multi-packet loss ? set cwnd 1
• Problem signal comes after damage done

9
TCP Nice

• Proactively detects congestion
• Uses increasing RTT as congestion signal
• Congestion ? incr. queue lengths ? incr. RTT
• Aggressive responsiveness to congestion
• Only modifies sender-side congestion control
• Receiver and network unchanged
• TCP friendly

10
TCP Vegas

• Early congestion detection using RTTs
• Additive decrease on early congestion
• Restrict number of packets maintained by each
  flow at bottleneck router
• Small queues, yet good utilization

11
TCP Nice

• Basic algorithm
• 1. Early Detection ? thresh. queue length? incr.
  in RTT
• 2. Multiplicative decrease on early congestion
• 3. Maintain small queues like Vegas
• 4. Allow cwnd lt 1.0
• per-ack operation
• if(curRTT gt minRTT threshold(maxRTT minRTT))
• numCong
• per-round operation
• if(numCong gt f.W)
• W ? W/2
• else Vegas congestion control

12
Nice the works

• Non-interference ?getting out of the way in time
• Utilization ?maintaining a small queue

13
Evaluation of Nice

• Analysis
• Simulation micro-benchmarks
• WAN measurements
• Case studies

14
Theoretical Analysis

• Prove small bound on interference
• Main result interference decreases
  exponentially with bottleneck queue capacity,
  independent of the number of Nice flows
• Guided algorithmic design
• All 4 aspects of protocol essential
• Unrealistic model
• Fluid approximation
• Synchronous packet drop

15
TCP Nice Evaluation

• Micro-benchmarks (ns simulation)
• test interference under more realistic
  assumptions
• Near optimal interference
• 10-100X less than standard TCP
• determine if Nice can get useful throughput
• 50-80 of spare capacity
• test under stressful network conditions
• test under restricted workloads, topologies

16
TCP Nice Evaluation

• Measure prototype on WAN
• test interference in real world
• determine if throughput is available to Nice
• limited ability to control system
• Results
• Nice causes minimal interference
• standard TCP significant interference
• Significant spare BW throughout the day

17
NS Simulations

• Background traffic
• Long-lived flows
• Nice, rate limiting, Reno, Vegas, Vegas-0
• Ideal Router prioritization
• Foreground traffic Squid proxy trace
• Reno, Vegas, RED
• On/Off UDP
• Single bottleneck topology
• Parameters
• spare capacity, number of Nice flows, threshold
• Metric
• average document transfer latency

18
Network Conditions
1e3
100
10
V0
Document Latency (sec)
Reno
Nice
1
Vegas
Router Prio
0.1
1
10
100
Spare Capacity

• Nice causes low interference even when there
  isnt much spare capacity.

19
Scalability

• W lt 1 allows Nice to scale to any number of
  background flows

20
Utilization

• Nice utilizes 50-80 of spare capacity w/o
  stealing any bandwidth from FG

21
Case study 1 Data Distribution

• Tivoli Data Exchange system
• Complexity
• 1000s of clients
• different kinds of networks phone line, cable
  modem, T1
• Problem
• tuning data sending rate to reduce interference
  and maximize utilization
• Current solution
• manual setting for each set of clients

22
Case study 1 Data Distribution
23
Case study 2 Prefetch-Nice

• Novel non-intrusive prefetching system USITS03
• Eliminates network interference using TCP Nice
• Eliminates server interference using simple
  monitor
• Readily deployable
• no modifications to HTTP or the network
• JavaScript based
• Self-tuning architecture, end-to-end interference
  elimination

24
Case study 2 Prefetch-Nice
Hand-tuned threshold
Response time
Aggressive threshold Self-tuning protocol
Aggressiveness

• A self-tuning architecture gives optimal
  performance for any setting

25
Prefetching Case Study
26
Prefetching case study
27
Conclusions

• End-to-end strategy can implement simple
  priorities
• Enough usable spare bandwidth out there that can
  be Nicely harnessed
• Nice makes application design easy

28
TCP Nice Evaluation Key Results

• Analytical
• interference bounded by factor that falls
  exponentially with bottleneck queue size
  independent of no. of Nice flows
• all 3 aspects of algorithm fundamentally
  important
• Microbenchmarks (ns simulation)
• near optimal interference
• interference up to 10x less than standard TCP
• TCP-Nice reaps substantial fraction of spare BW
• Measure prototype on WAN
• TCP Nice Minimal interference
• standard TCP Significant interference
• significant spare BW available throughout the day

29
Freedom from thresholds

• Dependence on threshold is weak
• - small threshold )low interference

30
Manual tuning

• Prefetching attractive, restraint necessary
• prefetch bandwidth limit DuChamp99, Mogul96
• threshold probability of access Venk01
• pace packets by guessing users idle time
  Cro98
• prefetching during off-peak hours Dykes01
• Data distribution / Mirroring
• tune data sending rates on a per-user basis
• Windows XP Background (BITS)
• rate throttling approach
• different rates ? different priority levels

31
Goal Self-tuning protocol

• Hand-tuning may not work
• Difficult to balance concerns
• Proper balance varies over time
• Burdens application developers
• Complicates application design
• Increases risk of deployment
• Reduces benefits of deployment

32
Nice the works

• Nested congestion triggers
• Nice lt Vegas lt Reno

33
TCP Vegas
Expected
Diff
m
Actual
a
Throughput
b
1/minRTT
Window
W

• E W / minRTT
• A W /observedRTT
• Diff (E A)/minRTT

if(Diff lt a / minRTT) W Ã W 1 else
if(Diff gt b / minRTT) W Ã W - 1

• Additive decrease when packets queue

34
Nice features

• Small a, b not good enough. Not even zero!
• Need to detect absolute queue length
• Aggressive backoff necessary
• Protocol must scale to large number of flows
• Solution
• Detection ! threshold queue build up
• Avoidance ! Multiplicative backoff
• - Scalability ! window is allowed to drop below 1

35
Internet measurements

• Long Nice and Reno flows
• Interference metric flow completion time

36
Internet measurements

• Long Nice and Reno flows
• Interference metric flow completion time
• Extensive measurements over different kinds of
  networks
• - Phone line
• - Cable modem
• - Transcontinental link (Austin to London)
• - University network (Abilene UT Austin to
  Delaware)

37
Internet measurements

• Long Nice and Reno flows
• Interference metric flow completion time

38
Internet measurements

• Long Nice and Reno flows
• Interference metric flow completion time

39
Internet measurements

• Useful spare capacity throughout the day

40
Internet measurements

• Useful spare capacity throughout the day

41
NS Simulations - Red
42
NS Simulations - Red
43
Analytic Evaluation

• All three aspects of protocol essential
• Main result interference decreases
  exponentially with bottleneck queue capacity
  irrespective of the number of Nice flows
• fluid approximation model
• long-lived Nice and Reno flows
• queue capacity gtgt number of foreground flows
