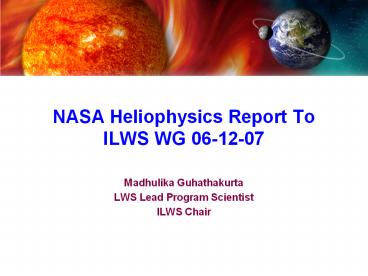

NASA Heliophysics Report To ILWS WG 061207

1
NASA Heliophysics Report To ILWS WG 06-12-07

• Madhulika Guhathakurta
• LWS Lead Program Scientist
• ILWS Chair

2
GO HELIOPHYSICS!!

• Hinode, STEREO, THEMIS, AIM, Twin-A all
  successfully launched!!

• Incredible press coverage on these recent
  launches and early results

• Space Weather Enterprise Forum during March in
  Washington, DC

• Solar Cycle 24 Prediction Panel released
  preliminary prediction in March at NOAAs Space
  Weather Week

• Coming soon
• STEREO in 3D planetarium show this summer at
  Liberty Museum (NJ)

• Libyan eclipse expedition documentary to be
  released June 26

• Heliophysics Summer School (see backup charts for
  details)

• LWS science workshop (September 2007)

3
New SMD AAs Priorities

• To advance priorities of Decadal Survey
• To get more from SMD budget (some examples)
• Control mission costs
• More frequent small missions
• International partnerships encouraged
• Revitalize sub-orbital science program
• Streamlined processes inside SMD and for
  grantees

• Proposal and funding triage
• Strategic investments in RA and data analysis
  across SMD

• Zero-sum adjustments to achieve the above
• To increase communication with the science
  community

• To support the Vision for Space Exploration
  through solid science efforts

4
Heliophysics / New Mill Missions
Formal Collaboration
Interagency JAXA, ESA ESA ES
A-NASA Mission ESA. ISAS Interage
ncy
Interagency ESA
CINDI Q3-08
Implementation- Development
5
Solar Dynamics Observatory (SDO)
Mission Objective Obtain nearly continuous
observations of the interior, photosphere, and
inner corona of the Sun to develop drivers and
diagnostics for solar activity, cornerstones for
an operational space weather capability.
Organizations Project Management GSFC
Spacecraft GSFC Instruments
Helioseismic and Magnetic Imager (HMI)
Stanford Atmospheric Imaging Assembly (A
IA) Lockheed Martin in Palo Alto (LMSAL)
Extreme Ultraviolet Variability
Experiment (EVE) University of Colorado
Management Integration GSFC
Ground System Mission Operati
ons, Flight Dynamics - GSFC Scienc
e Operations LMSAL and University of Colorado
Mission Description Sun-pointing spacecraft
in inclined geosynchronous orbit. Nearly
continuous science data downlinked at 150
Megabits/second (Mbps). Observatory weighs 3200
kg. Five-year prime operations lifetime.
Launch Atlas V/401 EELV from KSC
in August 2008 Web site http//sdo.
gsfc.nasa.gov/
6
SDO Instrument Activities
Installation of Atmospheric Imaging Assembly
(AIA) Telescope Assembly 3 (of 4) on plate for
the final telescope vibration test.
Repolished Helioseismic and Magnetic
Imager (HMI) front window being prepared for
measurements on large interferometer.
7
Radiation Belt Storm Probes (RBSP)
Mission Objective Gain understanding of how
changes in the solar activity and solar wind form
or change the relativistic electron and ion popul
ations in the Earths radiation belts
Organizations Project Management
Johns Hopkins University/Applied Physics
Laboratory (JHU/APL) Spacecraft JHU/APL Instru
ments Energetic Particle, Composition,
Thermal Plasma (ECT) Boston University
Electric Magnetic Field Instrument Suite
and Integrated Science (EMFISIS) Univ. of Iowa
Electric Field and Waves Instrument (EFW)
Univ. of Minnesota Radiation Belt Storm Prob
es Ion Composition Experiment (RBSPICE) New
Jersey Inst. of Technology Relat
ivistic Proton Spectrometer (RPS) National
Reconnaissance Office (NRO) Contributed
Ground System Mission Operations, Flight Dy
namics JHU/APL Science Operations Instru
ment-provider institutions Test Facilities, Proje
ct Oversight, NRO Instrument Delivery GSFC
Mission Description Two identical spinning sp
acecraft in 9-hour lapping orbits in the
radiation belts. Orbits are 500
x 30,600 km with 10o inclination. Challenges are
high radiation environment, deep d
ielectric discharge, data collection strategy,
and electric field emissions. Two-year prime
operations lifetime.
Launch EELV from KSC in March 2012 Web s
ite http//www.lws.nasa.gov/geospace/
8
Magnetospheric MultiScale Project (MMS)
Mission Objective Conduct definitive
investigations of magnetic reconnection in the
boundary regions of the Earths magnetosphere.
Determine 3-dimensional geometry of the plasma,
magnetic fields, and current structures.
Organizations Project Management GSFC Spac
ecraft GSFC Instrument Suite Contractor Sou
thwest Research Institute (SwRI)
Fields - University of New Hampshire
Fast Plasma Investigation (FPI) - GSFC
Hot Plasma Composition Analyzer (HPCA) -
SwRI Energetic Particles Investigation (E
PI) - APL Active Spacecraft Potential
Control (ASPOC) - donated by Austria
Ground System Mission
Operations, Flight Dynamics - GSFC
Science Operations - University of
Colorado (SwRI subcontract) Mission Descripti
on Constellation of 4 identical spin stabilized
satellites flying in tetrahedron formation with
10 to 400s of km separation. Elliptical Earth
orbits (1.2 Re x 20 Re).
In situ instruments measure
electric and magnetic fields, ions, and
electrons. Extensive orbit maintenance and
orbit adjust capability. 2-year operational
mission. Launch Four satellites launched t
ogether in one EELV from KSC in 2014
Web site http//stp.gsfc.nasa.gov/
9
Future Missions

• Heliophysics Division

10
Solar Probe



HUMANITYS FIRST VISIT TO A STAR - highest
priority for a major- Class mission in the 2003 D
ecadal Survey. FIRST GROUND TRUTH CONCERNING
PROPERTIES AND CONDITIONS NEAR THE SUN -
DIRECT CONFRONTATION BETWEEM ASTROPHYSICAL
THEORY AND PHYSICAL MEASUREMENT.
UNDERSTAND HOW OUR STAR COUPLES TO THE SOLAR SYS
TEM - AND HOW SOLAR PARTICLES ARE ACCELERATED AND
INJECTED IN TO PLANETARY ENVIRONMENTS
SCIENTIFICALLY COMPELLING AND TECHNOLIGICALLY SO
PHISTICATED MISSION WITH THE FASTEST MOVING SPACE
CRAFT EVER AT A SPEED OF .1 THE SPEED OF LIGHT.
11
Solar Probe-Lite Study(intent only)

• Intend to perform a study for a mission which
  addresses the implied Goals and Priorities of
  the Decadal survey

• Design a mission that can be achieved at a
  notional budget of about half that estimated by
  the JSTDT study for Solar Probe

• Candidate trades may include
• Non-Nuclear powered spacecraft,
• Reduced s/c mass,
• Reduced payload capability,
• Review choice of orbit/perihelion,
• and other choices as seen effective.

12
Solar Orbiter/Solar Sentinels

• Elements
• Sentinels LWS future mission, ranked as high
  priority (third for moderate missions) by
  National Research Council in the 2003 Decadal
  Survey.
• Program Future
• US Science and Technology Definition Team report
  complete

• Outgrowth of 2nd last Bi-lat Is it possible to
  define a joint Solar Orbiter (ESA) - Solar
  Sentinel Mission that provides scientific and
  programmatic advantages.?
• Joint Science and Technology Definition Team
  finding scientific goals and priorities for a
  combined investigation (next page)

• Recent ESA-NASA bilateral went well for the joint
  mission.

• The results will be made known shortly by
  the two agencies.

13
Focus of Joint Mission
How does the Sun generate the environment of
theinner solar system? Primary Objectives
Determine the sources, acceleration
mechanismsand transport processes of solar
energetic particles. Determine how coronal mass
ejections evolve from the Sun to the inner
solar system. 3. Determine the origins of solar
wind streams andinterplanetary magnetic
fields. JSTDT Report to be finished by Septembe
r, 2007
14
Where Sentinels will be!
15
SMEX Opportunity

• Small Explorer AO announcement in April, 2007
• Draft AO targeted for June 2007
• Final AO targeted for October 2007
• Proposals due 90 days after AO release
• Mission cost 105M, not including launch vehicle
• Mission of Opportunity allowance 70M
• Selections anticipated 4 months after proposals
  due

• Expecting to select 6-8 Phase A concept studies
• New experience standard for PI, but only PI

http//explorers.gsfc.nasa.gov/042407.html
http//explorers.larc.nasa.gov/smexacq.html
POC Dr. Hashima Hasan 202-358-0692 hhasan_at_nas
a.gov
16
ESA Cosmic Vision
ESA has started a process for Cosmic Vision
2015-2025 programme Two space science missions t
o be selected medium size mission cost 300M (
2007) for launch 2017 flagship class mission co
st650M (2007) for launch 2019
NASAs role in Cosmic Vision March 29 Dear Colle
ague letter sent to U.S. community through NRESS
email notification service from Paul Hertz
NASA received letters of interest from U.S.
community and is assessing the alignment of these
missions with Agency goals and priorities
Selected mission concepts that are aligned with
Agency strategic goals will receive a letter in
response signed by SMD AA End of June, NASA will
receive electronic copies of the proposals
submitted to ESA and future decisions will be
made http//sci.esa.int/cv2015
17
Missions In Development -Partnership
Opportunities

• Solar Probe-Lite Potential future collaborative
  opportunity (SQ)

• Strategic missions MMS and RBSP
• Solar Orbiter Sentinels Joint Science Project-
• Partnership in a SMEX mission - Response to FY08
  AO

• MOO from SMEX AO - Response to FY08 AO
• Cosmic Vision Concepts
• Review of proposals aligned with SMD strategic
  goals

• for possible US investigator support as per
  formula presented.

18
Roadmap Activities

• TENTATIVE MILESTONES
• Roadmap Planning with Heliophysics
  SubcommitteeJun and Sept 07

• Chairs identified, involved in planning
  Jul 07

• Community Call for Roadmap Team Nominees
  Aug-Sept 07

• Pre-roadmap workshops Fall 07
• Roadmap Team Appointed Oct 07
• Kickoff at AGU (Town Hall/mini-team meeting)
  Dec 07

• Roadmap Team Meeting 1 Jan 08
• Roadmap Team Meeting 2, inc. community
  workshop Mar 08

• Roadmap Team Meeting 3 Jun 08
• Roadmap status at HPS July 08
• Roadmap Overview to HQ Aug 08
• Red Team Review by HPS Sep 08
• Final Roadmap Draft Oct 08
• Roadmap Publication Dec 08 Jan 09

19
Coupling Sun, heliosphere, galactic environment,
and planetary climate Dynamos in stars and planet
s
Radiative and electromagnetic couplings
http//www.vsp.ucar.edu/Helio_info.html
