Title: Model Checking for an Executable Subset of UML


1

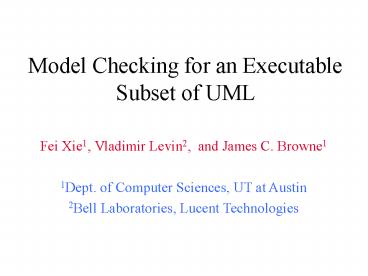

Model Checking for an Executable Subset of UML
  • Fei Xie1, Vladimir Levin2, and James C. Browne1
  • 1Dept. of Computer Sciences, UT at Austin
  • 2Bell Laboratories, Lucent Technologies

2
Motivations
  • Executable subsets of UML
  • Widely applied to model software system designs
  • Have well-defined execution semantics
  • Enable early verification of design models.
  • Model checking can potentially improve the
    reliability of executable design models.

3
xUML An Executable Subset of UML
  • A system consists of interacting class instances
  • Class instances communicate mainly through
    asynchronous message passing with buffering
  • State models are extended with state actions
  • State transitions are enabled by messages
  • System executions follow asynchronous
    interleaving semantics.

4
A Sample xUML State Model
State Transition
State Action
Message Type
State
5
Model Checking xUML Models
xUML Model
xUML Query
xUML Level Error Report
xUML-to-S/R Translation
Error Report Generation
S/R Model
S/R Query
S/R Query
COSPAN Error Track
Model Checking with COSPAN Model Checker
Legend
Input
Output
Data
Process
6
COSPAN Model Checker and S/R Automaton Language
  • COSPAN is a synchronous model checker and inputs
    models and queries formulated in S/R.
  • In S/R, a system is a synchronous parallel
    composition of its components modeled as
    processes.

Process Output
Process
Process Input
Process State Space
7
xUML Level Query Formulation
Proposition
Semantic Constructs of xUML Model
  • DECLARE Joint_2_in_Move_EE ltltJoint 2gtgt Move_EE
  • DECLARE Recovery_Called ltltRecovery 1gtgt
    recovery_status 1
  • NEVER (Joint_2_in_Move_EE AND Recovery_Called)

Instantiation of Temporal Template
8
xUML-to-S/R Model Translation
  • Maps class instances to S/R processes
  • Models asynchrony with synchrony
  • An S/R process as global execution scheduler
  • Message buffers by separate S/R processes
  • Simulates dynamic creation of class instances
  • Bounds infinite state spaces of xUML models.

9
State Space Reductions in Model Translation
  • Static partial order reduction (SPOR)
  • Translating static attributes to constants
  • Reducing the send and consumption of a self
    message into a single state transition
  • Ranging variables to facilitate symbolic model
    checking (SMC).

10
Error Trace Analysis Support
  • Visualize errors via simulation driven by error
    traces.

11
Effectiveness of State Space Reductions
  • A liveness property to be checked on online
    ticket sale system
  • xUML model translated to two S/R models with SPOR
    on or off
  • Two S/R models checked by COSPAN with SMC on or
    off.

SPOR SMC Memory Usage Time Usage
Off Off Out of Memory N/A
Off On 113.73M 44736.5S
On Off 17.3M 6668.3S
On On 74.0M 1450.3S
12
Conclusions and Future Work
  • An approach to model checking of xUML models is
    defined and implemented.
  • Non-trivial xUML models have been checked.
  • A robot control system
  • An online ticket sale system.
  • Integrated state space reduction that supports
    verifying larger models is being developed.
