RankSQL: Query Algebra and Optimization for Relational Topk Queries

1

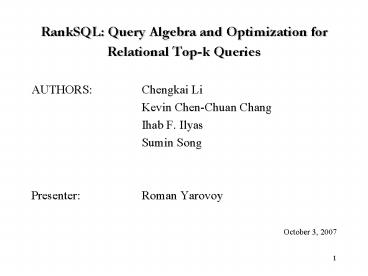

RankSQL Query Algebra and Optimization for
Relational Top-k Queries

• AUTHORS Chengkai Li
• Kevin Chen-Chuan Chang
• Ihab F. Ilyas
• Sumin Song
• Presenter Roman Yarovoy
• October 3, 2007

2
Before RankSQL

• Ranking (top-k) queries Query result is sorted
  by rank and limited to top k results.
• Support for ranking was lacking from RDBMS.
• Previously, isolated cases of top-k query
  processing were studied.
• No way to integrate top-k operations with other
  relational operations.

3
Previous (traditional) approach

• Query processing without ranking support
• Evaluate select-project-join (SPJ) query and
  materialize the result.
• Sort the result according to a given ranking
  function.
• Take only top k tuples.
• Associated problems
• No interest in total order of all the results.
• Evaluating ranking function(s) can be expensive.

4
Key contribution

• Li et al. proposed
• Extending relational algebra to support ranking
  as a first-class database construct.
• Consequence Rank-aware relational query engine
  ? Rank-aware query optimization.

5
Top-k query Example 1

• R

• T

6
Example 1 (contd)

• SELECT
• FROM R r, T t
• WHERE r.a1t.b1 AND r.a2gtt.b2
• ORDER-BY p1p2p3p4p5
• LIMIT 2
• (where F p1p2p3p4p5)

7
Rank-relational algebra

• There was no way to express such query in
  relational algebra.
• Extend relational algebra by adding rank as a
  first-class operation.
• Based on the observations of first-class
  constructs (eg. selection), two requirements are
  needed to support ranking
• Splitting Predicate-by-predicate rank
  evaluation.
• Interleaving Swapping rank operator with other
  operators (i.e. ranking is not only applied after
  filtering).

8
Ranking Principle

• Def Given a ranking function F and a set of
  evaluated predicates Pp1, p2, , pn,
  maximal-possible score of a tuple t is defined
  as
• Ranking Principle If FPt1 gt FPt2, then t1
  must be ranked before t2.

9
Rank-Relation

• Def For monotonic scoring function F(p1, , pn)
  and a subset P of p1, , pn, a relation R
  augmented with ranking induced by P is called a
  rank-relation, denoted by RP.
• Implicit attribute of RP is the score of tuple t,
  that is FPt.
• Order relationship of RP
• For all t1, t2 ? RP t1 lt RP t2 ? FPt1 lt
  FPt2

10
Operators of rank-relations

• Rank (or µ) operator adds a predicate p to set
  P.
• i.e. µp(RP) R P Up.
• Example 2 µp1(Rp2) Rp1, p2, where F?(p1,
  p2, p3).

11
Extended operators
12
Example 3 Extended Join

• pa1,a2,b2(sc (Rp1, p2 p3 JOIN Tp4, p5))
• SELECT r.a1, r.a2, t.b1
• FROM R r, T t
• WHERE c
• ORDER-BY F
• LIMIT 2
• (F ? P and c r.a1r.a2 lt t.b1)

13
Extended operators (contd)

• Note
• Cartesian product is defined similarly to join,
  but not discussed in the paper.
• Projection operator p has not changed.
• Computation is based on both Boolean and ranking
  logical properties.
• Perform Boolean operations and maintain the order
  induced by all given ranking predicates.

14
Equivalence relations

• In the extended rank-relational model, ranking is
  a first-class construct.
• Can derive algebraic equivalences from the
  definitions of operators (Proofs are omitted).
• Example 4
• sc(RP) (scR)P
• RP1 n TP2 (R n T)P1 U P2
• Thus, we can interleave the rank operator with
  other operators (i.e. push µ down across
  operators).

15
Equivalence relations (contd)
16
Equivalence relations (contd)

• Note
• Proposition 1 states that ranking can be done in
  stages (i.e. one predicate at the time).
• By Propositions 2, 3, and 4, the relations hold
  commutative and associative laws.
• By Propositions 4 and 5, µ can be swapped with
  other operators.

17
Incremental execution

• Blocking operators (eg. sort) lead to
  materialization of intermediate results.
• Goal To avoid materialization and implement a
  pipelining execution strategy.
• We want to split rank computation into stages and
  to reduce the number of tuples considered in the
  upcoming stages.
• We can output (i.e. advance to the next stage) a
  tuple t, whenever t has a score which is greater
  or equal to the score of any future tuple t'' .

18
Incremental execution (contd)

• Apply µp to RP and maintain priority queue
  ordered by P Up.
• Let X set of tuples from preceding stage.
• Draw t' from X.
• If FP Upt FPt' and FPt' FPt'' for
  any future t'' drawn from x,
• then FP Upt FP Upt'' and t can be
  output (proceed to next stage).

19
Example 5 Top 2 of W

• Given F AVG(p6, p7, p8)
• idxScanp6(W) µp7
  µp8

20
Different evaluation plans

• There exist algorithms to implement rank-aware
  operators as well as incremental evaluation.
• Efficiency of query evaluation will now depend
  not only on the regular operators, but also on
  the rank-aware operators.
• Due to algebraic equivalence laws, we can define
  additional evaluation plans.
• Hence, we want a query optimizer to take
  additional execution plans into consideration.

21
Rank-aware optimizer

• Extended algebra ? Extended search space.
• Impact on enumeration algorithm
• Li et al. designed a 2-dimension enumeration
  algorithm Dimension 1 Join size, Dimension 2
  Ranking predicates.
• The algorithm is exponential in both dimensions.
• Heuristics applied to reduce search space.
• Impact on cost model
• For ranking queries, it is more difficult to
  estimate the query cardinality of the
  intermediate results, whose accuracy is the core
  of the cost model.
• Authors proposed to estimate cardinality by
  randomly sampling tuples.

22
Critique

• Erroneous examples.
• No example of tie-breaking function.
• Bad explanation of incremental evaluation.

23
Future research directions

• Cardinality estimation New/improved techniques
  for random sampling over joins.
• Dynamically determined/chosen k.
• Exploring physical properties of rank-aware
  execution plans.
