Title: Linksys LNKWET11 Setup


1

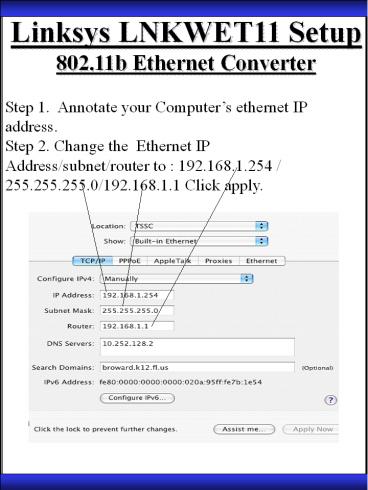

Linksys LNKWET11 Setup 802.11b Ethernet Converter
Step 1. Annotate your Computers ethernet IP
address. Step 2. Change the Ethernet IP
Address/subnet/router to 192.168.1.254 /
255.255.255.0/192.168.1.1 Click apply.
2
Linksys LNKWET11 Setup 802.11b Ethernet Converter
Step 3. Deselect Web Proxy/Secure Web Proxy from
the proxies settings.
3
Linksys LNKWET11 Setup 802.11b Ethernet Converter
Step 4. Open a Web browser and type
http//192.168.1.226/ in the address bar and
click enter. Step 5. Type admin in the password
field and press ok.
4
Linksys LNKWET11 Setup 802.11b Ethernet Converter
Step 4. The Setup Webpage displays the network
name and ip address. Step 5. Specify a unique
name to the device. Step 6. Select use
following IP settings radial button. Settings
should be default.
5
Linksys LNKWET11 Setup 802.11b Ethernet Converter
Step 7. Type in the name of the network in the
SSID field. Step 8. Make sure that Infrastructure
button is selected. Click apply and press the ok
button when displayed. Step 9. Enable WEP
radial button and click the settings button.
6
Linksys LNKWET11 Setup 802.11b Ethernet Converter
Step 10. Type the 10 digit password in the Key 1
field and select Key 1 radial button. Be sure
that 64 bit 10 hex is selected. ETS uses 5 digit
password in ASCII. To convert to Hex go
http//d21c.com/sookietex/ASCII2HEX.html leave
out the signs when entering in the Key1
field Step 11. Click the BOTH raidial
button. Step 12 Click on Apply. Press the OK
button and close the shared key window.
7362626331
7
Linksys LNKWET11 Setup 802.11b Ethernet Converter
Step 13 Click on Apply. Press the OK button and
close the shared key window. Step14 Change back
your IP address settings in the network
configuration
8
Linksys LNKWET11 Setup 802.11b Ethernet Converter
Step 15 Power the unit off and back on to
reboot. Note If you choose to use this
device to connect multiple computers to a
wireless network then change the switch x-II
switch to II. The wireless bridge comes
factory set to X for connections a single PC.
