Kinematics in one dimension

1

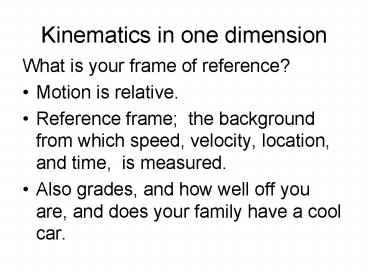

Kinematics in one dimension

• What is your frame of reference?
• Motion is relative.
• Reference frame the background from which
  speed, velocity, location, and time, is
  measured.
• Also grades, and how well off you are, and does
  your family have a cool car.

2
Speed distance / time How fast are they going?
3
How fast

• How fast is the man going relative to the plane?

4
Speed

• Speed is how fast something is going
• magnitude only.
• It is the distance traveled divided by the time
  interval during which the motion occurred
• SI units are meters and seconds or m/s
• Average speedd/t
• Meters / second

5
To signify the change in something

• We use delta
• Change in velocity can be also written as
• Final initial

6
How fast can you run

• Speed equals
• the change in distance over a given time

7
Make a graph from the tableWhat does the slope
of the graph represent?
8
(No Transcript)
9
Instantaneous speedAverage speed

• The speed at any instant
• In your car your speed is measured
  instantaneously by your odometer
• Average speed will be the final distance minus
  the initial distance divided by the time
  involved.

10

• We signify average with a bar over the SI unit

11
Remember the SI prefixes and base units

• 16 kilo 1,000 meters
• 100 Centimeters 1 meter
• 1,000millimeter 1 meter
• Speed will usually be measured in
• Meters per second or m/s

12
Velocity

• Velocity is a quantity describing both speed
• and direction
• Frame of reference makes a big difference
• Compare speed and velocity.
• What is the difference???

13
Constant velocity

• Must have not only constant speed
• Must also have same direction
• An object changing direction has a change in
  velocity

14
Average velocity

• Average velocity is the change in distance over a
  set period of time.
• You give an example.
• The formula is written as shown

15
Acceleration

• The rate at which the
• Velocity is changing
• Can be positive or negative
• Is it directional?

16
Acceleration

• Acceleration is the change in velocity divided by
  the time interval in which the change occurred.

17
Free Fall on earth

• All matter is attracted by all other matter
• Free fall means only gravity is affecting the
  object
• We are ignoring air resistance
• Elapsed time is ___________
• At the earths surface

18
Change in velocity
19
Acceleration in Meters per second square

• SI units are (meters per second squared)
• Acceleration due to gravity at the earths
  surface is 10 meters per second every second

20
Rules

• If the acceleration is positive then the velocity
  is increasing. If acceleration is negative then
  the velocity is decreasing.
• A change in direction is a change in acceleration
  whether or not your speed changes

21
More rules

• If velocity is constant, acceleration is 0
• A change in acceleration will cause the distance
  time graph to be curved.
• A constant acceleration will result in a linear
  increase in velocity.

22
Free fall (no air resistance)

• Instantaneous velocity
• of an object falling from rest
• after an elapsed time t can be
• expressed in meters
• per second, where
• g 10m/s every second

23
Graphing

• The slope of the distance /time graph is the
  velocity
• If the velocity is constant (not changing) the
  graph of the distance/ time will be a straight
  line
• If there is acceleration the distance/time graph
  will be curved

24
Constant acceleration

• Using calculus Newton found that given constant
  acceleration (gravity)
• Distance equals ½ the acceleration times the time
  involved squared

25
Constant velocity, no acceleration
26
Constant Acceleration
27
Constant accelerationSlope of the velocity /
time

• Increasing velocity
• Constant acceleration
• Distance will increase
• in a curved line

28
Chapter 3 Projectile Motion

• Chapter 2 was Linear motion
• in one plane
• either constant velocity and no acceleration or
  accelerated motion
• Chapter 3 is Non linear motion in a curved path
• Two components
• Vertical or y axis
• Horizontal or x axis

29
Scalar vs. vector quantities

• Scalar is magnitude only. Examples mass

30
Soh Cah Toa

• Pythagoras Theorem - a2 b2 c2 Sine Rule -

31
Resolving Vectors

• To add two vectors, it is necessary simply to put
  the one vector directly after the other. The
  third vector then completes a triangle, which is
  the resultant vector if the other two are added
  together. This can be found using Pythagoras'
  Theorem if the triangle is a right-angled
  triangle, or the sine and cosine rules if it is
  not.

32
Projectile Motion

• Follow a curved path
• Look at horizontal path independently of vertical

• If no air resistance or other force is present
  horizontally the horizontal velocity remains
  constant
• Vertical velocity will be affected as in chapter
  2 by 10 m/s squared

33
Projectile motion

• Consider the vertical component independent of
  the horizontal component
• To calculate the time in the air use formulas
  D1/2 gt squared
• and vgt
• Find the vertical hang time and the use this to
  calculate the horizontal distance

34
Range x axis

• Horizontal ranges the same if the sum of the
  degrees is 90
• Example a projectile at 30 will have the same
  range as one that is at 60
• Do an example using 20 m/s

35
Satellites

• Projectiles that are traveling fast enough to
  fall or circle around the earth are satellites
• Example is 8km/s at altitudes of 150 km
• Force of gravity at that altitude is almost the
  same as on earth
• No or little air

36
Horizontal and vertical components

• Vertical component use
• sin function

37
Momentum PMV

• It is a vector
• Direction counts
• Once you go
• the wrong way
• you will keep going
• the wrong way!

38
Momentum

• Momentum a quantity defined as the product of an
  objects mass and its velocity.
• Momentum has direction like velocity.
• Momentum mass times velocity
• Momentum pmv

39
Momentum out of control

• Going too fast
• Going in the
• wrong direction

40
Conservation of ?

• Conservation of momentum The total amount of
  momentum in a system is conserved.
• Other conservations of ?

41
Bouncing off?

• Items may bounce off each other but the total
  momentum is conserved.
• They may collide and have the same total momentum
  after the collision as before.

42
Conservation of ?

• Conservation of momentum The total amount of
  momentum in a system is conserved.
• Other conservations of ?

43
Calculate mass

• Conversion of lbs. to kg
• One pound .45 kilograms
• One kilogram 2.2 pounds
• Good site http//www.easysurf.cc/cnvert.htm
• One foot .3 meters
• One meter 3.28 feet

44
Calculate momentum
45
Why does the earth still spin
46
Momentum is of two kinds, angular and linear.
47
Angular momentum

• Angular momentum is the tendency of a rotating
  object to keep rotating at the same speed about
  the same axis of rotation.
• angular velocity (symbol w), measured in radians
  per second (a radian is about 1/6 of a full
  circle -- there are 2p radians in a full
  circle).

48

• the magnitude of the angular momentum in this
  case is L mvr, where L is the angular momentum,
  m is the mass of the small object, v is the
  magnitude of its velocity, and r is the
  separation between the objects

49
Angular momentum (spin)

• Angular momentum is conserved
• Why do you go faster when you pull in arms?

50
Calculate angular momentum
51
Formulas you must know.

• Distance equals average velocity times time
• Distance equal
• One half acceleration
• Times time squared

52

• Momentum equals mass times velocity
• One hour 3,600 seconds
• 1km 1,000 m

53
Balanced forces? Acceleration?
54
Acceleration
55
Graphs of acceleration, distance and velocity
56
Force

• Force The cause of acceleration, or change in
  an objects velocity

57
Newtons
58
Forces balance
59
Net force

• Usually there are many forces acting on an object
  at the same time.
• What are some of those forces on you?
• Net force the combination of all of the forces
  acting on an object. Direction is important.
• An object accelerates in the direction of the net
  force, and the acceleration will be the force
  divided by the mass.

60
Unbalanced forces

• the net force will cause the object to move.
• If forces are balanced there is no acceleration

61
Draw in the other forces to balance this car

• Gravity
• Forces on the
• Wheels
• To make the car
• accelerate

62
Unbalanced forces and momentum

• http//www.regentsprep.org/Regents/physics/phys01/
  accident/default.htm
• Car crashes forces and momentum

63
Friction

• Friction is a force that is created whenever two
  surfaces move or try to move across each other.
  It opposes the motion of either object
• Friction is dependant on the texture of both
  surfaces.
• Friction is also dependant on the amount of
  contact force pushing the two surfaces together
  (normal force).

64
Friction slows us down
65
Incline plane and gravity
66
Friction
For Objects in Motion Kinetic Friction f mkn

67
Some values for the coefficient of friction

• avg. tire-on-dry pavement 0.9
• smooth tire-on-wet pavement 0.5
• glass-on-glass 0.9
• metal-on-metal (dry) 0.6
• metal-on-metal (lubricated) 0.1
• steel-on-Teflon 0.05

68
Air resistance

• Air resistance is a form of friction.
• Surface area shape, speed, and turbulence cause
  increases in air resistance

69
Gravity
70
Newton's Law of Gravity

• Each object in the universe attracts each other
  body. If object A has mass Ma and object B has
  mass Mb,then the force F on object A is directed
  toward object Band has magnitude
• F G Ma Mb / r2

71
Gravity

• The force of attraction between two particles of
  matter due to their masses.
• The law of universal gravitation acts upon all
  the objects in the universe.

72

• Where G is the gravitational universal constant
  and m represents the mass of the two objects
  being attracted and d is the distance that they
  are apart.

73

• Acceleration of gravity at the surface of the
  earth is - 9.81 m/sec. sec.
• Free Fall The motion of a body when only the
  force of gravity is acting on it.

74
We are all attractive
75
Weight versus mass

• Weight mass times free fall acceleration.
• On land weight influences shape of the organism.
  Why not in water.
• Weight in space is ?

76
Terminal velocity

• Terminal velocity when the
• Air resistance
• Force of gravity
• Balanced forces
• No acceleration

77

• Terminal Velocity the maximum velocity reached
  by a falling object that occurs when the
  resistance of the medium is equal to the force
  due to gravity.
• Velocity will be constant once the force are in
  balance and terminal velocity is reached.

78
Jumping out of a plane

• First out of plane accelerate
• Terminal velocity

79
De acceleration when the chute opens
80

• Archimedes principle The buoyant force on an
  object is equal to the weight of the fluid
  displaced by the object.
• Why do steel boats float?

81
Newtons three laws

• Newton First Law of Motion An object at rest
  remains at rest and an object in motion maintains
  its velocity unless it experiences an unbalanced
  force.

82
Inertia

• Inertia the tendency of an object to remain at
  rest or in motion with a constant velocity.

83
Newtons Second Law

• Newtons Second Law The unbalanced force acting
  on an object equals the objects mass times its
  acceleration.

84
Newtons third law

• Newtons third law For every action force, there
  is an equal and opposite reaction force.

85
Newtons second law
86
Newton's the measurement of force

• Units are Newton's which equal kilograms meters
  per second squared.
• One Newton equals .225 pounds.

87
Why hydraulics work

• Pascals principle When force is applied to a
  confined fluid, an increase in pressure is
  transmitted equally to all parts of the fluid.
• The pressures must be the same
• Pressure Force / Area
• Force Pressure times Area

88
How to lift a massive item

• The small
• Cylinder will move
• Further than the
• Large cylinder

89
Why a planes wings work

• Bernoullis principle the pressure exerted by a
  moving fluid is less than the pressure of the
  surrounding fluid.
• A faster moving fluid (air) has less pressure.
• Air must move faster (go further) on the top
  surface of the wing, therefore the pressure is
  less.

90
Bernoulli's law and airplane wings
91
Net force of the wing is up
92
Must know

• Velocity versus speed, motion
• Distance, velocity and acceleration
• Momentum
• Friction
• Gravity
• Terminal velocity
• All of Newtons laws
• PASCAL's laws and Bernoullis
