SMDC OneSAF CoDevelopment Lab OCDL Status Briefing

1

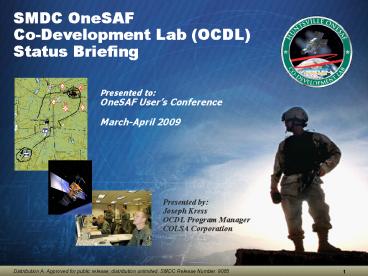

SMDC OneSAF Co-Development Lab (OCDL) Status
Briefing
Presented to OneSAF Users Conference March-Apr
il 2009

• Presented by
• Joseph Kress
• OCDL Program Manager
• COLSA Corporation

2
The Huntsville OneSAF Co-Development Lab
OCDL Mission Provide SMDC an in-house integrated
and demonstrable MS capability in support of new
acquisitions for the Warfighter with emphasis on
Space and other electronic based systems . . .
. . . Providing the Warfighter a realistic
testing and Modeling/Simulation environment,
analysis toolset, for space and other systems
models.
3
Co-Development Lab Milestones

• MayISR development began. Initiated development
  of a Satellite Imagery Capability.
• October ISR Handover Package (Source Code,
  Development Artifacts, Test Plans, Procedures,
  Test Results). Integrated ISR into OneSAF
  baseline. Added eleven commercial satellites with
  EO sensor capability and a high-efficiency LEO
  mobility model (GRoSP algorithm) for computation
  of the satellite orbits.
• DecemberInternal Federation Demonstration with
  OneSAF, Space Server, and CES. Verified component
  and federation connection thru RTI.

• FebruarySpace-Based SATCOM/TACSAT 3 Handover.
  Functionality included HSI Sensor
  Representation Enhanced Target Detection
  TACSAT3 representation SATCOM Constellations
  SATCOM Networks and SATCOM Message Distribution.

• MarchEW Research Project Kickoff.
• Sept-OctHA Project Kickoff.
• NovEW Comms/GPS Jammer Models Handover.

2006
2007
2008
2005
2009

• February2nd ISR Handover integrated into OneSAF
  Version 1.0 providing Mobile Ground Station (MGS)
  capability with communications links between a
  satellite and ground C2 networks. MGS
  improvements included an imagery analyst
  representation explicit mobility
  communications and a user-modifiable time delay
  exploitation process.
• March Federation Materials/Project completed.
• July 3rd ISR Handover included Infrared Target
  Acquisition Model Multiple Sensor Payload
  Collection Planner MEO Satellites movement
  Algorithm and GEO Satellite Movement Algorithm.
  A multiple sensor capability, allowed satellites
  to have a two-sensor payload, EO and IR.
• JulyJBFSA Handover included GPS Orbit
  Initialization Data GPS DoP Algorithm BFT Radio
  DoP Algorithm and MEO/GEO AoI Access
  Determination Algorithms for a JBFSA MMC Entity.

• AprilOCDL concept explored based on FACT
  requirements
• AugustODCL initiated IDE Servers Arrive and
  User/IDE/Training conducted.
• SeptemberOneSAF JBFSA Research Project Kickoff.
• OctoberOneSAF Research Project Kickoff. Joint
  Federation program. Provides an environment to
  examine Space Effects on a Communications
  network.
• DecemberDedication of COLSA OCDL Established to
  facilitate Space Modeling and Simulation
  Development efforts. Introduced the capability to
  community.

4
Potential FY09 Projects
Electronic Warfare
SMDC Support

• Handover corrections support
• Enhance GPS Jammer Model
• Enhance Communications Jammer Model
• HPC investigation (federate w/ higher fidelity
  Model)
• Investigate Software Defined Radio (SDR) usage
  with OneSAF as a Virtual-constructive step to
  live jammers
• Build initial Live Jammer interface to OneSAF
• General enhancements
• Jammer Fan
• Direction Finding capability
• Long Term EW into OneSAF Plan
• Better 3D Viewer for test analysis,
  demonstrations, After Action reports

• Complete Generic HAA Model and build Handover
  materials package
• Populate HAA generic model with actual HAA
  parameters and conduct/support SMDC performance
  and stress testing
• Design and build a series of viable scenarios
  that leverage Space-based assets (varying size
  and complexity)
• Assist SMDC in the parameter population and
  creation of secret satellites and sensors
  behaviors
• Expand the GPS capability to additional entity
  types (other radios, JDAMS, etc.)
• Build a Program Plan that will strategize the
  movement of high priority FACT issues/requirements
  into development and implementation into OneSAF
• Build Space related training and support package
  for potential Space-OneSAF Users
• HEO Orbit model

5
Recent EW Research Activities

• Researched Areas
• Communication Jamming
• GPS Jamming
• Direction Finding
• MATREX
• CES (Qualnet)
• OneSAF Jamming Infrastructure (1.5, 2.0)

• Research Findings
• Low Fidelity Jamming Infrastructure exists in
  OneSAF
• Simple degraded comms jamming
• Emitter Beam Manager
• CES integrated with OF (FCS) OneSAF
• MATREX support exists in OneSAF
• Communication Jamming 1) Perfect Comms 2)
  Degraded Comms simple propagation with jamming
  3)TIREM complex propagation with no jamming
• GPS - No GPS jamming capability
• Activate Emitter - Behavior supports single
  frequency, on/off cycle and mission duration

6
Communication Jammer Design

• Communication Jamming Effects
• Create two Communication Models
• Model Based on TIREM model
• Reuse TIREM message propagation for both J and S
  in J/S ratio calculation
• Complex calculations
• Model based on Degraded Comm model
• Uses simple path loss, power, frequency checks
• Less calculations than TIREM but more capable
  than existing OneSAF models
• Transmitter and receiver omni-directional
  antenna (azimuth 360)
• Jammer may have directional antenna
• Adjust jammer antenna gain due to directional
  characteristics
• Add barrage and sweep jamming modes
• Add generic jammer entities and units for testing

ds
Designed Propagation Path
Receiver
XMTR
Jamming Propagation Path
dj
Jammer
7
GPS Jammer Model Design

• GPS Jamming Effects
• Implement a proof of concept use for demos etc
  to work out additional requirements
• GPS receiver and jammer have omni directional
  antennas
• Attributes frequency, simple LOS, range
• Build framework for follow on GPS jamming
  efforts
• Implicit GPS signals
• C/A Signal Jamming only
• GPS Signals have constant strength at ground (No
  path loss)
• Jam one GPS satellite then jam all GPS Satellites
  at the receiver
• Test using existing JBFSA BFT capability

8
GPS Jammer Design Details

• IEW IOC Models
• Jammer Mission
• IEWActivateJammingEmissions
• Jammer
• IEWJammerModel
• Communication Jamming
• IEWIrregularTerrainEffectsCommsModel
• IEWDegradedCommsModel
• GPSJamming
• GPSLocation

• Jammer Configurable Data
• Maximum effective antenna angle ()
• Antenna gain (dB)
• Cable losses (dB)
• Power (dBm)
• Antenna height (m)
• Maximum effective jammer range (m)

• GPS Jamming Configurable Data
• GPS Jamming Enabled Flag (default FALSE)
• GPS Frequency (defaultL1)

• Jammer Mission Configurable Data
• Mission duration (hhmmss)
• Jamming Type (Spot, Barrage, Sweep)
• Beam Azimuth (compass degrees)
• Frequency Center (MHz mSpot)
• Min Frequency (MHz ,Barrage Sweep)
• Max Frequency (MHz ,Barrage Sweep)
• Duty Cycle ON Time (hhmmss)
• Duty Cycle OFF Time (hhmmss)
• Sweep Frequency Step (MHz, Sweep)
• Sweep Time Step (hhmmss)

• Comm Jamming Configurable Data
• Radio Mode (Frequency Modulation)
• Radio Frequency (MHz)
• Radio Polarization (Vertical/Horizontal)
• Radio Antenna Gain (dB)
• Radio Cable Losses (dB)
• Radio Power (dBm)
• Radio Min Discernable Sensitivity (MDS)
• Perfect Communications (defaultTRUE)
• Check Line of Sight (default TRUE)
  (IEWDegradedCommsModel only)

9
EW Working Use Cases

• GPS Acquisition Jamming
• GPS Military Radio Jamming M-code
• GPS Spoofing
• GPS Guided Munitions
• GPS Acquisition Deception
• GPS Jamming State Of Change
• GPS Military Radio Jamming Anti-jam
• GPS Lock Jamming

• Spot Jamming
• Data Collection
• Barrage Jamming
• Jammer Operations
• Sweep Jamming
• Standalone Direction Finder
• Multiple Direction Finders
• Direction Finding Comm Emissions
• Direction Finding Operating Duration
• Matrex Unit Movement Jammer Enable/Disable
• Communication Spoofing

10
Direct Fire Scenario
Comms Jamming of Bravo One Tank Platoon
Threat Jammer
Threat Tanks
Bravo1
HQs
Threat Tanks
Bravo2
Bravo3
11
GPS Scenario
FSE
BFT HQ
Forward Observer
Threat TOC
FA Support
MMC
Threat FA
TAC
FSE
FDC
Threat Jammer
GPS Unit
FA
Ammo Supply
BFT Recon
12
Co-Development Lab Services
13
Questions?
Distribution A Approved for public release
distribution unlimited. SMDC Release Number 9085
