TETRA and Information Technology

1

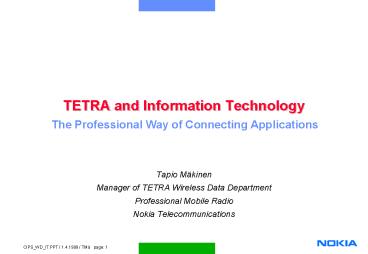

TETRA and Information Technology
The Professional Way of Connecting Applications

• Tapio Mäkinen
• Manager of TETRA Wireless Data Department
• Professional Mobile Radio
• Nokia Telecommunications

2
TETRA and Information Technology, Agenda

• PSS Special needs for Data Applications
• Application type segments
• Data service and application providers
• TETRA Data Services
• APIs, Application Integration to TETRA
• WAP
• Software development steps
• System integration and testing

3
Clearly Defined Open API for Data Services

• Open standards TETRA, WAP, TCP/IP
• Standard and commonly accepted IT protocols
  preferred
• Widely used interface technology like Microsoft
  COM
• Interoperability with existing services and
  networks
• Easy integration, migration and future proof
• Platform for 3rd party products and solutions
• Local and national solutions

Appli- cations
Content
Appli- cations
API
TETRA
API
data voice
4
Special needs for Wireless Data in PSS

• Content of the service is confidential and
  organization depended
• Existing Command and Control Room systems and
  applications must migrate
• Service usage level is high
• information push from the Dispatcher and status
  messaging
• data access from the field
• AVL systems
• Wireless Data services are time critical
• Service must work in reliable way

5
Information to the Field Forces

• Using world wide standards like TCP/IP and
  Microsoft COM in TETRA interfaces makes possible
• well known and best applications can be used with
  TETRA and Office
• AVL, E-Mail products and text information to
  field forces
• Information to field, enables fast decision
  making
• Police force can purchase and develop new
  application from 3rd parties
• TETRA WAP

location info, status, reports, database access
TETRA
task description, instructions, address, maps
6
Wireless Data Communication Needs
Vehicle Location Workforce Management Unit
Status Instructions Information Push Information
Retrieval, Inquiries Task Related
Information Identity Vehicles, Weapons,
Fingerprints Maps Chemicals Reporting Task Course
Operations Control Monitoring Alarm
devices Burglar Alerts Environmental
Measurements Field Equipment Telemetry Surveillanc
e Video Still/Video Image
Control Rooms IT Systems Databases Data
Networks Instrumentation
Portable Users Vehicle Users Fixed Equipment
7
Data Application Segments

• AVL, Automatic Vehicle Locations
• Tracking, transport systems, locate and monitor
  vehicles
• Fleet Management
• organization (company) makes routines more
  effective
• Data Access Services
• Pull Information Services, Intranet access,
  Terminal session to browse information, pictures
  and maps, LAN/WAN interworking
• Messaging Services
• Fax, Email, Short Data
• Embedded Telemetry
• devices send automatically information
• remote control and diagnostic
• surveillance
• Segments have different partners, products, usage
  areas and needs

8
AVL - Automatic Vehicle Location

• Mandatory application in all PSS projects
• SDS messaging
• No extra radio terminal needed in the vehicle
• New AVL systems have area triggering, time
  triggers etc.

GIS
location info
TETRA
9
Access to Intranet/Internet
Application
Tetra Network
Appli cation
Internet
Backbone/transmission
Company Intranet
Control Room Intranet
Enterprise Intranet
Web Server Database Servers Applications
Web Server
Applications
10
Data Access Services

• Needs
• Faster and effective communication, Reporting
• The right information in right time
• Access organization's data stores, Database
  queries
• "Pull" information services
• Information retrieval, Mobile office,
  Client/Server computing
• Users Field Sales, Field Services, Mobile
  Professionals, Delivery professionals etc.
• IP Packet Data
• SDS for application for small data amounts
• 3rd party middleware software products for
  optimize the TCP/IP
• TETRA WAP is good application environment in the
  future

11
Messaging

• Using the TETRA network as extranet/Intranet of
  the organization
• Email
• Fax
• Short Data Messaging
• Special application for PSS communications
• People to people communications
• Middleware products for optimization the TCP/IP
  traffic

12
Embedded Telemetry

• Devices and Control system communicate
  automatically
• TETRA is transmission network
• remote control and monitor
• transmit measurement data
• alerts and information
• Organizations are looking for better and new
  services
• efficiency

13
New Business area Data Service Providers
TETRA network
Wireless Data Service Provider
Service B
Application
Service A
TETRA Operator
Operator's Own Services
Company
Application
Organization B
Organization D
Application
Company A
14
TETRA Data Services, Summary

• Status service
• 16 bit integer data, fixed length
• 32768 values free for application use
• Fast delivery with minimum load to radio path
• Group addressing
• Short Data service, SDS
• 4 types of SDS messages. 16/32/64 bits and 126
  bytes.
• Fast delivery (less than 0.5 sec), small load to
  radio path
• Group addressing
• SDS-TL, Transport layer
• IP Packet Data
• Standard TCP/IP protocol layer (winsock) for
  applications
• Fast connection setup
• Economic radio path usage, automatic
  disconnection at inactive periods
• Circuit Mode Data

15
Status Service in the TETRA

• Pre-coded status numbers are transmitted, both
  sides know what numbers means
• 16 bit integer data, fixed length
• 32768 values for application use
• 32768 values reserved for further standardization
• General acknowledgment
• Fast end-to-end delivery with minimum load to
  radio path
• TETRA address space
• Group addressing.
• Call unrelated
• Messaging during ongoing speech call
• Emergency status goes always through

16
SDS Service in the TETRA

• The TETRA standard defines four different SDS
  message types
• SDS--1 Values 0 - 65535 are free for application
  designers. Different PDU (Protocol Data Unit)
  header than in TETRA Status messages.
• SDS--2 32--bit--long messages, all values are
  free for application designers
• SDS--3 64--bit--long messages, all values are
  free for application designers
• SDS--4 messages of variable length
• (1017 bits, 1261 bytes, with advanced link max
  2551 bytes data)
• Address is ITSI address (same as in the voice
  calls)
• Sending SDS to the Groups is possible
• On-Line, End-to-end delivery
• Uses master signaling channel
• SDS-TL (Transport Layer) standard
• basic text messaging protocol for end to end
  acknowledgements

17
SDS-TL (Transport Layer) Services

• end-to-end acknowledgement of message receipt and
  consumption by application
• support for multiple application protocols
• point-to-point and point-to-multipoint message
  transfer
• broadcast message transfer
• SDS-TL Text Messaging will be supported (subset
  of the whole SDS-TL)
• A short report mode (using SDS precoded status)
• negative acknowledgements
• Protocol/encoding not supported
• Destination memory full
• Message received
• A long report mode (using SDS UDD-4)
• four negative acknowledgements
• Destination not registered on system
• Delivery failed
• Unknown destination, gateway, or service centre
  address
• Group address with individual service

18
TETRA IP Packet Data
Application
Tetra Network
Appli cation
Internet
Backbone/transmission
Company Intranet
Control Room Intranet
Enterprise Intranet
19
IP Packet Data in the TETRA

• IP protocol fits well to bursty traffic (IP
  Internet protocol)
• Enables long session times gt "always on, always
  connected"
• Radio resources used economically
• Connectivity to the surrounding IT world
• Products available in Client and Server side
• Numerous application segments can use IP network
• Future-proof protocol layer (TCP/IP) for the
  applications
• roaming and handover supported
• IP address allocation static or dynamically,
  private and public IP addresses
• TCP/IP Winsock layer for Applications

20
TETRA IP Packet Data Air Interface

• Uses Assigned Secondary Control Channel (ASCCH)
• With 1 timeslot channel gross rate is 4,8 kbits/s
• TETRA provides robust data link
• Retransmissions of entire datagram
• Selective retransmission of corrupted frames
• Windowing (acknowledgement of multiple datagrams
  at once)
• Air interface encryption applies to IP

TS1
TS2
TS3
TS4
Terminal with IP support
MCCH
X
X
X
Main carrier
X
X
X
X
2nd carrier
X
X
X
X
3rd carrier
TBS with IP support
X
X
X
X
Etc.
21
Data Service Launch Roadmap
Service features
Middleware and new applications
simple applications
IP multislot
IP
new applications with SDS-TL
applic. migration
SDS
SDS-TL
SDS1-4
applic. migration
new applications
STATUS
Time
22
WAP with TETRA
Tetra Network
binary WML
TBS
DXT
WAP Server
Internet
Backbone/transmission
HTML
WAP Server
Company Intranet
Control Room Intranet
Enterprise Intranet
Web Server Database Servers Applications
Web Server
Applications
23
WAP product areas

• Functional areas
• Terminal applications
• Mobile network
• Connectivity products
• Applications
• Content

• Market areas
• Network operators
• Corporate customers
• WAP product vendors
• End-users

Terminals
Network
Connectivity
Applications
Content
24
Markets, Products, Partners
TETRA Network and Terminal manufacturers
API Application Programming Interface/Integratio
n Products
Network, Terminals
TETRA operators TETRA user organizations
Software and Application houses
Solutions
System Integrators
Local and National
