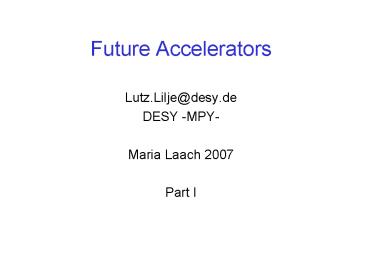

Future Accelerators

1
Future Accelerators

• Lutz.Lilje_at_desy.de
• DESY -MPY-
• Maria Laach 2007
• Part I

2
References (Real Paper)

• Accelerator Physics Courses
• Physik der Teilchenbeschleuniger und
  Synchrotronstrahlungsquellen, Klaus Wille,
  Teubner Verlag, Studienbücher, 2. Auflage 1996
• Proceedings of CERN ACCELERATOR SCHOOL (CAS),
  Yellow Reports
• General Accelerator Physics, and topical schools
  on Vacuum, Superconductivity, Synchrotron
  Radiation, Cyclotrons, and others
  http//schools.web.cern.ch/Schools/CAS/CAS_Proceed
  ings.html
• E.g. 5th General CERN Accelerator School, CERN
  94-01, 26 January 1994, 2 Volumes, edited by
  S.Turner
• Accelerator Physics General
• Handbook of Accelerator Physics and Engineering,
  A.W.Chao and M.Tigner, World Scientific, 1998
• Technology Topics
• Superconducting Accelerator Magnets, K.H.Mess,
  P.Schmüser, S.Wolff, WorldScientific 1996
• RF Superconductivity for Accelerators, H.
  Padamsee, J. Knobloch, and T. Hays, John Wiley
  Sons, 1998.
• The Superconducting TESLA Cavities, B. Aune et
  al., PRST-AB, 3, September 2000, 092001.
• Historical and Sociological Aspects
• A BRIEF HISTORY AND REVIEW OF ACCELERATORS, P.J.
  Bryant, CERN, Geneva, Switzerland, CERN 94-1
• Pions to Quarks, edited by L. M. Brown, M.
  Dresden and L. Hoddeson, (New York Cambridge
  Univ. Press, 1989).
• The Birth of Particle Physics, edited by L. M.
  Brown and L. Hoddeson (New York Cambridge
  University Press, 1983).
• Galison, Peter u. Bruce Hevley (Hg.) Big
  science the growth of large-scale research.
  Stanford Univ. Pr., 1992
• Traweek, Sharon Beamtimes and lifetimes the
  world of high energy physicists. Harvard
  University Press 1988
• Rhodes, Richard, Die Atombombe

3
References (Virtual)

• Wikipedia
• http//en.wikipedia.org/wiki/Particle_accelerator
• Accelerators
• Lecture by Rüdiger Schmidt (german)
• http//rudi.home.cern.ch/rudi/lectures20darmstadt
  /overview.htm
• LHC http//lhc.web.cern.ch/lhc/
• XFEL http//xfel.desy.de/tdr/tdr/index_eng.html
• ILC http//www.linearcollider.org/cms/

4
Outline

• History of particle accelerators
• Particle accelerators concepts
• New particle accelerators for HEP
• LHC
• ILC
• Technology challenges in particle accelerators
  e.g.
• Superconducting Magnets
• Superconducting Cavities
• Outlook

5
History of particle accelerators

• One can try to identify three main lines
• Electrostatic
• E.g. tandem accelerators
• Resonant acceleration
• Accelerating structures in virtually every
  accelerator built today
• E.g. RF Linacs
• Betatrons

6
Electrostatic Accelerators

• 1857 Heinrich Geissler
• Gas discharge tubes
• http//www.infogr.ch/roehren/roehren.htm
• 1858 Julius Plücker
• First cathode ray tubes electron sources
• 1886 Eugen Goldstein
• Kanalstrahlen ion sources
• 1895 Lenard.
• Electron scattering on gases (Nobel Prize). lt 100
  keV electrons.
• One of the initiators of the Deutsche Physik
  in the 1930/40s
• 1913 Franck and Hertz
• excited electron shells by electron bombardment.
• 1906 Rutherford
• bombards mica sheet with natural alphas and
  develops the theory of atomic scattering.
• 1911 Rutherford
• publishes theory of atomic structure.
• 1919 Rutherford induces a nuclear reaction with
  natural alphas
• 1928
• ... Rutherford believes he needs a source of many
  MeV to continue research on the nucleus. This is
  far beyond the electrostatic machines then
  existing, but ...

7
Rutherfords Dream

• It has long been my ambition to have available
  for study a copious supply of atoms and electrons
  which have an individual energy far transcending
  that of the alpha- and beta-particles from
  radioactive bodies. I am hopeful that I may yet
  have my wish fulfilled... .
• E. Rutherford Proc. of the Royal Society of
  London, 117300 (1927)

8
Cathode Ray Tubes (Railway tube Crookes)
http//www.infogr.ch/roehren/roehren.htm
9
Kanalstrahlen http//www.infogr.ch/roehren/roehren
.htm
10
Van de Graaff Generator

• hollow metallic sphere (with positive charges)
• electrode connected to the sphere, a brush
  ensures contact between the electrode and the
  belt
• upper roller (for example in plexiglass)
• side of the belt with positive charges
• opposite side of the belt with negative charges
• lower roller (metal)
• lower electrode (ground)
• spherical device with negative charges, used to
  discharge the main sphere
• spark produced by the difference of potentials
• Tandem concept with stripping for doubling the
  voltage

11
25 MV Tandem (Oak Ridge)
12
Towards Resonant Acceleration

• Electrostatic accelerators are limited to a few
  Megavolts because
• therefore use resonant acceleration
• Accelerating structures in virtually every
  accelerator built today
• E.g. Radiofrequency (RF) Linacs
• Power Sources are readily available (e.g.
  klystrons from radar or TV)
• 1924 Ising
• proposes time-varying fields across drift tubes.
• This is "resonant acceleration", which can
  achieve energies above that given by the highest
  voltage in the system.
• 1928 Wideröe
• demonstrates Ising's principle with a 1 MHz, 25
  kV oscillator to make 50 keV potassium ions.
• 1929 Lawrence
• inspired by Wideröe and Ising, conceives the
  cyclotron.
• 1931 Livingston
• demonstrates the cyclotron by accelerating
  hydrogen ions to 80 keV.
• 1932 Lawrence
• cyclotron produces 1.25 MeV protons and he also
  splits the atom just a few weeks after Cockcroft
  and Walton (Lawrence received the Nobel Prize in
  1939).

Sparking during conditioning the 25 MV Tandem in
Oak Ridge
13
Linear Accelerator (LINAC)
l1
l2
l3
l4
l5
l6
l7
Teilchen quelle
HF-Sender mit fester Frequenz
Driftröhren aus Metall

• Particles from the source are accelerated towards
  the first drift tube
• While passing through the tube the potential
  changes the sign
• When leaving the first drift tube they will be
  accelerated towards the second drift tube
• As the speed increases the distance between tubes
  increases (and their length

14
li

• Energy of the particles after tube i
• U0 maximum Voltage of the HF source,
• and ?s the average phase during the passage
  between the tubes of the particle

• Consequence
• No continuous beam can be accelerated,
• Need particle bunches
• Length from few 10 um upto 1m

15
Linac at FERMILAB

• 1971, upgraded in 1993
• Linac can accelerate beam to 400 MeV
• Low energy end of the Fermilab linac is an
  Alvarez style drift tube linac.
• The accelerating structures are the big blue
  tanks shown in the photo.
• The five tanks of the low energy end take the
  beam from 750 KeV to 116 MeV.
• The resonant frequency of the cavities is 200
  MHz.

16

• FERMILAB Linac

17
FLASH (VUV-FEL) Facility at DESY
TTF / FLASH
18
Circular Accelerators Betatrons

• Basic idea
• A time varying magnetic field induces a circular
  electrical field
• 1923 Wideröe
• a young Norwegian student, draws in his
  laboratory notebook the design of the betatron
• Two years later he adds the condition for radial
  stability but does not publish.
• 1927 Wideröe
• makes a model betatron in Aachen, but it does not
  work.
• Discouraged he changes course and builds the
  linear accelerator (see above)
• 1940 Kerst
• re-invents the betatron and builds the first
  working machine for 2.2 MeV electrons.
• 1950 Kerst
• builds the world's largest betatron of 300 MeV.

19
Circular Accelerators Cyclotron Principle

• Particle moving in perpendicular magnetic field
• results in a circular motion
• Equilibrium of Lorentz- and centrifugal forces
• Revolution time is constant, thus the frequency
  of the acclerating field
• Independent of energy and velocity
• If B constant, R will increase!

20
History Excursion Ernest Orlando Lawrence

• Born August 8, 1901
• Died August 27, 1958
• 1930 4 inch cyclotron
• 1932 27-inch
• 1945184-inch
• Relativity speed limit, frequency ramp needed

21
History Excursion Ernest Orlando Lawrence
N.B. Tubealloy was the WW II code word for
uranium

• Lawrence is one of the founders of what is called
  Big Science
• Big Science as opposed to the small laboratory
  work has certain features
• Big budgets
• By government
• Big staffs
• Diversification into specialist areas
• Big machines
• See slide before.
• Big laboratories
• Big national labs in the US, CERN, DESY,
• Several methods for getting money to built larger
  machines were explored by Lawrence
• Medical application e.g. cancer treatments
  already before world war II (WW II)
• Military applications e.g. Isotope separation
  with the Calutron and isotope production with the
  cyclotron during WW II

22
Vertical Focusing in the Cyclotron
People just got on with the job of building
them. Then one day someone was experimenting
The Figure shows the principle of vertical
focusing in a cyclotron In fact the shims did not
do what they had been expected to do
Nevertheless the cyclotron began to accelerate
much higher currents
E.Wilson Lectures 2001
23

• Cyclotron at CERN

24
Cyclotron at PSI

• Medical cyclotron for proton therapy at PSI
• 90 t and 3,2 m diameter
• Protons with 60 of speed of light
• Superconducting coils
• Work of Michigan State University, PSI and Accel
  Instruments GmbH

25
Early Synchrotrons

• Synchrotrons
• RF frequency is changed
• Magnetic field is ramped
• Energy is increased
• Early Synchrotrons with only weak focussing (see
  below)
• Large aperture magnets
• Avoid saturation
• Large vacuum chambers
• Cosmotron (BNL, 1953)
• 3 GeV
• 2000 tons mainly for the magnets
• 288 C-shaped

26
Bevatron (Berkeley, 1954)

• 6 GeV, 10000 tons

27
Synchrophasotron (Dubna, 1957)

• Effectively a synchrotron
• 10 GeV
• 36000 tons
• Vacuum tube 150 x 40 cm

28
Beam Optics and Focussing

• Particles with different initial conditions
  (position, angle) will depart from each other
• Assume a divergence between two particles of
  10-6 rad
• After 106 m they would have a distance of a meter
• E.g. LEP (circumference 26860 m) after 50 turns
  (5 ms)
• Compensate Gravity
• Need defined conditions at interaction point (IP)
• Small dimensios desirable for higher interaction
  rate (luminosity)
• Different energy particles should reamin together

29
Geometrical (Weak) Fokussing in Homogenous Dipole
Field
s

• Two particles with identical energy at the same
  position with slightly different angle will meet
  evry half turn
• Fokussing only perpendicular to magnetic field
• In the other direction there is no focussing and
  particles would diverge
• A focussing force is needed

30
Dispersion in Dipole field
Two particles with different energy and the same
momentum will come back to initial position after
each turn.
Nominal Orbit Momentum p0
B
Dispersion orbit with momentum p1
31
Strong Focussing

• 1950 Christophilos
• 1952 Courant, Snyder, Livingston
• Alternate magnet types e.g combined function
  magnets
• Provide focussing
• Smaller vacuum chambers (e.g. compare Cossmotron
  with AGS)

From M.C. Crowley-Milling Rep. Prog. Phys
46,1983, 51ff.
32
Early Strong Focusing Synchrotrons

• PS (CERN)
• 1959
• 25 GeV
• AGS (BNL)
• 1960
• 33 GeV
• 4000 tons

33
Magnet Types

• Today accelerators mainly use seperated function
  magnets
• Dipole magnet constant Field in Aperture
• Quadrupole magnet Zero Field in center , linear
  increase
• Lense like in light optics
• Sextupole magnet - Zero Field in center ,
  quadratic increase
• Chromaticity correction
• Off-energy particles

34
Dipole magnet
Iron Yoke
Coil
N
N
Parallele poles
Bz
S
S
Vacuum- chamber
z
Coils
Iron yoke
z
N
S
Quadrupole magnet
N
S
x
x
S
N
S
N
Hyperbolic Pole shoes
Vacuum- chamber
35
Real Life Dipole magnet and Quadrupole magnet
36
Magnet for SNS

• Beams eye view of an SNS half cell.
• From front to back
• corrector,
• quad polefaces,
• sextupole faces
• the dipole

37
Summary of History Part

• Several accelerator types were developed in the
  third decade of the last century
• Other applications like medicine were also
  considered, but were of minor importance in the
  early years
• Driving force was primarily nuclear physics
• Particle accelerators are an excellent example
  for Big Science
• The main type of accelerator used today are
  Radiofrequency Accelerators with bunched beams
• Especially as power sources are readily available
• e.g Klystrons from radar or TV applications
• Several important principles known until mid of
  last century
• E.g. Strong focussing in modern synchrotrons
• Most of the building blocks of modern
  accelerators have been described
• But of course there is more (not in this
  lecture..)
• Space-charge
• Collective effects
• Beam-beam effects
• ..
• In the next lecture, we look at how people to put
  these pieces together
• Accelerator concepts

38
(No Transcript)
